ESP32-S3 T-Dongle-S3 Development Board 0.96inch Screen ST7735 LCD Display Support WiFi TF Card For LILYGO

【Overview】

[] ESP32-S3 Development Board T-Dongle-S3 0.96inch display screen ST7735 LCD Display Support WiFi Bluetooth

【Product Features】

[] MCU: ESP32-S3 Xtensa LX7 microprocessor

[] Wireless Connectivity: Wi-Fi 802.11 b/g/n, bluetooth5

[] Platform: Arduino-ide、PlatformlO-ide、 Micropython

[] Onboard functions: 16M Flash, Boot button

[] Built-in Wi-Fi, Bluetooth highly sensitive ceramic antenna

[] 0.96inch ST7735 IPS LCD:

[] Resolution: 80 x 160, 0.96inch IPS LCD

[] Full color (65k) Display, Drive IC: ST7735 LCD

[] 4-Wire SPI interface, Working Power Supply: 3.3V

【Version option】

【Introduction resources】

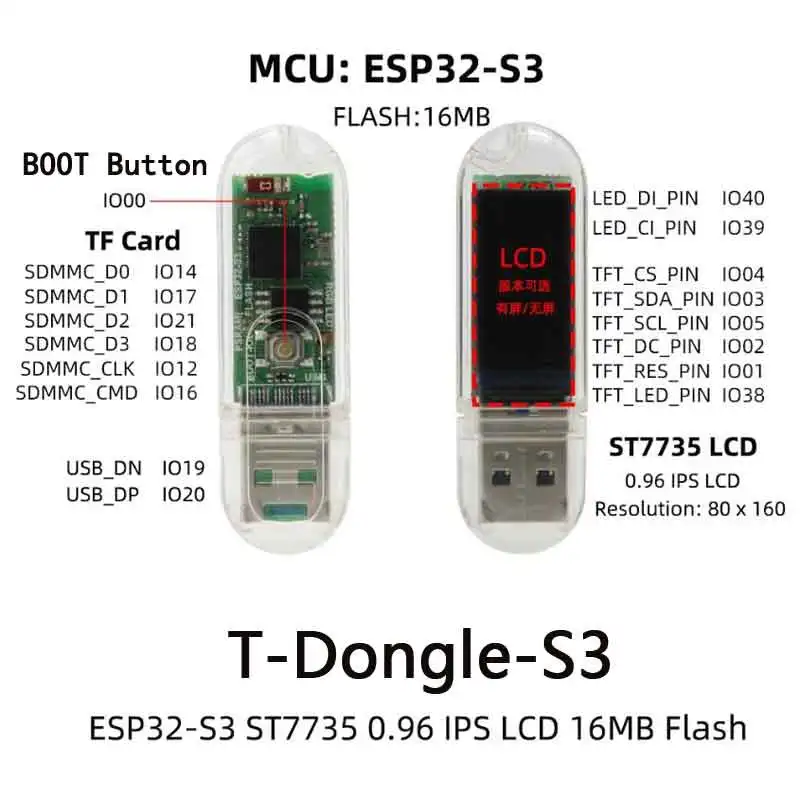

【Pin Definition】

【Outline Dimensions】

【Video】

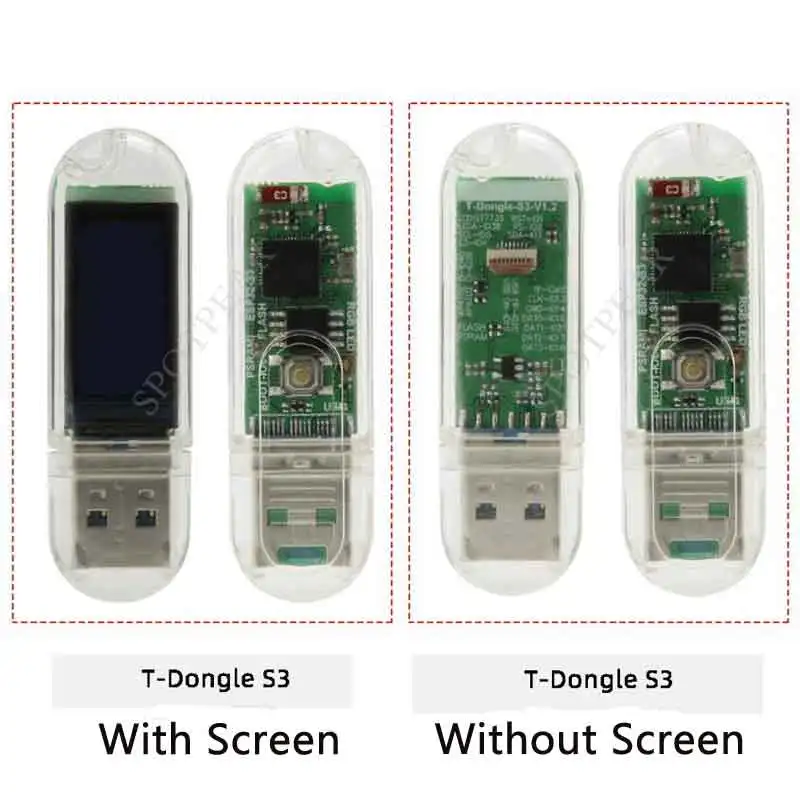

[] T-Dongle S3

1. T-Dongle S3（Without LCD Version）x1

[] T-Dongle S3-0.96inch LCD

1. T-Dongle S3（With LCD Version）x1
