XIAO ESP32C6 Tiny SuperMini Board Wi-Fi and Bluetooth5.0 For Arduino For SeeedStudio ESP32 C6

【XIAO Recommend】

【Product Introduction】

[] XIAO ESP32C6 is Matter native thanks to its enhanced wireless connectivity. The wireless stack supports 2.4 GHz WiFi 6, Bluetooth® 5.3, Zigbee, and Thread (802.15.4). As the first XIAO member compatible with Thread, it's a perfect fit for building Matter-compliant projects, thus achieving interoperability in smart-home.

【Product Details】

[] Seeed Studio XIAO ESP32C6 is powered by the highly-integrated ESP32-C6 SoC, built on two 32-bit RISC-V processors, with a high-performance (HP) processor with running up to 160 MHz, and a low-power (LP) 32-bit RISC-V processor, which can be clocked up to 20 MHz. There are 512KB SRAM and 4 MB Flash on the chip, allowing for more programming space, and bringing more possibilities to the IoT control scenarios.

[] To better support your IoT projects, XIAO ESP32C6 not only provides seamless integration with mainstream cloud platforms like ESP Rain Maker, AWS IoT, Microsoft Azure, and Google Cloud, but also leverages security for your IoT applications. With its on-chip secure boot, flash encryption, identity protection, and Trusted Execution Environment (TEE), this tiny board ensures the desired level of security for developers looking to build smart, secure, and connected solutions.

[] This new XIAO is equipped with a high-performance onboard ceramic antenna with up to 80m BLE/Wi-Fi range, while it also reserves an interface for an external UFL antenna. At the same time, it also comes with an optimized power consumption management. Featuring four power modes and an onboard lithium battery charging management circuit, it works in the Deep Sleep mode with a current as low as 15 µA, making it an excellent fit for remote, battery-powered applications.

【Product Feature】

[] Enhanced Connectivity: Combines 2.4GHz Wi-Fi 6 (802.11ax), Bluetooth 5(LE), and IEEE 802.15.4 radio connectivity, allowing you to apply the Thread and Zigbee protocols.

[] Matter Native: Supports building Matter-compliant smart home projects thanks to its enhanced connectivity, achieving interoperability

[] Security Encrypted on Chip: Powered by ESP32-C6, it brings enhanced encrypted-on-chip security to your smart home projects via secure boot, encryption, and Trusted Execution Environment (TEE)

[] Outstanding RF performance: Has an on-board antenna with up to 80m BLE/Wi-Fi range, while reserving an interface for external UFL antenna

[] Leveraging Power Consumption: Comes with 4 working modes, with the lowest being 15 μA in deep sleep mode, while also supporting lithium battery charge management.

[] Dual RISC-V Processors: Incorporates two 32-bit RISC-V processors, with the high-performance processor running up to 160 MHz, and the low-power processor clocking up to 20

[] Classic XIAODesigns: Remains the classic XIAO designs of the thumb-size form factor of 21 x 17.5mm, and single-sided mount, making it perfect for space-limited projects such as wearables

【Specification Comparison】

Product	XIAO ESP32C6	XIAO ESP32C3	XIAO ESP32S3
Processor	Espressif ESP32-C6 SoC	Espressif ESP32-C3 SoC	Espressif ESP32-S3R8
	two 32-bit RISC-V processors, with the high-performance one running up to 160 MHz, and the low-power one clocking up to 20 MHz	RISC-V single-core 32-bit chip processor with a four-stage pipeline that operates at up to 160 MHz	Xtensa LX7 dual-core, 32-bit processor running up to 240 MHz
Wireless	Complete 2.4GHz Wi-Fi 6 subsystem	Complete 2.4GHz Wi-Fi subsystem	Complete 2.4GHz Wi-Fi subsystem
	BLE: Bluetooth 5.0, Bluetooth mesh	BLE: Bluetooth 5.0, Bluetooth mesh	BLE: Bluetooth 5.0, Bluetooth mesh
	Zigbee,Thread,IEEE 802.15.4	/	/
On-chip Memory	512KB SRAM & 4MB Flash	400KB SRAM & 4MB Flash	8M PSRAM & 8MB Flash
Interface	1x UART,1x LP_UART, 1x IIC, 1x LP_IIC, 1x SPI,11x GPIO(PWM), 7x ADC, 1xSDIO	1x UART, 1x IIC, 1x SPI,11x GPIO(PWM), 4x ADC	1x UART, 1x IIC, 1x IIS, 1x SPI,11x GPIO(PWM), 9x ADC, 1x User LED, 1x Charge LED
	1x Reset button, 1x Boot button	1x Reset button, 1x Boot button	1x Reset button, 1x Boot button
Dimensions	21 x 17.5mm	21 x 17.5mm	21 x 17.5mm
Power	Input voltage (Type-C): 5V Input voltage (BAT): 4.2V	Input voltage (Type-C): 5V Input voltage (BAT): 4.2V	Input voltage (Type-C): 5V Input voltage (BAT): 4.2V
	Circuit operating Voltage (ready to operate): – USB:5V@9mA – BAT:3.8V@9mA	Circuit operating Voltage (ready to operate): – USB:5V@9mA – BAT:3.8V@9mA	Circuit operating Voltage (ready to operate): – Type-C: 5V@19mA – BAT: 3.8V@22mA
	Charging battery current: 100mA	Charging battery current: 350mA	Charging battery current: 100mA
Power Consumption Model (Supply Power: 3.8V)	Modem-sleep Model: ~ 30 mA Light-sleep Model: ~ 2.5 mA Deep Sleep Model: ~15 μA	Modem-sleep Model: ~ 24 mA Light-sleep Model: ~ 3 mA Deep Sleep Model: ~44 μA	Modem-sleep Model: ~ 25 mA Light-sleep Model: ~ 2mA Deep Sleep Model: ~ 14 μA
Working Temperature	-40°C ~ 85°C	-40°C ~ 85°C	-40°C ~ 65°C

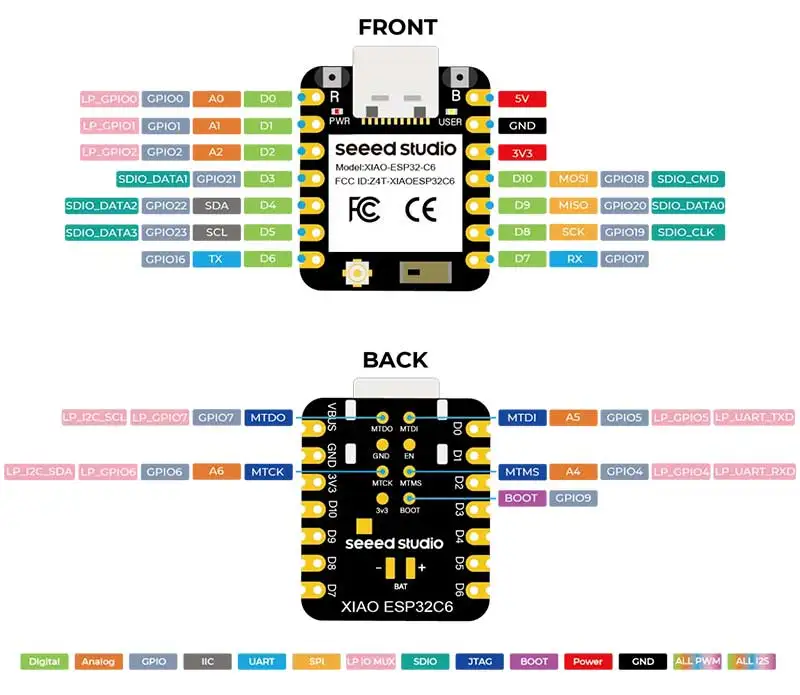

【Hardware Overview】

XIAO series project display

[] XIAO-ESP32C6 ×1

[] XIAO-ESP32C6-Solder ×1
