RP2040-Zero Board USB-C connector Dual-core Arm Cortex M0+ processor 2MB Flash For Raspberry Pi Microcontroller PICO

【Overview】

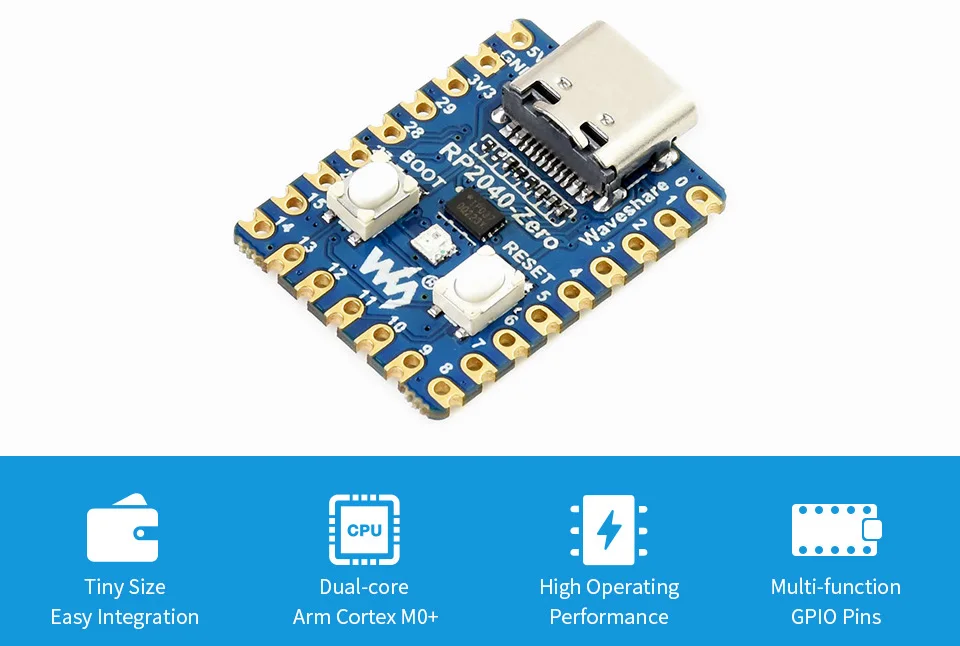

[] RP2040-Zero, A Low-Cost, High-Performance Pico-Like MCU Board Based On Raspberry Pi Microcontroller RP2040

【Board Specifications】

[] RP2040 microcontroller chip designed by Raspberry Pi in the United Kingdom

[] Dual-core Arm Cortex M0+ processor, flexible clock running up to 133 MHz

[] 264KB of SRAM, and 2MB of on-board Flash memory

[] USB-C connector, keeps it up to date, easier to use

[] Castellated module allows soldering direct to carrier boards

[] USB 1.1 with device and host support

[] Low-power sleep and dormant modes

[] Drag-and-drop programming using mass storage over USB

[] 29 × multi-function GPIO pins (20× via edge pinout, others via solder points)

[] 2 × SPI, 2 × I2C, 2 × UART, 4 × 12-bit ADC, 16 × controllable PWM channels

[] Accurate clock and timer on-chip

[] Temperature sensor

[] Accelerated floating-point libraries on-chip

[] 8 × Programmable I/O (PIO) state machines for custom peripheral support

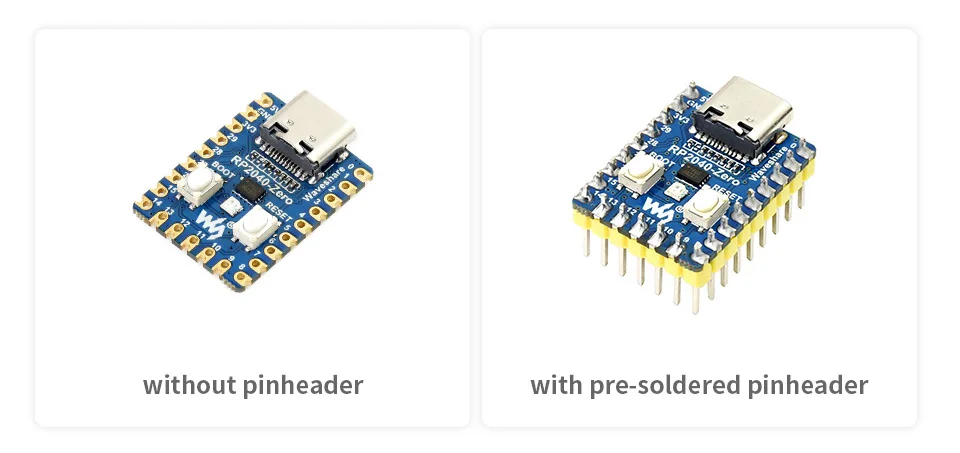

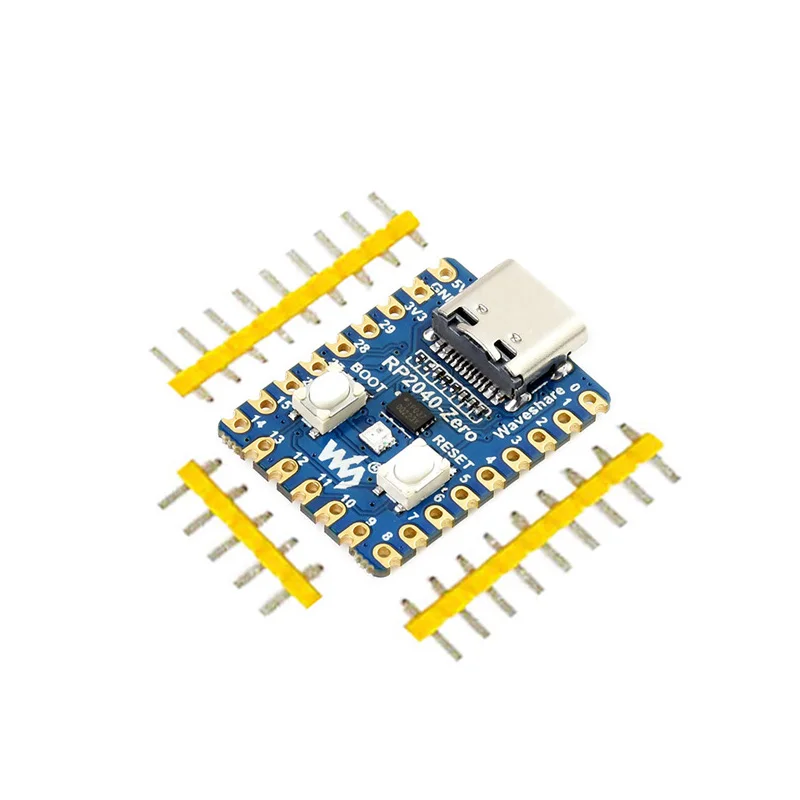

【Pinheader Options】

【C/C++, MicroPython Support】

[] Comprehensive SDK, Dev Resources, Tutorials To Help You Easily Get Started

【Dual-Core Arm Processor】

[] Dual-Core Arm Cortex M0+ Processor, Flexible Clock Running Up To 133 MHz

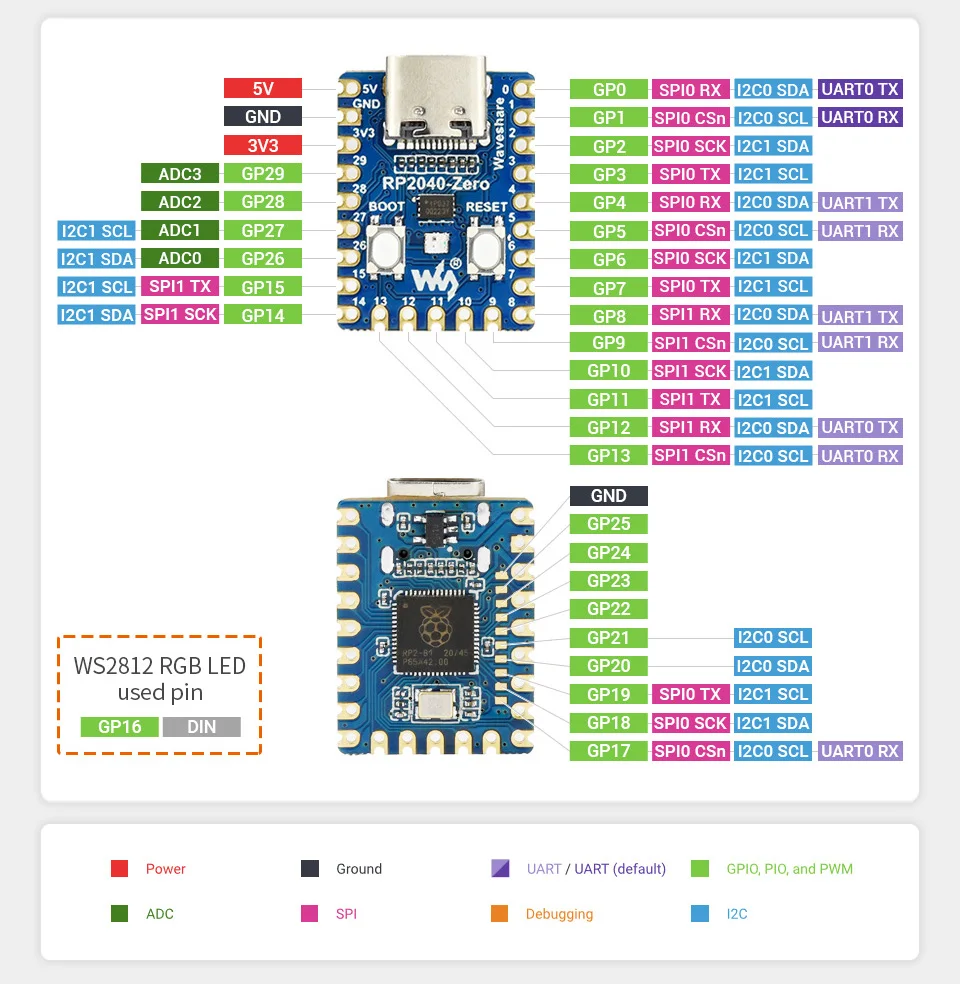

【29 × Multi-Function GPIO Pins】

[] Configurable Pin Function, Allows Flexible Development And Integration

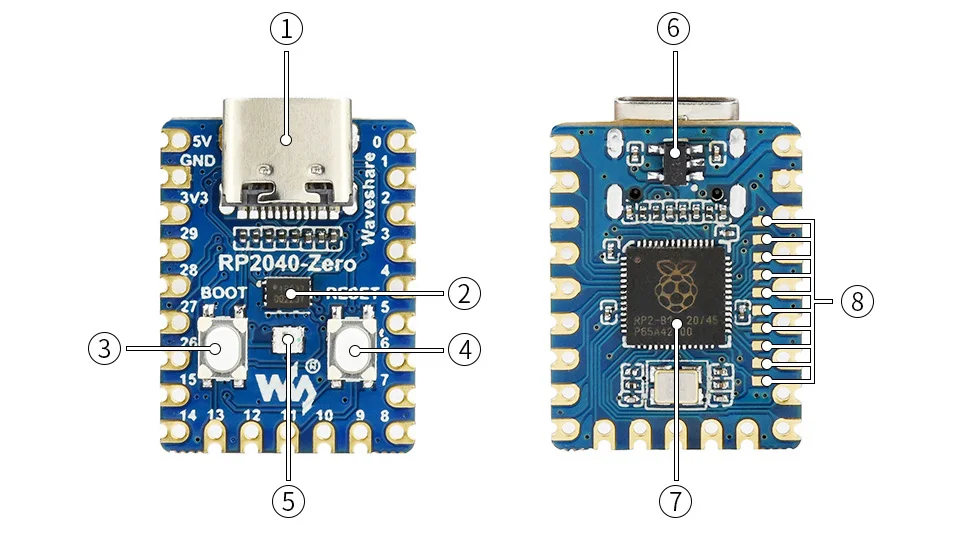

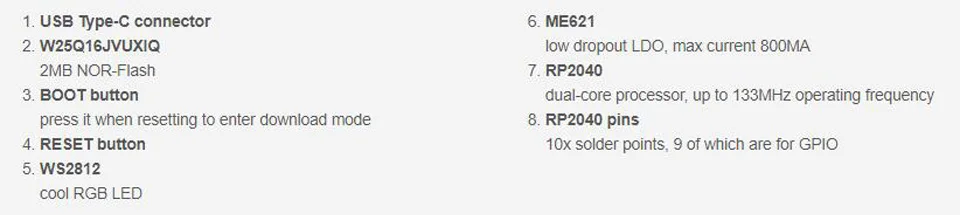

【What's On Board】

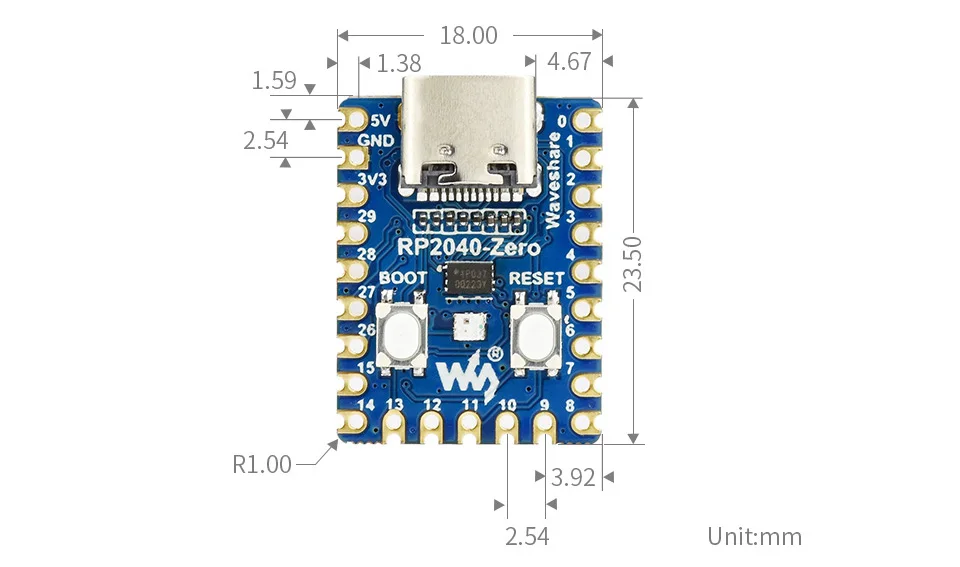

【Outline Dimensions】

[] RP2040-Zero x1

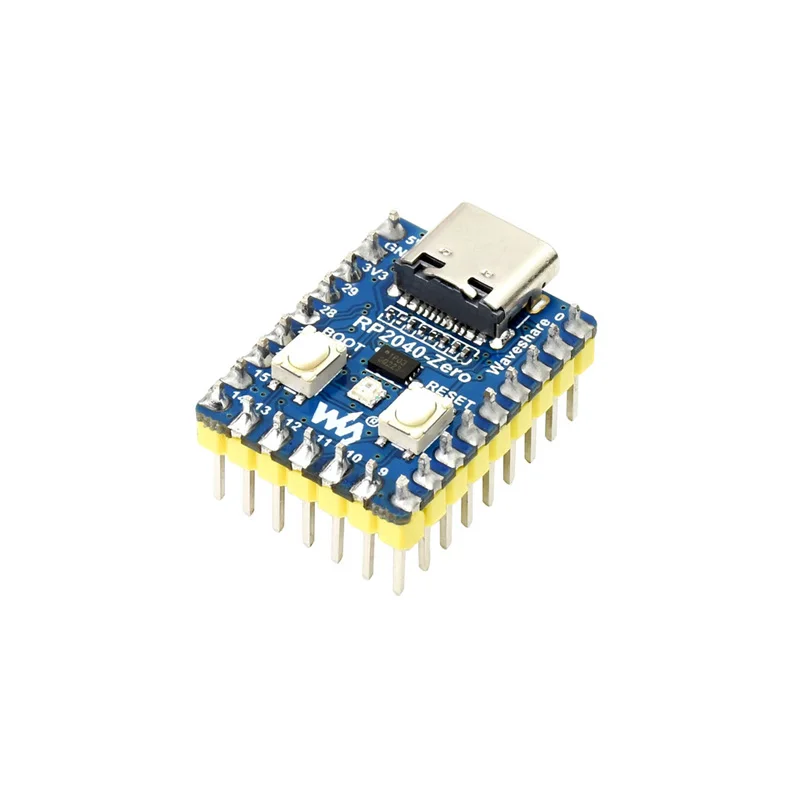

[] RP2040-Zero-Soldered x1
