Raspberry Pi 5 PCIe FFC Connector to Standard PCIe x1 Slot (C) Expansion Board
Raspberry Pi 5 PCIe FFC Connector to Standard PCIe x1 Slot (C) Expansion Board - Image 2
Raspberry Pi 5 PCIe FFC Connector to Standard PCIe x1 Slot (C) Expansion Board - Image 3
Raspberry Pi 5 PCIe FFC Connector to Standard PCIe x1 Slot (C) Expansion Board - Image 4
Raspberry Pi 5 PCIe FFC Connector to Standard PCIe x1 Slot (C) Expansion Board - Image 5
Raspberry Pi 5 PCIe FFC Connector to Standard PCIe x1 Slot (C) Expansion Board - Image 6

Raspberry Pi 5 PCIe FFC Connector to Standard PCIe x1 Slot (C) Expansion Board

Availability:

10 in stock
Compare

$19.83

  • Hign-concerned Chemical: None
  • Model Number: PCIe TO PCIe x1 Board (C)
  • Brand Name: Waveshare

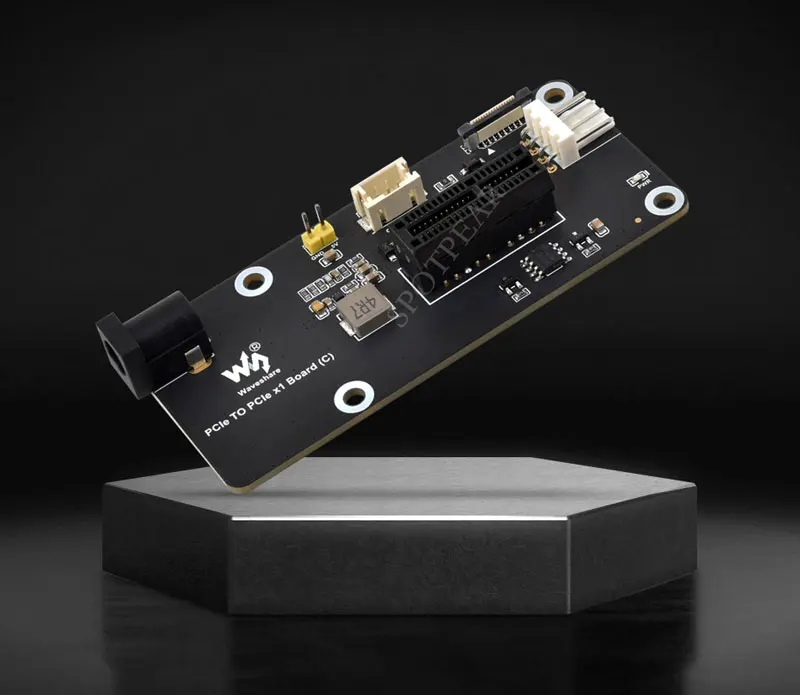

PCIe TO PCIe X1 Board (C)

Designed for Raspberry Pi 5

Compatible With PCIe X1, X4, X8, And X16 Interface Devices

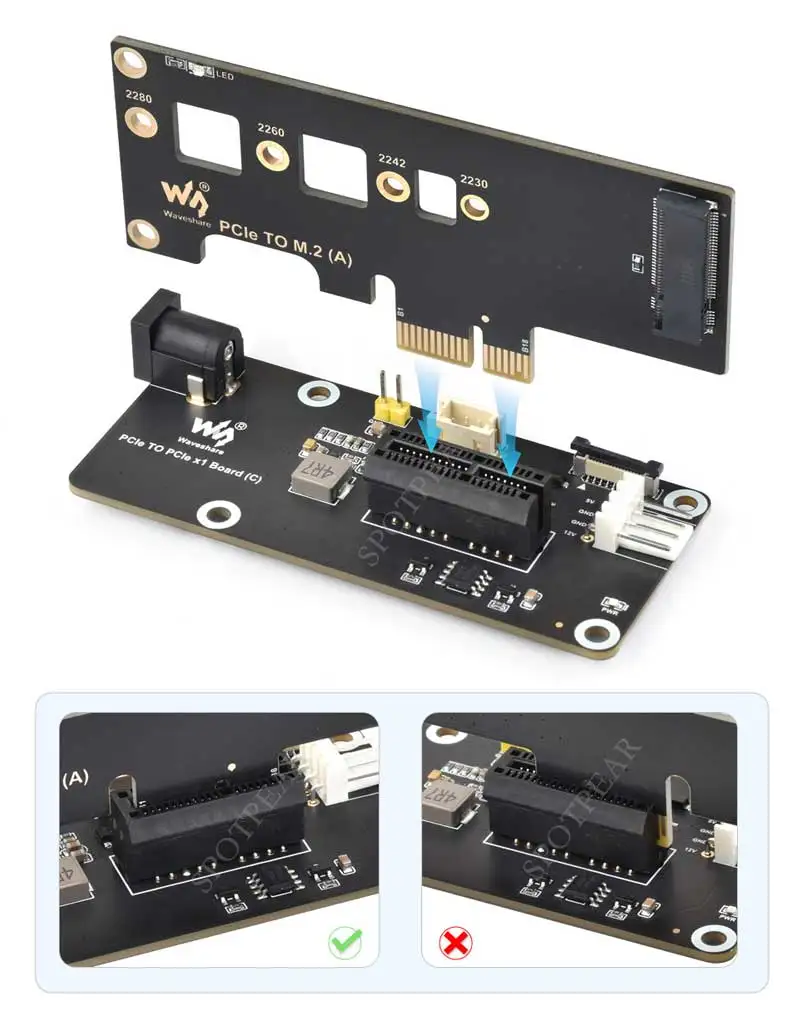

PCIe Connection

* Note: the PCIe slot can only be connected in one direction as in the picture above.
for reference only, please refer to the Package Content for detailed part list.

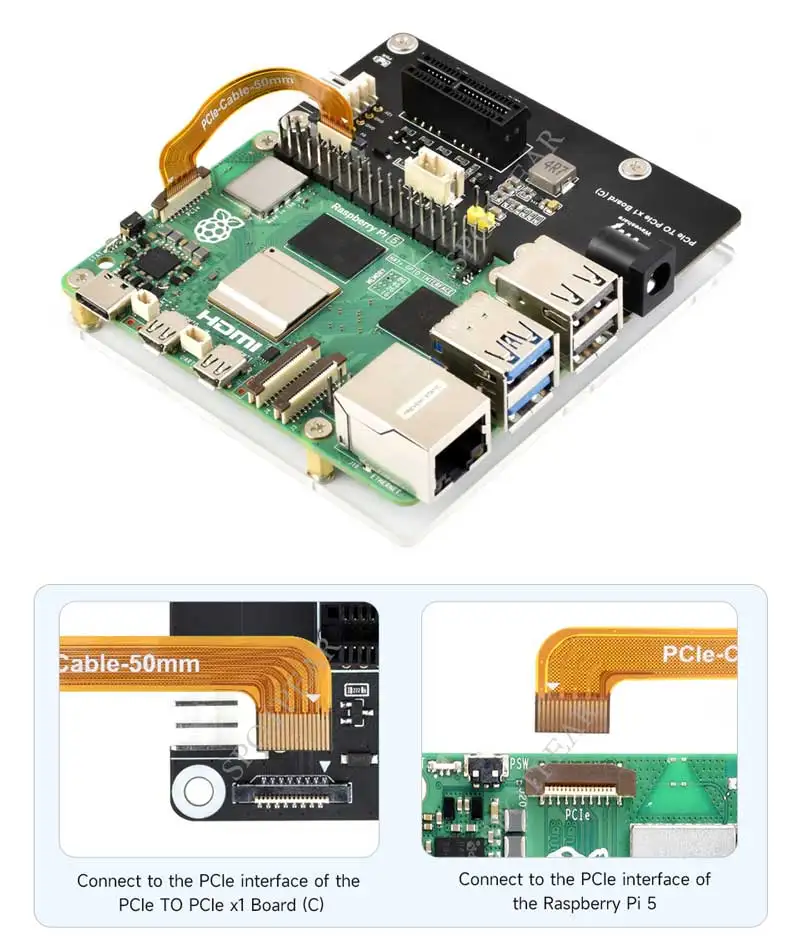

Connecting To PI5 Via 16PIN Cable

Based On 16PIN PCIe Interface Of Raspberry Pi 5

* for reference only, please refer to the Package Content for detailed part list

Applicable Interfaces

Onboard PCIe X1 Slot, With Opening For Connecting With PCIe X1 X4 X8 X16 Devices

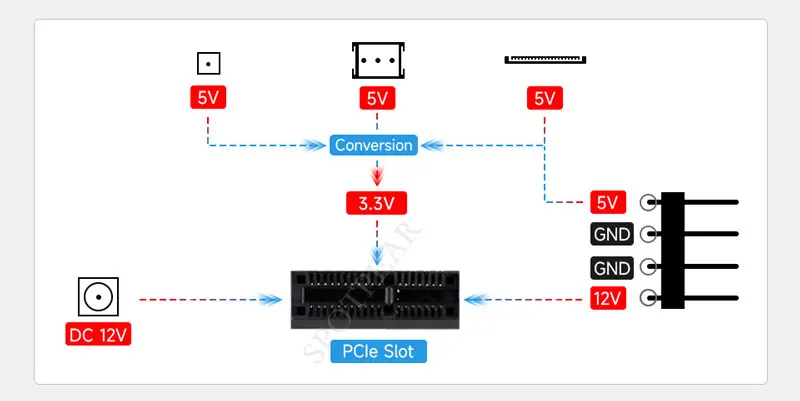

Power Supply Description

The 12V Header And DC Jack Only Supply Power To The 12V Pins Of The PCIe Slot And Do Not Provide Power To The 5V And 3.3V Pins

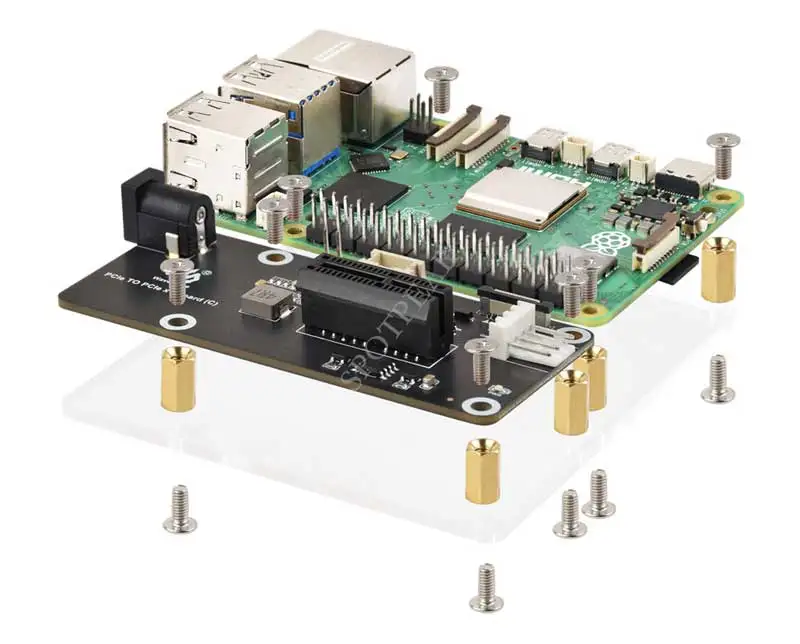

How To Install

* for reference only, please refer to the Package Content for detailed part list

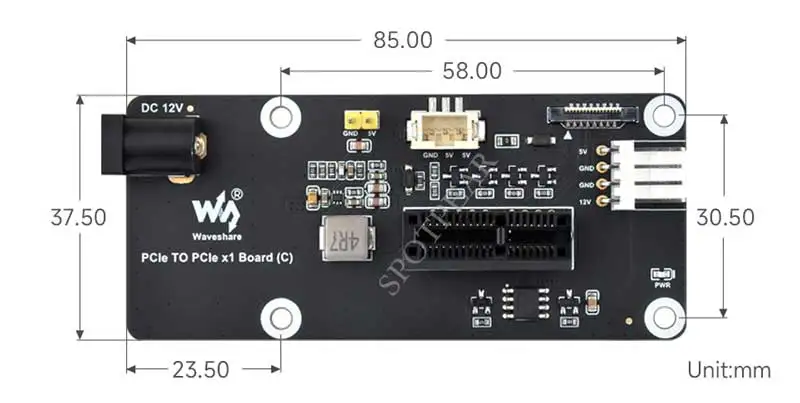

Outline Dimensions
Package Contains

[] PCIe TO PCIe x1 Board (C)
