1.69inch LCD Display Module SPI 240×280 Resolution IPS 262K Colors for Arduino / STM32 / Raspberry Pi

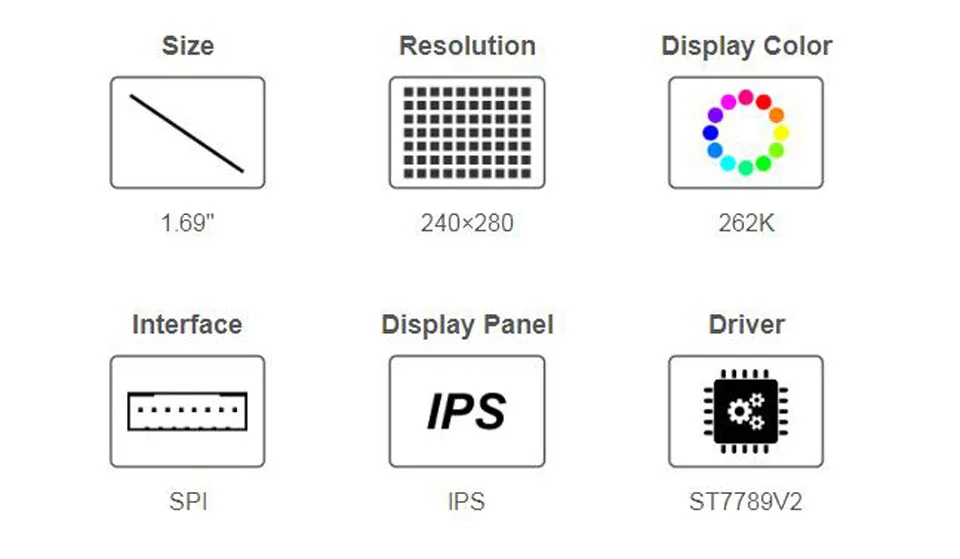

【Features At A Glance】

[] SPI interface, minimizes required IO pins, supports controller boards like Raspberry Pi/Arduino/STM32
[] Comes with online development resources (examples for Raspberry Pi/Arduino/STM32)

[] Communication interface: SPI
[] Display Panel: IPS
[] Control chip: ST7789V2
[] Resolution: 240 (H)RGB × 280(V)

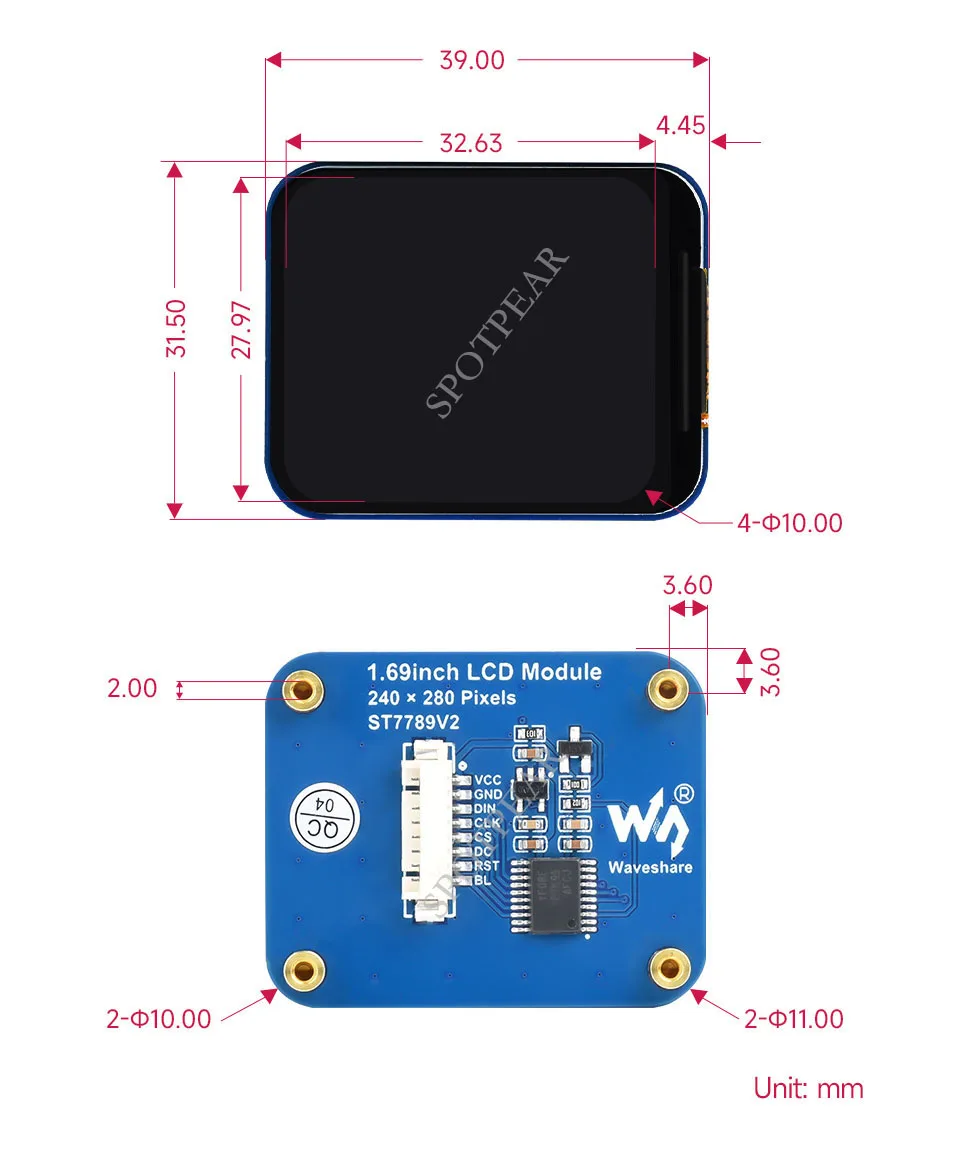

[] Display size: 27.972mm × 32.634mm
[] Display R angle: 4-R5 (mm)
[] Pixel pitch: 0.11655mm × 0.11655mm
[] Dimensions: 31.5mm × 39.0mm

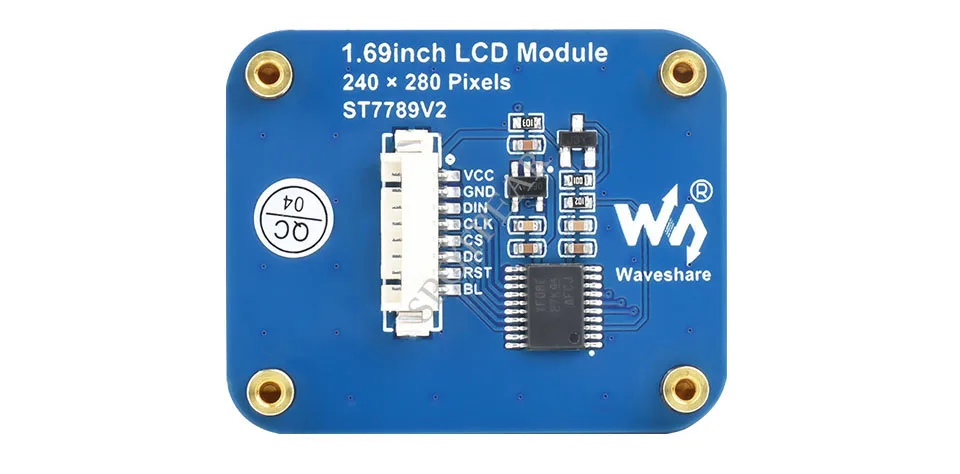

[] VCC : Power (3.3V / 5V input)
[] GND : Ground
[] DIN : SPI data input
[] CLK : SPI clock input
[] CS : Chip selection, low active
[] DC : Data/Command selection (high for data, low for command)
[] RST : Reset, low active
[] BL : Backlight

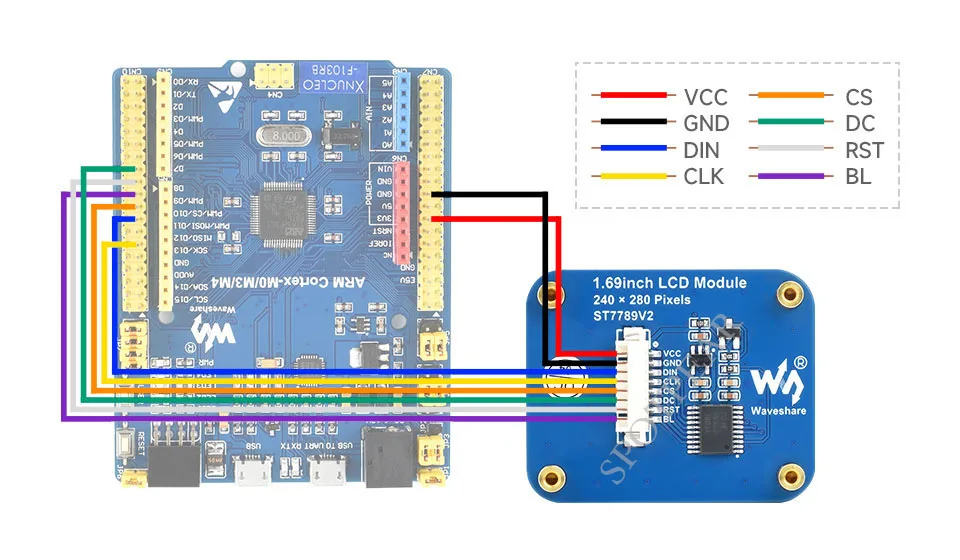

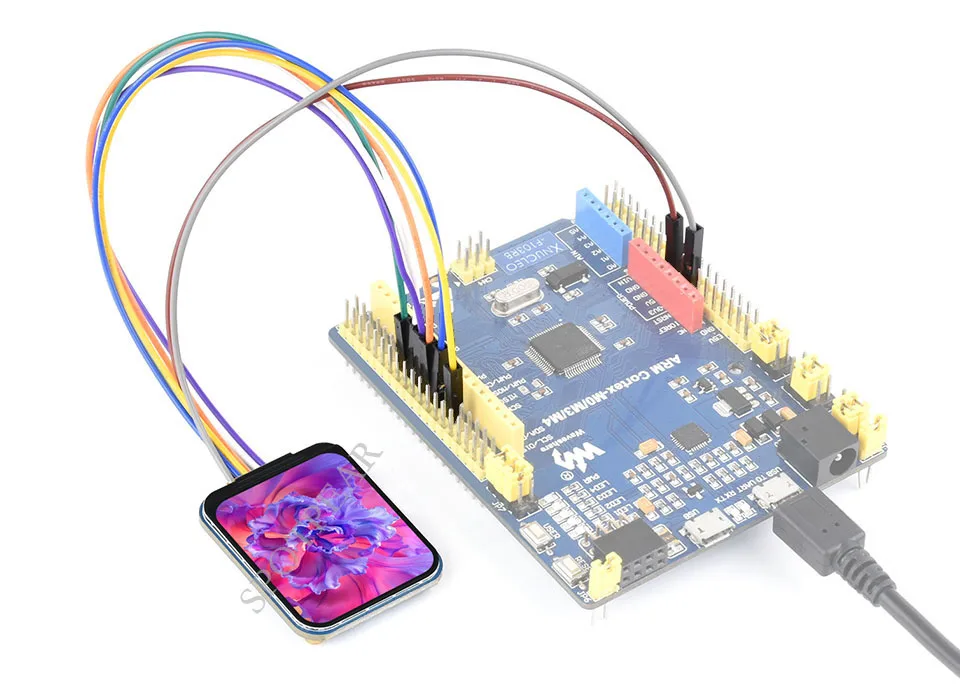

[] Connecting with STM32
