ESP32-S3 Microcontroller 2.4GHz Wi-Fi Development Board 240MHz Dual Core Processor ESP32-S3-WROOM-1-N8R8 Module

【Overview】
[] The ESP32-S3-DEV-KIT-N8R8 is a compact-size microcontroller development board with multiple digital interfaces.
[] Adopts ESP32-S3-WROOM-1-N8R8 module, which is equipped with a dual-core Xtensa 32-bit LX7 processor with 240MHz running frequency, built-in 512 KB SRAM (TCM) and 8MB PSRAM; Onboard CH343 and CH334 chips for USB and UART development via USB-C port. Compatible with the pinout of ESP32-S3-DevKitC-1 development board, more convenient to use and expand a variety of peripheral modules.
[] You can choose ESP-IDF, Arduino, MicroPython, or other development environments in software so that you can easily and quickly get started and apply it to the product.

【Features】

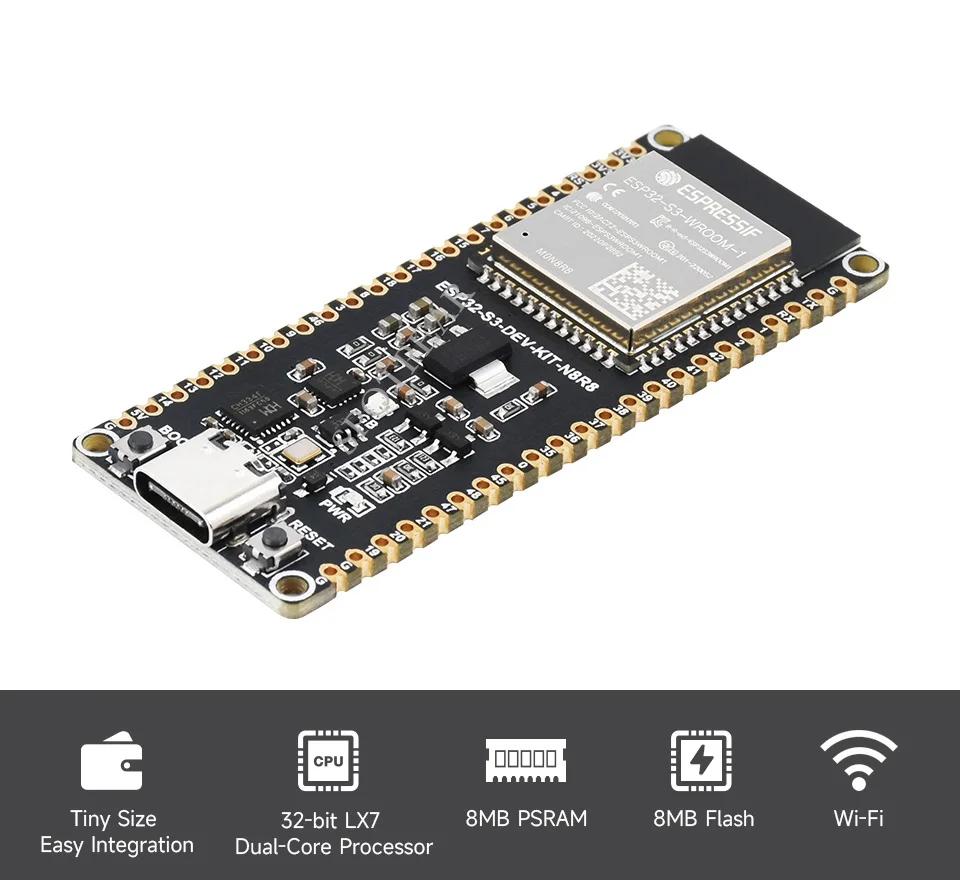

[] Adopts ESP32-S3-WROOM-1-N8R8 module with Xtensa 32-bit LX7 dual-core processor, capable of running at 240 MHz
[] Integrated 512KB SRAM, 384KB ROM, 8MB PSRAM, 8MB Flash memory
[] Integrated 2.4GHz Wi-Fi and Bluetooth LE dual-mode wireless communication, with superior RF performance.
[] Type-C connector, easier to use
[] Onboard CH343 and CH334 chips can meet the needs of USB and UART development via a Type-C interface
[] Rich peripheral interfaces, compatible with the pinout of ESP32-S3-DevKitC-1 development board, offers strong compatibility and expandability
[] Castellated module allows soldering directly to carrier boards
[] Supports multiple low-power operating states, adjustable balance between communication distance, data rate and power consumption to meet the power requirements of various application scenarios

【Supports ESP-IDF, Arduino, MicroPython】
[] Comprehensive SDK, Dev Resources, And Tutorials To Help You Easily Get Started

【ESP32-S3 Designed For AIoT Applications】
[] Powered By Xtensa 32-Bit LX7 Dual-Core Processor With Frequency Up To 240 MHz
[] Powerful AI Computing Capability & Reliable Security Features

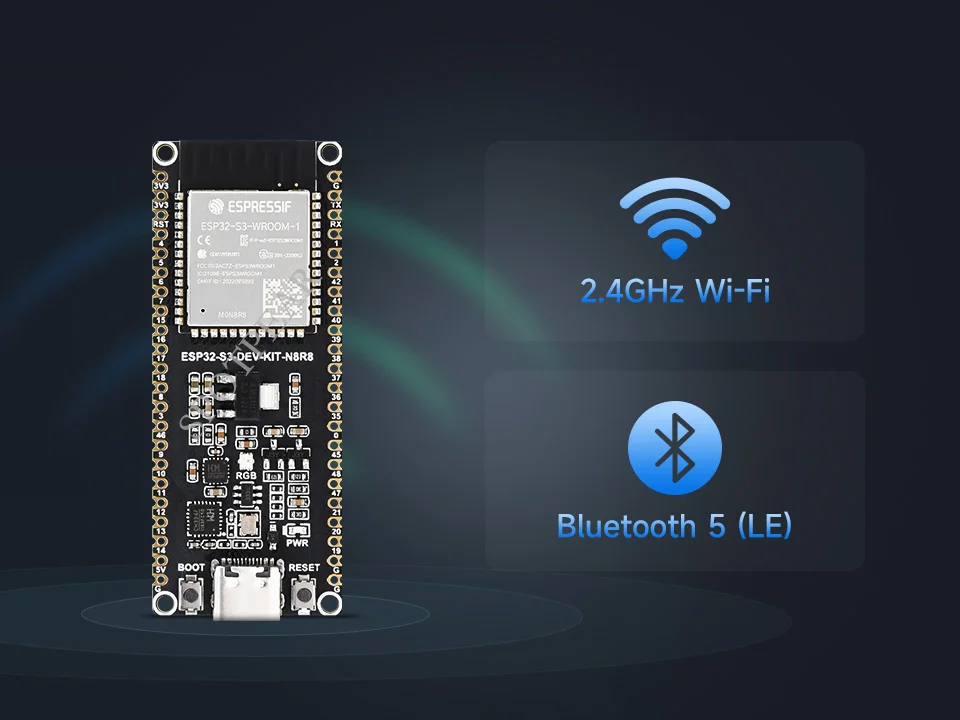

【WIFI And BLE 5 Support】
[] ESP32-S3 Integrates 2.4 GHz Wi-Fi (802.11 B/G/N) With 40 MHz Of Bandwidth Support
[] Its Bluetooth Low Energy Subsystem Supports Bluetooth 5 (LE) And Bluetooth Mesh

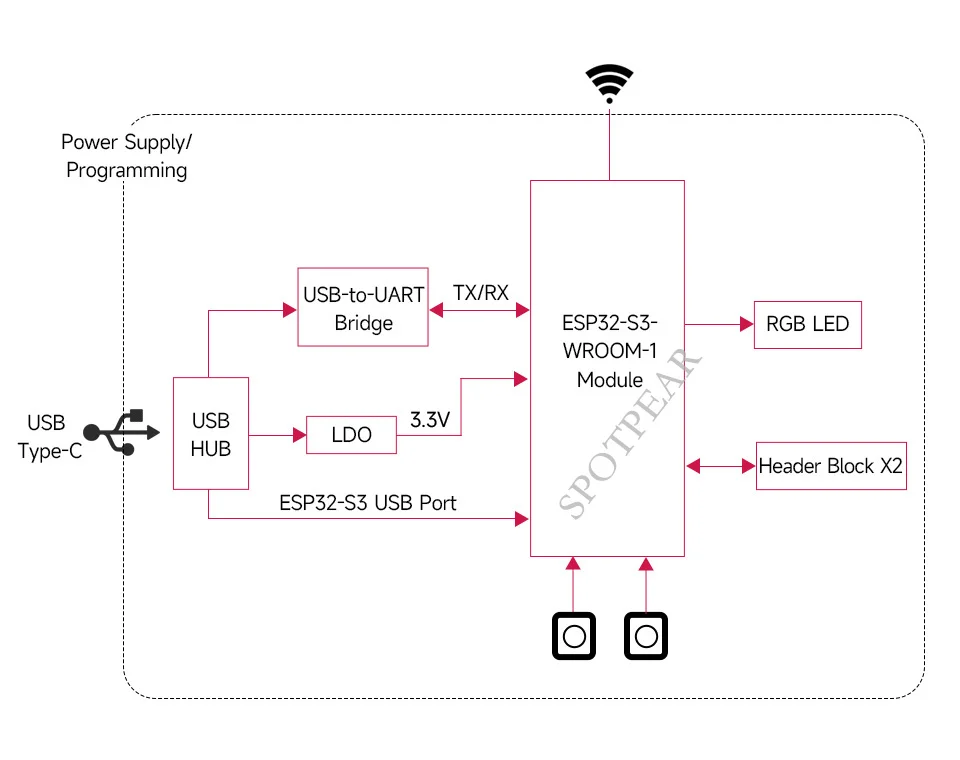

【Function Block Diagram】

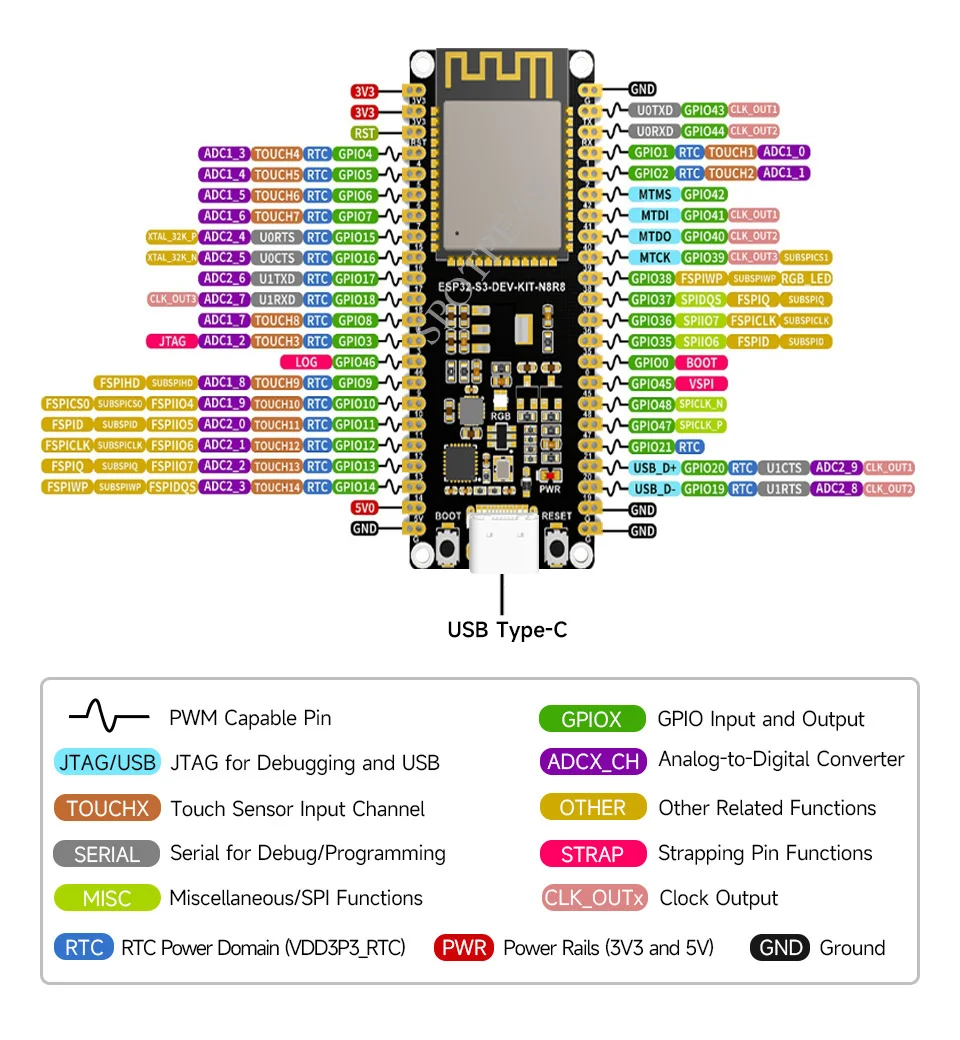

【Pinout Definition】
[] Compatible With The Pinout Of ESP32-S3-DevKitC-1 Development Board

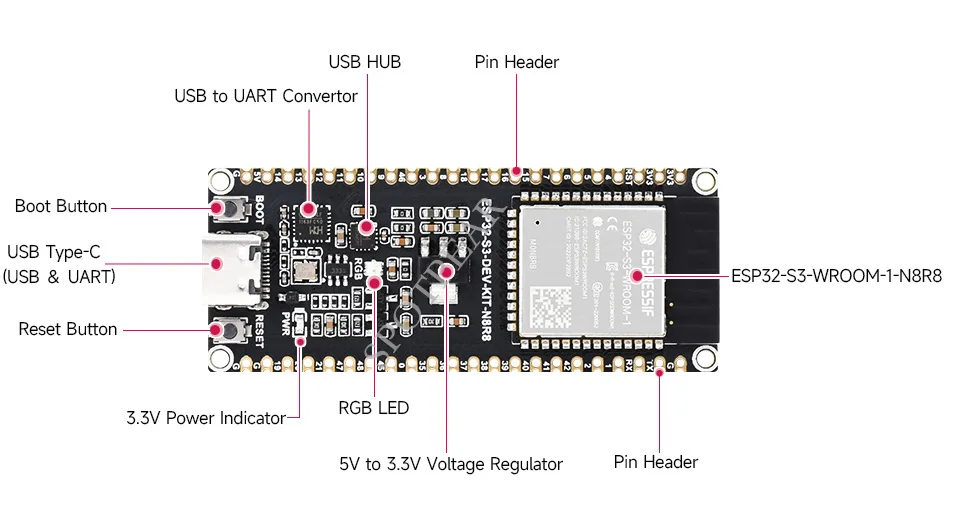

【Onboard Resources】

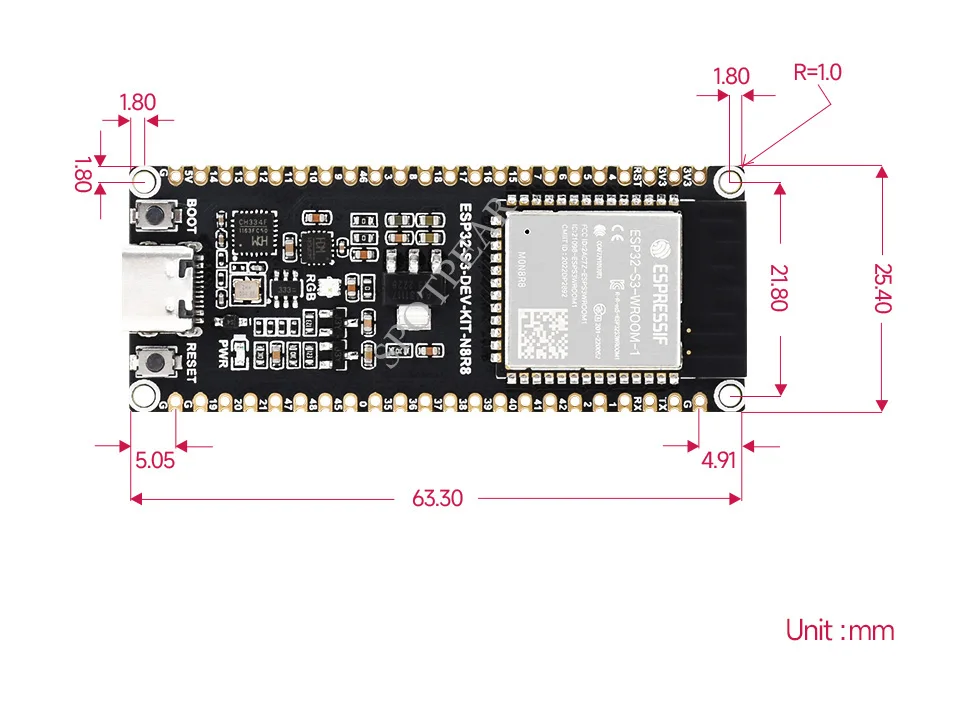

【Outline Dimensions】

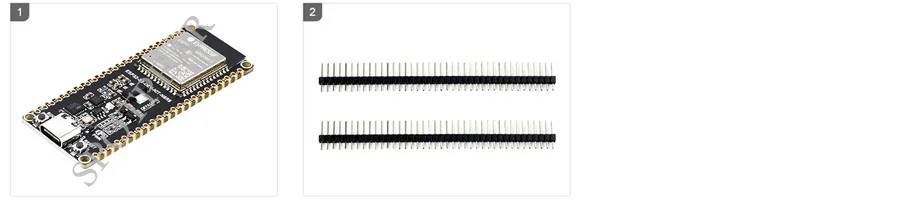

Package Contains

 ESP32-S3-DEV-KIT-N8R8

1. ESP32-S3-DEV-KIT-N8R8 x1

2. 40PIN male pinheader(black) x2

 ESP32-S3-DEV-KIT-N8R8-M

1. ESP32-S3-DEV-KIT-N8R8 with pre-soldered header x1
