Raspberry Pi Zero Series Ethernet / USB HUB BOX ETH/USB HUB HAT (B) 1x RJ45, 3x USB 2.0

Availability:

26 in stock


$15.02$18.36

  • Demo Board Type: ARM
  • Brand Name: Waveshare
  • Origin: Mainland China
  • Certification: CE

Do not include Raspberry Pi Zero

Ethernet / USB HUB BOX  For Zero
Dull polish surface, well designed, nice & dust-proof

1x RJ45 Ethernet Port | 3x USB 2.0 Ports

Features At A Glance

TheETH-USB-HUB-BOXis a HUB kit withETH/USB HUB HAT (B)inside. It is tailored forRaspberry Pi Zero series, small in size, each cut-out of the case is exactly aligned with the connector. The case adopts classic Raspberry Pi red/white color combination, with quality dull polish surface, effectively keeping the Zero away from dust. This HUB BOX will provide RJ45 Ethernet port and more USB capability for your Zero, make it easy to connect the Internet and sorts of USB devices.

  • Designed for Raspberry Pi Zero, compatible with Zero series boards

  • 3x extended USB ports, compatible with USB 2.0 / 1.1

  • Incorporates RTL8152B Ethernet chip, supports 1x RJ45 Ethernet port, 10/100M auto-negotiation

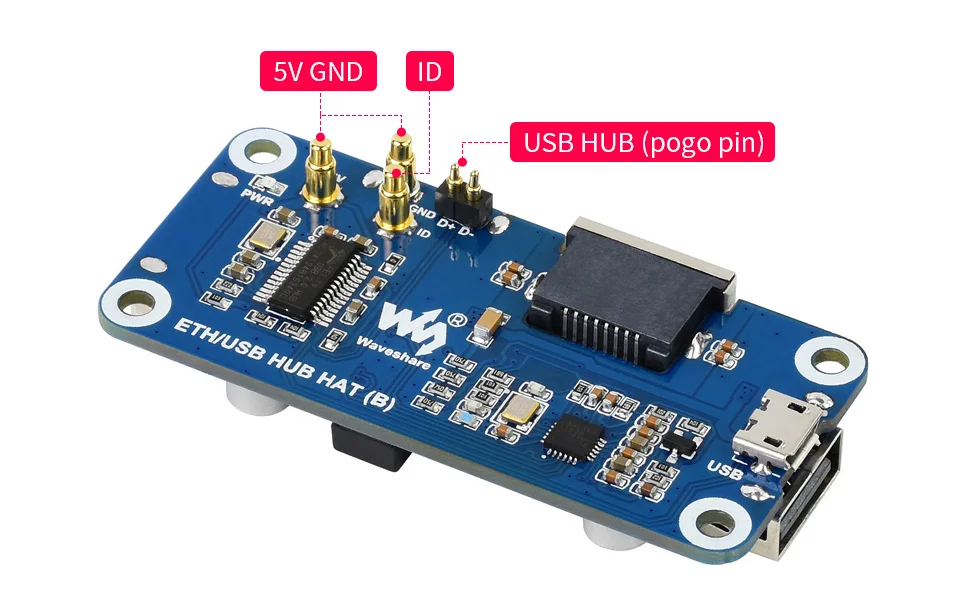

  • Pogo pin design, for direct connecting with Raspberry Pi Zero/Zero W/Zero WH

  • Angle rounded design, smooth hand feeling, "simple snap" case lid

  • Quality ABS material, dull polish surface, anti-fingerprint

  • Comes with two different lids, changing as you like

Compatible With Raspberry Pi Series

Specialized Pogo Pin Connection, Dedicated Cut-Outs For Zero Series, Plug-And-Play

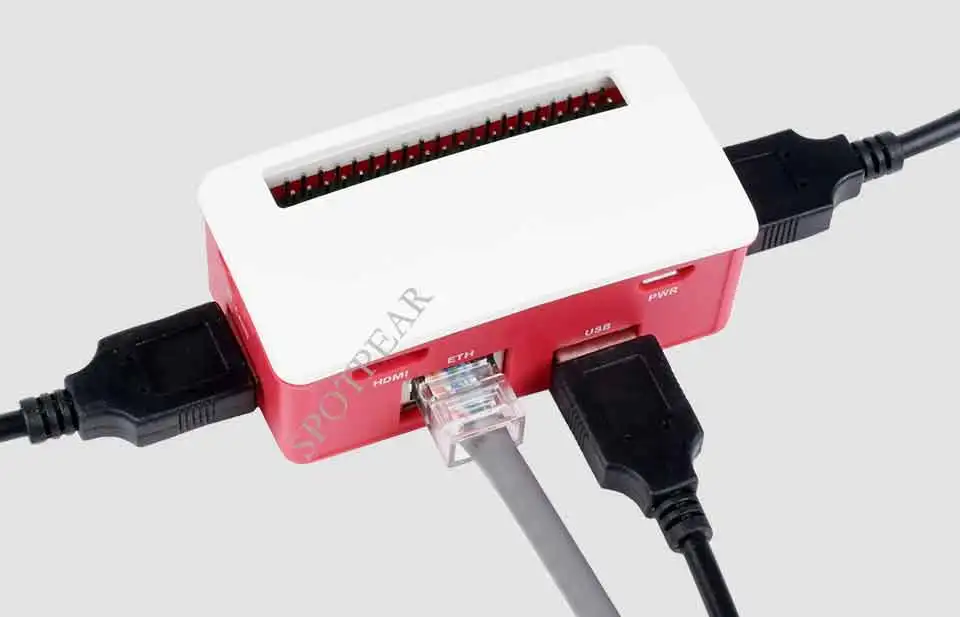

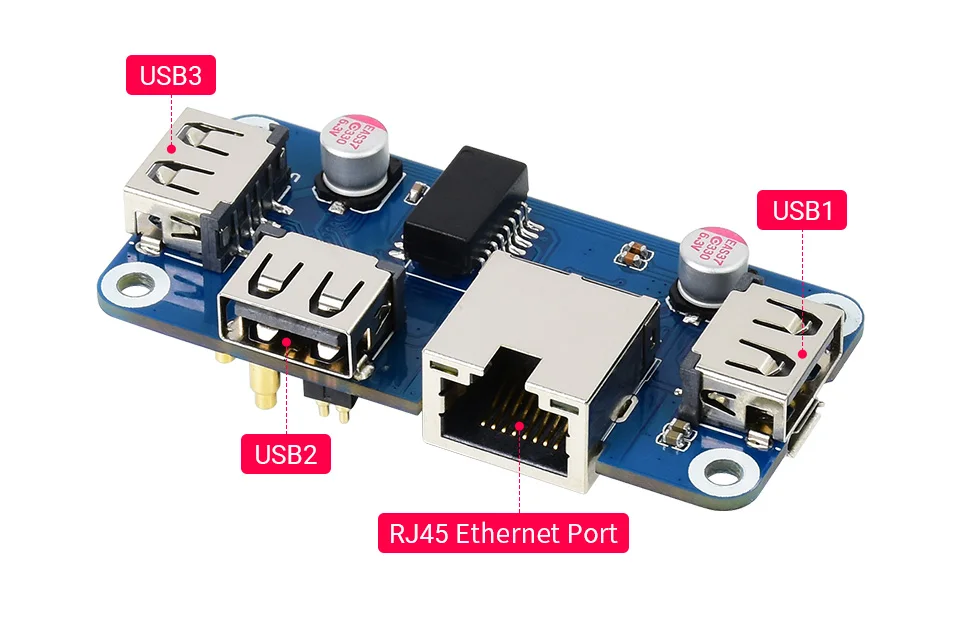

Extended Ports

1x RJ45 Ethernet Port, 10/100M Auto-Negotiation
3x USB 2.0 Ports, Compatible With USB 2.0 / 1.1

Two Different Lids, Changing As You Like

"Simple Snap" Design, Easy To Change, Allows Attaching Other Zero HATs

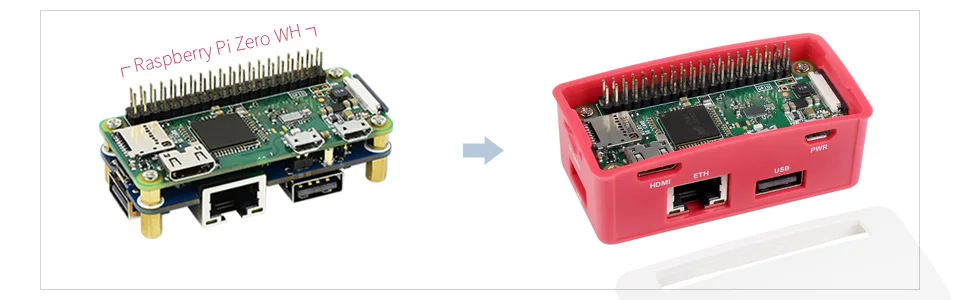

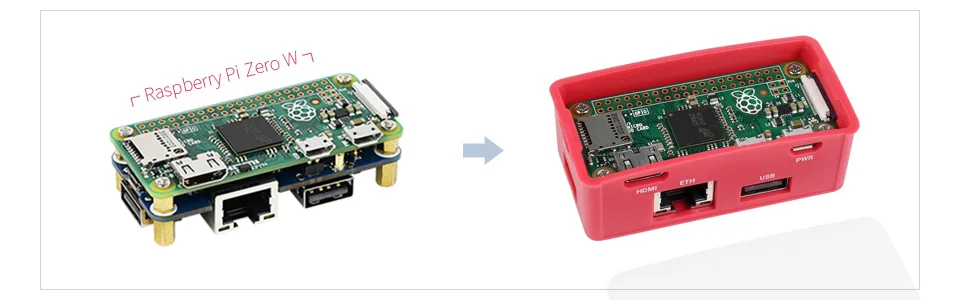

Application Example

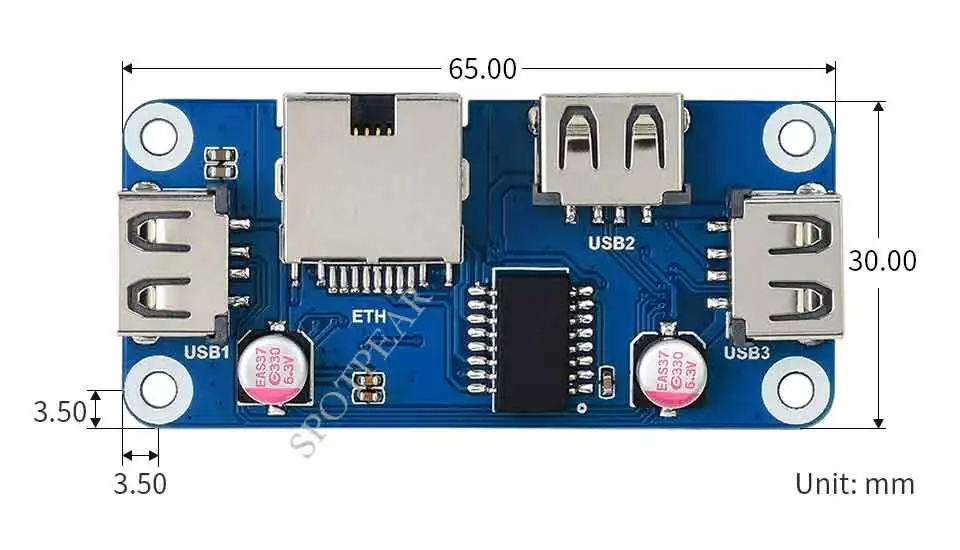

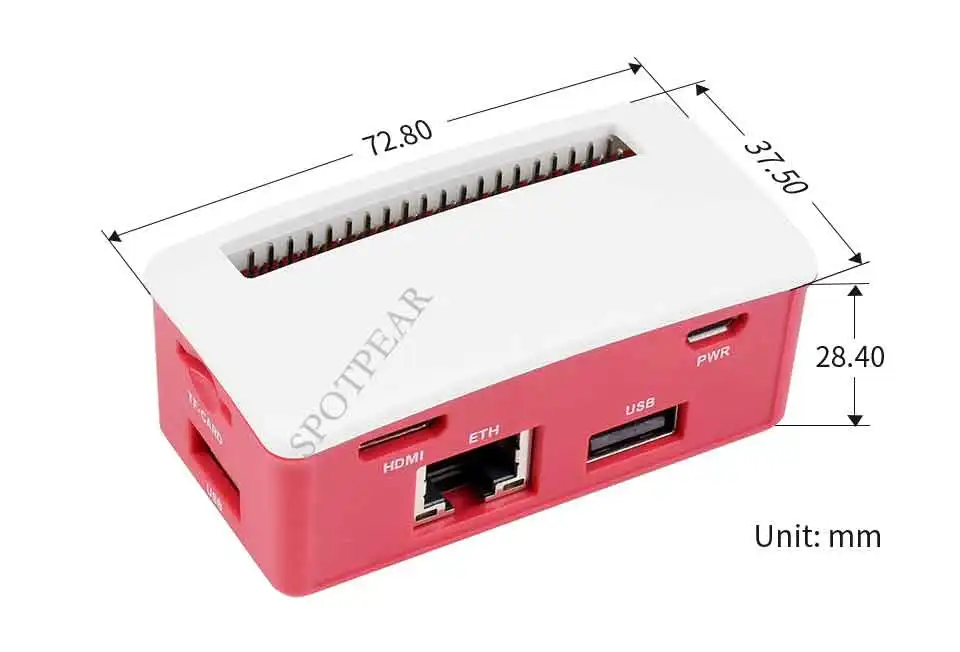

Outline Dimensions

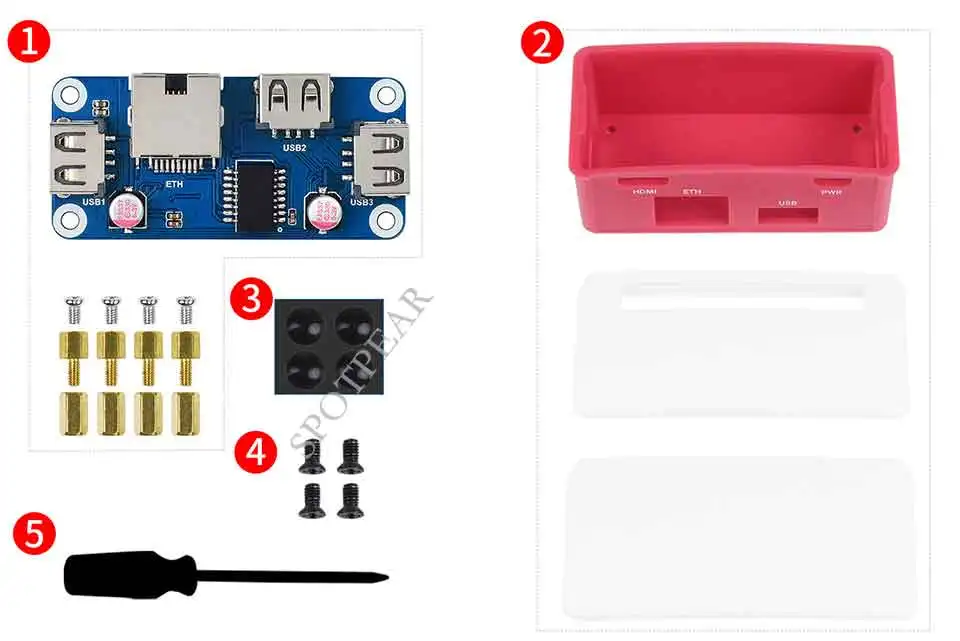

Package Contains
  1. ETH/USB HUB HAT (B) x1

  2. Options ABS case x1

  3. Rubber feet 4PCS x1

  4. Screws pack x1

  5. Screwdriver x1
