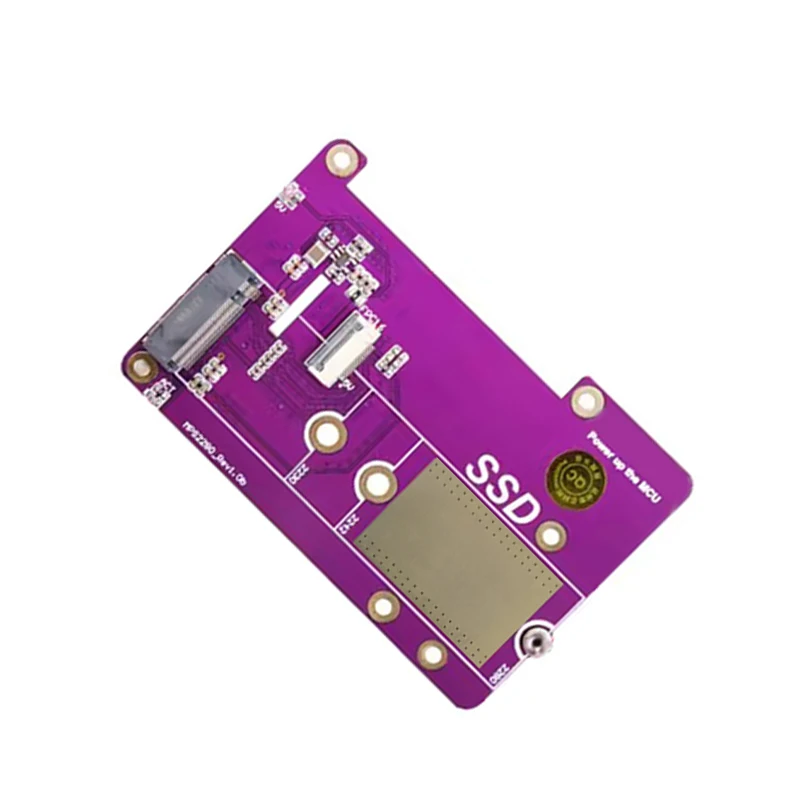

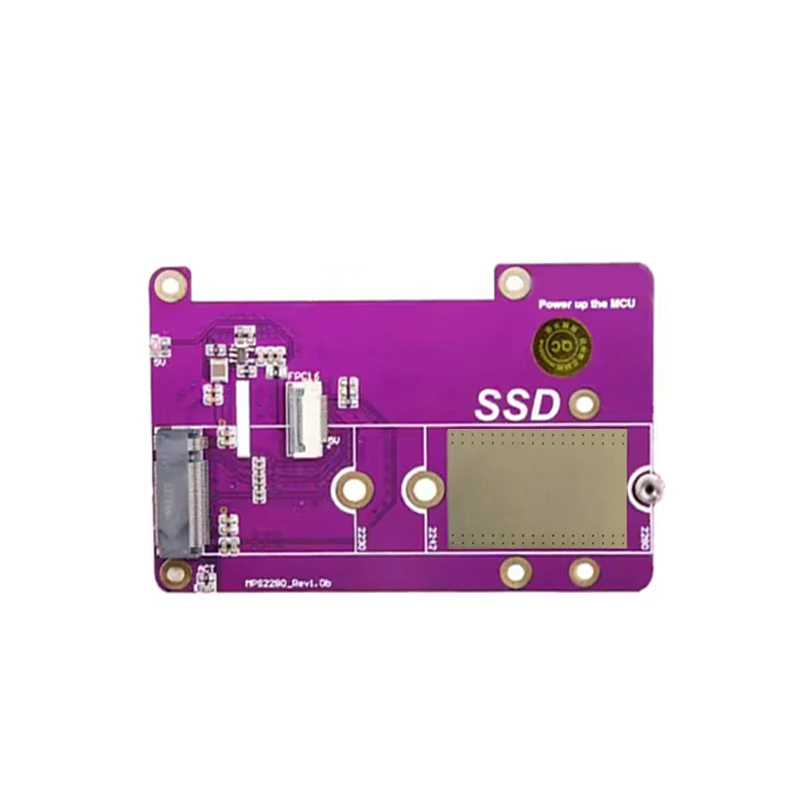

Raspberry Pi 5 PCIe to M.2 NVMe SSD Supports Gen3 For Pi5

【Note】

[] Product color is random

[] Not include NVMe SSD.

【PCIe Interface】

[] The Raspberry Pi 5 supports PCIe x1, and is compatible with Gen2 and Gen3 modes.

【M.2 M-key Interface, Supports NVMe Solid State Drives】

[] Supports 2280/2242/2230 size SSDs

【SSD Boot System】

[] Supports booting from an NVMe SSD and storage expansion

[] The SSD can also be used solely for storage expansion, with the system booting from a TF card

【M.2 Power System】

[] The expansion board's power circuit is designed with a 2A current, limited by the Raspberry Pi 5's PCIe interface current limit (5V1A), capable of providing more than 3.3V1.5A output to the solid state drive.

[] Typically, the rated current of solid state drives may be 2.5A, 2.7A, or even 3A, but these currents correspond to the limit of X4 mode, Since the Raspberry Pi 5 only supports X1 mode, the actual current used is much less than the rated current, and our design meets the needs of most hard drives.

【Dual LED Indicators】

[] Board-mounted power indicator (“PWR”) and M.2 SSD activity indicator (“ACT”)

【High-Quality Components】

[] Utilizes high-quality electronic components and immersion gold process, lead-free production

[] Four M2.5 fixed holes, with a recessed design above the board for easy operation of the 40Pin GPIO

[] Option Pi5-PCIE-to-SSD × 1
