Raspberry Pi Gigabit PoE Switch 120W High-Speed 10/100/1000Mbps Auto-Negotiation Ethernet Port RJ45 PoE
3 in stock
$38.77
- Hign-concerned Chemical: None
- Compatible With: Raspberry Pi
- Accessory Type: Extension Board
- Brand Name: spotpear
- Origin: Mainland China
【Product Introduction】
[] 120W Gigabit Ethernet PoE Switch, 4x PoE+ Ports, Up To 30W Per Port, 802.3af/At Compliant, Plug-And-Play, Fanless Design, High-Speed 10/100/1000M Auto-Negotiation Ethernet Port, Network Switch PoE
【Product Details】
10/100/1000M Auto-Negotiation Ethernet Port
[] The Gigabit-PoE-Switch-120W is designed to meet PoE (Power over Ethernet) power supply requirements, adopts the latest generation high-speed Ethernet switching chip and high backplane bandwidth (also known as switching bandwidth) design, features ultra-fast data processing capability, enhancing data transmission performance.

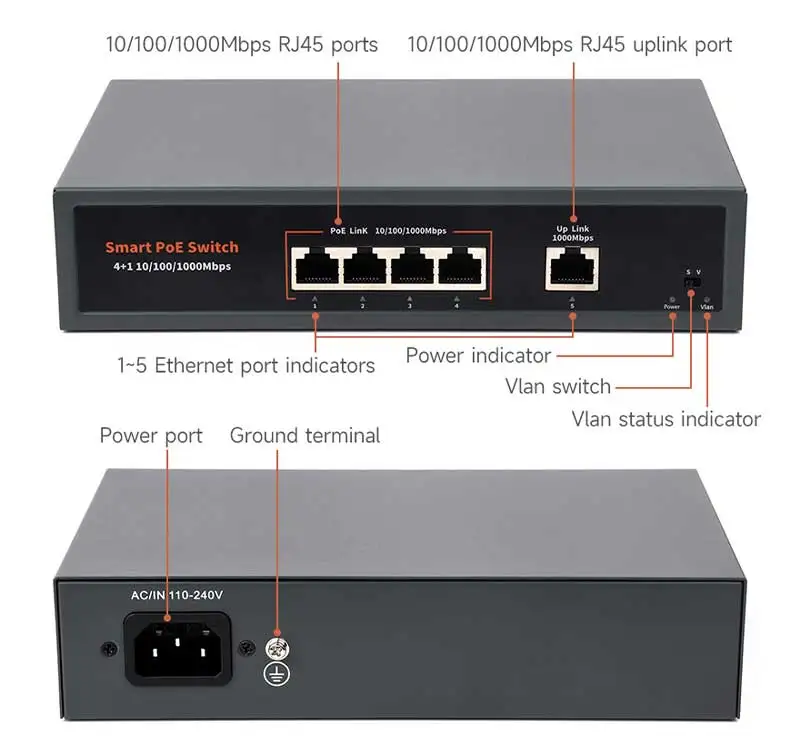

[] Equipped with 4x PoE RJ45 downlink ports and 1x RJ45 uplink port, up to 30W per port, with a total power of 120W peak. It can automatically detect and identify IEEE 802.3af/at-compliant devices and provides power supply through the network cable.
[] 4x 10/100/1000Mbps RJ45 PoE ports (support PoE+ power supply)
[]1x 10/100/1000Mbps RJ45 uplink port
[]Total PoE power is up to 120W with each port providing power up to 30W
[]Supports priority mechanism that can automatically detect and identify PoE devices, providing power supply through the Ethernet cable with priority, without damaging non-PoE devices.
|
NETWORK STANDARD |
IEEE 802.3, IEEE 802.3u, IEEE 802.3x |
|
PORTS |
4x 10/100/1000Mbps RJ45 PoE ports |
|
POE POWER SUPPLY |
4x 10/100/1000Mbps RJ45 ports with PoE+ power supply support |
|
POE CONNECTION |
Supports 1/2+, 3/6- end-span and 4/5+, 7/8- mid-span wiring pairs |
|
PERFORMANCE |
Store and forward, supports 2K MAC address table depth, with 12Gbps backplane bandwidth |
|
FORWARDING RATE |
10BASE-T: 14880pps/port |
|
PORT FUNCTIONS |
Power priority mechanism, fast forwarding, MAC address auto-learning and aging, IEEE802.3x full-duplex flow control and half-duplex backpressure flow control |
|
OPERATION TEMPERATURE |
Operation Temperature: -20℃ ~ 55℃ |
|
POWER |
Built-in power adapter |
|
ENCLOSURE |
Metal material |
|
DIMENSIONS |
200mm × 118mm × 44mm (L×W×H) |

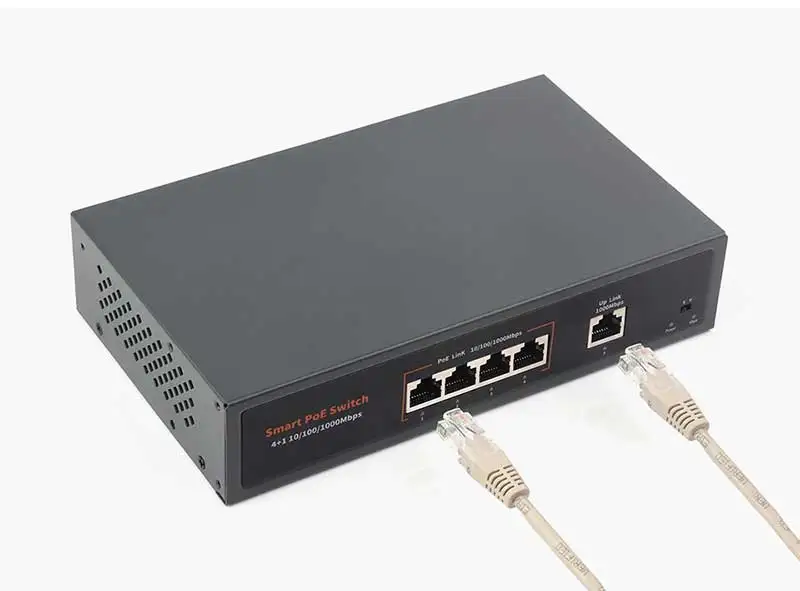

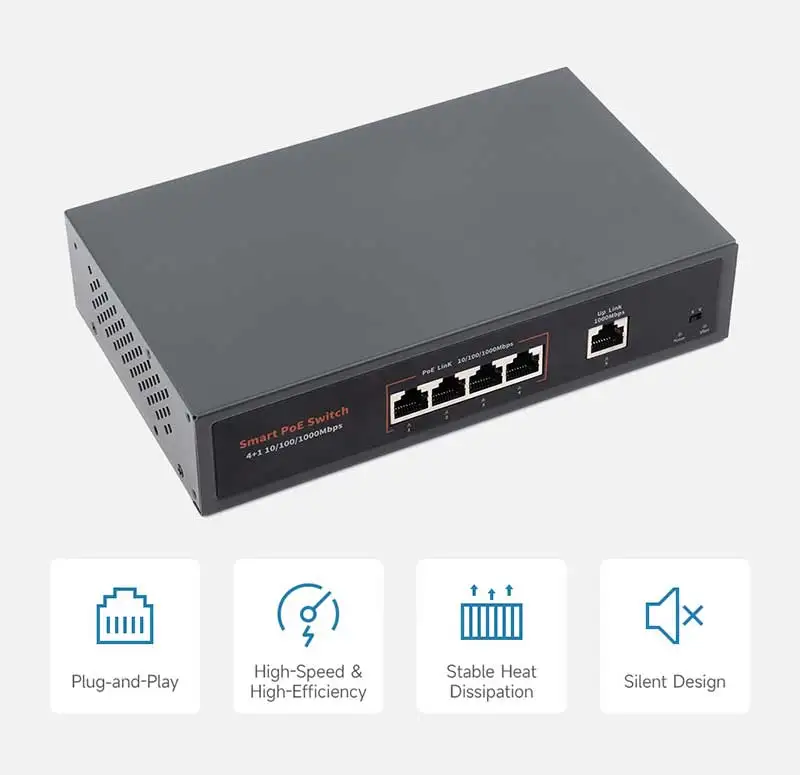

【Plug & Play】
4x Ethernet Ports With Auto MDI/MDI-X Support, Also Supports IEEE 802.3x Full-Duplex Flow Control And Half-Duplex Backpressure Flow Control. No Extra Configuration Required, Plug-And-Play

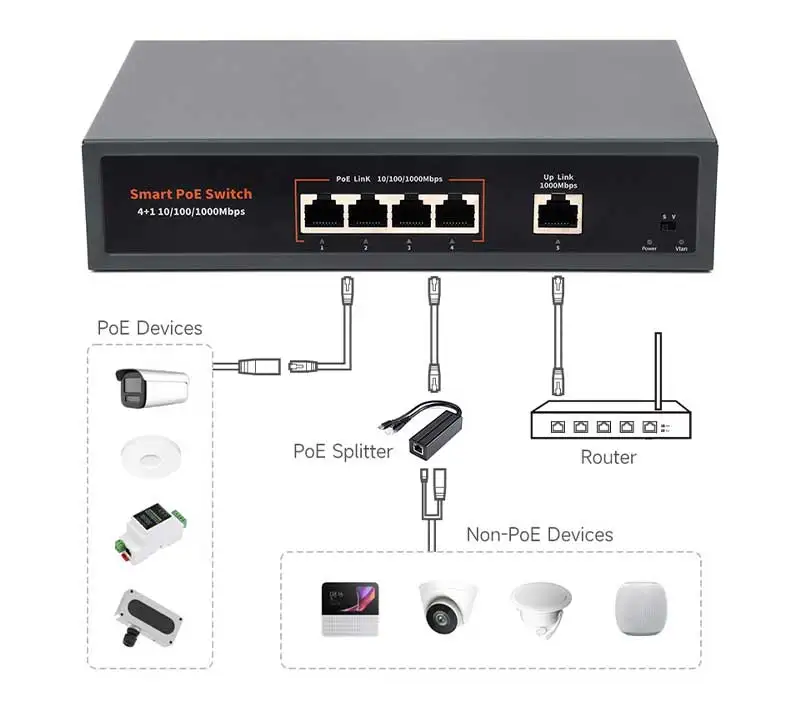

Supports Priority Mechanism That Can Automatically Detect And Identify PoE Devices, Providing Power Supply Through The Ethernet Cable With Priority, Without Damaging Non-PoE Devices. Supports Various PoE And Non-PoE Network Devices Such As PC, Printer, Smart TV, Camera, Wireless AP, Smart Home Device, And Raspberry Pi, Etc.
4x 10/100/1000Mpbs RJ45 Ports With PoE+ Support, The Total PoE Power Is Up To 120W With Each Port Providing Power Up To 30W. Suitable For PoE Applications Such As Security Monitoring, Telephone Conference Systems, Wireless Coverage, Etc.

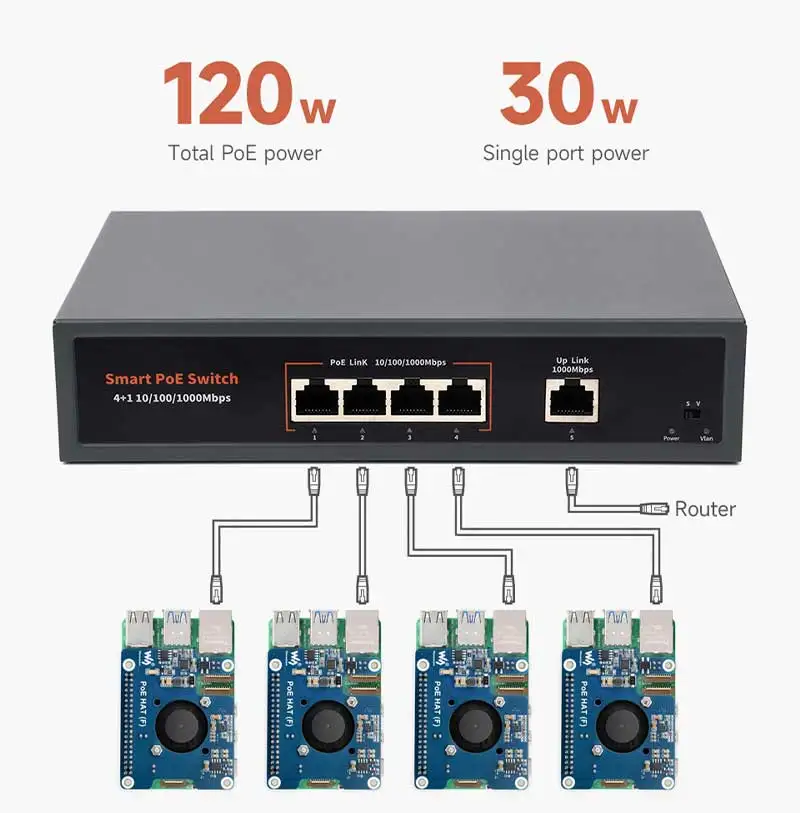

Capable of powering 4x Raspberry Pi 5 boards at the same time
* the Raspberry Pi 5 and PoE HAT (F) are NOT included.

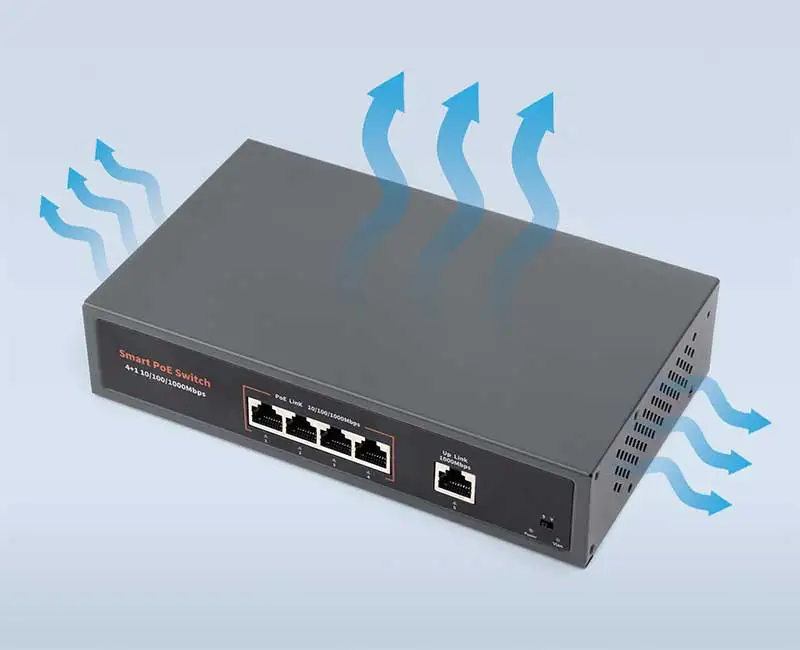

Built-In High-Efficiency Heatsink, Fanless Design, Lower Indoor Noise
【What's Onboaed】

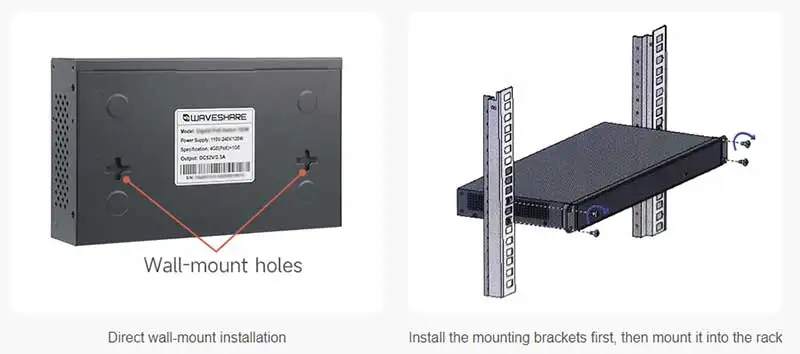

【How To Install】

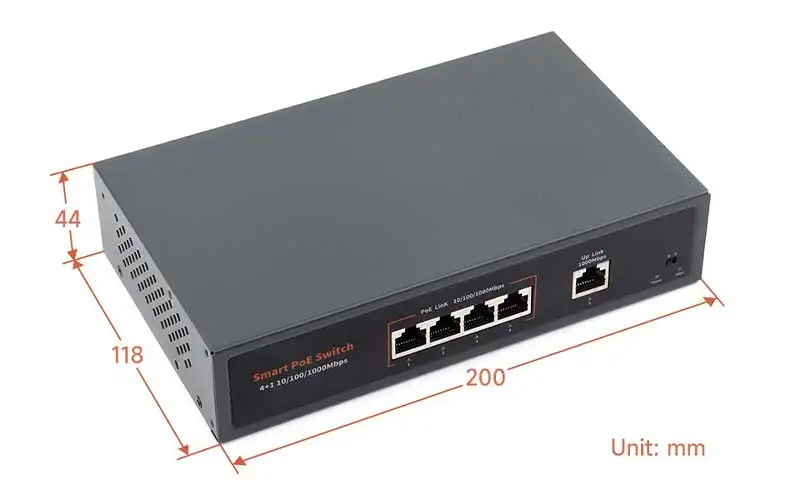

【Outline Dimensions】
[] Gigabit-PoE-Switch-120W-EU
[] Gigabit-PoE-Switch-120W-US
