5 inch DSI LCD Capacitive Touch Display Module 800×480 for Raspberry Pi

【Note】

[] Do not include Raspberry Pi

【Overview】

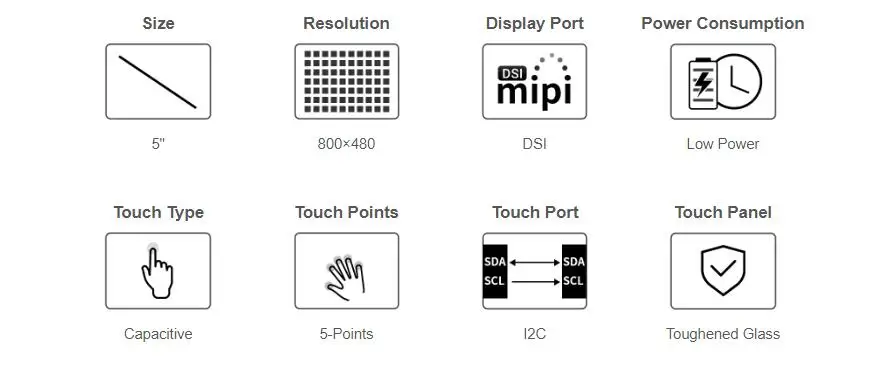

[] 5inch Capacitive Touch Display for Raspberry Pi, DSI Interface, 800×480

【Features】

[] 5-inch capacitive touch screen, hardware resolution is 800 x 480.

[] Capacitive touch panel, support 5-point touch.

[] Toughened glass capacitive touch panel, hardness up to 6H.

[] Supports Pi5/4B/CM4/3B+/3A+/3B/CM3/CM3+/2B/B+/A+.

[] Directly drive the LCD by the DSI interface on the Raspberry Pi, with up to 60Hz refreshing rate.

[] When working with Raspberry Pi, support Raspberry Pi OS / Ubuntu / Kali / Volumio and Retropie, driver-free.

[] When working with VisionFive 2, support Debian, single-point touch control, and driver-free.

[] When working with Tinker Board 2, support Linux/Android, five-point touch control, and driver-free.

[] When working with Core3566, support Debian/Ubuntu, five-point touch control, and driver-free.

[] Support brightness adjustable through software control.

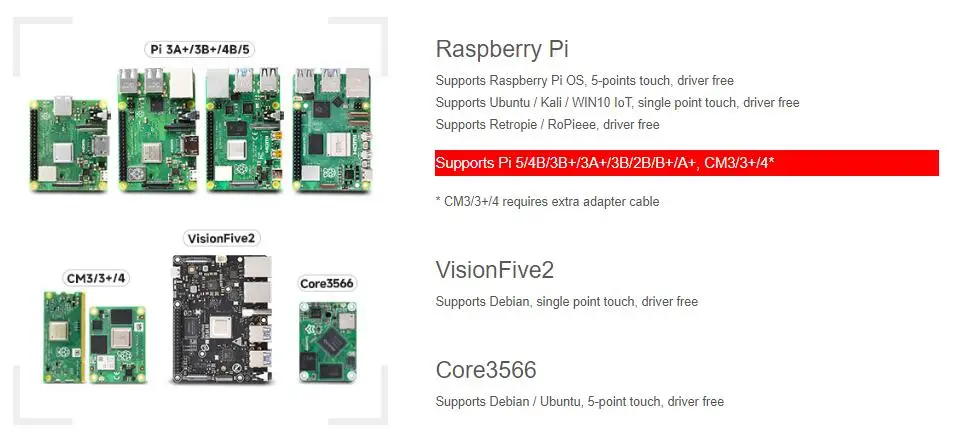

【Device & System Support】

【Connection Examples】

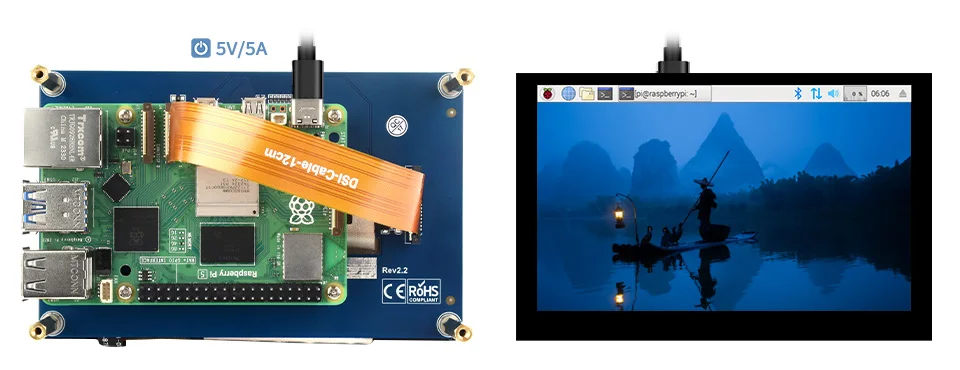

[] Working With Raspberry Pi 5

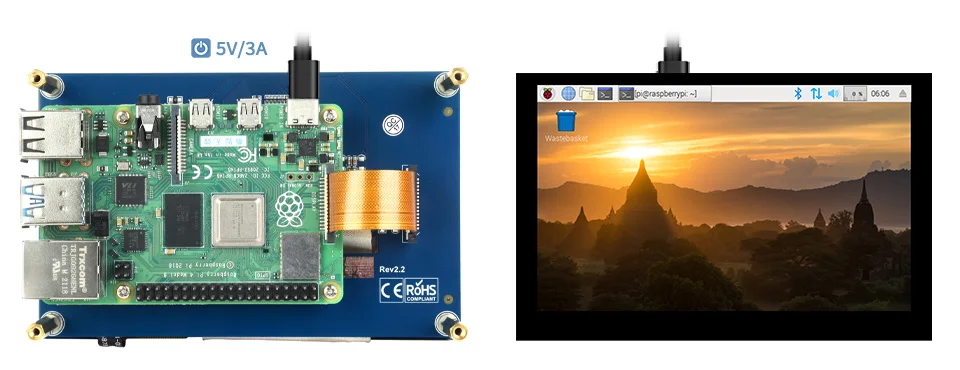

[] Working With Raspberry Pi 4

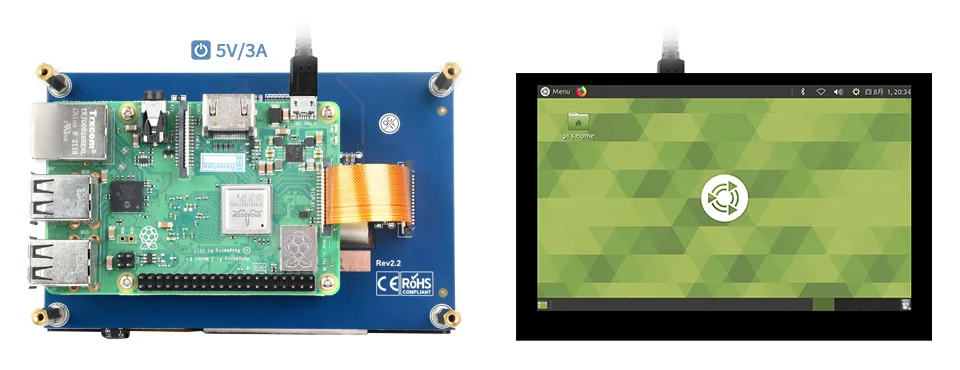

[] Working With Raspberry Pi 3B+

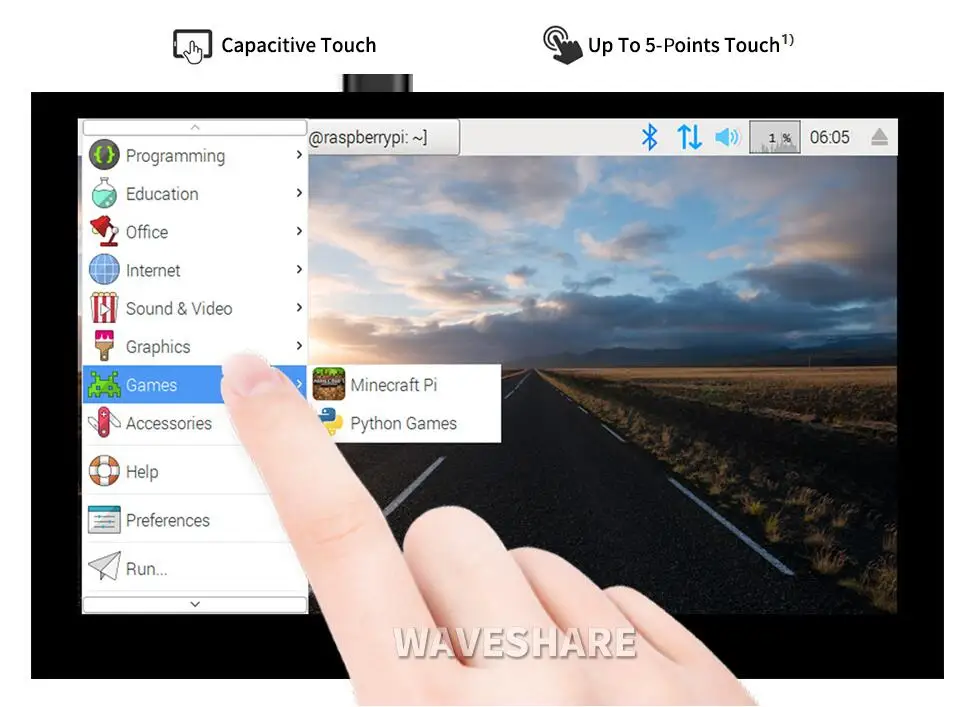

【Touch Control】

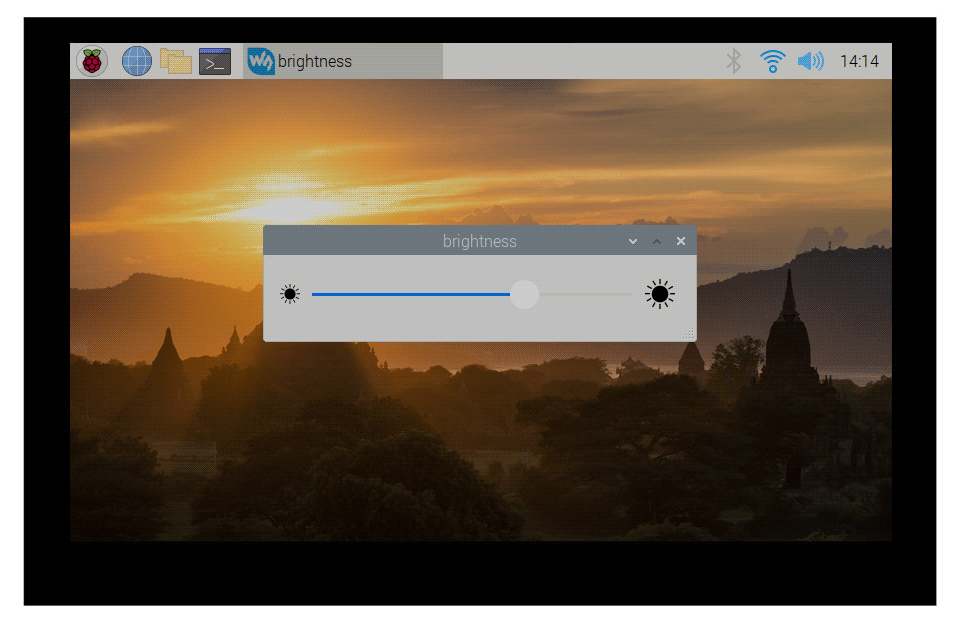

【Adjustable Brightness Via Software】

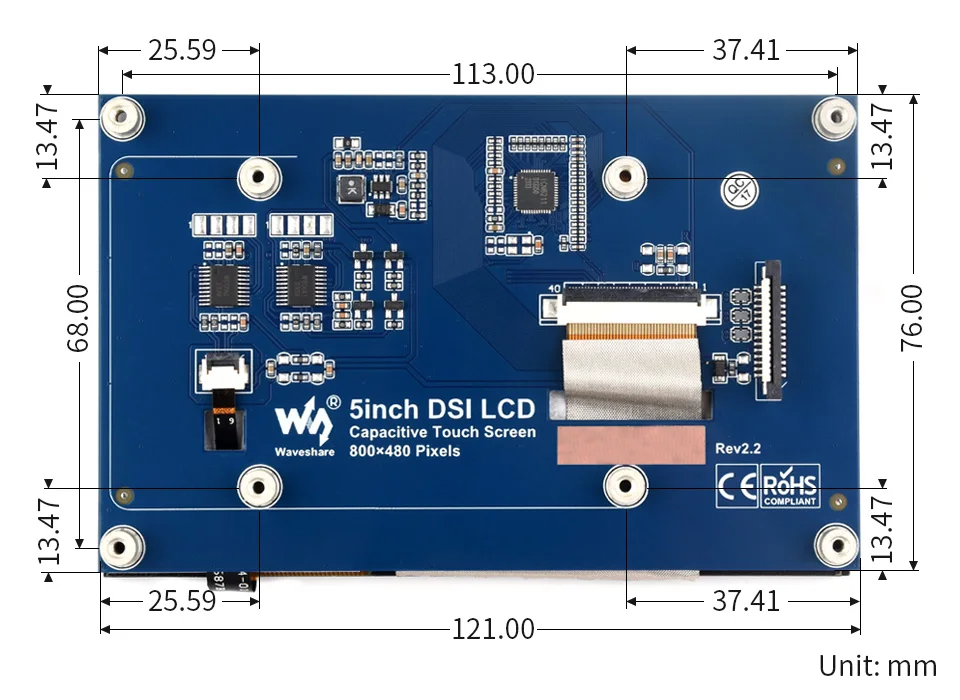

【Appearance And Dimensions】

[] 5inch DSI LCD x1

[] FPC 15PIN 1.0 pitch 50mm (opposite sides) x1

[] DSI-Cable-12cm x1

[] FPC 15PIN 1.0 pitch 160mm (opposite sides) x1

[] Screws pack x1
