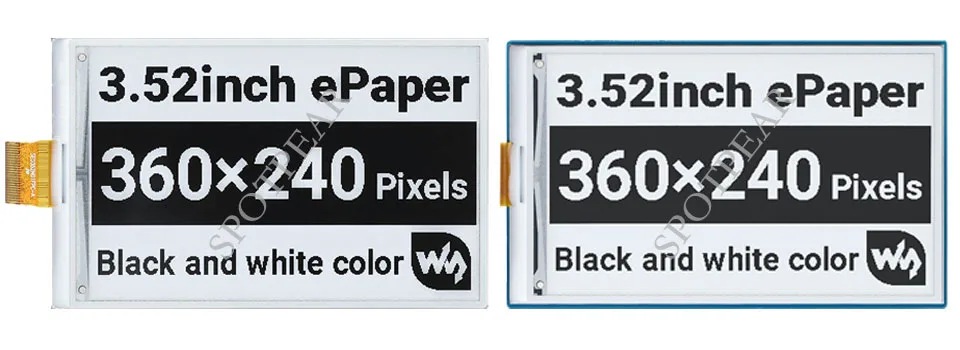

Raspberry Pi 3.52inch e-Paper e-Ink Display Module 360×240 SPI for Arduino / STM32

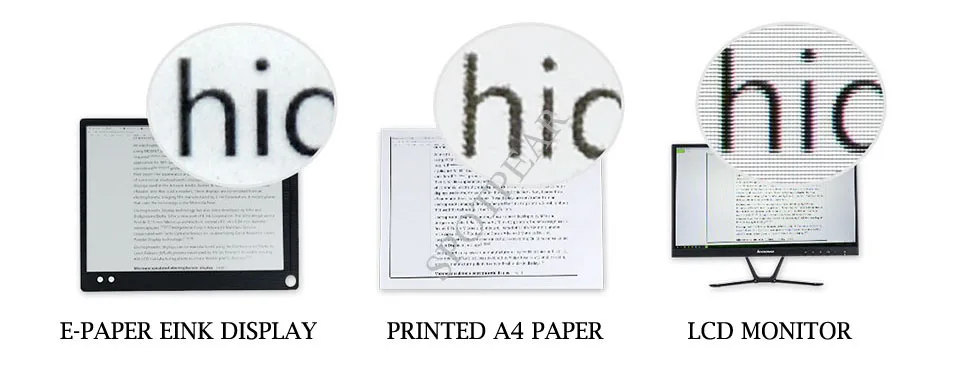

• No backlight, keeps displaying last content for a long time even when power down

• Ultra low power consumption, basically power is only required for refreshing

• Standard Raspberry Pi 40PIN GPIO extension header, supports Raspberry Pi series boards, Jetson Nano

• SPI interface, for connecting with controller boards like Raspberry Pi/Arduino/STM32, etc.

• Onboard voltage translator, compatible with 3.3V/5V MCUs

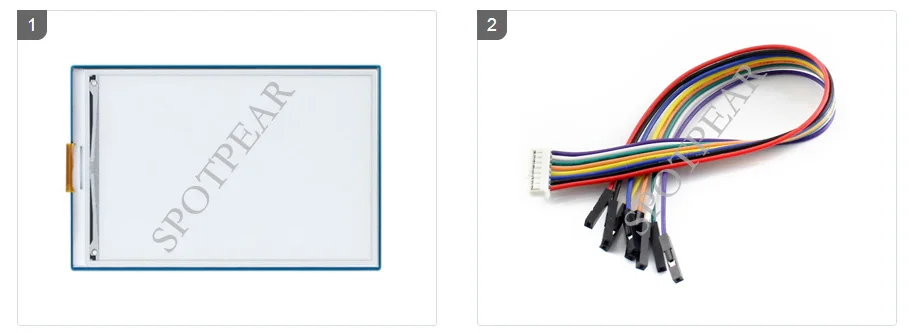

• Comes with development resources and manual (driver board schematic, examples for Raspberry Pi/Arduino/STM32)

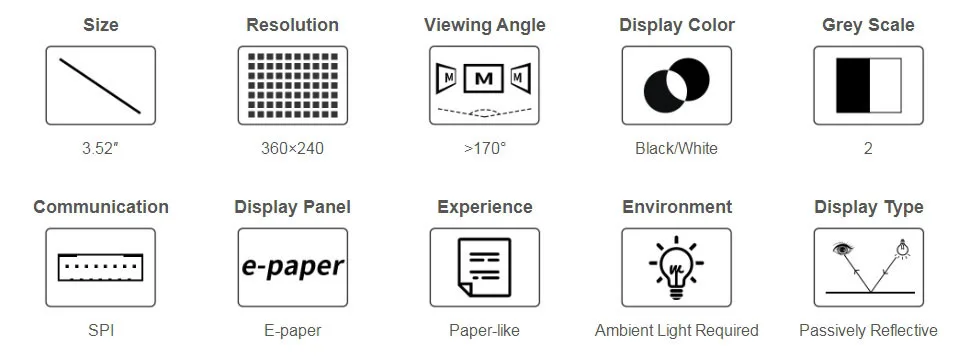

   Specifications

• Size: 3.52inch

• Outline dimension (e-Paper): 84.7 × 54.41 × 1.18 mm

• Outline dimension (e-Paper Module): 86.5 × 57 mm

• Display size: 74.51 × 49.67 mm

• Operating voltage: 3.3V/5V

• Interface: 3-wire SPI, 4-wire SPI

• Display color: Black/White

• Gray scale: 2

• Full refresh time: 1.5s

• Refresh power: <25mW (typ.)

• Standby current: <0.01uA (almost none)

• Dot pitch: 0.207 × 0.207 mm

• Resolution: 360×240 pixels

• Viewing angle: >170°

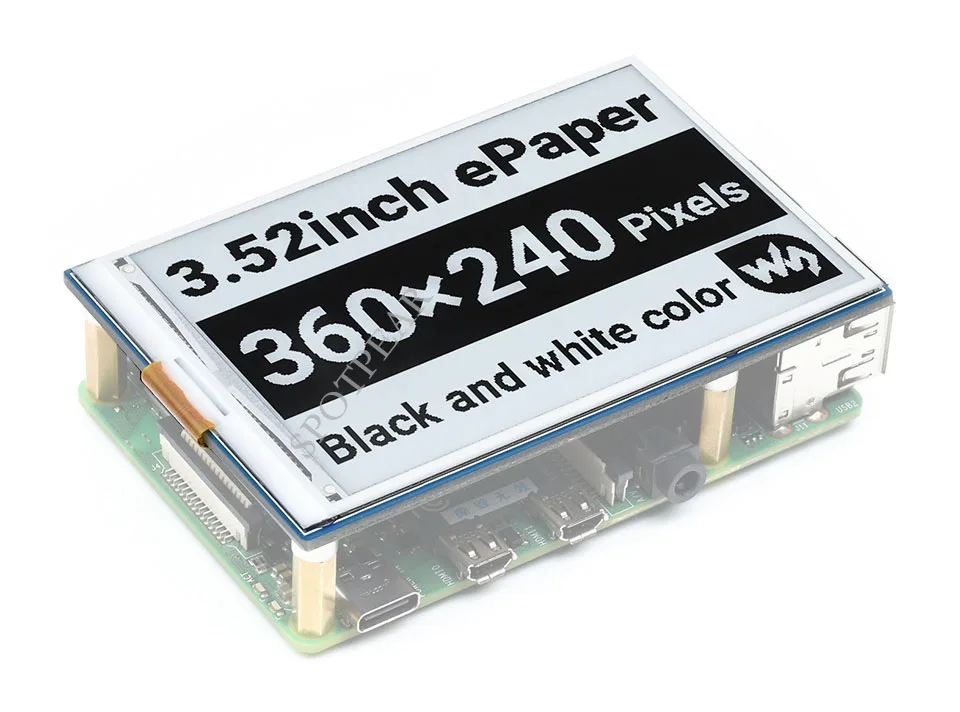

Standard Raspberry Pi 40PIN GPIO Header

Similar To The Size Of Raspberry Pi, Compatible With The Size Of Raspberry Pi 4B / 3B / 3B+

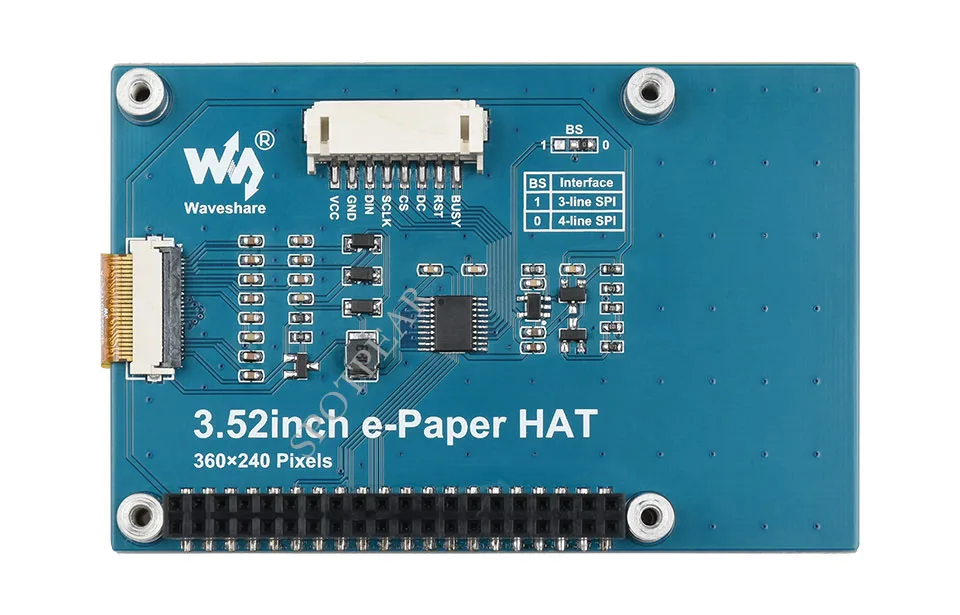

Onboard SPI Control Interface

For Use With Controller Boards Like Raspberry Pi/STM32/Arduino



VCC	Power (3.3V / 5V input)
GND	Ground
DIN	SPI MOSI pin
SCLK	SPI SCK pin
CS	SPI chip selection, low active
DC	Data/Command selection (high for data, low for command)
RST	External reset, low active
BUSY	Busy status output pin

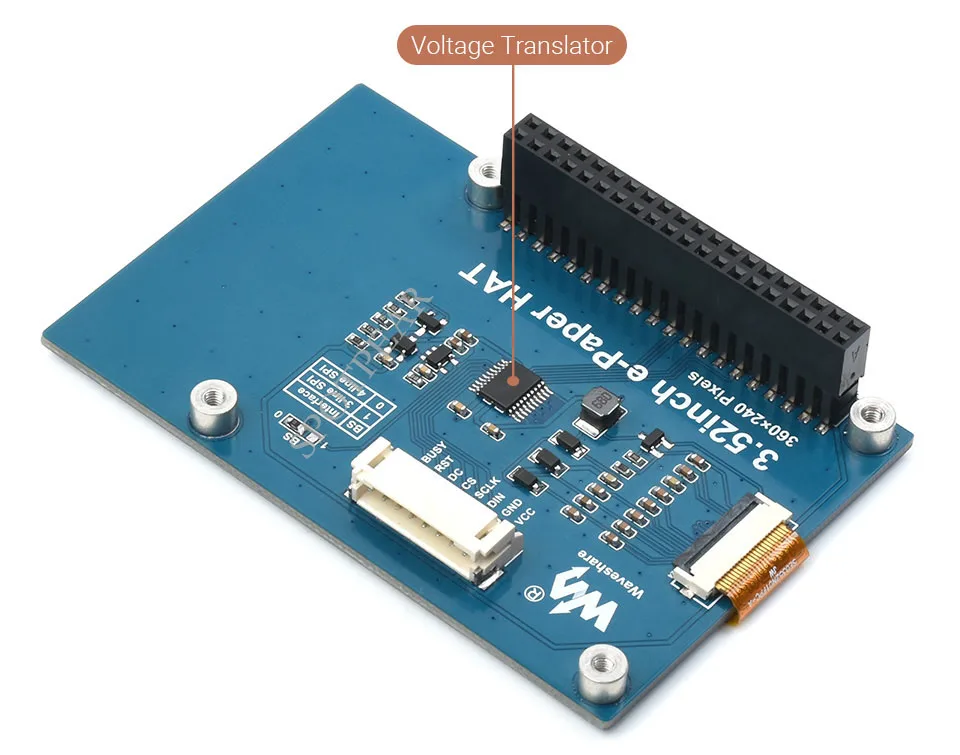

Onboard Voltage Translator

.

Compatible With 3.3V / 5V MCUs

Application Examples

.

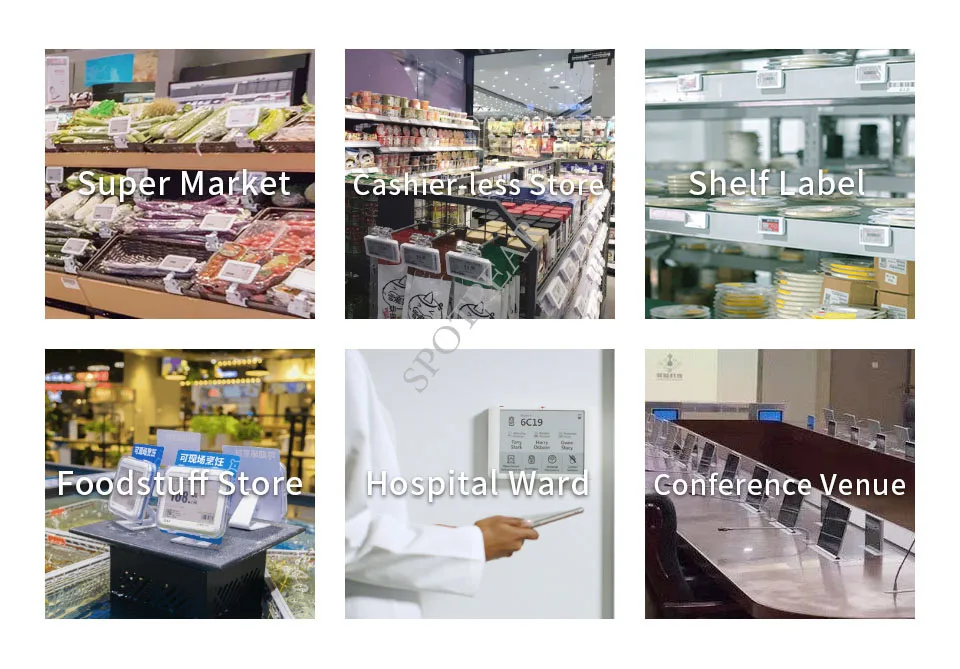

Suitable For Price Tags, Asset/Equipment Tags, Shelf Labels, Conference Name Tags…

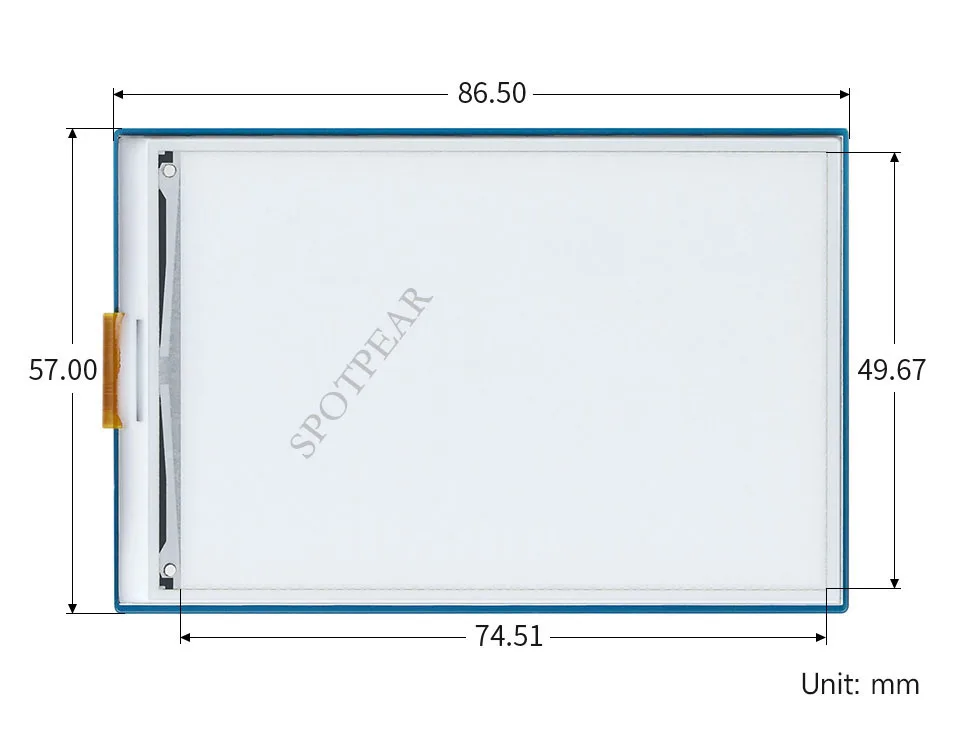

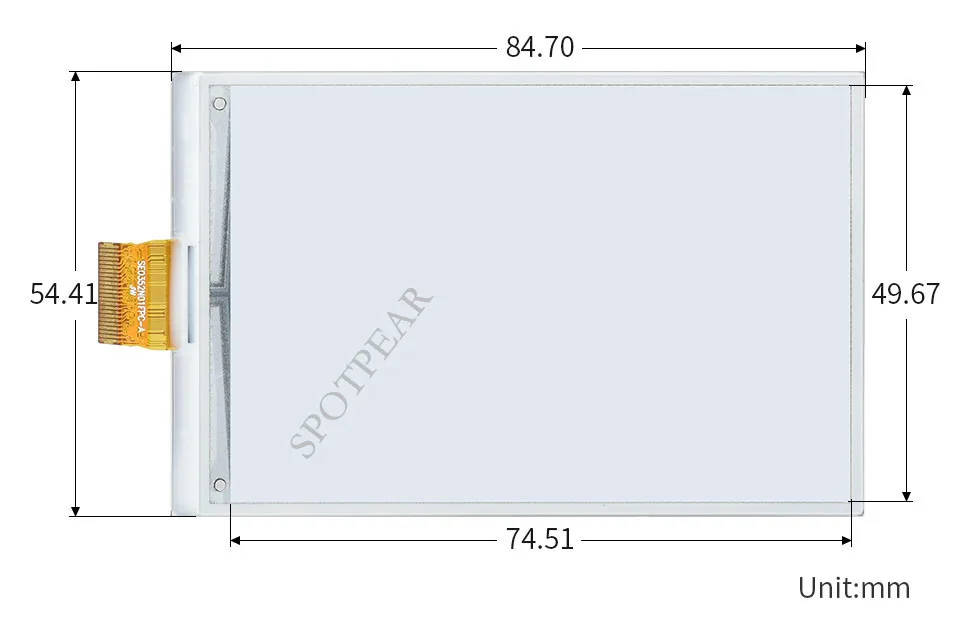

Outline Dimensions
