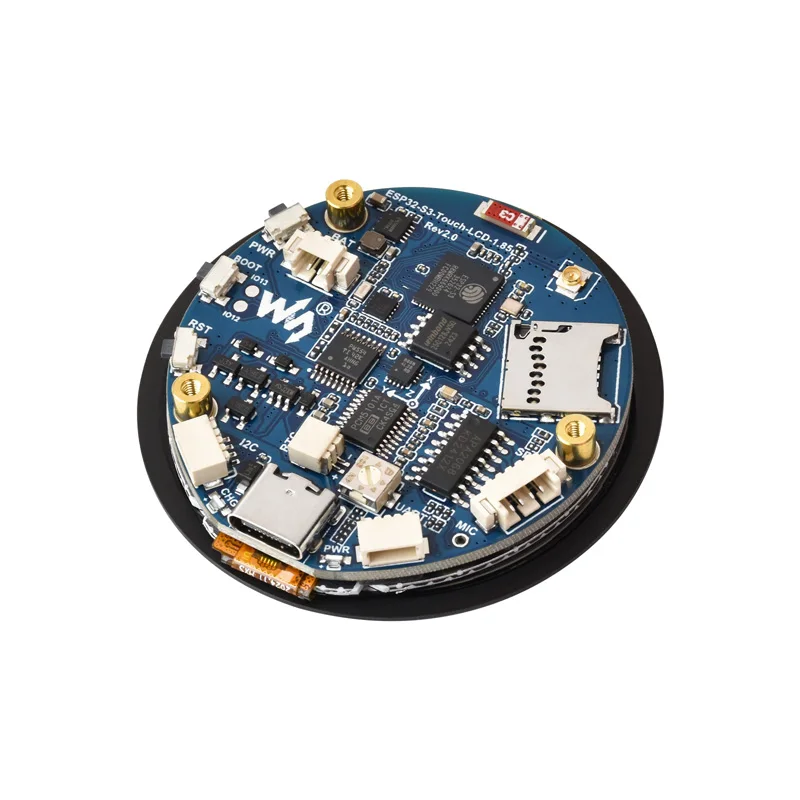

ESP32-S3 1.85″ LCD Development Board
Integrates QSPI Interface Display, Multiple Peripheral Interfaces

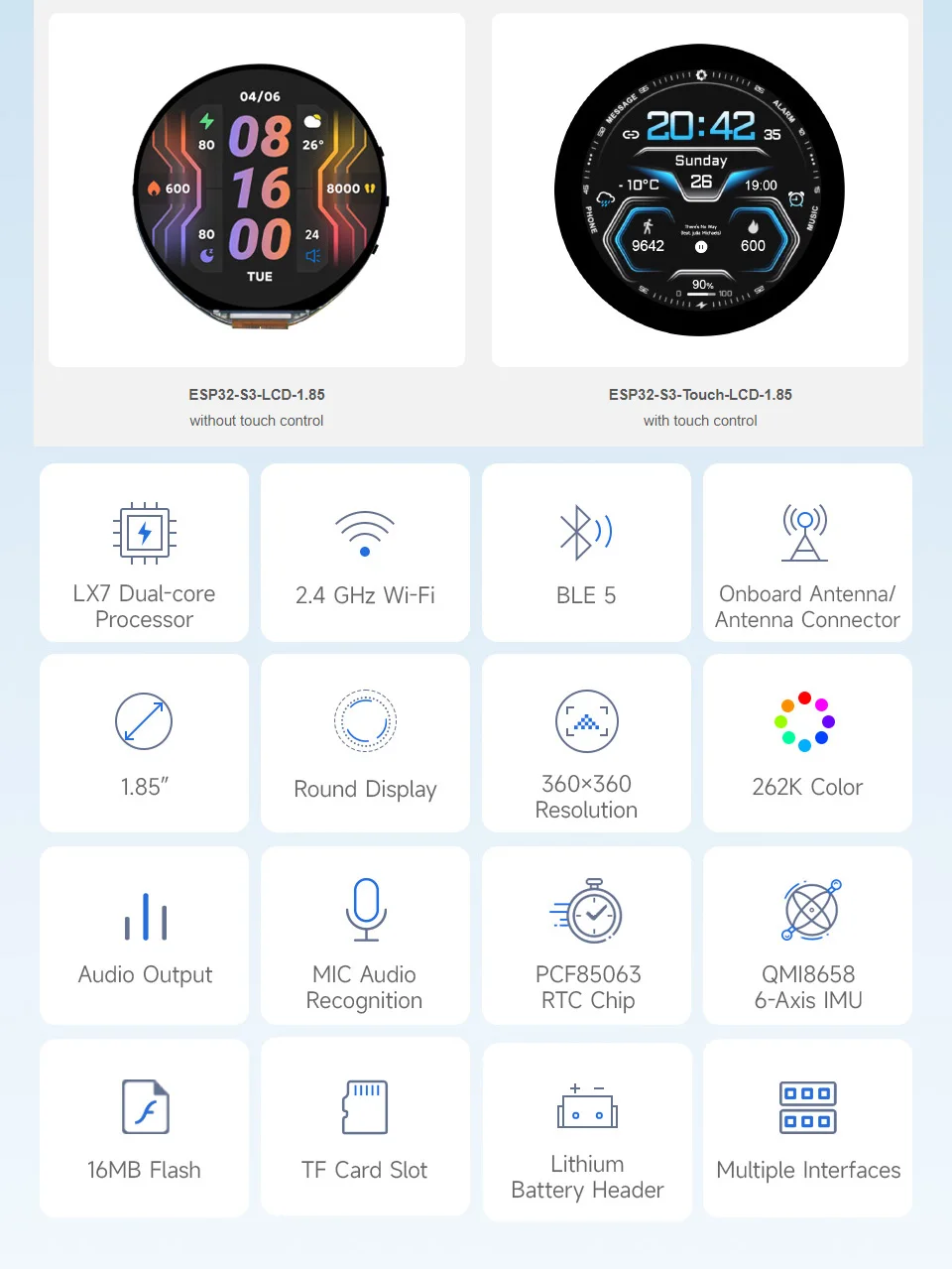

Features
ESP32-S3-LCD-1.85 is a microcontroller development board with 2.4GHz WiFi and Bluetooth BLE 5 support, integrates high-capacity Flash and PSRAM. Onboard 1.85inch LCD display which can smoothly run GUI programs such as LVGL, optional for capacitive touch function. Combined with various peripheral interfaces, suitable for the quick development of the HMI and other ESP32-S3 applications.
-
Equipped with high-performance Xtensa 32-bit LX7 dual-core processor, up to 240MHz main frequency
-
Supports 2.4GHz Wi-Fi (802.11 b/g/n) and Bluetooth 5 (LE), with onboard antenna
-
Built-in 512KB SRAM and 384KB ROM, with onboard 16MB Flash and 8MB PSRAM
-
Onboard 1.85inch LCD display, 360×360 resolution, 262K color
-
Optional for capacitive touch function controled via I2C interface, with interrupt support
-

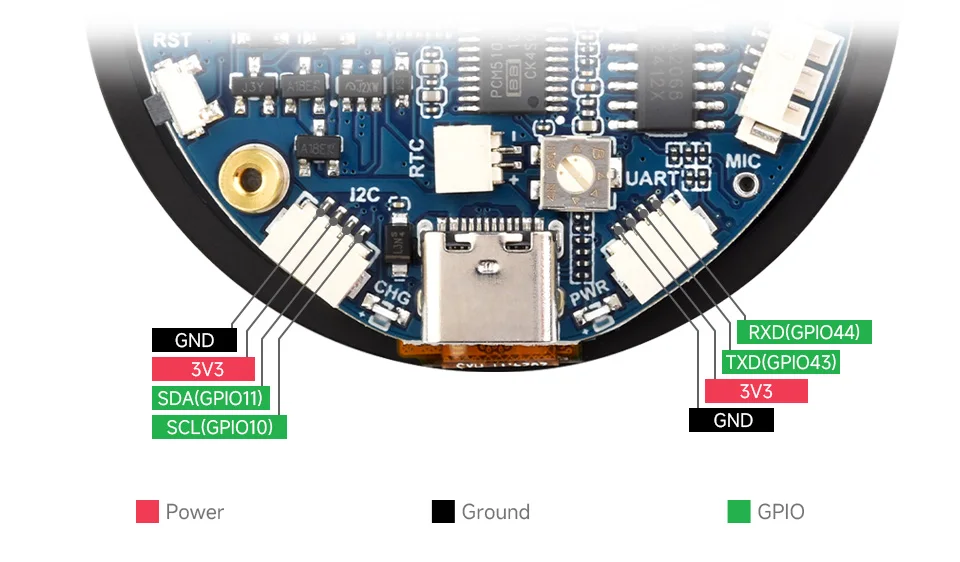

Adapting UART, I2C and some IO interfaces
-

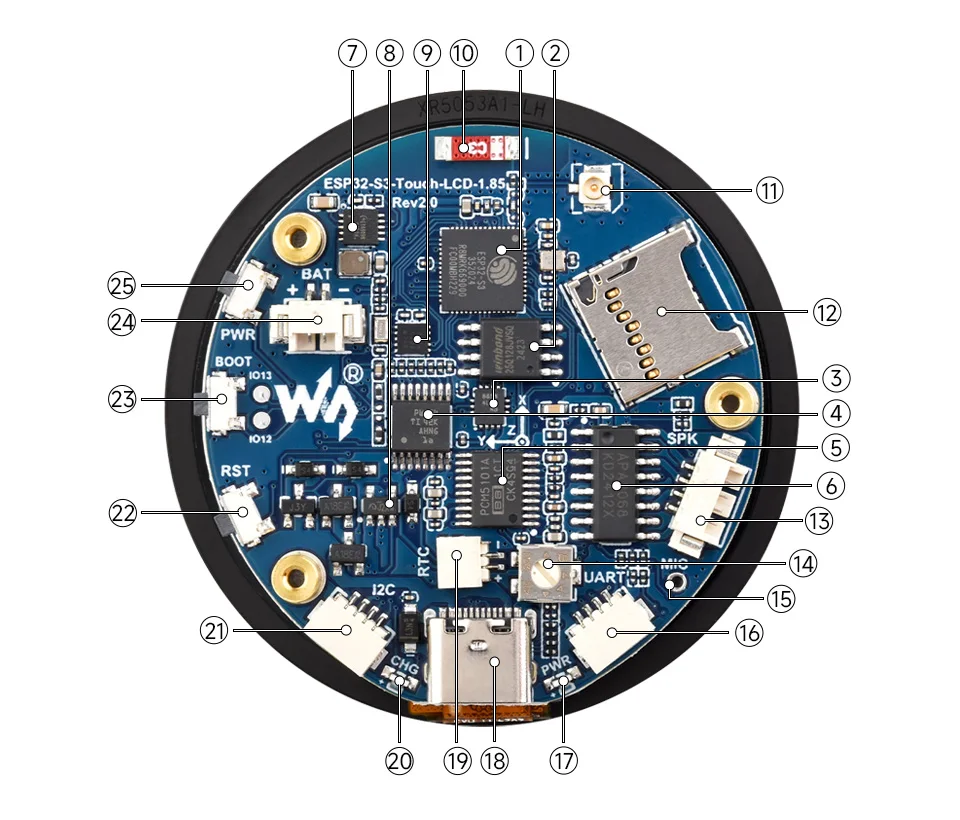

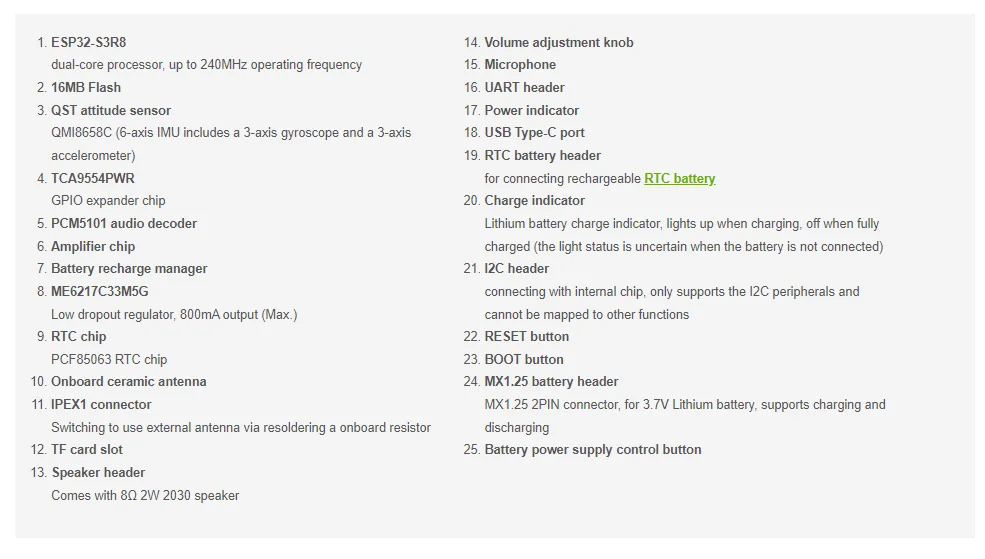

Onboard audio decoder, Microphone, QMI8658 6-axis sensor, RTC sensor, TF card slot and battery recharge management module, etc.
-
Supports accurate control such as flexible clock and multiple power modes to realize low power consumption in different scenarios

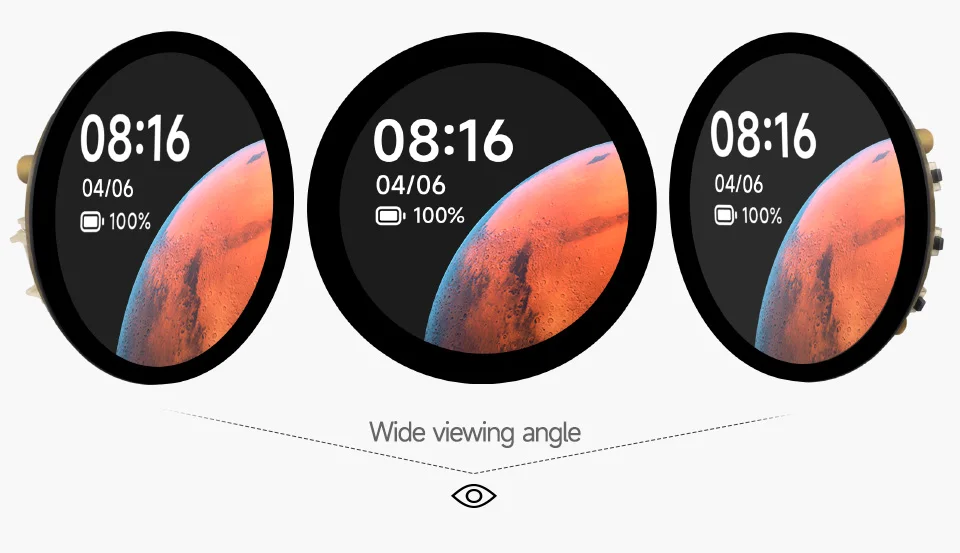

IPS Display Panel
262K Color, 360×360 Resolution, Wide Viewing Angle

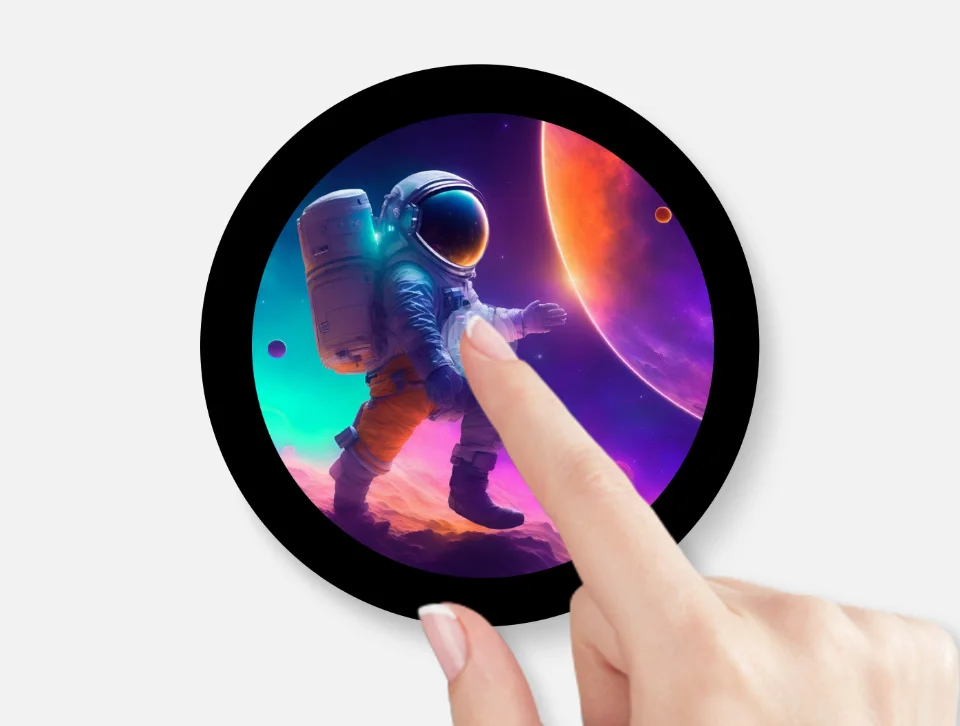

Capacitive Touch
Optional For Capacitive Touch Function Controled Via I2C Interface For Flexible Operation And Smooth UI Interaction, With Interrupt Support
Note: this function is only available on ESP32-S3-Touch-LCD-1.85 version.
Supports Multiple Peripherals
Supports The Expansion Of Multiple Peripherals Via GPIO And I2C Interfaces, Etc.
Onboard Audio Codec
Supports High-Quality Audio Processing, Providing Clear And High-Quality Audio Input And Output

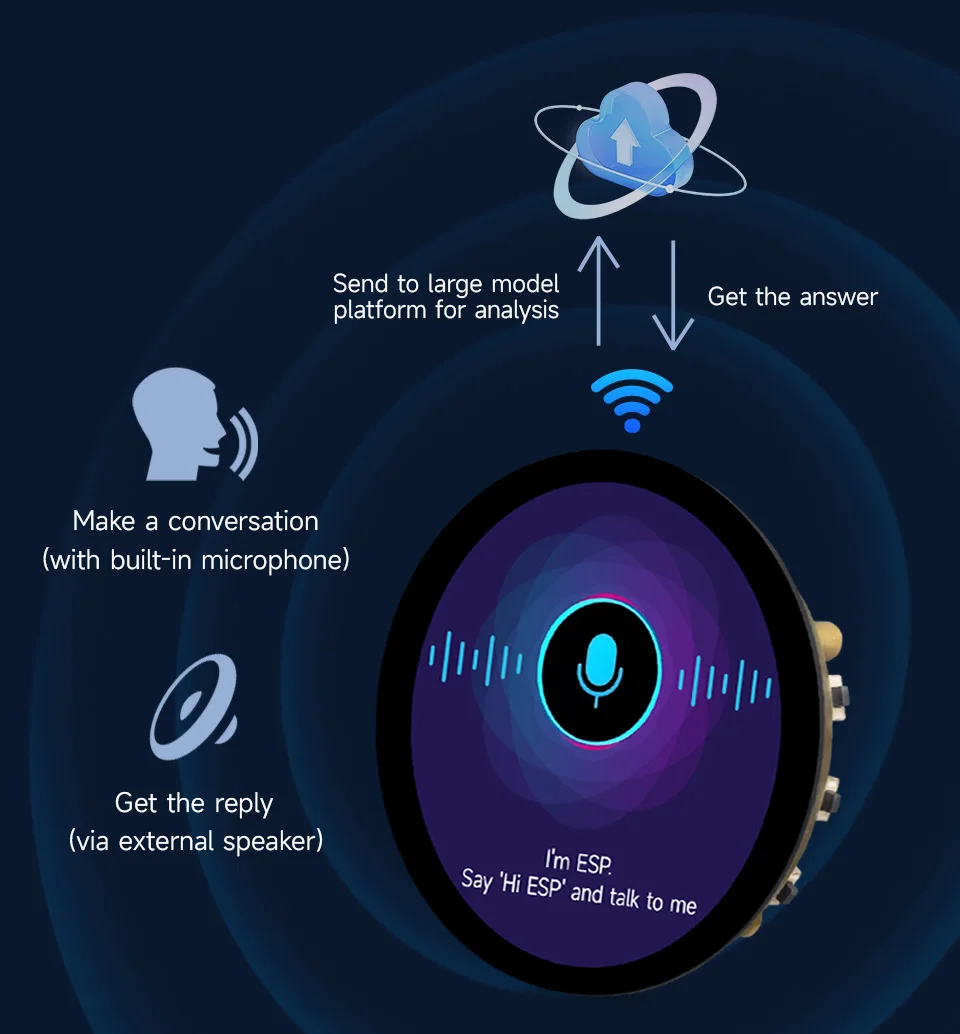

Supports Offline Speech Recognition And AI Speech Interaction
Allows Access To Online Large Model Platforms To Support More AI Application Scenarios

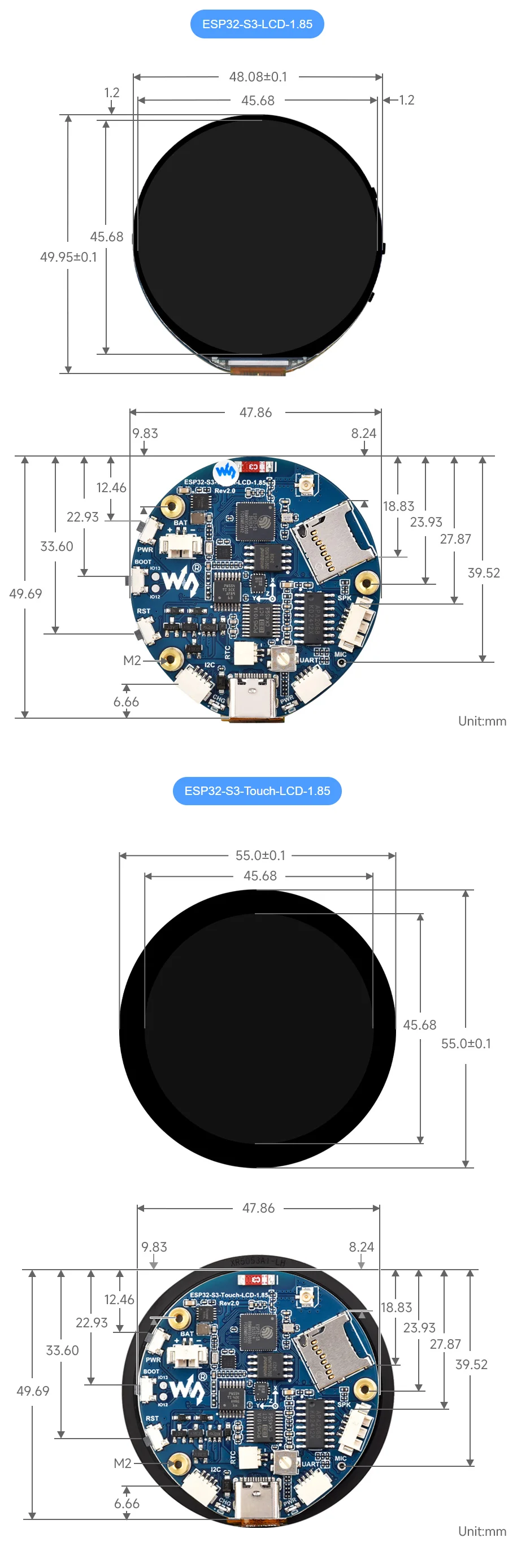

ESP32-S3-LCD-1.85 Touch Options
