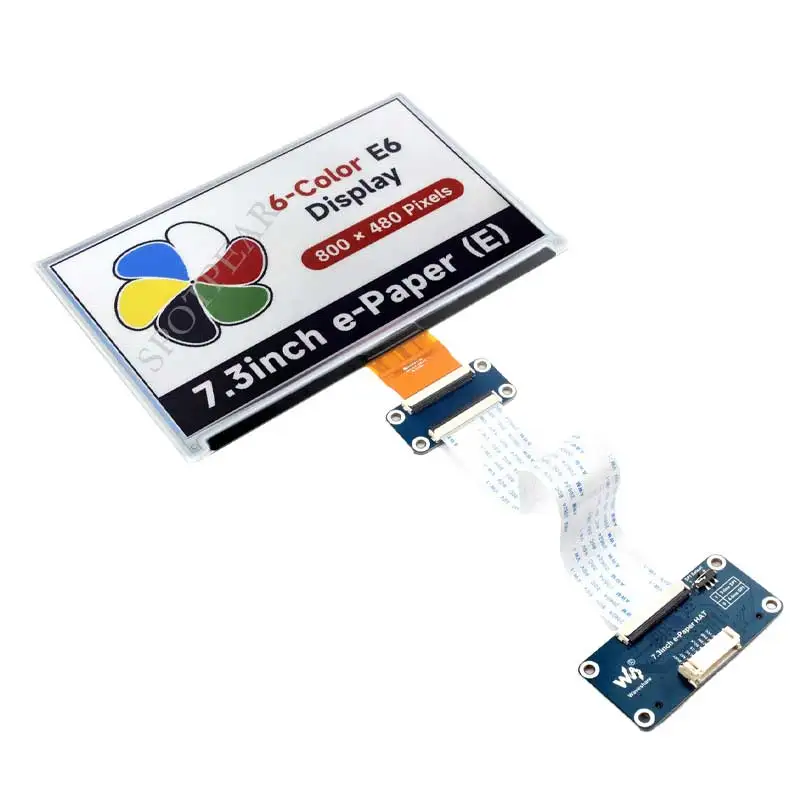

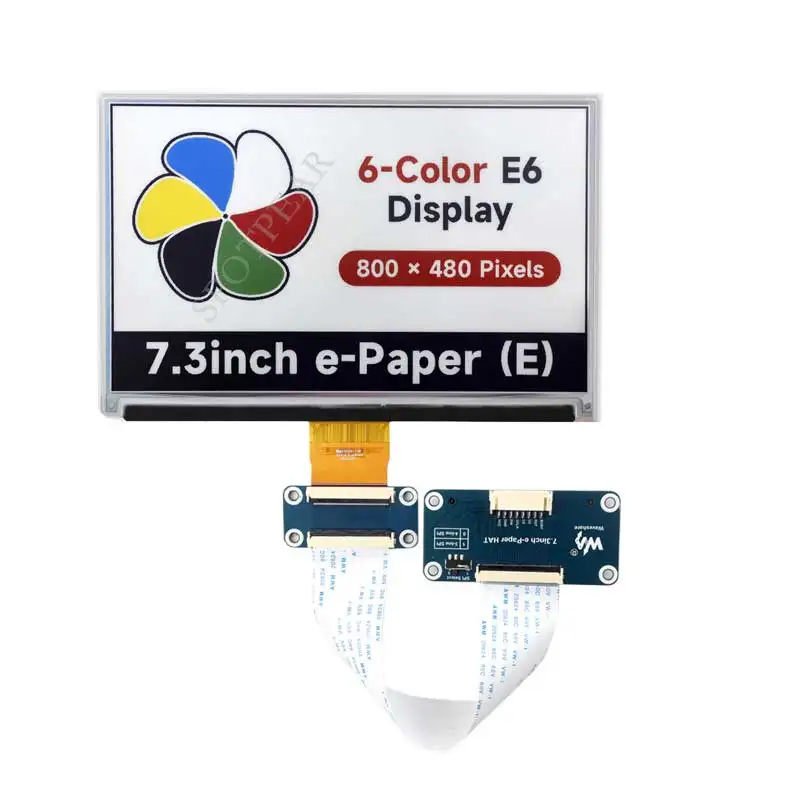

7.3inch ePaper HAT (E) 6 Color E-Ink For Arduino / Raspberry Pi / Jetson / STM32

【Product Introduction】

[] 7.3inch 6-Color E-Paper Display, E-Ink Display, Low Power Consumption, 800×480 Pixels, SPI Communication, Optional For E-Paper Driver HAT

【Product Details】

7.3″ 6-Color E-Paper Display

Low Power, Wide Viewing Angle, Paper-Like Effect Without Electricity
Ideal For Price Tags, Shelf Labels, Industrial Instruments…

Note: the e-Paper Driver HAT and accessories are optional, please refer to the Package Content for detailed part list

【Version Options】

【Features At A Glance】

[] Adopts E_Ink Spectra 6(E6) technology, supports 6-Color display

[] No backlight, keeps displaying last content for a long time even when power down

[] Ultra low power consumption, basically power is only required for refreshing

[] Comes with development resources and manual (driver board circuit diagram, examples for Raspberry Pi/Jetson Nano/Arduino/STM32)

[] Optional for e-Paper Driver HAT:

[] With standard Raspberry Pi 40PIN GPIO extension header, supports Raspberry Pi series boards/Jetson Nano

[] Adapting SPI interface for connecting with controller boards like Raspberry Pi/Jetson Nano/Arduino/STM32, etc.

[] Onboard voltage translator, compatible with 3.3V / 5V MCUs

【Specifications】

OPERATING VOLTAGE	Raw display: 3.3V	DISPLAY COLOR	6-Color
	e-Paper Driver HAT: 3.3V/5V
INTERFACE	3-wire SPI, 4-wire SPI	GREY SCALE	2
DISPLAY DIMENSIONS	170.20 × 111.20 × 0.91mm	FULL REFRESH TIME	12s
DISPLAY AREA	160 × 96mm	REFRESH POWER	<70mW(typ.)
DOT PITCH	0.2 × 0.2mm	STANDBY CURRENT	<0.01uA (almost none)
RESOLUTION	800 × 480 pixels	VIEWING ANGLE	>170°

Advantages Of EINK

E-paper display utilizes microcapsule electrophoretic technology for displaying, the principle is: charged particles suspended in clear fluid will move to sides of microcapsule when electric field is applied, making the microcapsule become visible by reflecting ambient light, just as traditional printed paper.
E-paper display will clearly display images/texts under lamplight or natural light, requires no backlight, and features nearly up to 180° viewing angle. It is usually used as e-reader due to its paper-like effect.

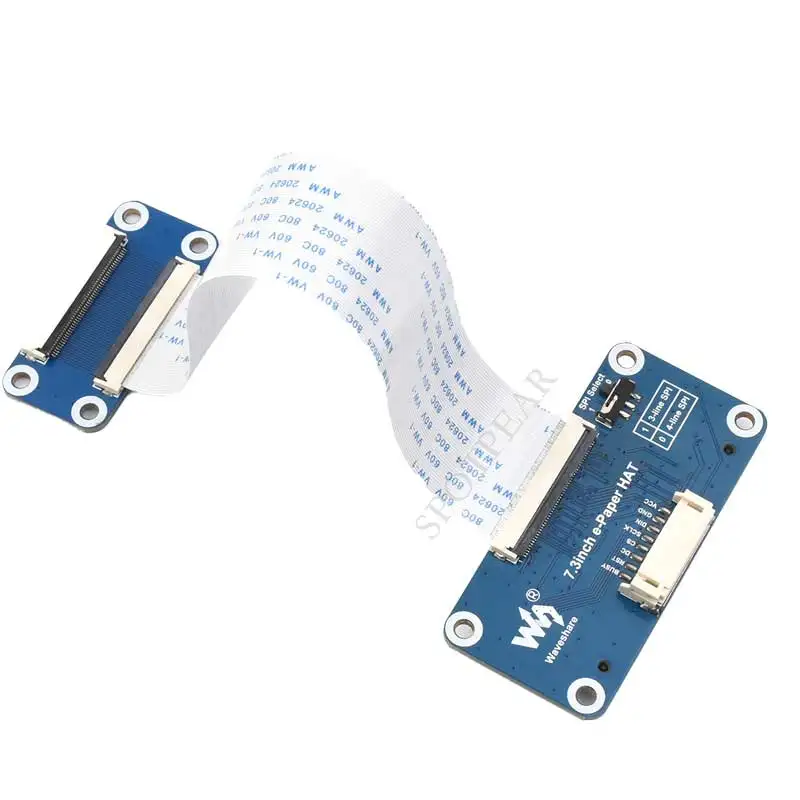

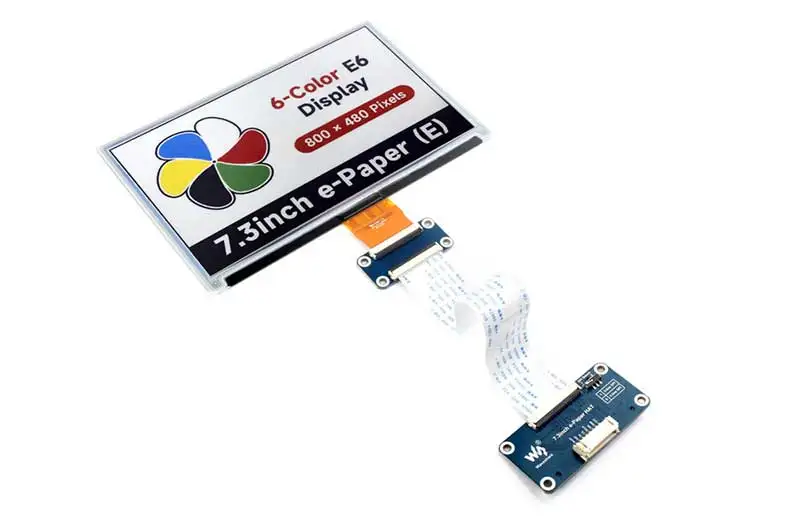

Optional For E-Paper Driver HAT

Standard Raspberry Pi 40PIN GPIO Header, Compatible With Raspberry Pi Series Boards / Jetson Nano

* for reference only, the controller boards above are NOT included.

Onboard SPI Control Interface
On E-Paper Driver HAT

For Use With Controller Boards Like Raspberry Pi/Jetson Nano/Arduino/STM32

VCC	3.3V/5V
GND	Ground
DIN	SPI MOSI pin
SCLK	SPI SCK pin
CS	SPI chip selection, low active
DC	Data / Command selection (high for data, low for command)
RST	External reset, low active
BUSY	Busy status output

【Application Examples】
Suitable For Price Tags, Asset/Equipment Tags, Shelf Labels, Conference Name Tags…

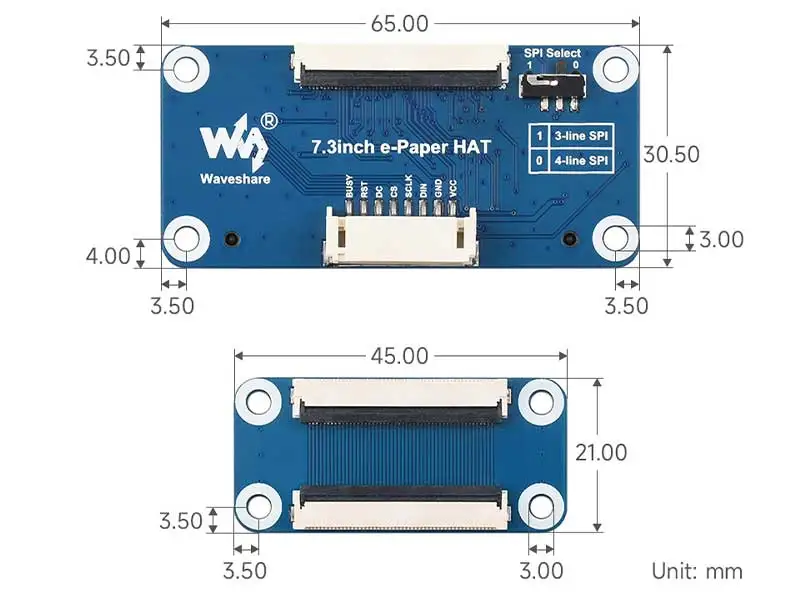

【Outline Dimensions】

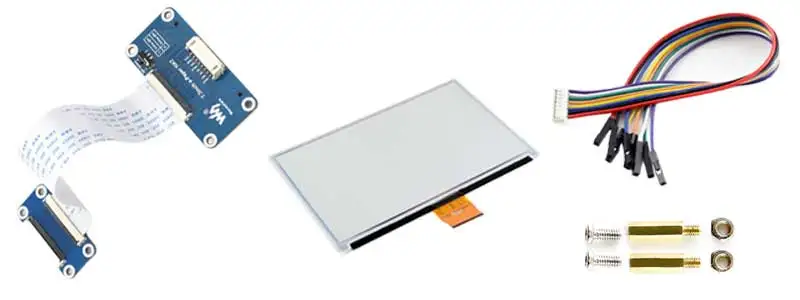

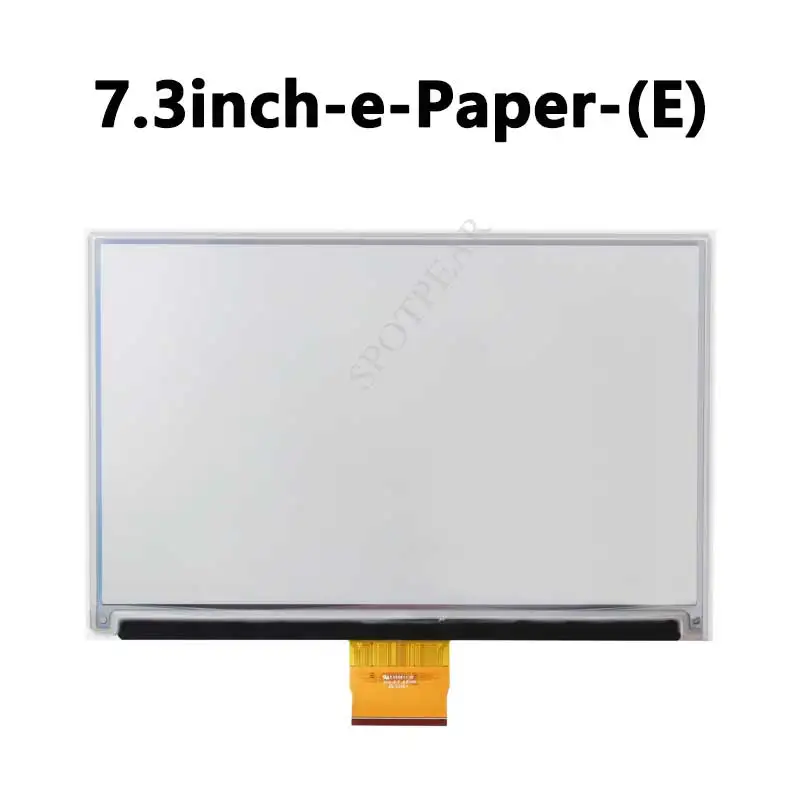

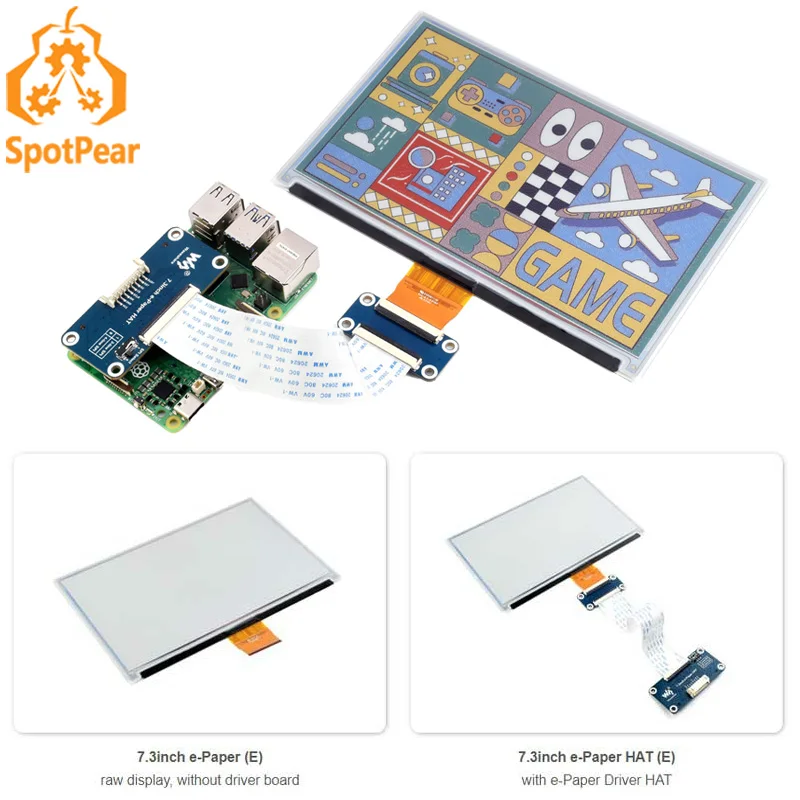

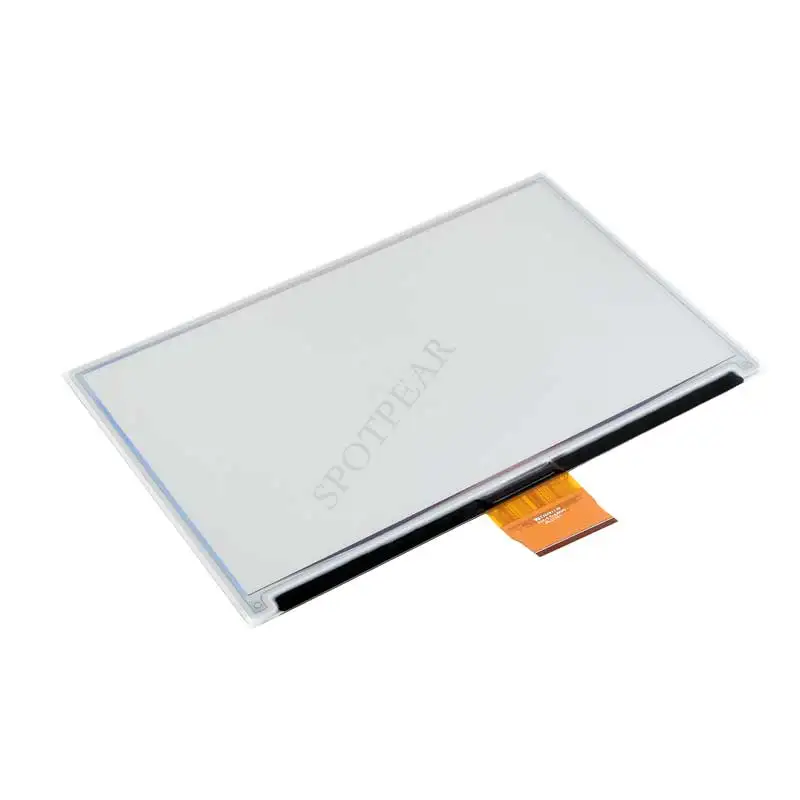

[] 7.3inch-e-Paper-(E) ×1

[] 7.3inch-e-Paper-HAT-(E) ×1
