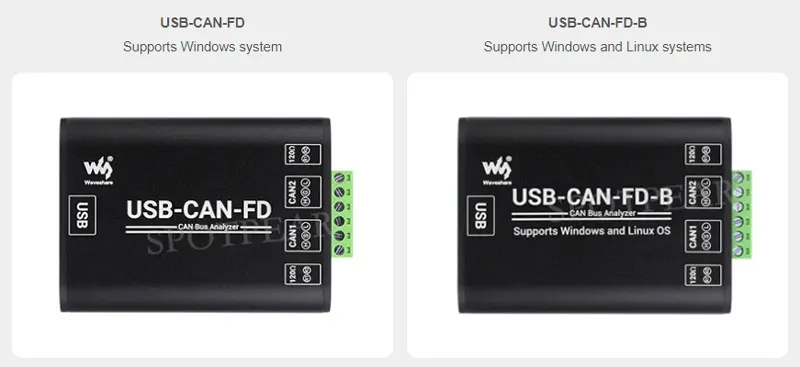

Industrial CAN/CAN FD Bus Data Logic Analyzer USB To CAN FD Adapter Communication

Supports Protocol Conversion
Between USB And CAN/CAN FD Bus

Onboard High-Speed USB2.0 Interface And 2-Ch CAN/CAN FD Bus Interfaces, Support Bi-Directional Transmission, Can Work Independently Without Interfering With Each Other

Programmable Baud Rate, Automatic Detection

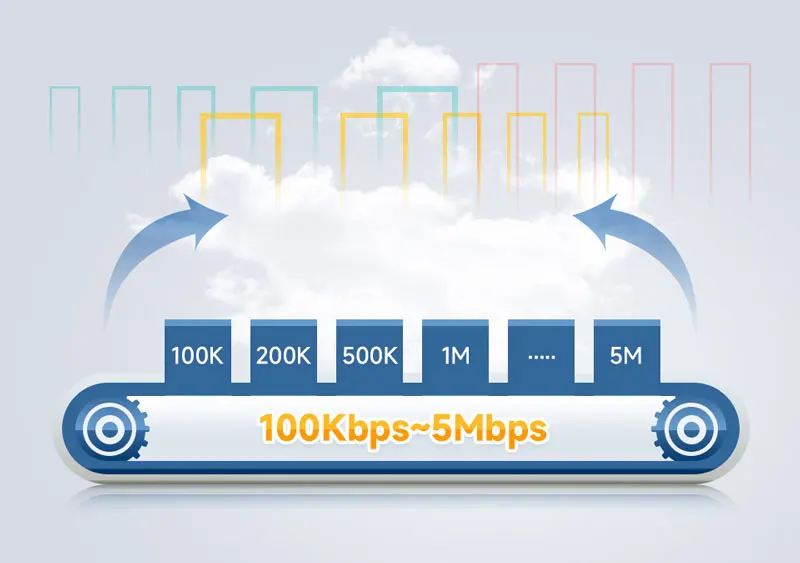

CAN Baud Rate Is Configurable In The Range Of 100Kbps~5Mbps
Supports Baud Rate Calculation, Auto-Detection, And Setting Via The Configuration Tool

Supports Decoding And Analyzing For
Multiple CAN Protocols

Supports CAN 2.0A, CAN 2.0B, ISO11898-1, And CAN FD Protocol Specification V.1.0, Supports Standard And Extended Frames

Supports Multi Development Environments

Provides Examples For Secondary Development Projects On Various Mainstream Development Platforms: C#, VC, Delphi, Qt, LabVIEW, Python/Python-Can

High-Performance Hardware Solution

Adopts Original Controller And 32-Bit MIPS M4K Core, Up To 80MHz Frequency, With High Performance, Stable And Reliable

With Electrical Isolation And Multiple
Protection Circuits

Adopts High-Speed Signal Isolators, DC-DC Dual Power Isolation, USB, CAN1 And CAN2 Three-Terminal Full Isolation, Higher Communication Security And Stability

One PC With Multiple Devices

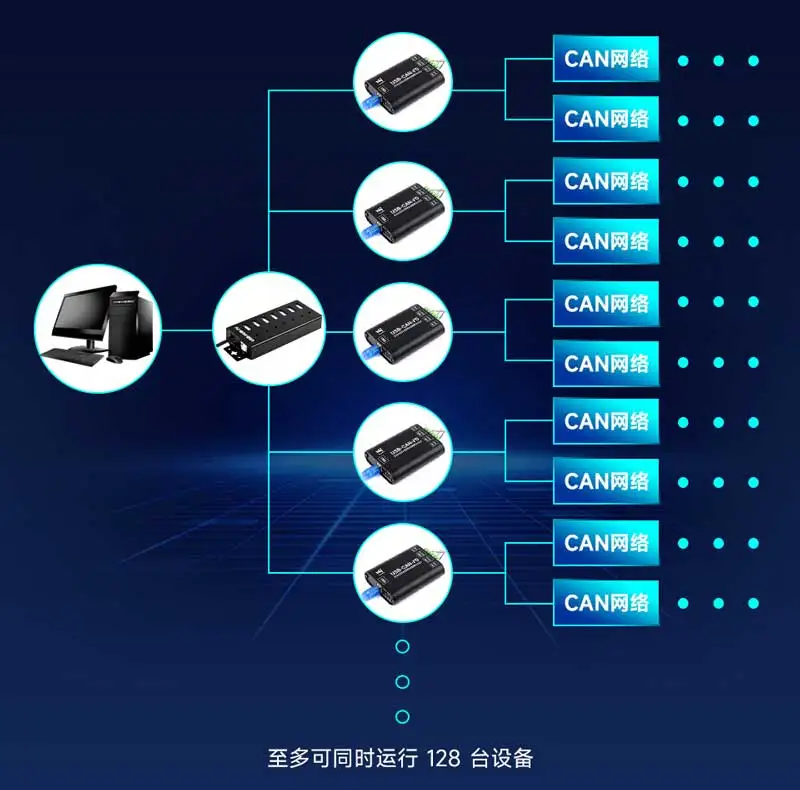

Supports one PC to run multiple CAN FD analyzers at the same time without interfering with each other, up to 128 devices after testing. It is suitable for monitoring multiple CAN networks at the same time with one monitoring device, or for data comparison and verification and so on.

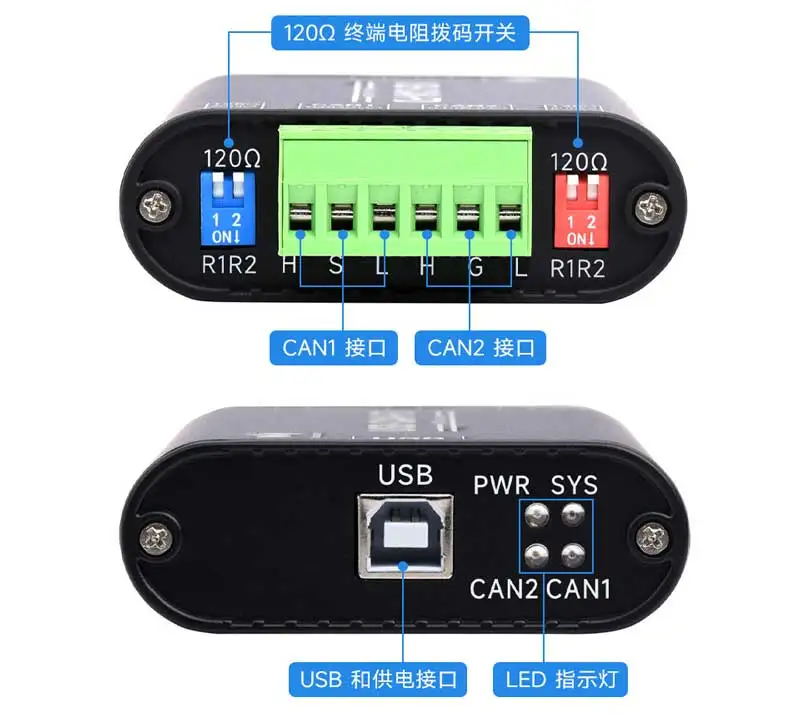

Interface Introduction

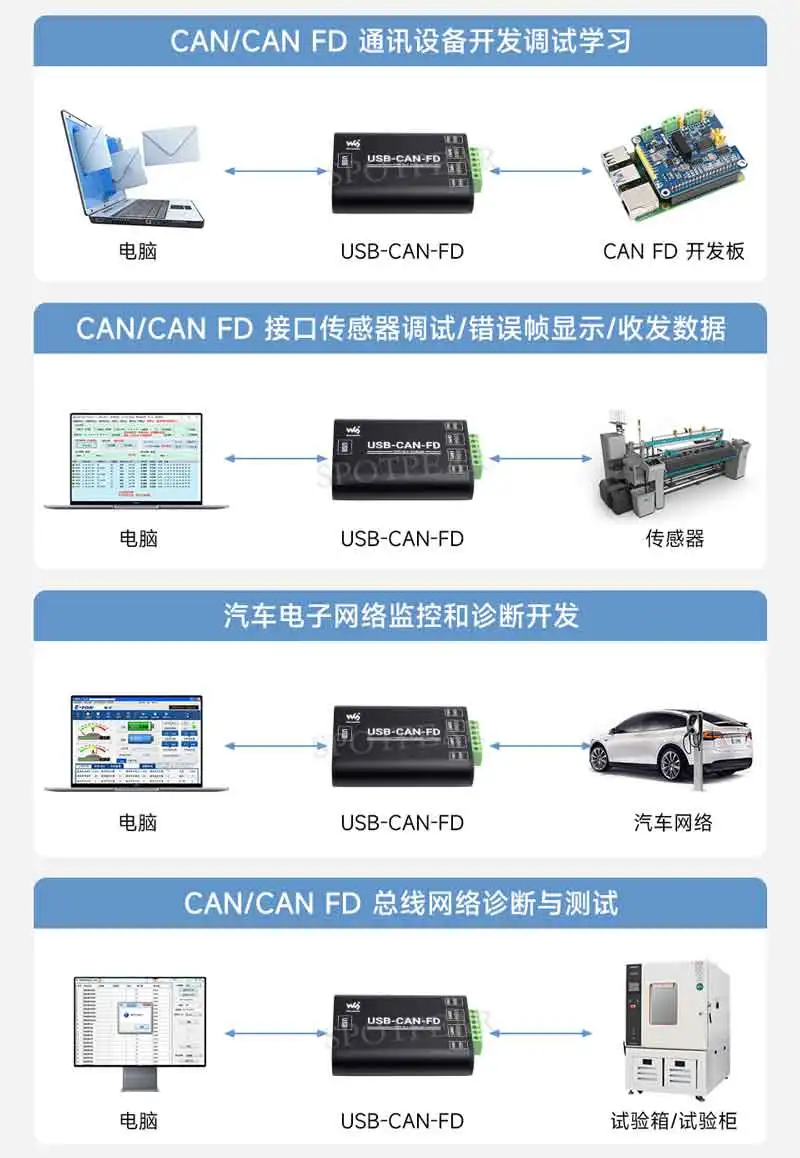

Application Scenarios

Application Example

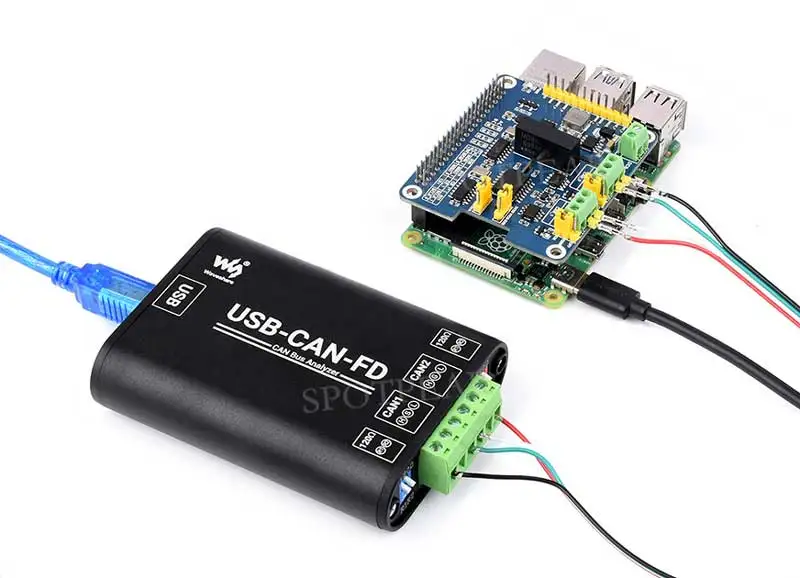

* for reference only, the Raspberry Pi 4B and 2-CH CAN FD HATare Not included.

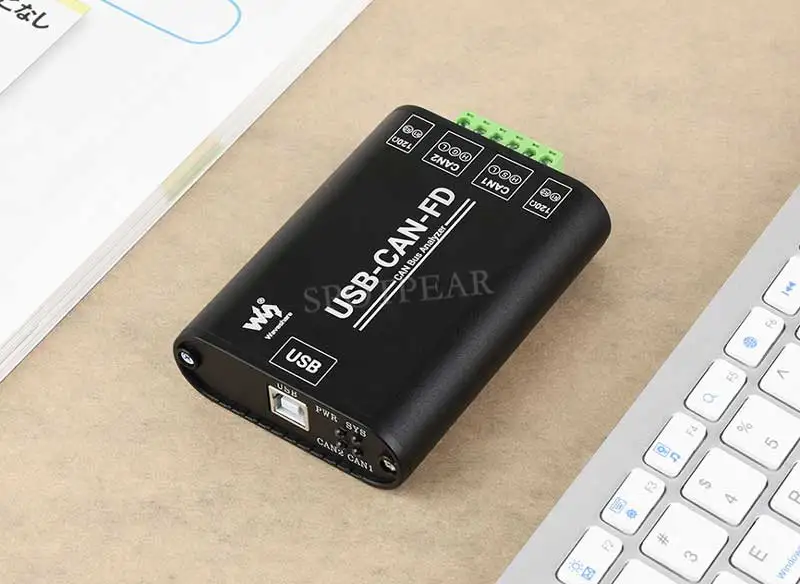

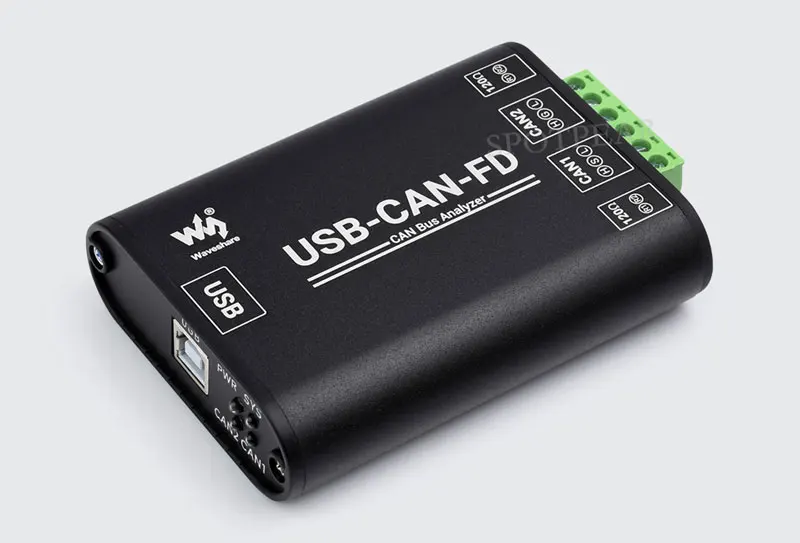

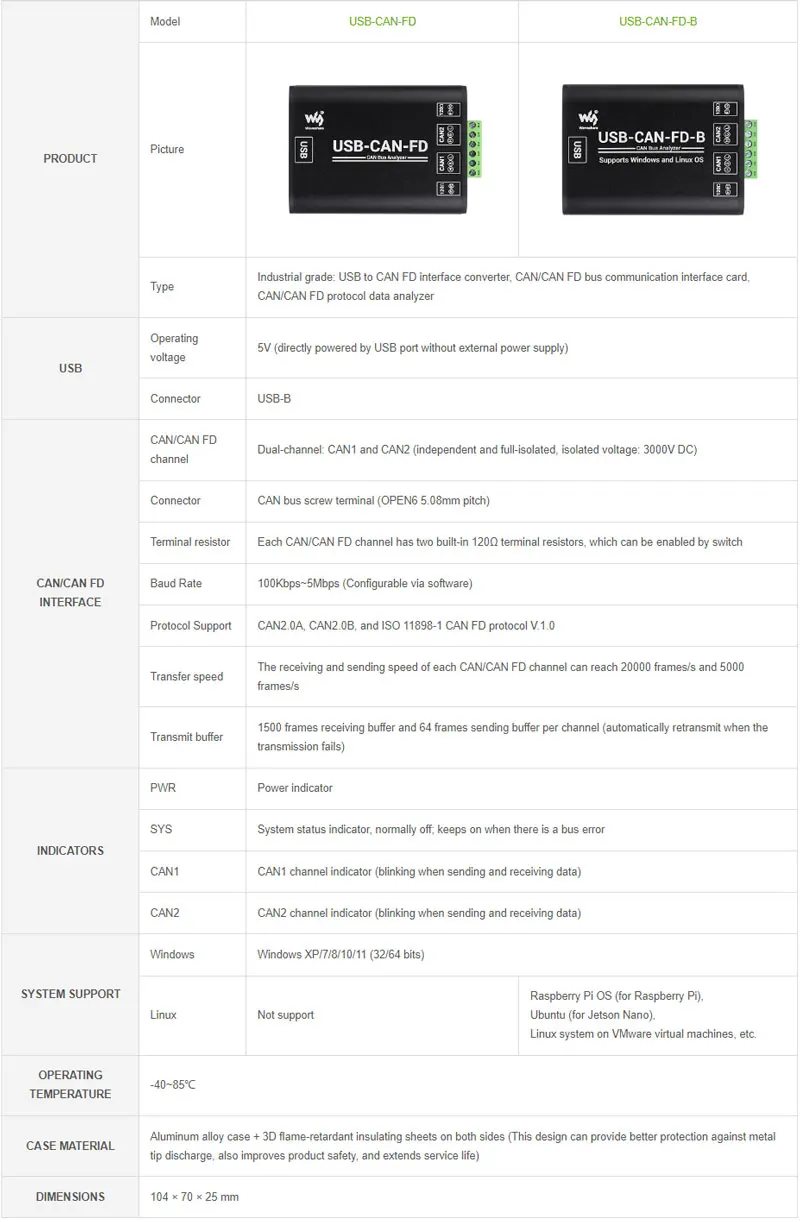

Product Show

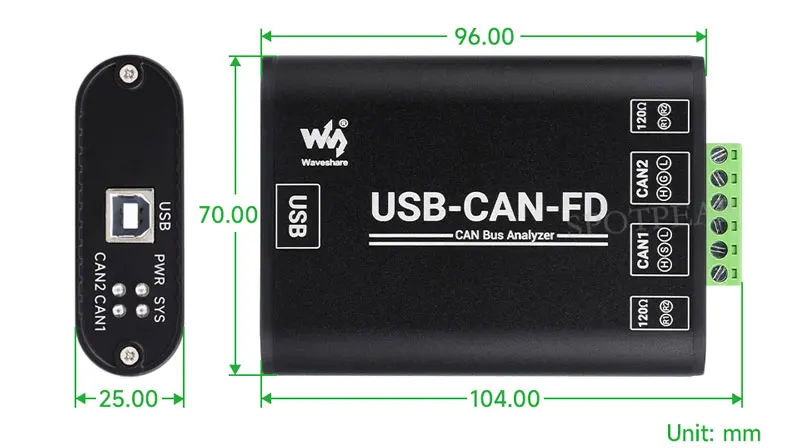

Outline Dimensions
