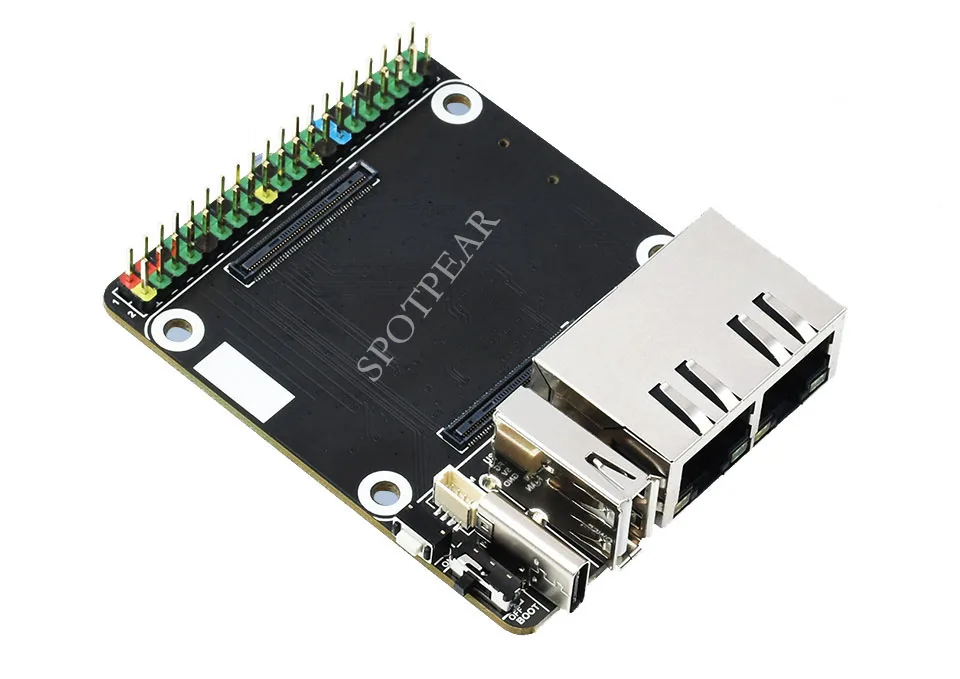

Raspberry Pi Compute Module 4 CM4 IO Board Dual Gigabit Ethernet Mini Open-source Router Board
Raspberry Pi Compute Module 4 CM4 IO Board Dual Gigabit Ethernet Mini Open-source Router Board - Image 2
Raspberry Pi Compute Module 4 CM4 IO Board Dual Gigabit Ethernet Mini Open-source Router Board - Image 3
Raspberry Pi Compute Module 4 CM4 IO Board Dual Gigabit Ethernet Mini Open-source Router Board - Image 4
Raspberry Pi Compute Module 4 CM4 IO Board Dual Gigabit Ethernet Mini Open-source Router Board - Image 5
Raspberry Pi Compute Module 4 CM4 IO Board Dual Gigabit Ethernet Mini Open-source Router Board - Image 6

Raspberry Pi Compute Module 4 CM4 IO Board Dual Gigabit Ethernet Mini Open-source Router Board

Availability:

2 in stock
Compare

$34.03

2 in stock

  • Hign-concerned Chemical: None
  • Demo Board Type: ARM
  • Brand Name: spotpear
  • Origin: Mainland China
  • Certification: CE

Note: Do not include CM4, Please Buy alone.

   Overview

  • CM4-DUAL-ETH-MINI For Compute Module 4

  • Suitable For Evaluating The Raspberry Pi CM4 Or Being Integrated Into End Products

   Specifications

  • CM4 SOCKET: Suitable for all variants of Compute Module 4

  • ETHERNET: Dual Gigabit Ethernet RJ45

  • USB: USB 2.0 interface

  • PIN HEADER: Raspberry Pi 40PIN GPIO header × 1

  • STORAGE: MicroSD card socket for Compute Module 4 Lite (without eMMC) variants

  • FAN HEADER: Four-wire SH1.0 interface allows speed adjustment and measurement, 5V

  • POWER INPUT: 5V, Type-C interface

  • DIMENSIONS: 55.0 × 68.0mm

Connecting With Compute Module 4

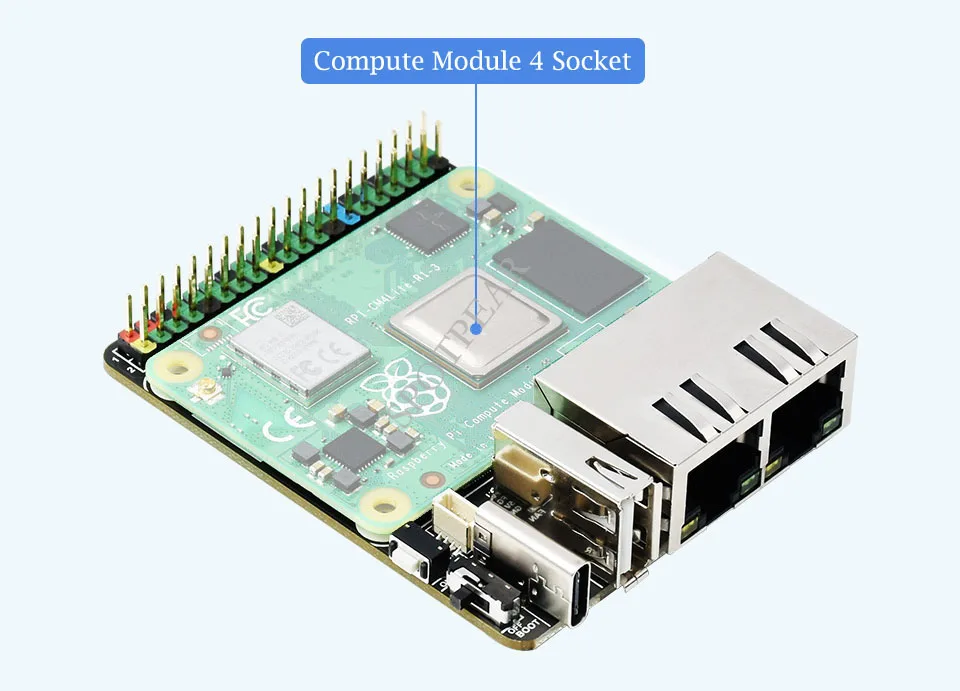

Standard CM4 Socket And Color-Coded Raspberry Pi 40PIN GPIO Header
Suitable For Compute Module 4 Lite/EMMC Series Module

Rich Interfaces

Providing Interfaces Including: ETH / Micro SD / USB

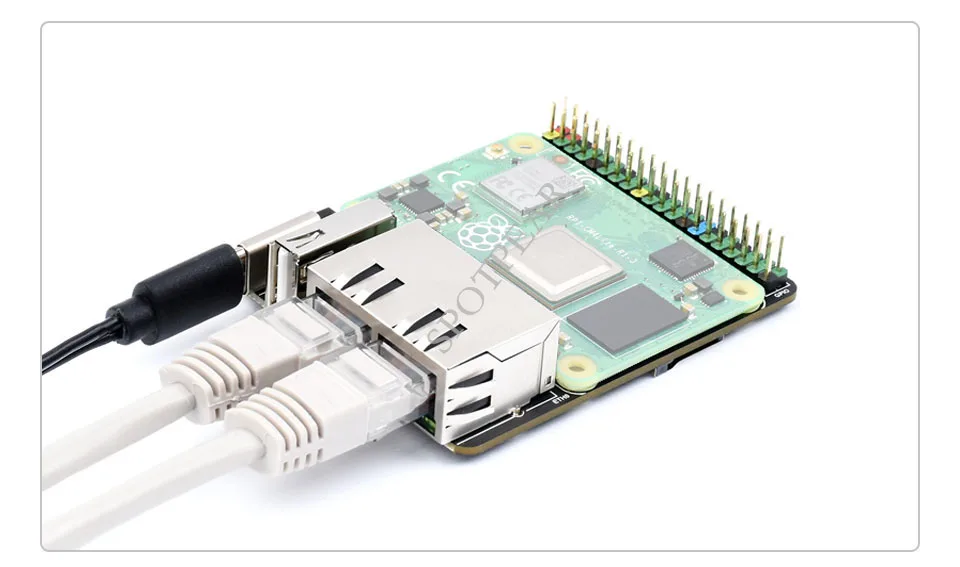

Application Example

for reference only, CM4 are NOT included.

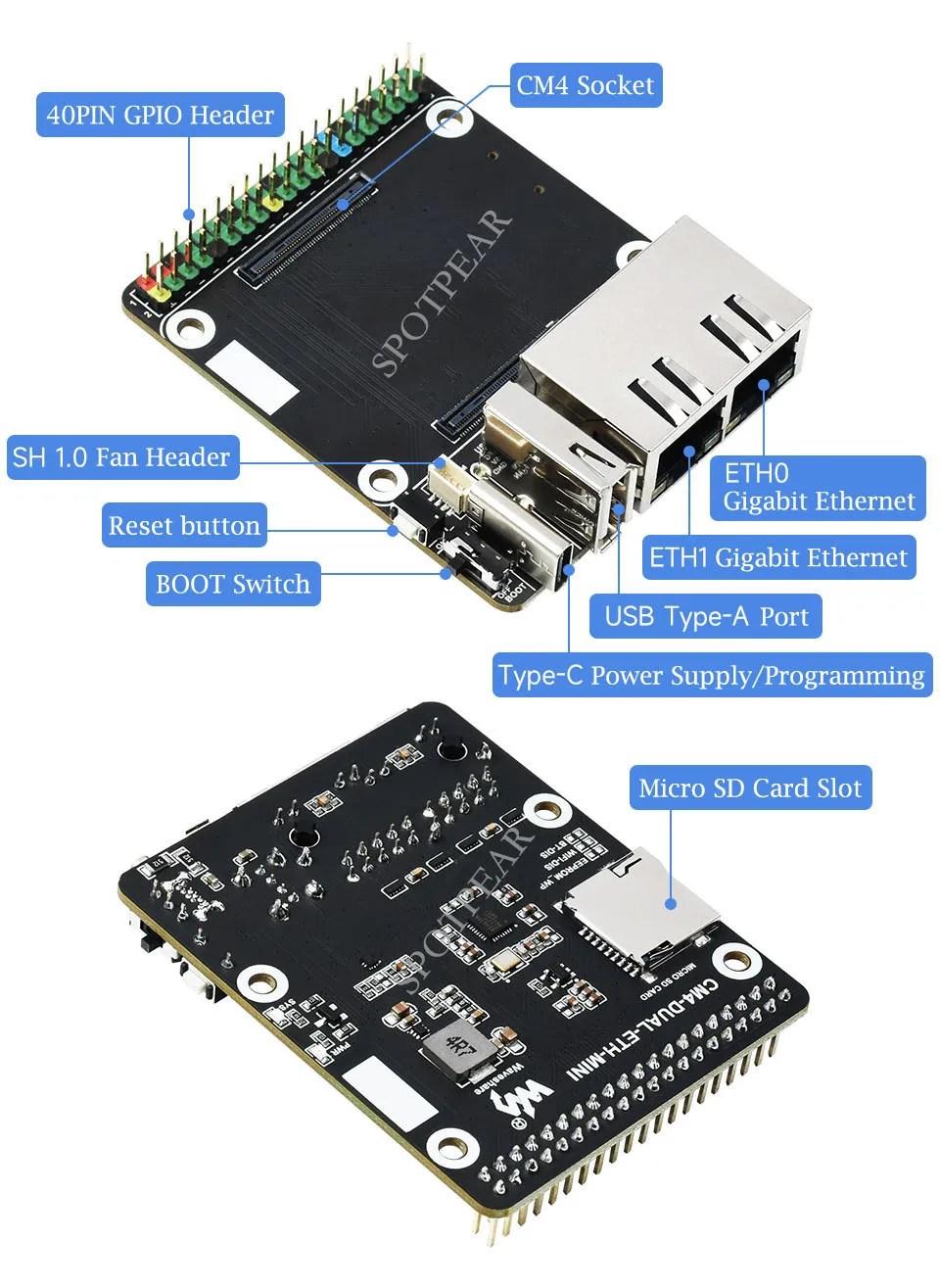

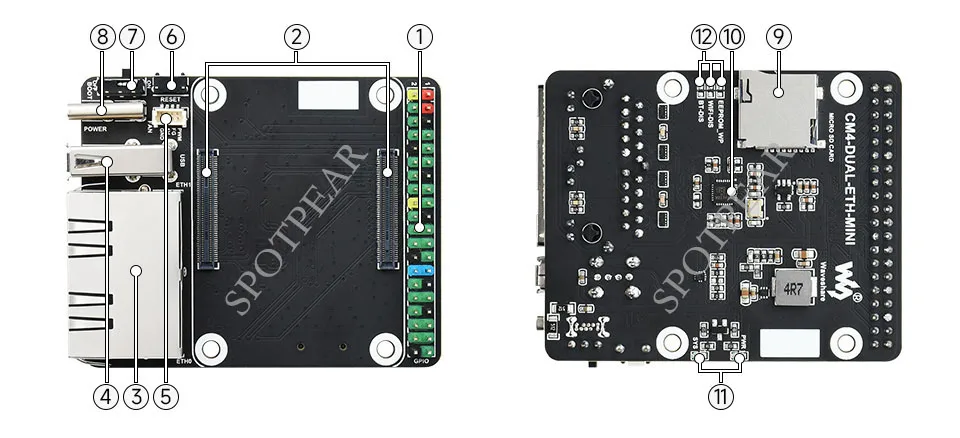

What's On Board

  40PIN GPIO header

  For connecting sorts of HATs

CM4 socket

Suitable for all variants of Compute Module 4

RJ45 Gigabit Ethernet

Dual RJ45 Gigabit Ethernet, 10/100/1000M compatible

ETHERNET 0: CM4 original ETH

ETHERNET 1: PCIe extended ETH

USB 2.0 Type A ports

For connecting sorts of USB devices

FAN header

For connecting cooling fan, allows speed adjustment and measurement

Reset button

Reset button

BOOT Switch

ON: CM4 would be booted from USB-C interface

OFF: CM4 would be booted from eMMC or Micro SD card

Type-C interface

5V 2.5A power supply interface, can also be used as eMMC programming interface

Micro SD card slot

For connecting a Micro SD card with pre-burnt image

RTL8111H

Gigabit Ethernet chip

Indicator

SYS: indicating the operating status of Raspberry Pi

PWR: indicating the status of Raspberry Pi power supply

SYSTEM system function switch

EEPROM_WP: Prevent EEPROM from being overwritten

WiFi_DIS: WiFi disabled, only for CM4 version with antenna

BT_DIS: Bluetooth disabled, only for CM4 version with antenna
.

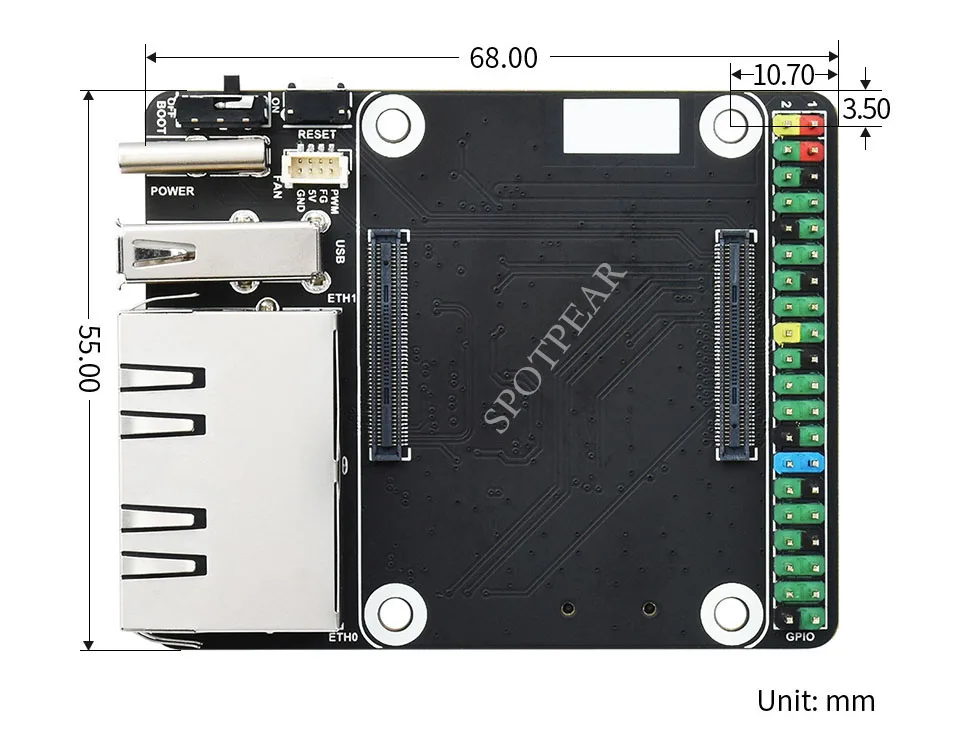

Outline Dimensions

Package Contains

Note: Do not include CM4, Please Buy alone.

  1. CM4-DUAL-ETH-MINI x1
