Raspberry Pi CM5 Compute Module 5 Dual Gigabit Ethernet RJ45 Expansion IO Base Board waveshare CM5-DUAL-ETH-MINI
Raspberry Pi CM5 Compute Module 5 Dual Gigabit Ethernet RJ45 Expansion IO Base Board waveshare CM5-DUAL-ETH-MINI - Image 2
Raspberry Pi CM5 Compute Module 5 Dual Gigabit Ethernet RJ45 Expansion IO Base Board waveshare CM5-DUAL-ETH-MINI - Image 3
Raspberry Pi CM5 Compute Module 5 Dual Gigabit Ethernet RJ45 Expansion IO Base Board waveshare CM5-DUAL-ETH-MINI - Image 4
Raspberry Pi CM5 Compute Module 5 Dual Gigabit Ethernet RJ45 Expansion IO Base Board waveshare CM5-DUAL-ETH-MINI - Image 5
Raspberry Pi CM5 Compute Module 5 Dual Gigabit Ethernet RJ45 Expansion IO Base Board waveshare CM5-DUAL-ETH-MINI - Image 6

Raspberry Pi CM5 Compute Module 5 Dual Gigabit Ethernet RJ45 Expansion IO Base Board waveshare CM5-DUAL-ETH-MINI

Availability:

8 in stock
Compare

$26.78 – $49.99

  • Hign-concerned Chemical: None
  • Compatible With: Raspberry Pi
  • Accessory Type: Extension Board
  • Brand Name: spotpear
  • Origin: Mainland China

Dual Gigabit Ethernet Base Board For CM5
Mini, Practical And Neat

Suitable For Evaluating The Raspberry Pi CM5 Or Being Integrated Into End Products

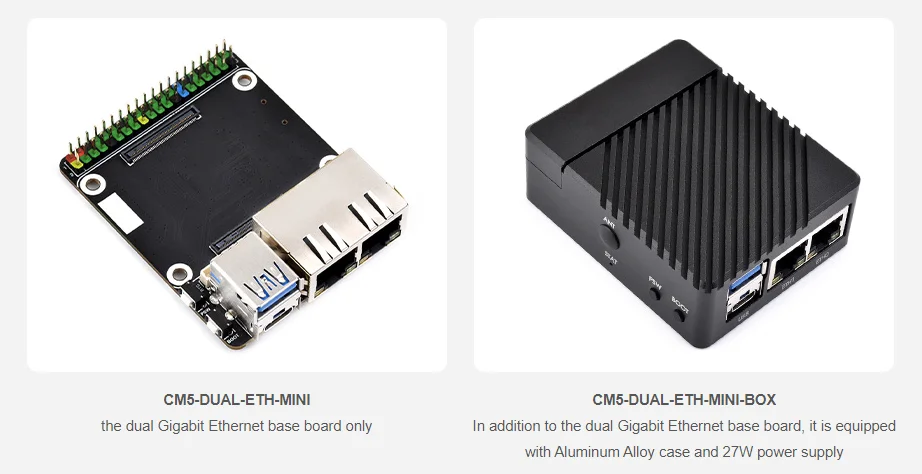

Version Options

* Please refer to the Package Content for detailed part list

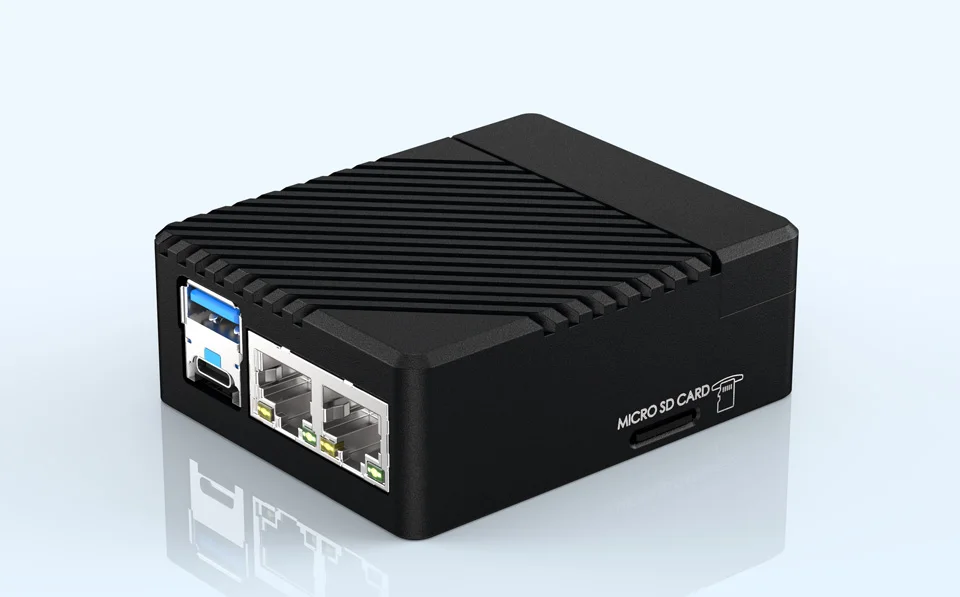

Optional Black Metal Case

Provides Better Protection For The Base Board Along With Efficient Heat Dissipation

for reference only, CM5 is NOT included.

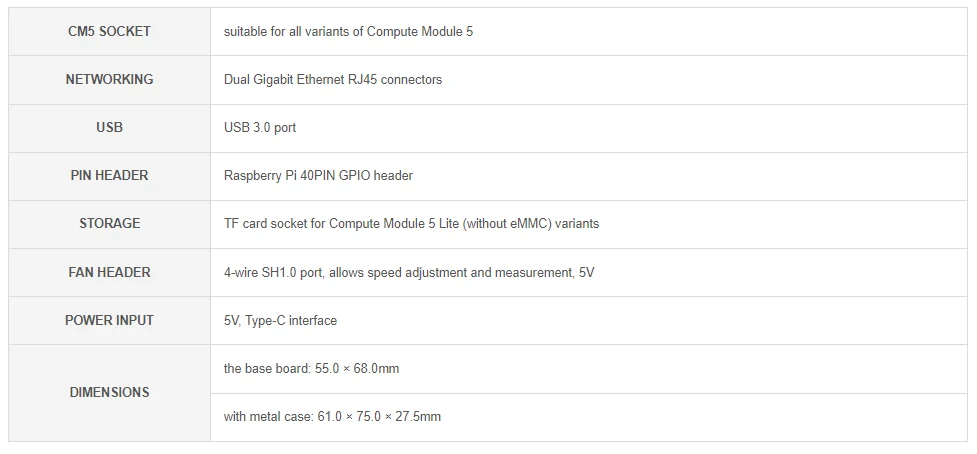

Specifications

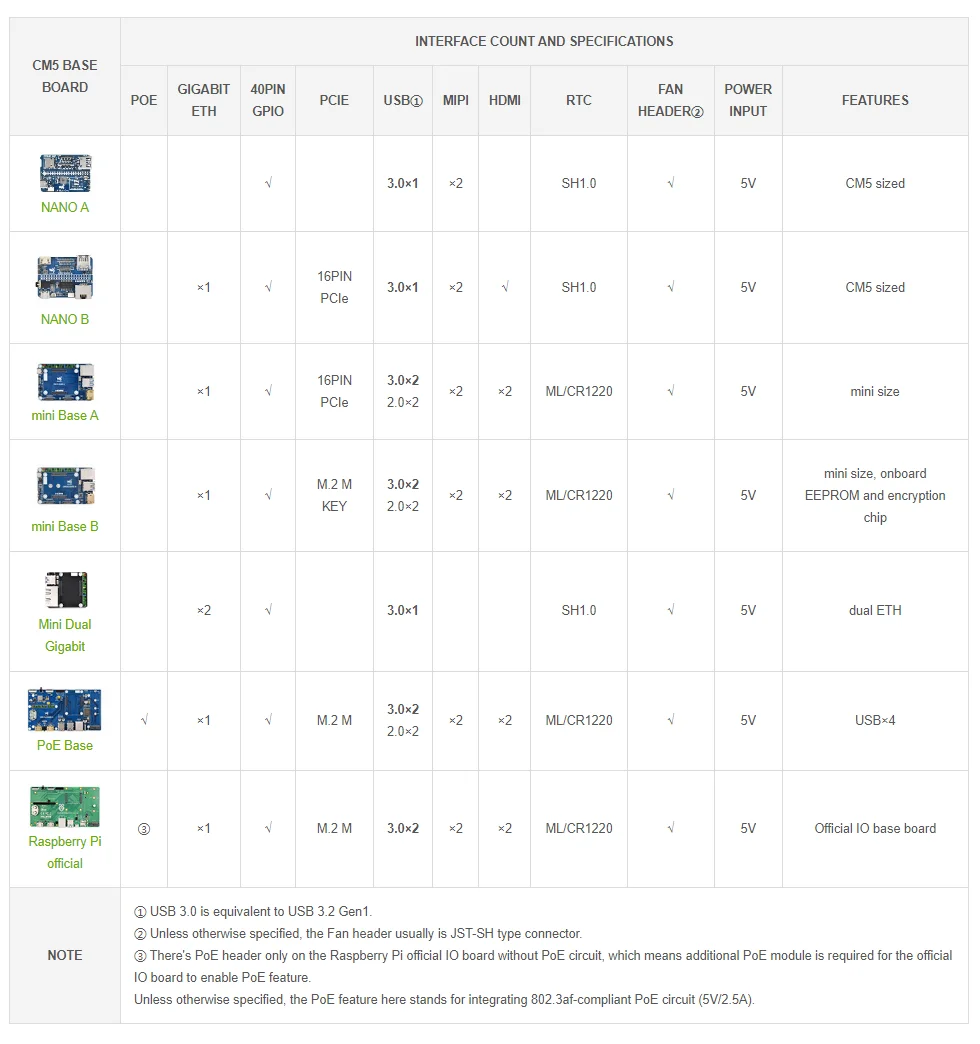

What's The Differences

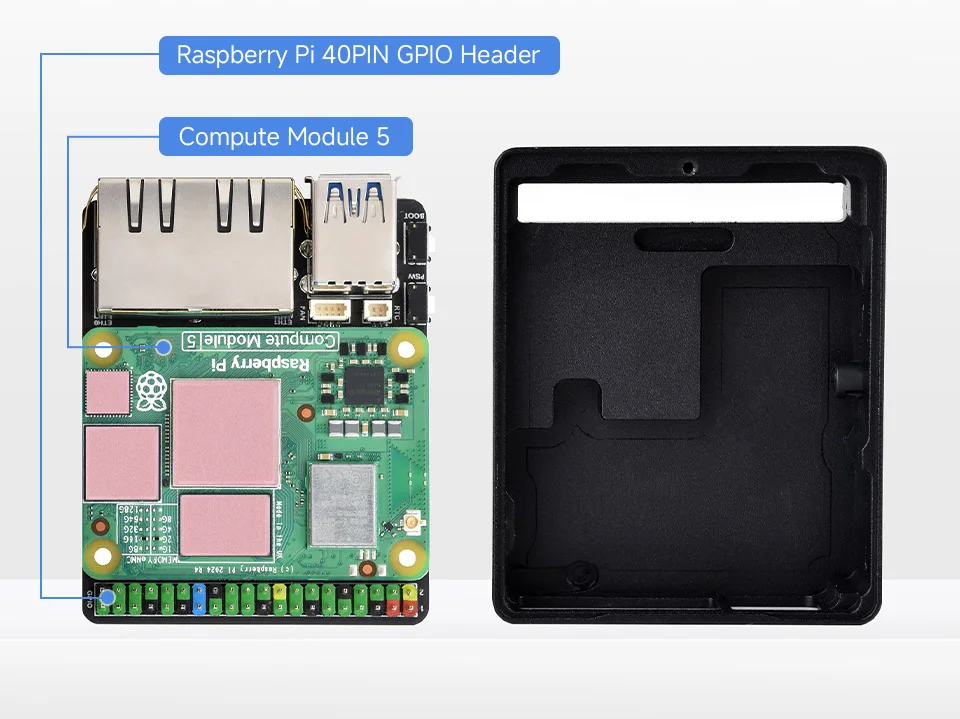

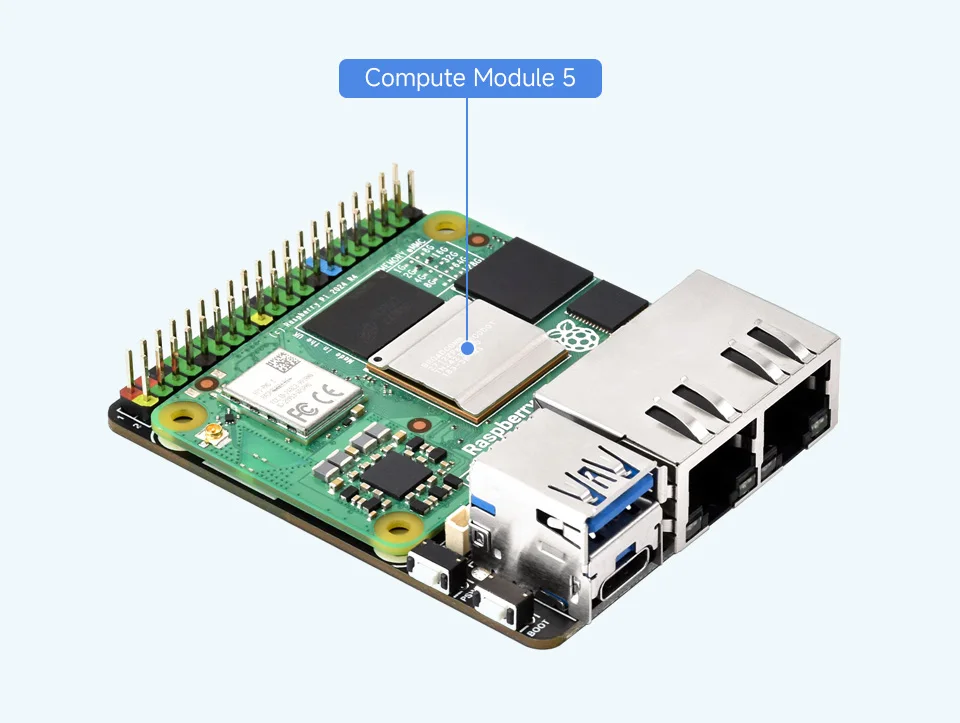

Connecting With Compute Module 5

Standard CM5 Socket And 40PIN GPIO Header
Suitable For Compute Module 5 Lite/EMMC Series Module

for reference only, CM5 is NOT included.

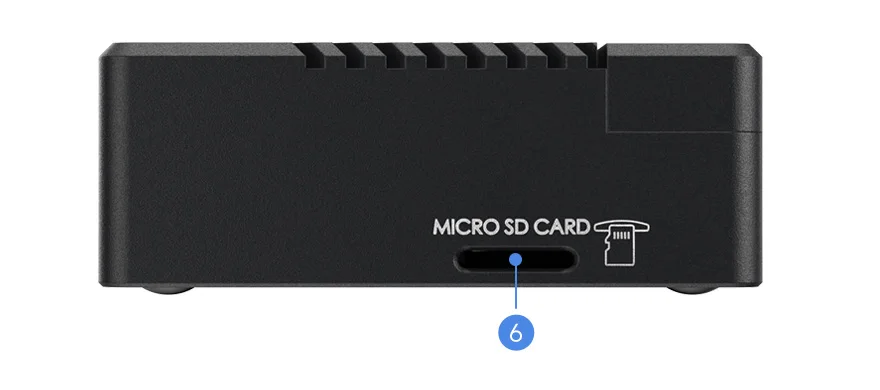

Precise Cut-Out With Clear Label

Each Cut-Out Is Completely Aligned With The Connector

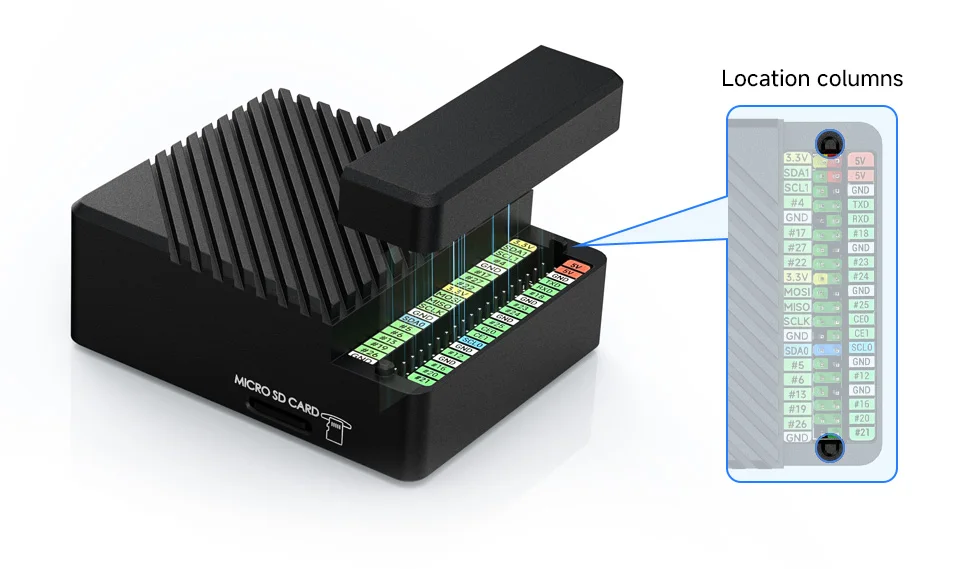

Magnetic Design

Adopts Magnetic Removable Top With Location Columns, Easy To Fix And
Better Protection For The GPIO Pins

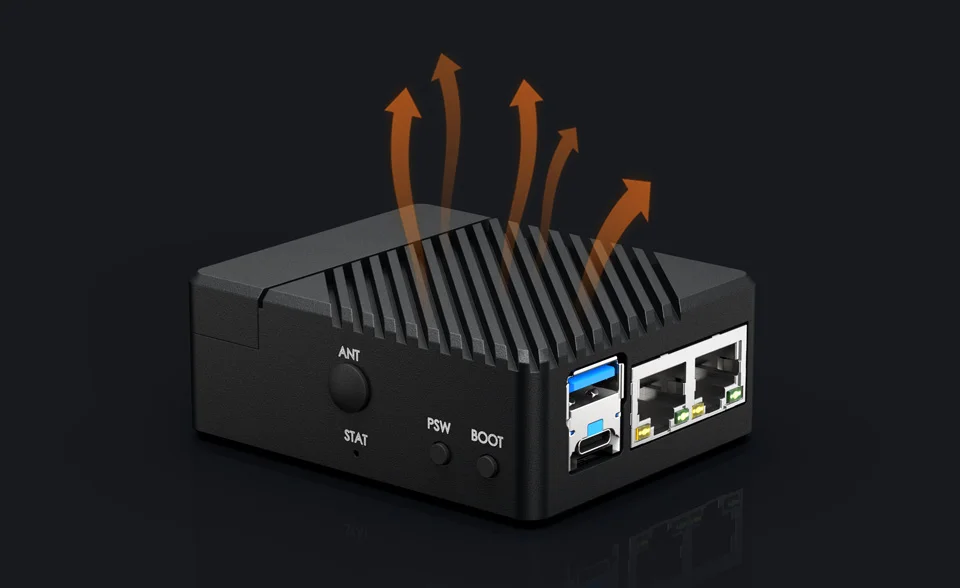

Heat Dissipation Design

Metal Case For Large Area Thermal Conductivity And Heat Dissipation
Combined With Heatsink Fins For More Efficient Cooling

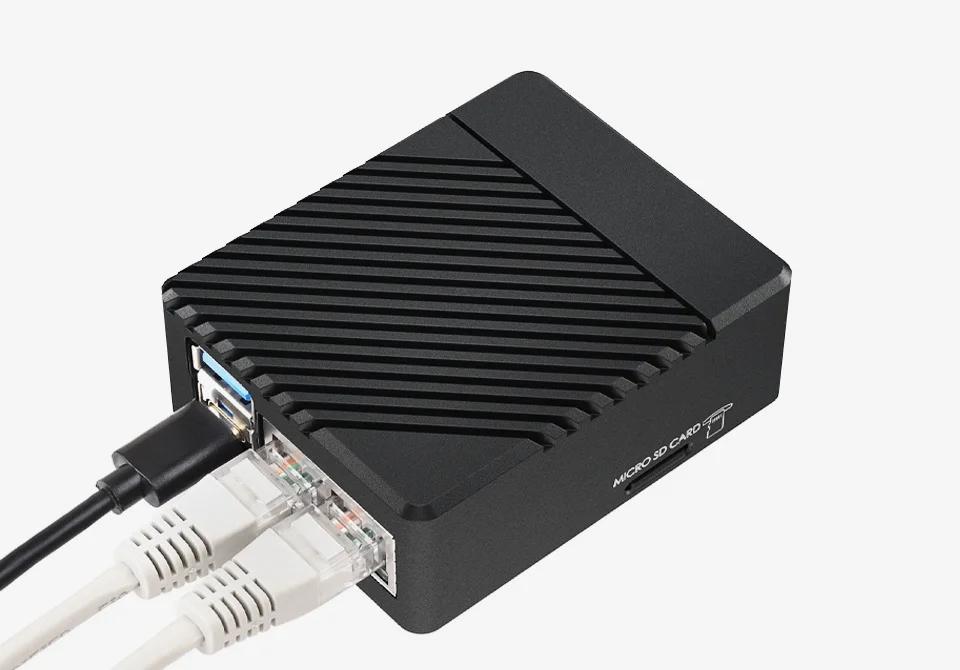

Application Example

Suitable For Raspberry Pi Or Other Industrial Occasions With Special Function Requirements

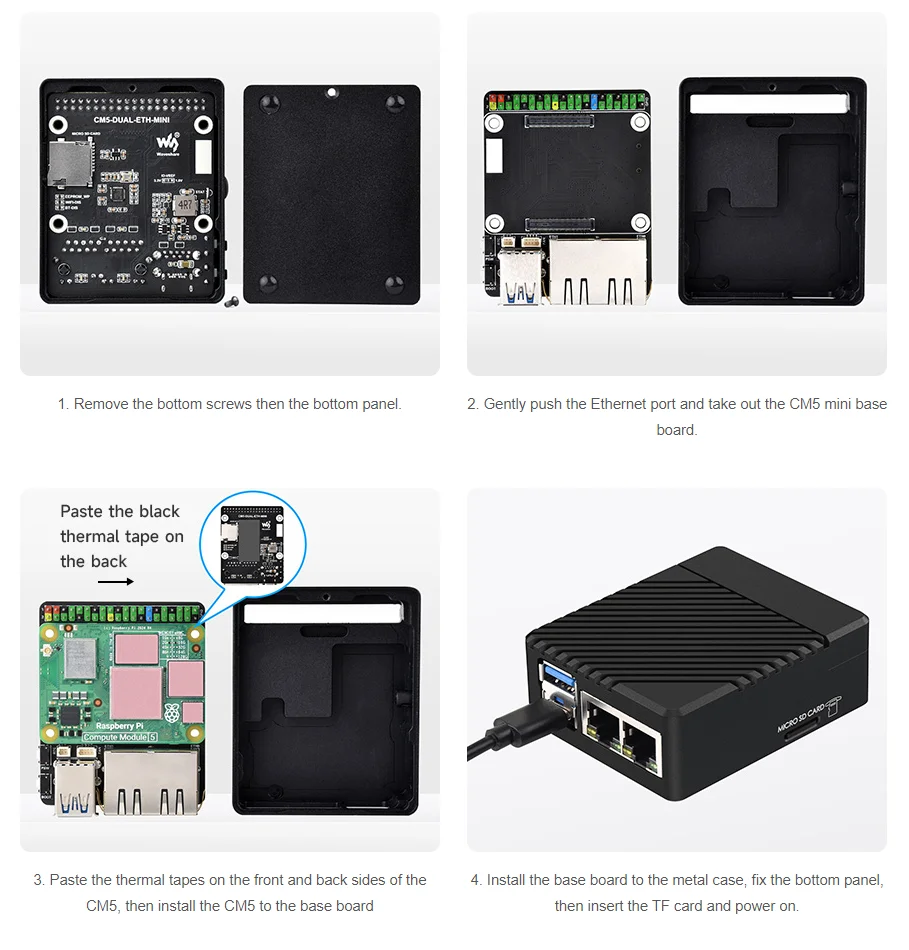

Assembly Guide
for reference only, CM5 is NOT included.

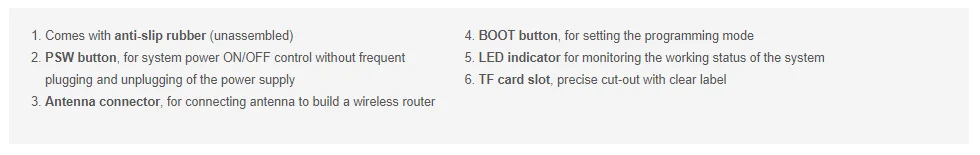

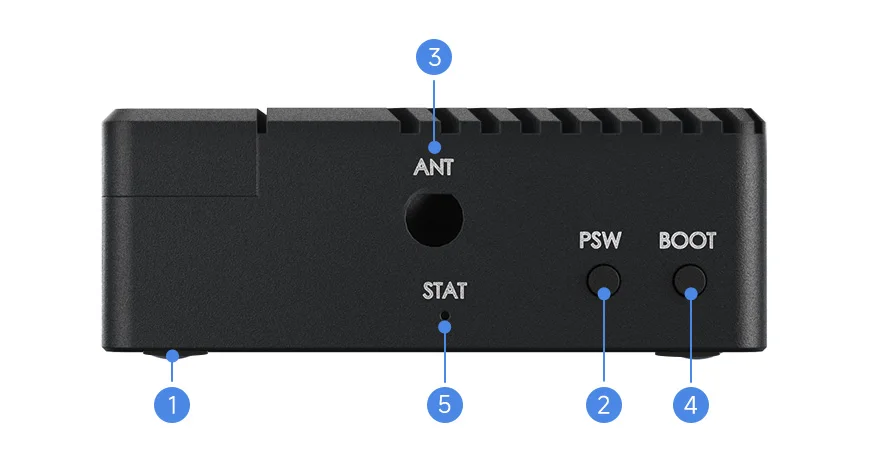

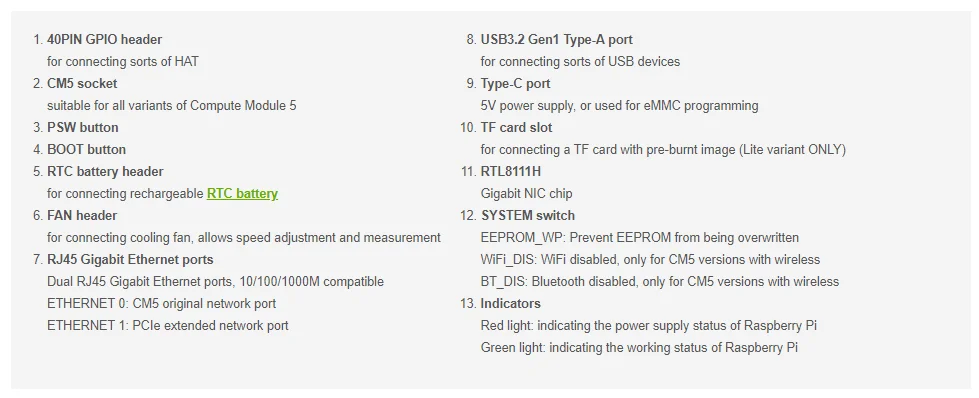

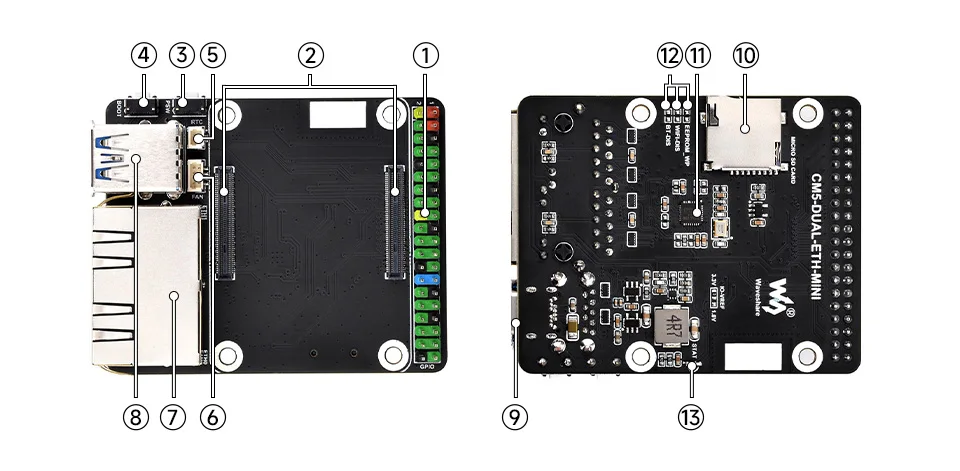

What's On Board

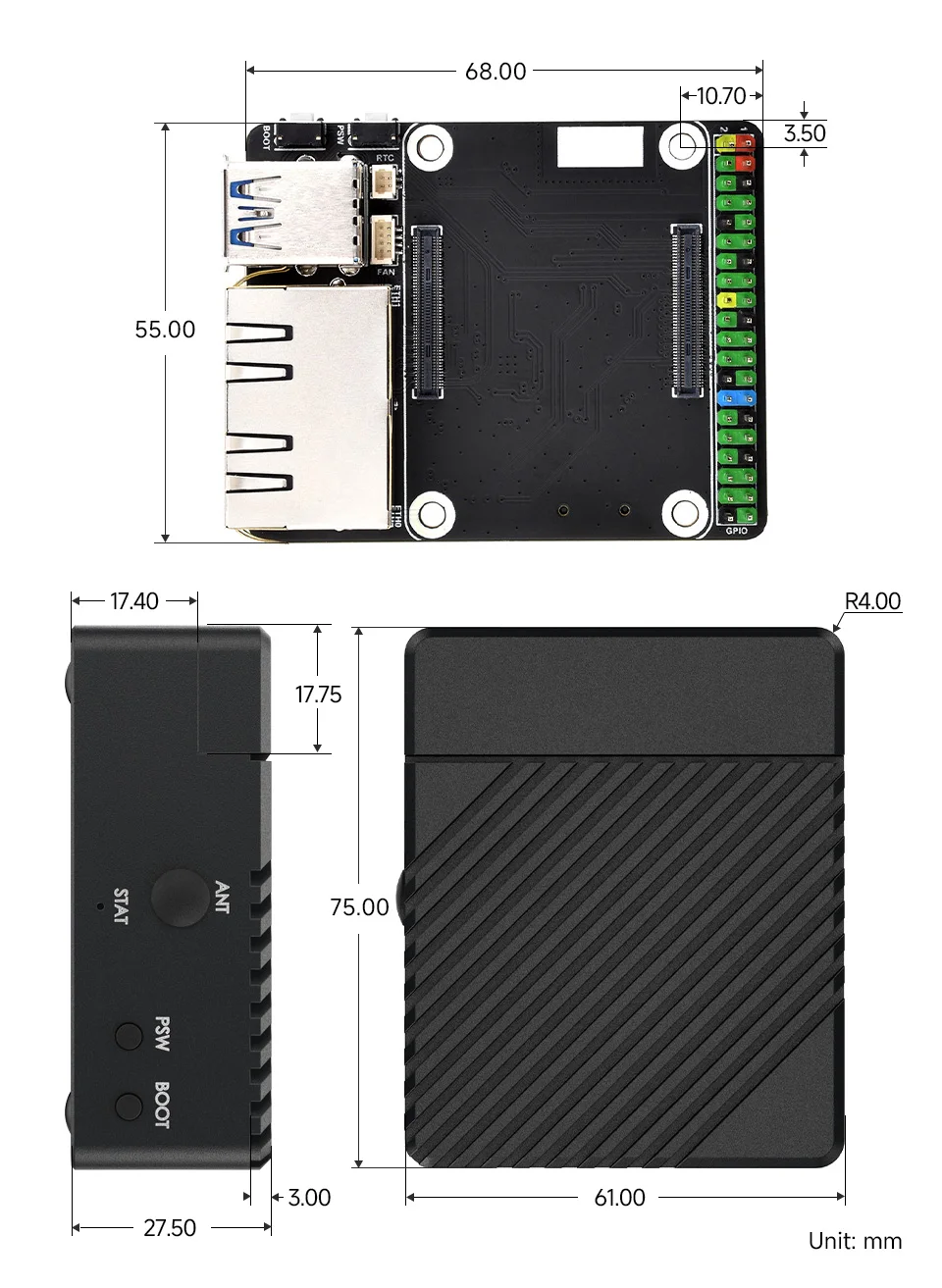

Outline Dimensions
Package Contains

[] CM5-DUAL-ETH-MINI x1

[] CM5-DUAL-ETH-MINI-BOX

  1. CM5-DUAL-ETH-MINI + metal case (assembled) x1

  2. Thermal tape 5PCS x1

  3. Black thermal tape x1

  4. Black anti-slip rubber 4PCS x1

  5. OPTIONS 27W power adapter x1

  6. Screwdriver x1
