XIAO ESP32 C6 With MR60BHA2 60GHz mmWave Radar Breathing and Heartbeat Detection Sensor ESPhome Home Assistant For SeeedStudio

【Overview】
[] This MR60BHA2 Sensor leverages 60GHz mmWave technology, offering reliable breathing and heartbeat detection, as well as human presence detection. Featuring light level sensing, an RGB LED for customizable interaction, and support for extended sensors/actuators, it provides next-level sensing for more responsive automation. With the XIAO ESP32C6 as the brain, comes with pre-flashed ESPHome firmware and wireless connectivity via Wi-Fi, Bluetooth Low Energy(BLE), Zigbee, and Thread. Thanks to the pre-flashed ESPHome firmware, offers no-code plug-and-play integration with Home Assistant to customize detection zones, making it an ideal solution for healthcare monitoring, safety monitoring, elderly care, home automation, and more.

【Feature】
[] Feature 1: Advanced mmWave Sensing for Breathing, Heartbeat and Human Presence Detection

[] The MR60BHA2 60GHz mmWave Sensor Module excels in detecting breathing and heartbeat with pre-set algorithms, and also includes human static presence functionality.

[] Human Static Presence: Measures effectively up to 6 meters.

[] Breathing & Heartbeat Detection: Accurate for a single person at 1.5 meters with the device stationary.

[] Feature 2: Powered by ESP32 & ESPHome & No-Code Integration with Home Assistant

[] The kit features a Seeed Studio XIAO ESP32C6 with pre-flashed ESPHome firmware, enabling seamless plug-and-play integration with Home Assistant. Configure the device in ESPHome, and no-code setup for Home Assistant in 1-2 minutes. Thanks to the integration, you can customize detection zones and access analytics to pinpoint target locations efficiently from Home Assistant.

[] Feature 3: Ambient Light Sensing for Responsive Automation

[] The mmWave sensor module includes a BH1750 light sensor, offering precise ambient light detection from 1 to 65,535 lux, with adjustable measurements up to 100,000 lux. Supported by ESPHome and Arduino IDE, it allows you to collect ambient light readings as frequently as every second, enhancing your automation's responsiveness to environmental changes.

[] Feature 4: Extended Sensing or Automation with Grove

[] We’ve added one additional Grove Connector to the mmWave Module for easy expansion with your own Grove sensors and actuators (e.g., PIR and Relay). Choose from over 300 compatible Grove Modules!

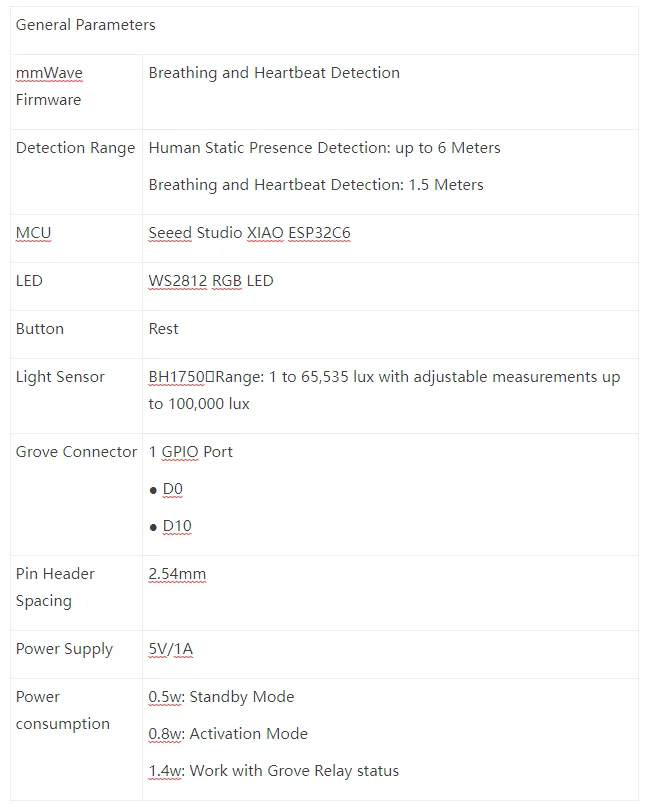

【Specification】

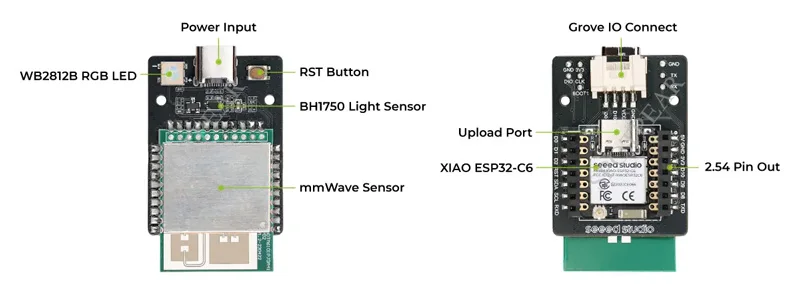

【Hardware Overview】

【Application】
