ESP32 S3 Development Board 2.1inch LCD LVGL Board 480×480 Captive TouchScreen Display Module

ESP32-S3-Touch-LCD-2.1 is a microcontroller development board with 2.4GHz WiFi and Bluetooth BLE 5 support, integrates high-capacity Flash and PSRAM. Onboard 2.1inch capacitive touch screen can smoothly run GUI programs such as LVGL. Combined with various peripheral interfaces, suitable for the quick development of the HMI and other ESP32-S3 applications.

• Equipped with high-performance Xtensa 32-bit LX7 dual-core processor, up to 240MHz main frequency

• Supports 2.4GHz Wi-Fi (802.11 b/g/n) and Bluetooth 5 (LE), with onboard antenna

• Built-in 512KB SRAM and 384KB ROM, with onboard 16MB Flash and 8MB PSRAM

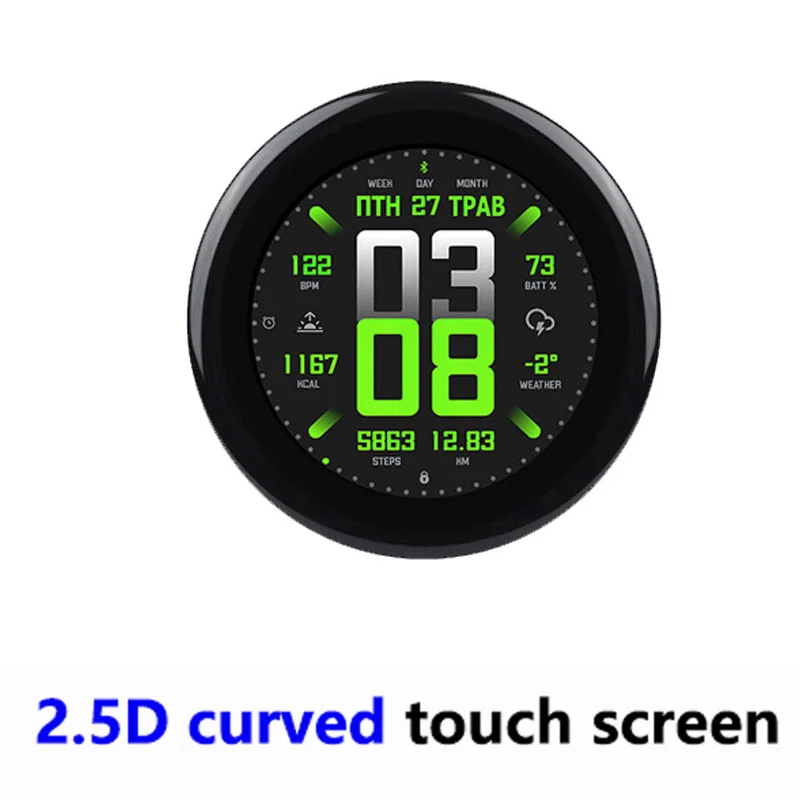

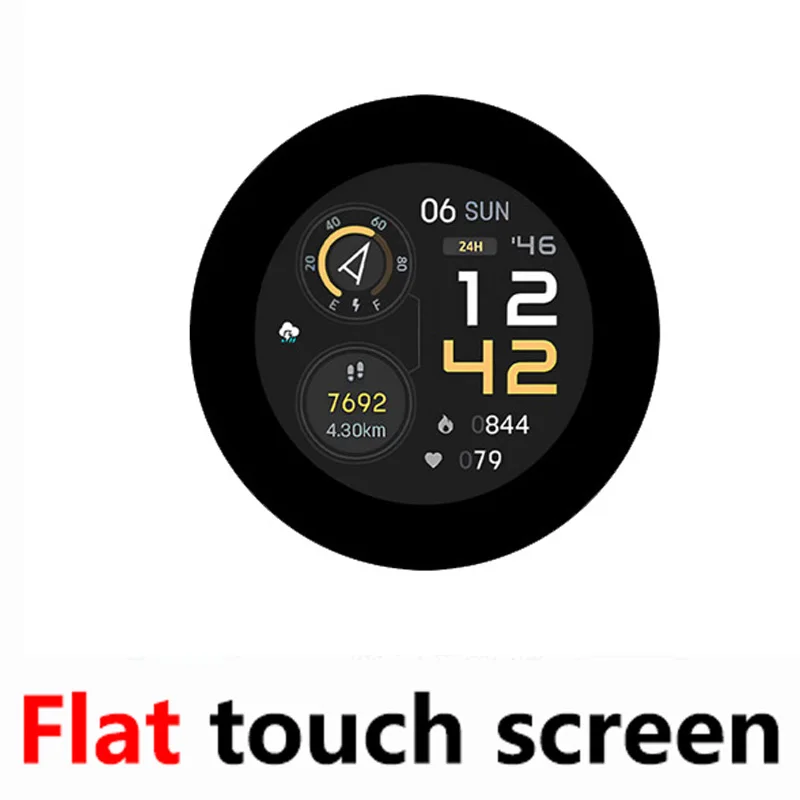

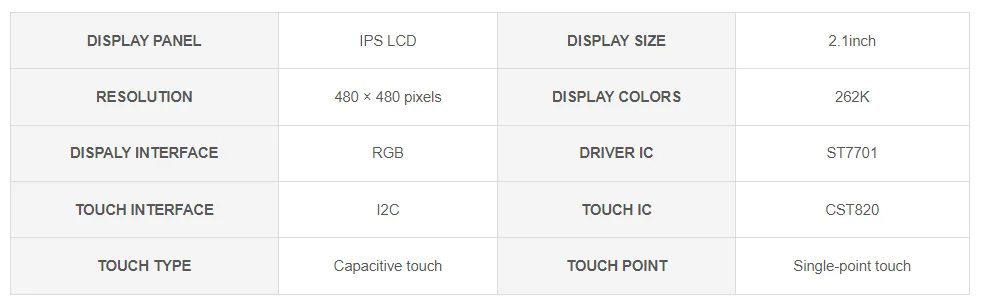

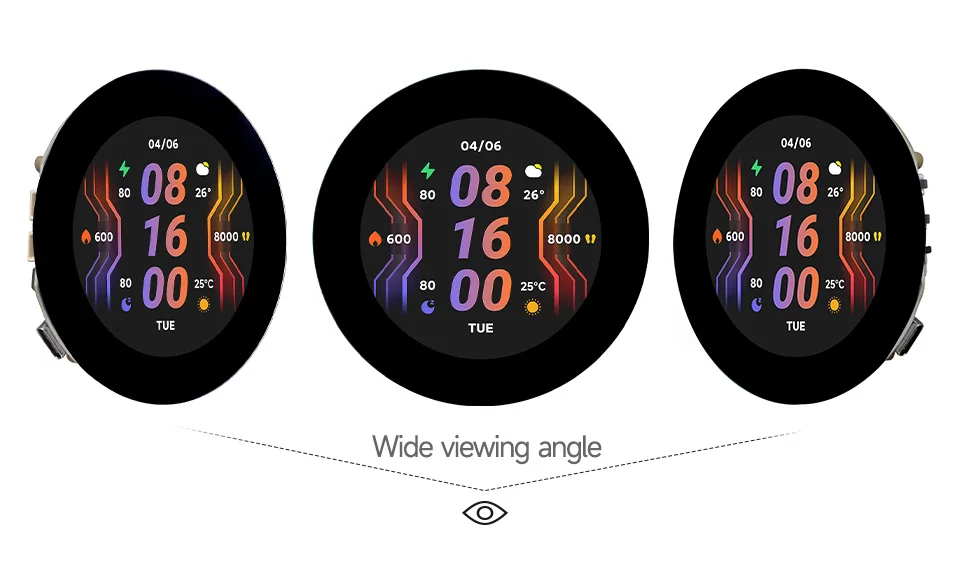

• Onboard 2.1inch capacitive touch display, 480×480 resolution, 262K color

• Supports touch control via I2C interface, with interrupt support

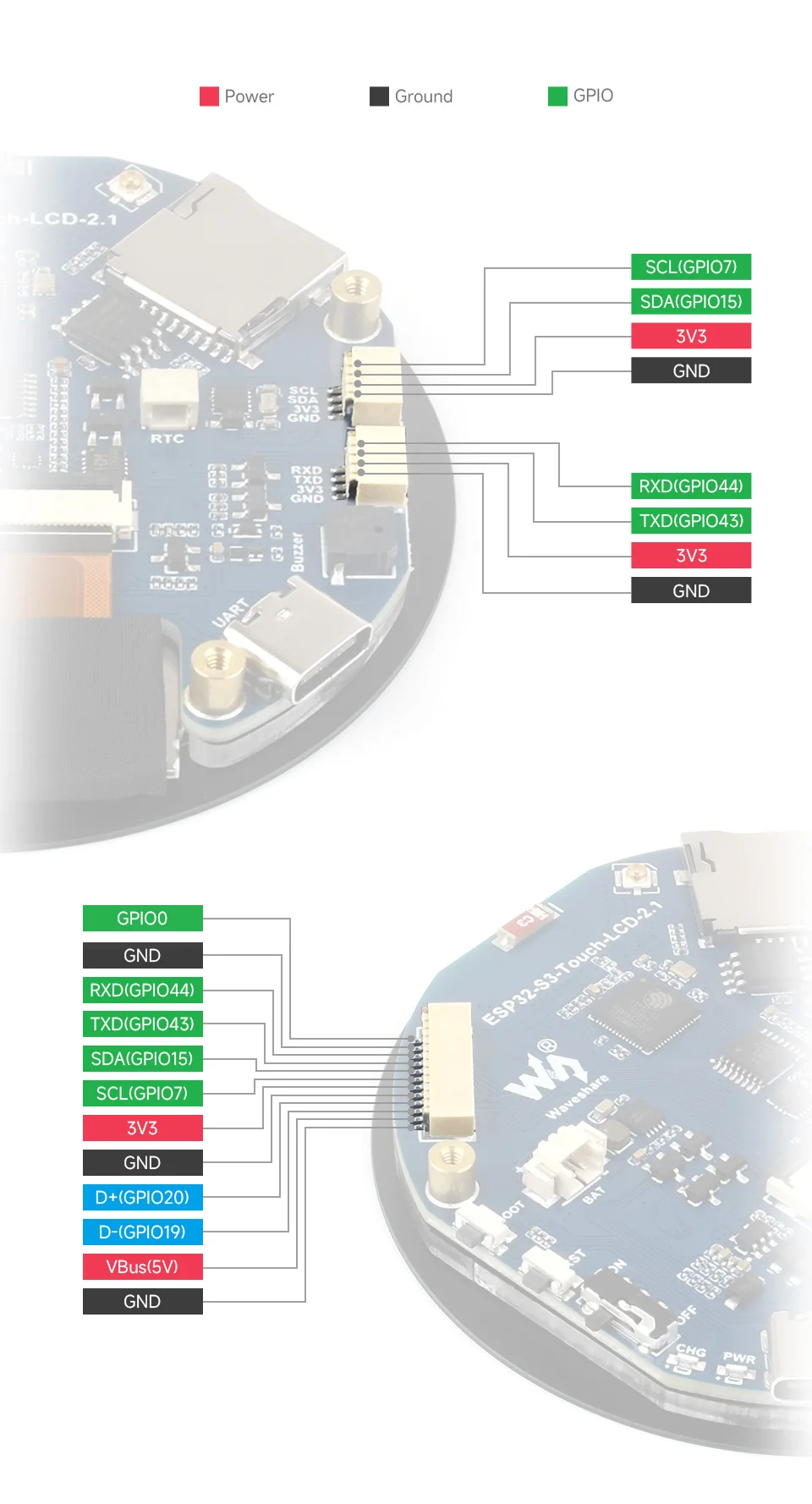

• Adapting UART, I2C and some IO interfaces, integrates full-speed USB port

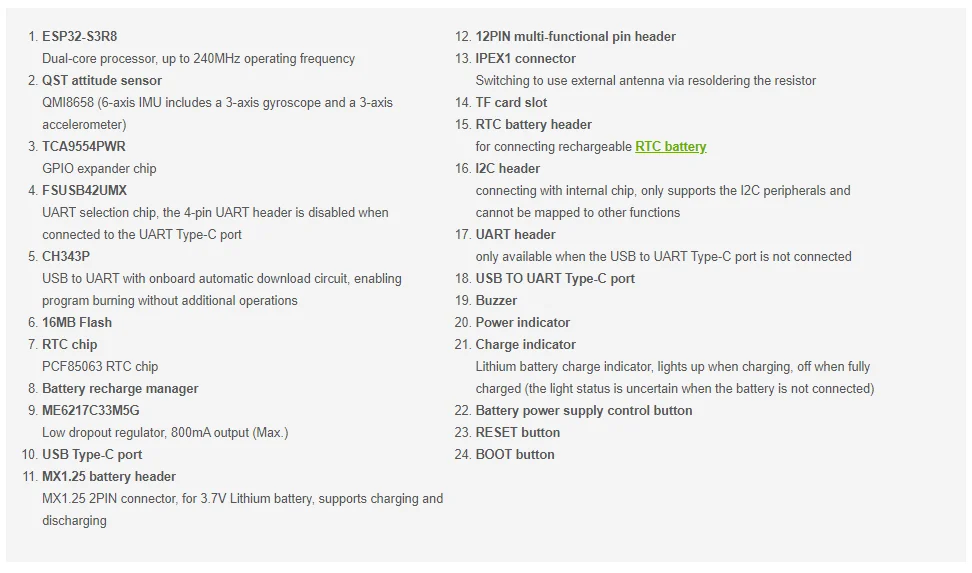

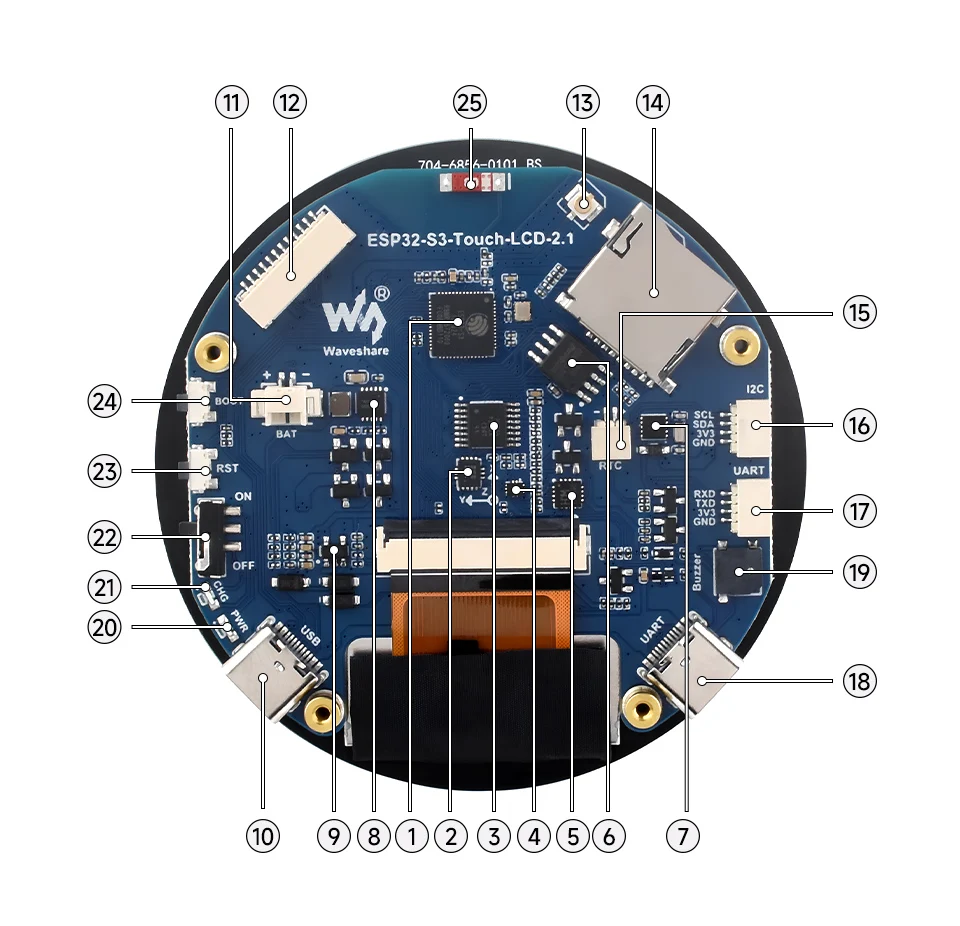

• Onboard QMI8658 6-axis sensor, RTC sensor, TF card slot and battery recharge management module, etc.

• Supports accurate control such as flexible clock and multiple power modes to realize low power consumption in different scenarios
