HF IOT Elfin-EW10A RS232 to WIFI Serial Server Wide Voltage 5~36V DTU Wireless Networking Devices Modbus TPC IP Function RJ45
755 in stock
$17.16 – $21.46
- Hign-concerned Chemical: None
- Package: Yes
- Model Number: Elfin-EW10A/-0
- Type: Cable Adapter
- Brand Name: HF HIGH-FLYING
- Origin: Mainland China
- Processor: 160MHz WIFI Serial Server
- Basic Frequency: 448KB WIFI Serial Server
- Flash: 2MB WIFI Serial Server
- SDRAM: 448KB WIFI Serial Server
- Operating System: mbed WIFI Serial Server
- Network Protocol: IP/TCP/UDP/DHCP/DNS/Modbus TCP
- Network Mode: STA/AP/STA+AP WIFI Serial Server
- Baud Rate: TTL 600bps~460800bps
- Size: 61mm x 26mm x 17.8mm
- Input Voltage: 5 to 18VDC / 5 to 36VDC WIFI Serial Server
- Working Current: ~200mA WIFI Serial Server
- Wi-Fi Standard: 802.11 b/g/n WIFI Serial Server
- Work Temp.: 40 to 85°C WIFI Serial Server
HF Elfin-EW10/EW10A Wide Voltage 5~36V DTU Wireless Networking Devices Modbus TPC IP Function RJ45 RS232 to WIFI Serial Server

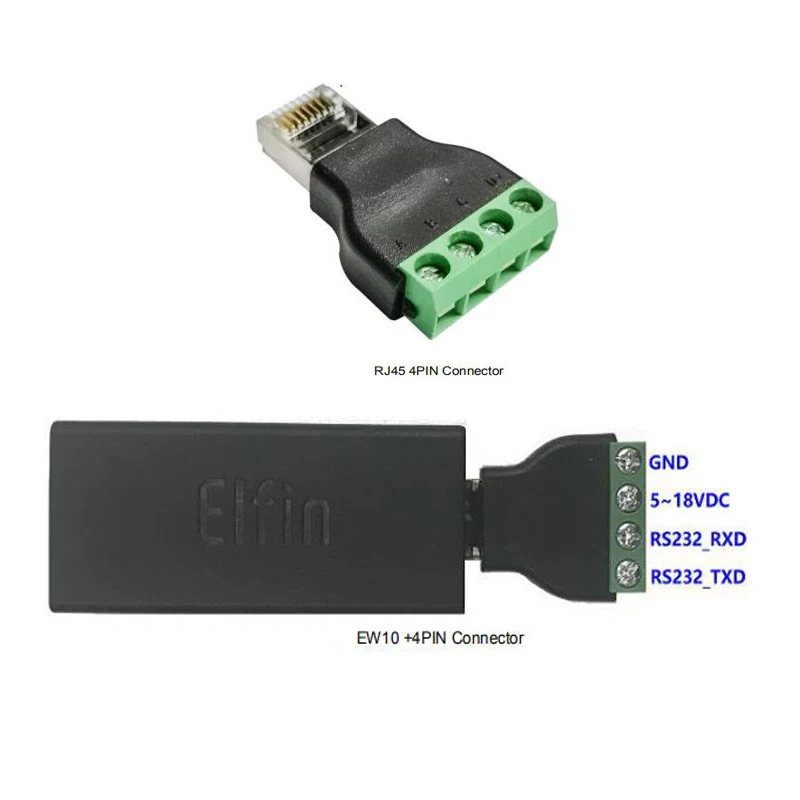

The Elfin-EW10(-0) series support RS232 to WiFi, Elfin-EW1X unit is a complete solution for serial port device connecting to network. This powerful device supports a reliable and proven operating system stored in flash memory, an embedded web server, a full TCP/IP protocol stack,and standards-based (AES) encryption.
For Elfin Series Assemble Drawing
For Elfin Series Assemble Drawing
For Elfin Series Assemble Drawing
RS232 to GPRS/GSM Elfin-EG10
RS485 to GPRS/GSM Elfin-EG11
RS232 to Wifi Elfin-EW10
RS485 to Wifi Elfin-EW11
RS232 to Ethernet Elfin-EE10
RS485 to Ethernet Elfin-EE11
RS485 to 2G/3G/4G Elfin-EG41
RS485 to 2G/3G/4G/Ethernet Elfin-EG46
