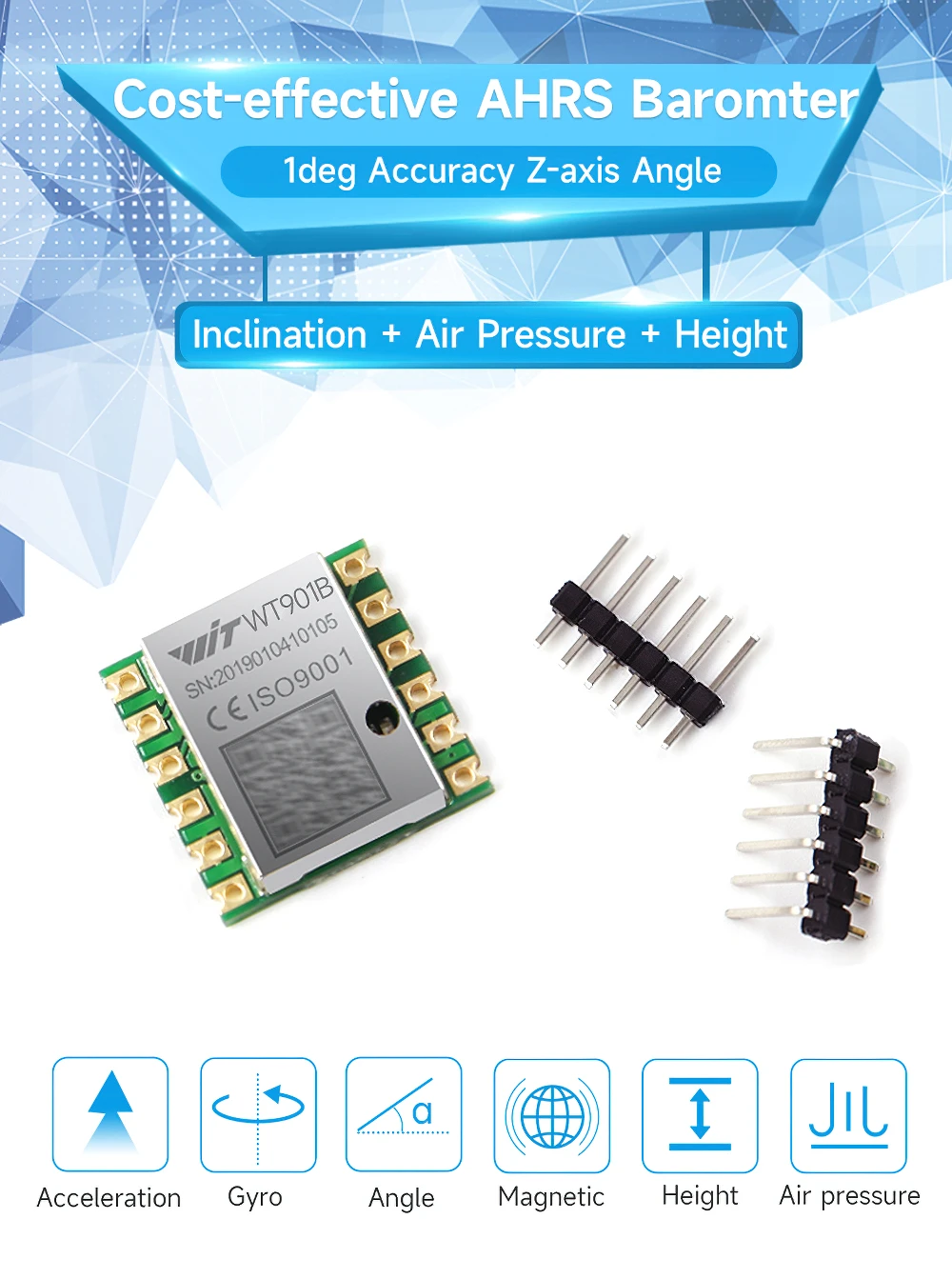

WitMotion WT901B AHRS MPU9250 9-axis Accelerometer, 3-axis Angular Velocity(Gyroscope)+Acceleration+Angle+Magnetometer+Barometer
999 in stock
$15.00 – $67.50
- Hign-concerned Chemical: None
- is_customized: Yes
- Type: Acceleration Sensor
- Output: Digital Output
- Brand Name: WitMotion
- Origin: Mainland China
- Use: Tilt Angle Measurement

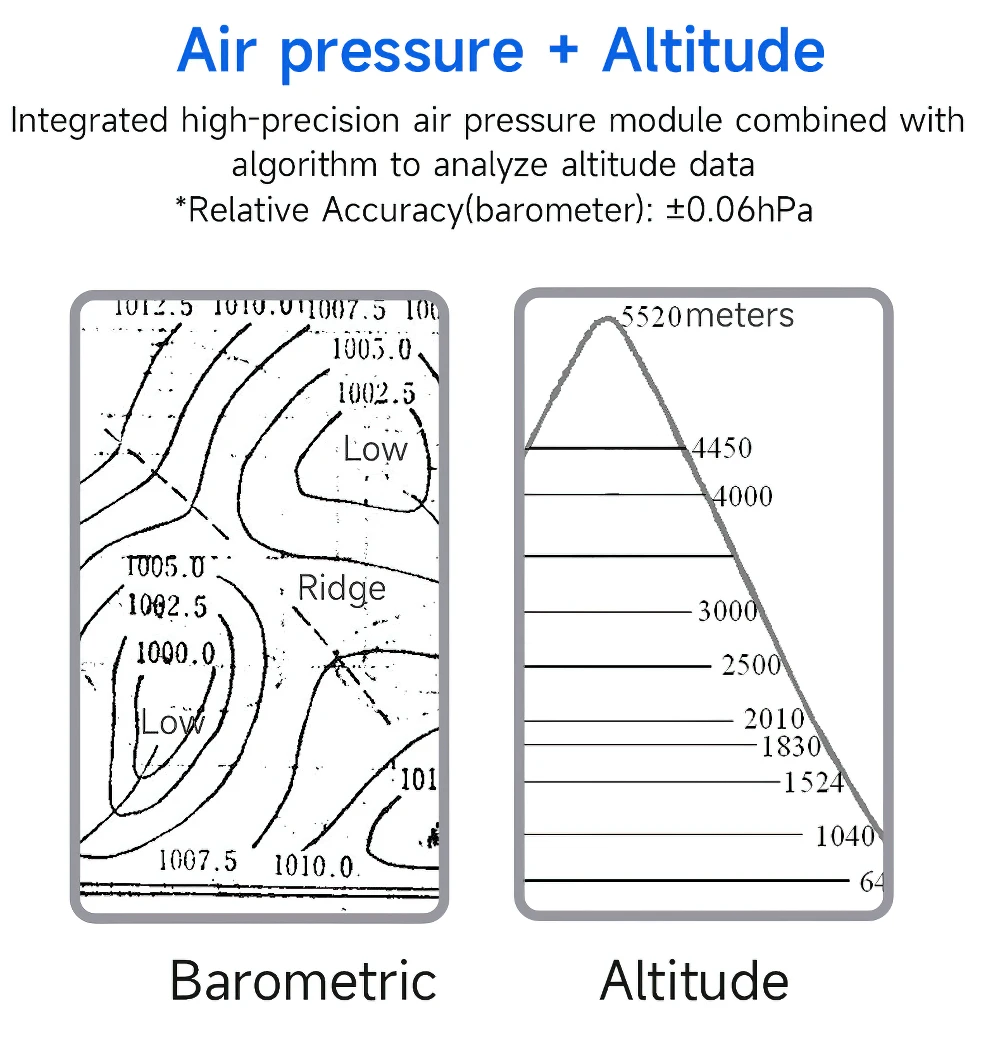

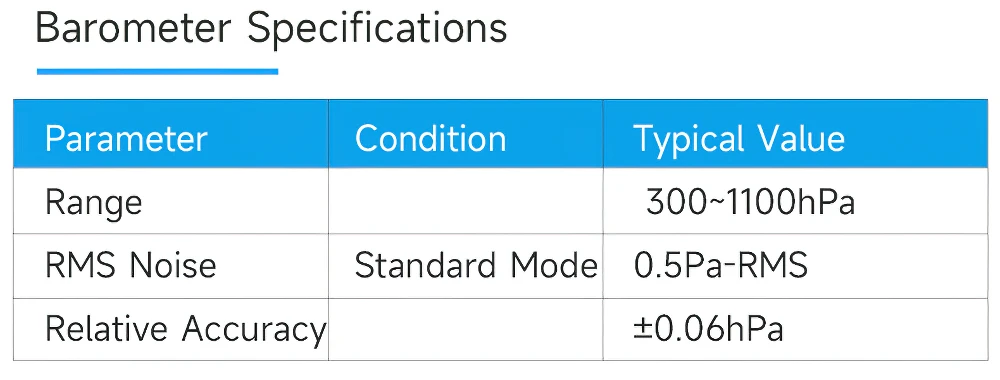

- Output Data: Acceleration, Angular Velocity, Angle, Magnet Field, Air Pressure

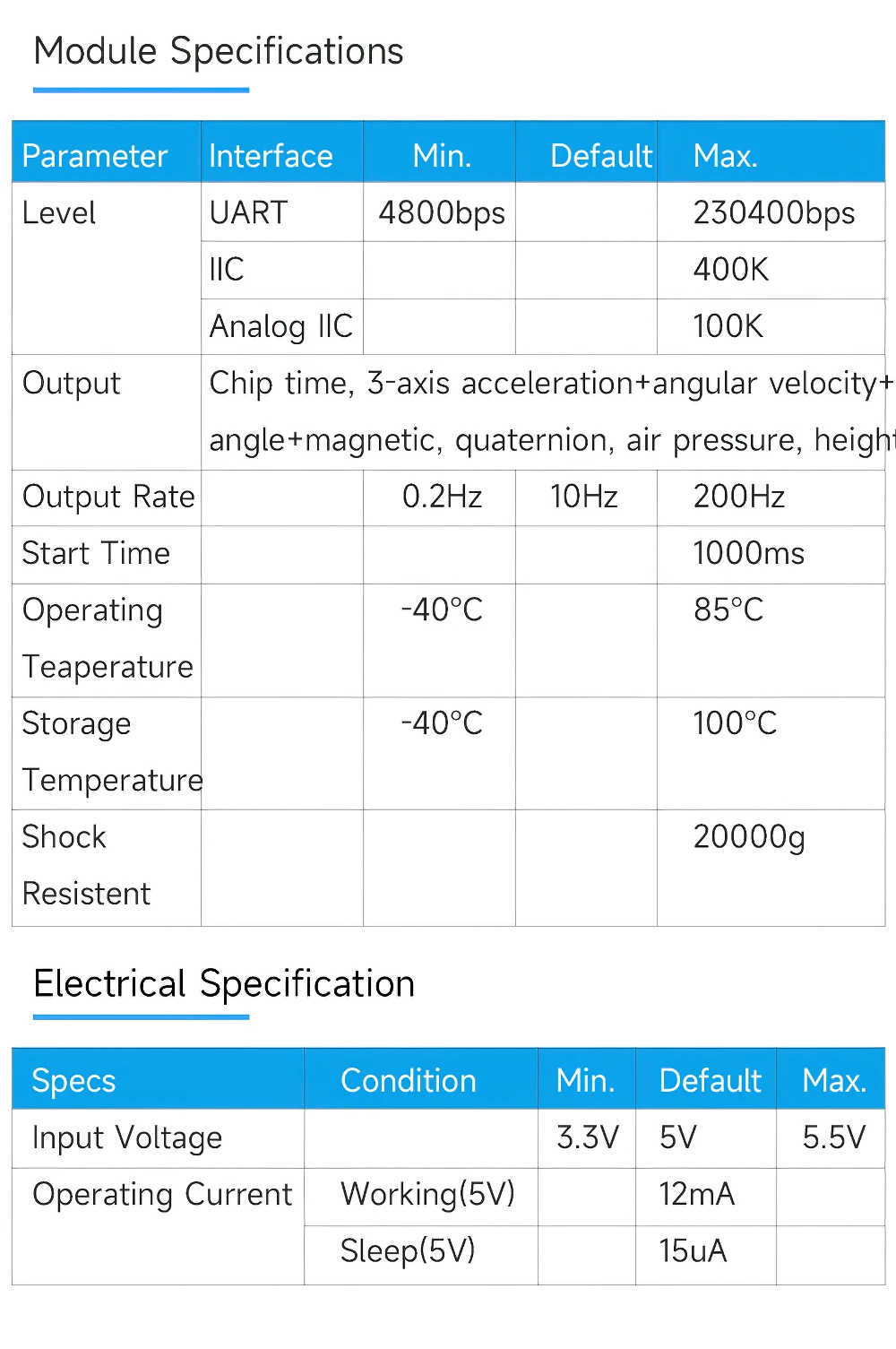

- Input Voltage: 3.3V-5V

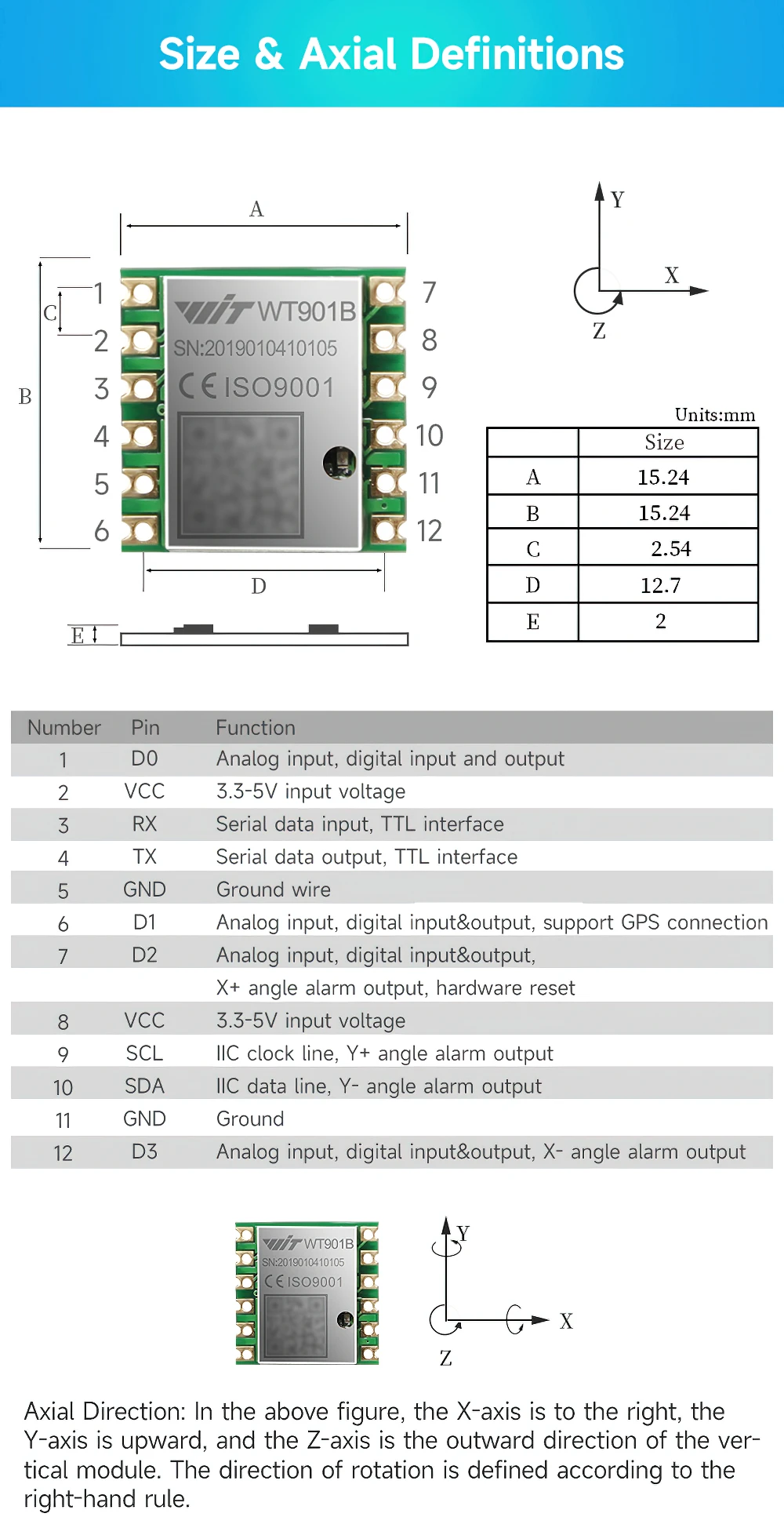

- Size: 15.24*15.24*2mm
- Consumption Current: typical 10mA
- Measuing: Thriple-Axis, XYZ, (Roll, Pitch, Yaw)
- Interface: TTL interface

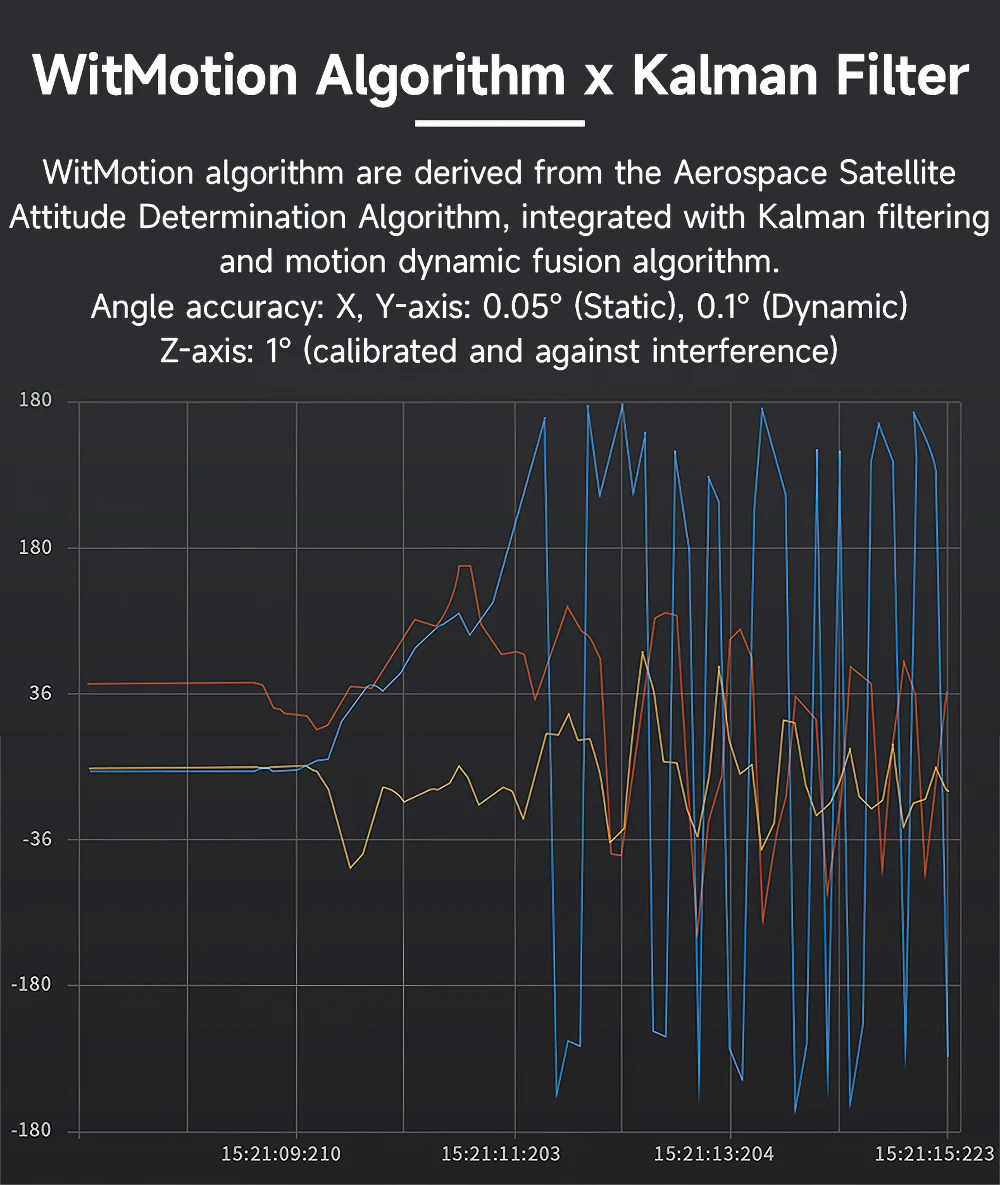

- Design: Kalman Filtering

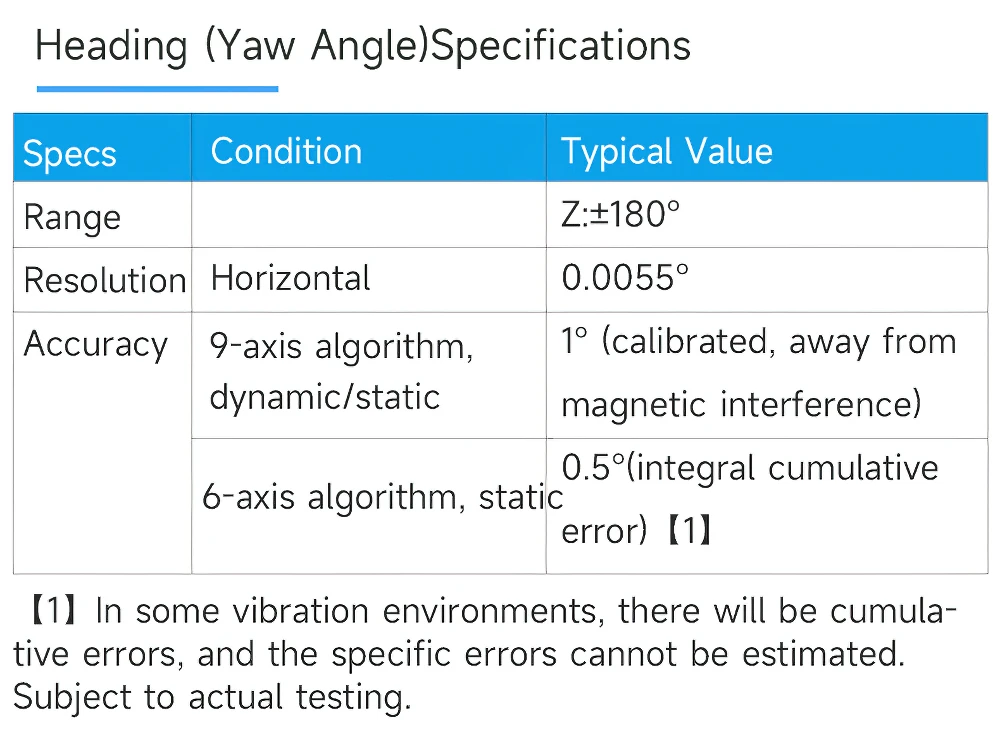

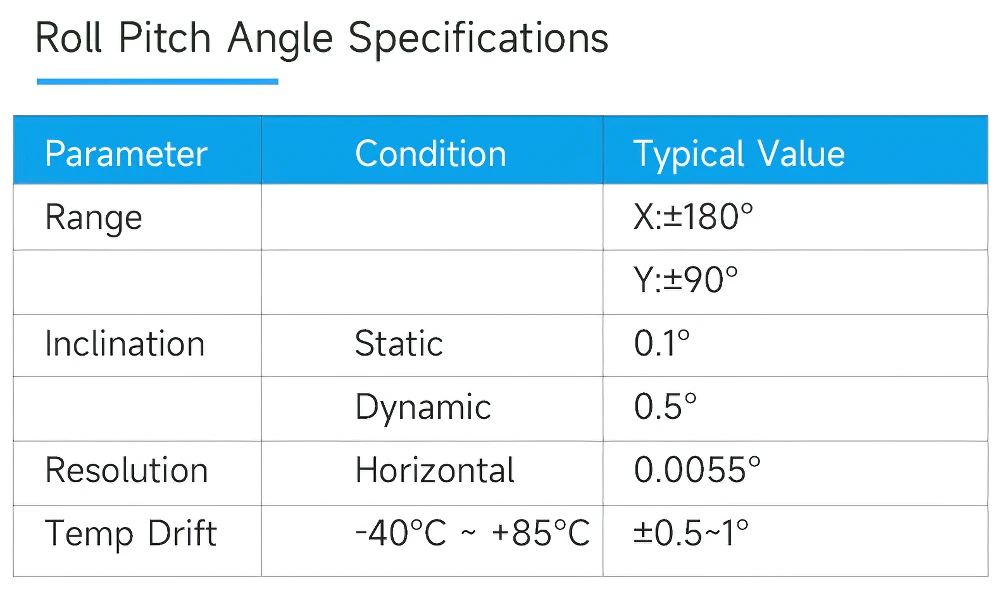

- Accuracy: XY Static: 0.05 degree, Z-axis 1 degree
- Angle Accuracy: Dynamic 0.1 degree
- After-sale Service: Lifetime Technical Support
FAQ
-
Q: If I plan to use the sensors for Arduino, or Raspberry Pi, which one is recommended?
-

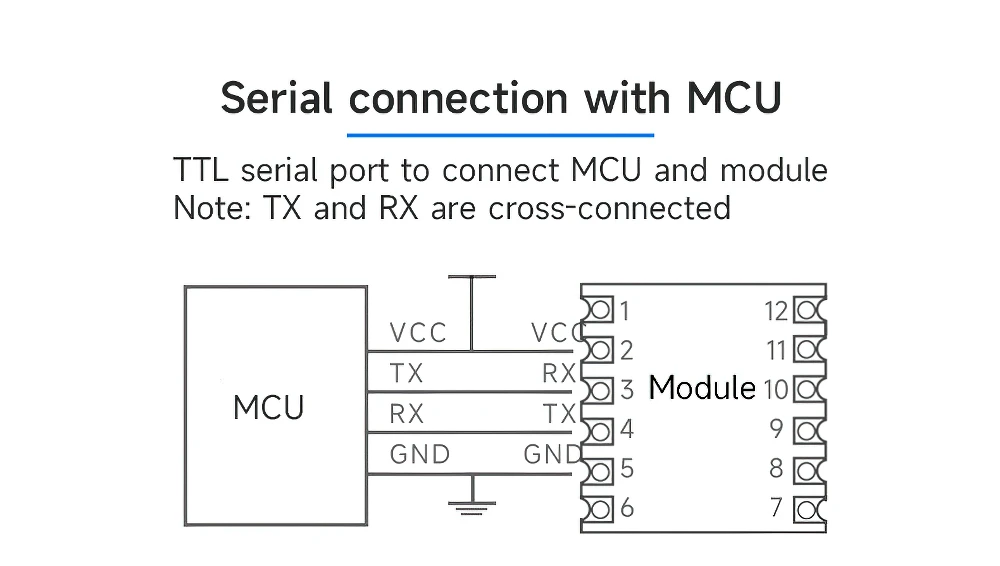

A: Considering the Arduino and Raspberry Pi is commonly in TTL level, the serial accelerometer with TTL interface would be highly recommended. There will be sample codes and SDK provided for easy integration.
-
Q: Can I use the WT901B / WT901 AHRS accelerometer sensor for iPhone?
-
A: Nope. Due to the communication protocol and port design, WitMotion serial sensors are not compatible with iOS operating systems at present.But you can search WitMotion WT901BLECL in our store, for which it can work well with iPhone.
-
Q: If I run into any issue when use the sensors? Can you help?
-
A: WitMotion technical support team will be here to help. You can reach us at support@wit-motion.com, Normally response time: 12Hrs
-

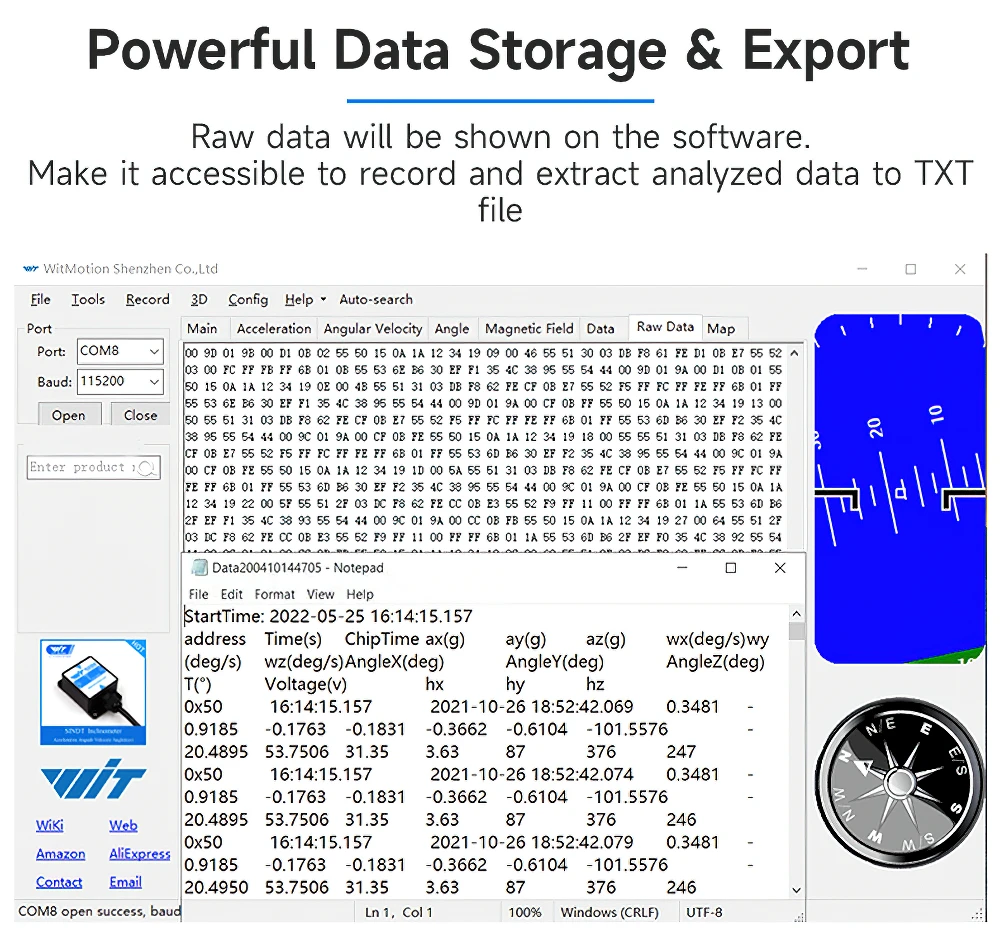

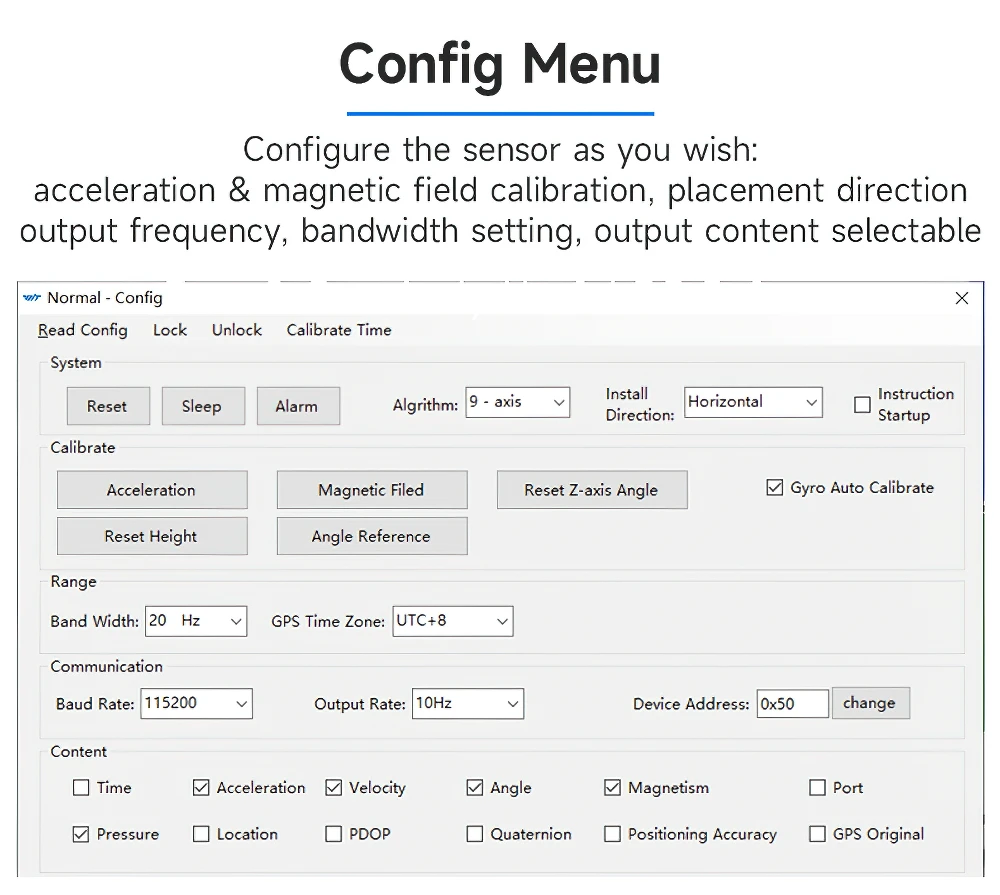

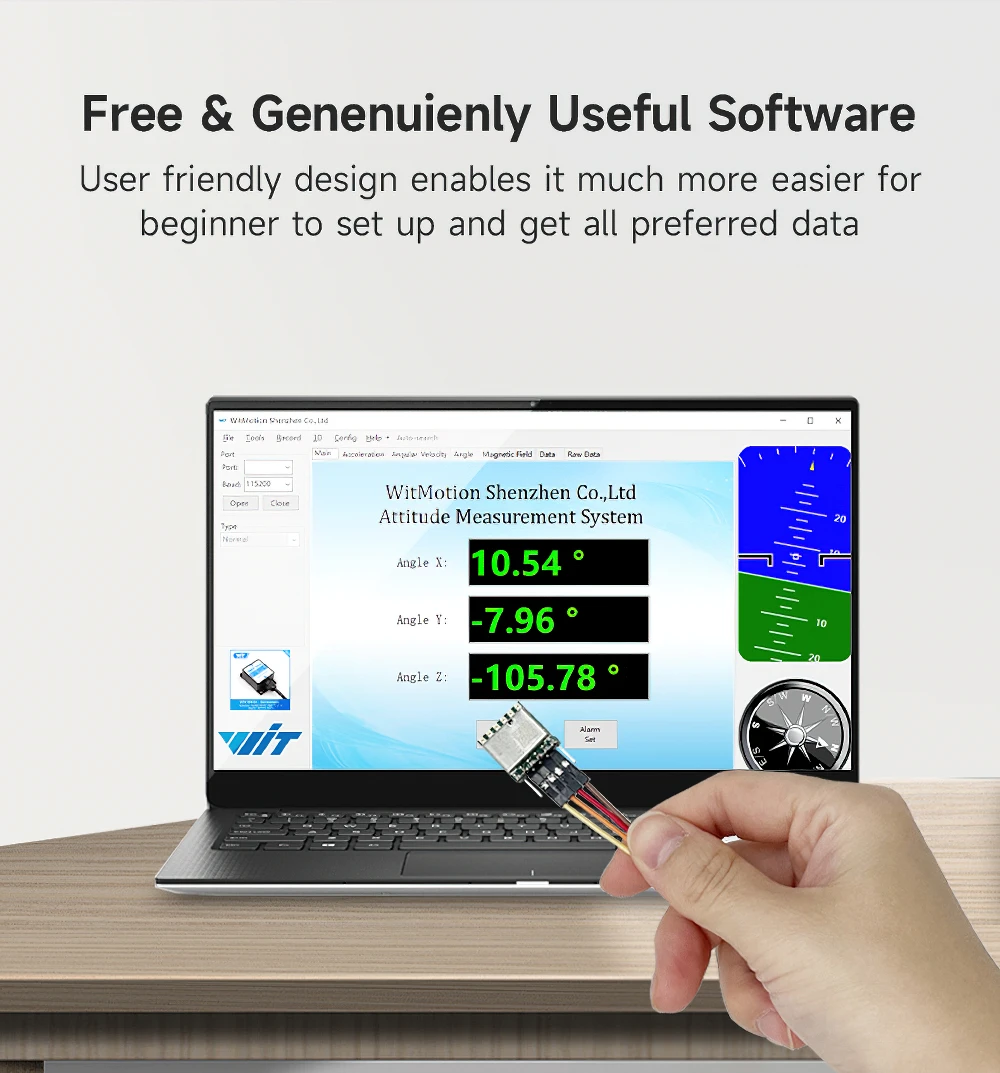

Q: Where can I find the tutorial and related software for the sensors?
-
A: You can scan below QR code and visit the witmotion document center link and search the model you bought.There will be a manual with step-by-step guiding to set up the sensors.
