Waveshare RP2040-Zero, A Low-Cost, High-Performance Pico-Like MCU Board Based On Raspberry Pi Microcontroller RP2040, Mini ver
289 in stock
$9.73 – $10.73
- Hign-concerned Chemical: None
- Model Number: RP2040-Zero/Zero-M
- Demo Board Type: ARM
- Brand Name: Waveshare
- Origin: Mainland China
- Certification: None
- Feature 1: RP2040 microcontroller chip designed by Raspberry Pi in the United Kingdom
- Feature 2: Dual-core Arm Cortex M0+ processor, flexible clock running up to 133 MHz
- Feature 3: 264KB of SRAM, and 2MB of on-board Flash memory
- Feature 4: USB 1.1 with device and host support
- Feature 5: Temperature sensor
- Feature 6: Accelerated floating-point libraries on-chip
DESCRIPTION

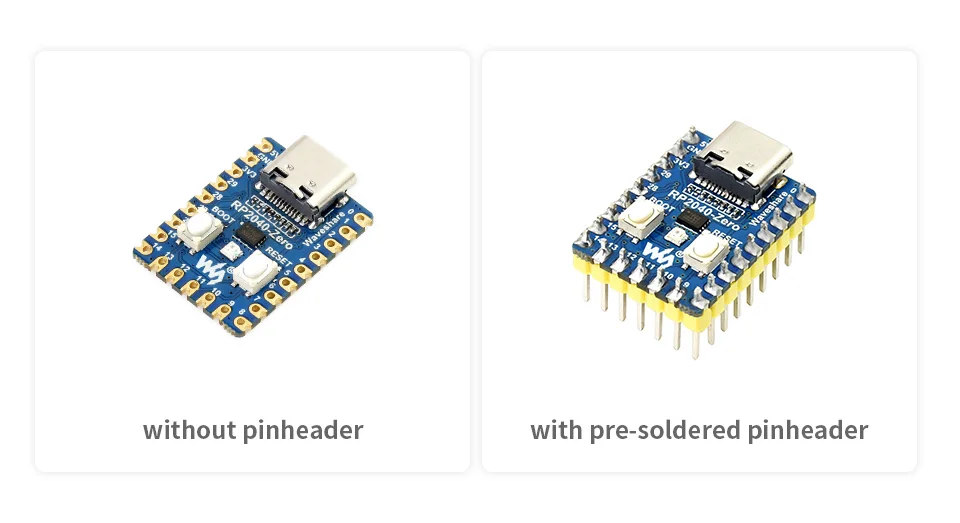

RP2040-Zero does not have header, while RP2040-Zero-M includes pre-soldered header
Comprehensive SDK, Dev Resources, Tutorials To Help You Easily Get Started
-

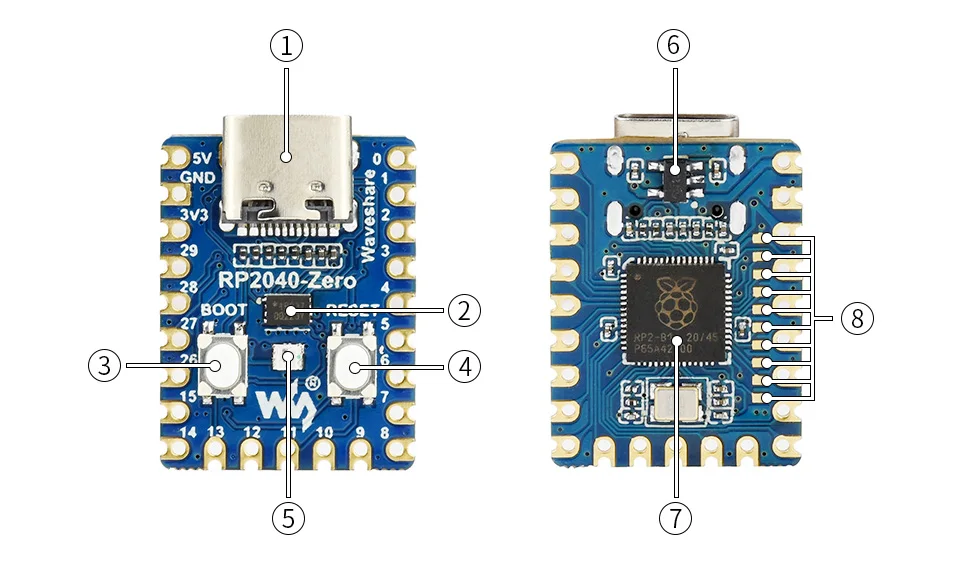

USB Type-C connector
-
W25Q16JVUXIQ
2MB NOR-Flash -
BOOT button
press it when resetting to enter download mode -
RESET button
-
WS2812
cool RGB LED
6. ME621
low dropout LDO, max current 800MA
7. RP2040
dual-core processor, up to 133MHz operating frequency

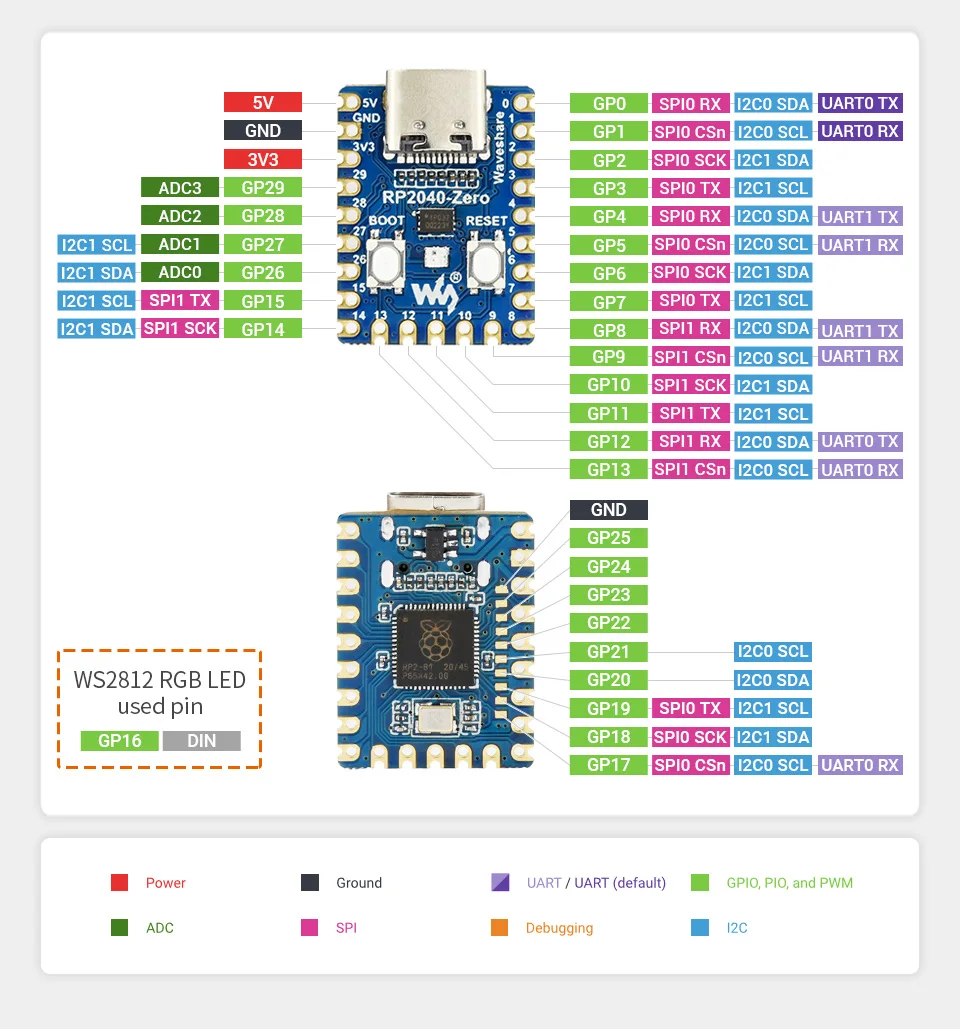

8. RP2040 pins
10x solder points, 9 of which are for GPIO
|
BRAND |
Raspberry Pi |
Waveshare |
||
|
PRODUCT |
||||
|
PROCESSOR |
Raspberry Pi official RP2040 microcontroller |
|||
|
REGULATOR |
RT6150 (DC-DC, 800mA) |
ME6217 (LDO, 800mA) |
TPS63000 (DC-DC, 1800mA) |
|
|
USB |
Micro USB |
Type-C |
||
|
FLASH |
2MB |
4MB |
||
|
BATTERY HEADER |
N/A |
Yes（concurrent recharging and powering） |
||
|
INTEGRATED LCD |
N/A |
0.96inch IPS LCD |
N/A |
|
PACKAGE CONTENT
Weight: 0.002 kg

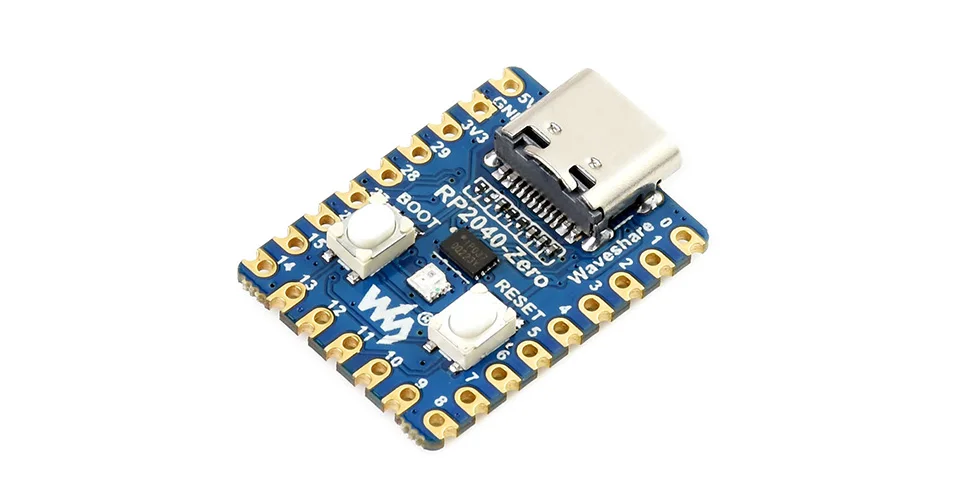

RP2040-Zero
-
RP2040-Zero x1

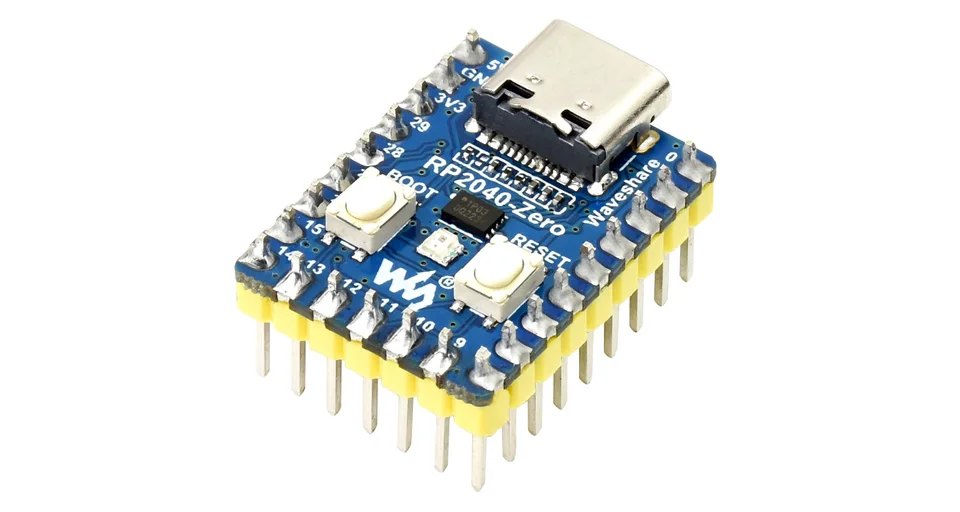

RP2040-Zero-M
-
RP2040-Zero with pre-soldered header x1
