Waveshare ESP32-S3 ESP32 S3 Mini Development, 240MHz Running Frequency, Microcontroller Support C/C++, MicroPython
Waveshare ESP32-S3 ESP32 S3 Mini Development, 240MHz Running Frequency, Microcontroller Support C/C++, MicroPython - Image 2
Waveshare ESP32-S3 ESP32 S3 Mini Development, 240MHz Running Frequency, Microcontroller Support C/C++, MicroPython - Image 3
Waveshare ESP32-S3 ESP32 S3 Mini Development, 240MHz Running Frequency, Microcontroller Support C/C++, MicroPython - Image 4
Waveshare ESP32-S3 ESP32 S3 Mini Development, 240MHz Running Frequency, Microcontroller Support C/C++, MicroPython - Image 5
Waveshare ESP32-S3 ESP32 S3 Mini Development, 240MHz Running Frequency, Microcontroller Support C/C++, MicroPython - Image 6

Waveshare ESP32-S3 ESP32 S3 Mini Development, 240MHz Running Frequency, Microcontroller Support C/C++, MicroPython

Availability:

3674 in stock
Compare

$10.73 – $11.73

  • Hign-concerned Chemical: None
  • Model Number: ESP32-S3-Zero
  • Origin: Mainland China
  • Brand Name: Waveshare
  • Feature 1: Supports 2.4GHz Wi-Fi
  • Feature 2: Built in 512KB of SRAM and 384KB ROM
  • Feature 3: Supports flexible clock
  • Feature 4: 4 x SPI, 2 x I2C, 3 x UART, 2 x I2S, 2 x ADC, etc.

DESCRIPTION


ESP32-S3 Mini Development Board, Based on ESP32-S3FH4R2 Dual-Core Processor, 240MHz Running Frequency, 2.4GHz Wi-Fi & Bluetooth 5

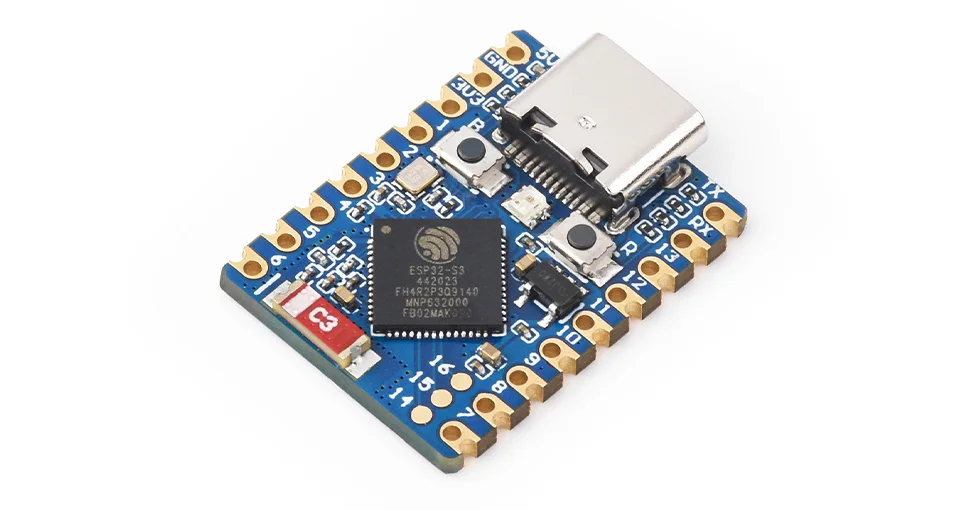

ESP32-S3-Zero Development Board

Based on ESP32-S3FH4R2, onboard multi-function GPIO pins

Castellated Module, Suitable For SMD Applications

Board specifications

  • Equipped with Xtensa® 32-bit LX7 dual-core processor, up to 240MHz main frequency

  • Supports 2.4GHz Wi-Fi (802.11 b/g/n) and Bluetooth® 5 (LE)

  • Built in 512KB of SRAM and 384KB ROM, onboard 4MB Flash memory and 2MB PSRAM

  • Castellated module and onboard ceramic antenna, allows soldering direct to carrier boards

  • Supports flexible clock, module power supply independent setting, and other controls to realize low power consumption in different scenarios

  • Integrated with USB serial port full-speed controller, 24 × GPIO pins allows flexibly configuring pin functions

  • 4 × SPI, 2 × I2C, 3 × UART, 2 × I2S, 2 × ADC, etc.

Version Options

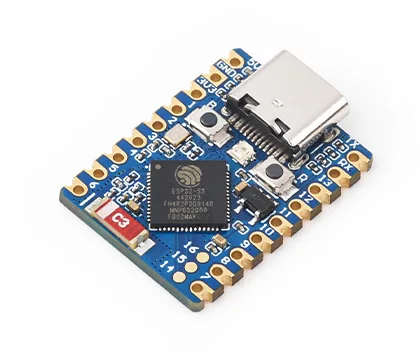

ESP32-S3-Zero
without pinheader

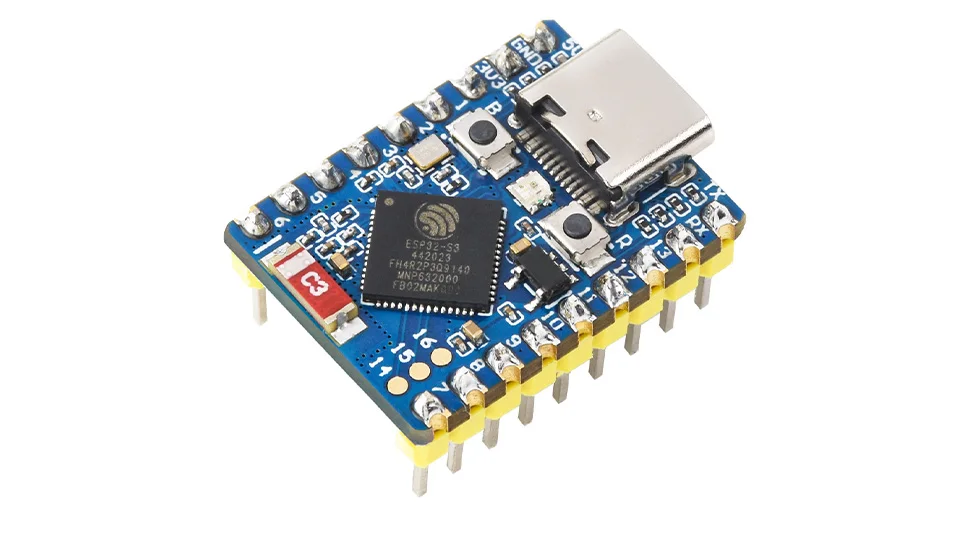

ESP32-S3-Zero-M
with pre-soldered header


Support C/C++, MicroPython

Comprehensive SDK, Dev Resources, Tutorials To Help You Easily Get Started

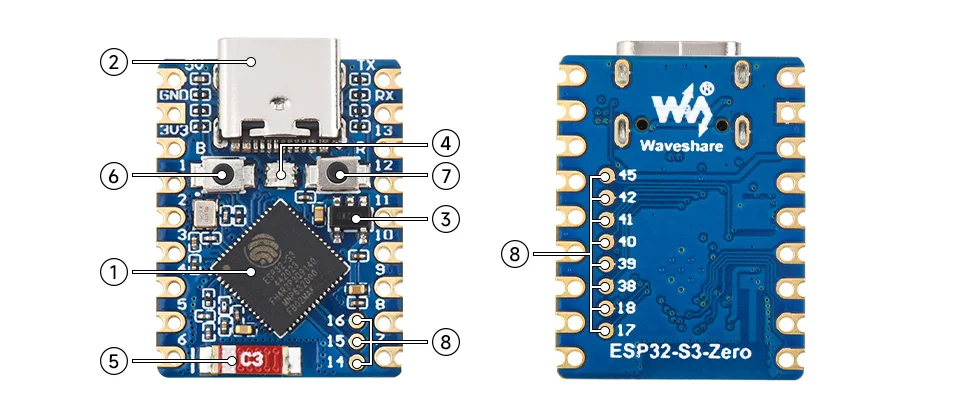

What’s On Board

  1. ESP32-S3FH4R2 dual-core processor
    up to 240MHz operating frequency

  2. USB Type-C Port

  3. ME6217C33M5G
    low dropout LDO, 800mA (Max)

  4. WS2812 RGB LED



  1. 2.4G ceramic antenna

  2. BOOT button
    Press it and then press the RESET button to enter download mode

  3. RESET button

  4. ESP32-S3FH4R2 pins

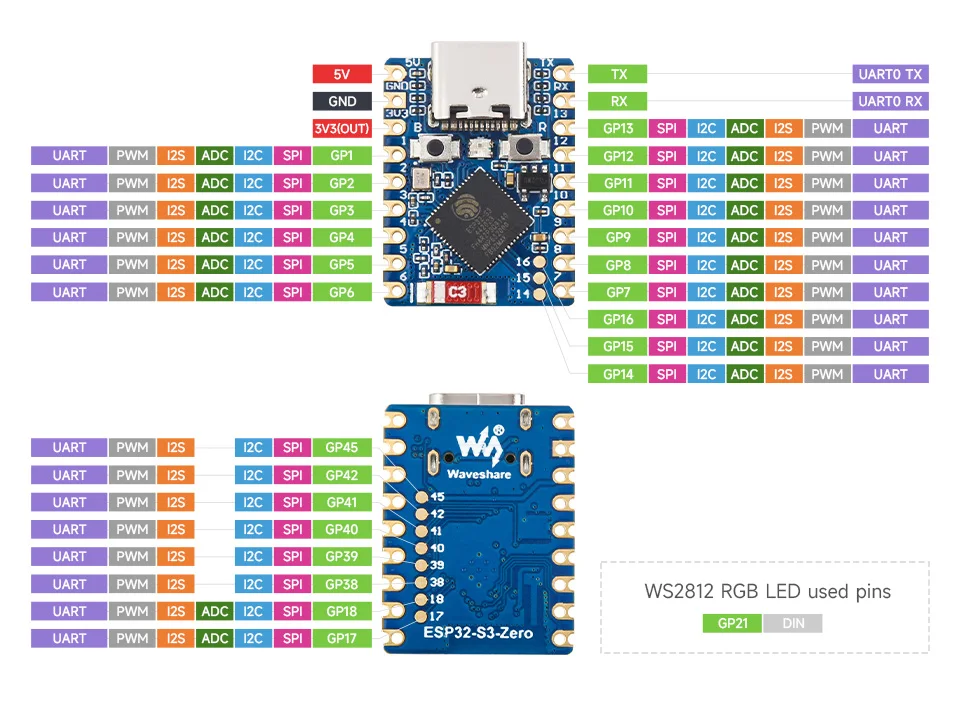

Pin definition

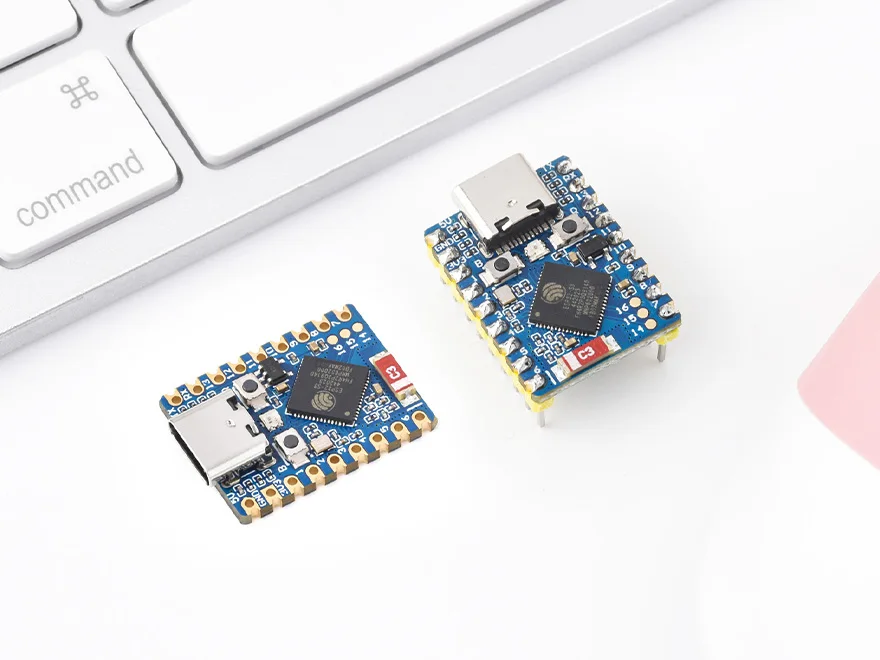

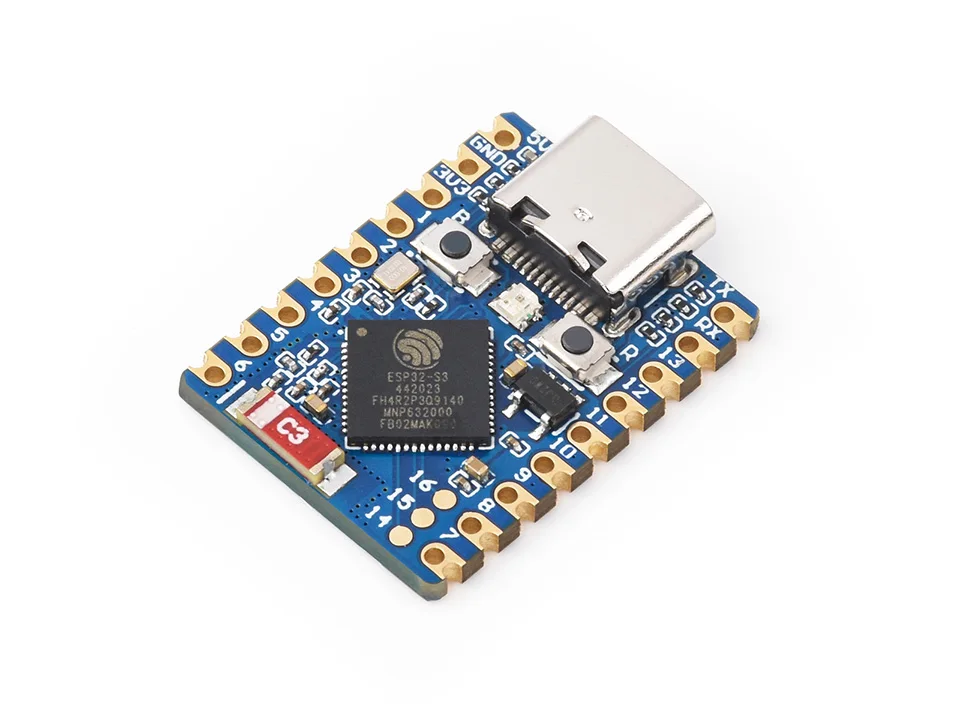

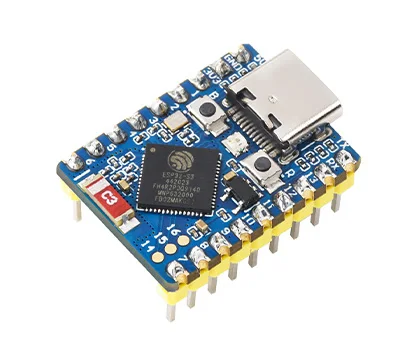

Product Show

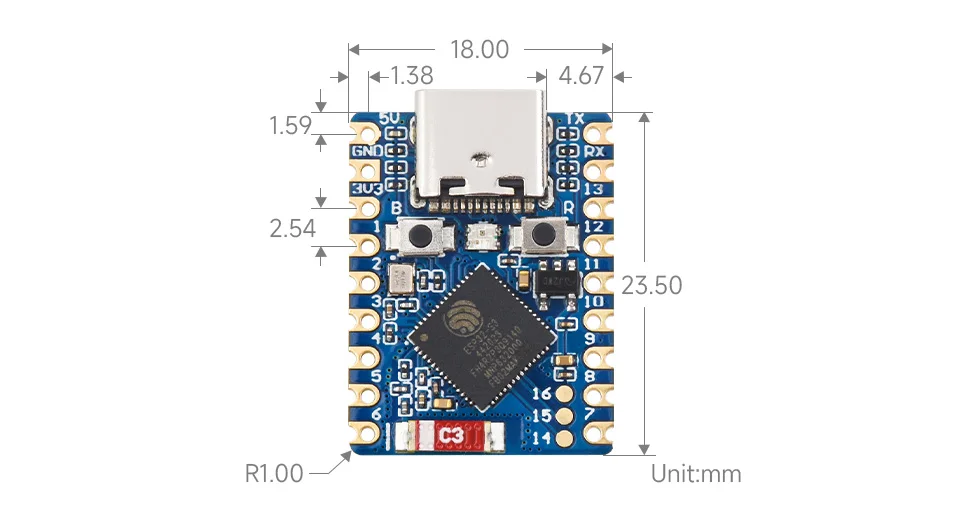

outline dimensions
Resources & Services
Wiki:
 www.waveshare.com/wiki/ESP32-S3-Zero

Package Content

ESP32-S3-Zero

  1. ESP32-S3-Zero x1

ESP32-S3-Zero-M

  1. ESP32-S3-Zero with pre-soldered header x1

Weight: 0.002 kg
