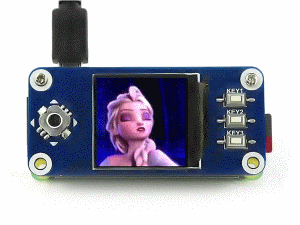

Waveshare 1.3inch IPS LCD display HAT for Raspberry Pi 240×240 pixels SPI interface with embedded controller IPS screen
1555 in stock
$17.99
- Hign-concerned Chemical: None
- Model Number: 1.3inch LCD HAT
- Demo Board Type: ARM
- Brand Name: Waveshare
- Origin: Mainland China
- Resolution: 240×240
- Driver: ST7789
- Interface: SPI
- Display color: RGB, 65K color
- Operating voltage: 3.3V
- Backlight: LED
Overview
This is an IPS LCD display HAT for Raspberry Pi, 1.3inch diagonal, 240×240 pixels, with embedded controller, communicating via SPI interface.
Trying to add a control interface for your Pi? This compact display would be the ideal choice.
Features
-
Standard Raspberry Pi 40PIN GPIO extension header, supports Raspberry Pi series boards
-
IPS screen, wide viewing angle, better display
-
High definition in small size
-
1x joystick, 3x pushbuttons, handy and useful
-
Comes with development resources and manual (examples for Raspberry Pi)
Specifications
-
Driver: ST7789
-
Interface: SPI
-
Display color: RGB, 65K color
-
Resolution: 240×240
-
Backlight: LED
-
Operating voltage: 3.3V
Interface
|
SYMBOL |
Raspberry Pi PIN (BCM) |
DESCRIPTION |
|
KEY1 |
P21 |
Button 1/GPIO |
|
KEY2 |
P20 |
Button 2/GPIO |
|
KEY3 |
P16 |
Button 3/GPIO |
|
Joystick Up |
P6 |
Joystick Up |
|
Joystick Down |
P19 |
Joystick Down |
|
Joystick Left |
P5 |
Joystick Left |
|
Joystick Right |
P26 |
Joystick Right |
|
Joystick Press |
P13 |
Joystick Press |
|
SCLK |
P11/SCLK |
SPI clock input |
|
MOSI |
P10/MOSI |
SPI data input |
|
DC |
P25 |
Data/Command selection (high for data, low for command) |
|
CS |
P8/CE0 |
Chip selection, low active |
|
RST |
P27 |
Reset, low active |
|
BL |
P24 |
Backlight |
Dimensions
Photos
Development Resources
Wiki : www.waveshare.com/wiki/1.3inch_LCD_HAT
PACKAGE CONTENT
Weight: 0.014 kg
-
1.3inch LCD HAT x1
-
RPi screws pack (2pcs) x1
