Waveshare RS485 CAN HAT For for for Raspberry Pi 5/4B/3B/Pi Zero/Zero, Allows Stable Long-Distance Communication via RS485/CAN
3242 in stock
$20.33
- Hign-concerned Chemical: None
- Model Number: RS485 CAN HAT
- Origin: Mainland China
- Brand Name: Waveshare
- CAN CONTROLLER: MCP2515
- OPERATING VOLTAGE: 3.3V
- CAN TRANSCEIVER: SIT65HVD230DR
- MOUNTING HOLE SIZE: 3.0mm
- 485 TRANSCEIVER: SP3485
- DIMENSION: 65x30mm
DESCRIPTION
-
Standard Raspberry Pi 40PIN GPIO extension header, supports Raspberry Pi series boards
-

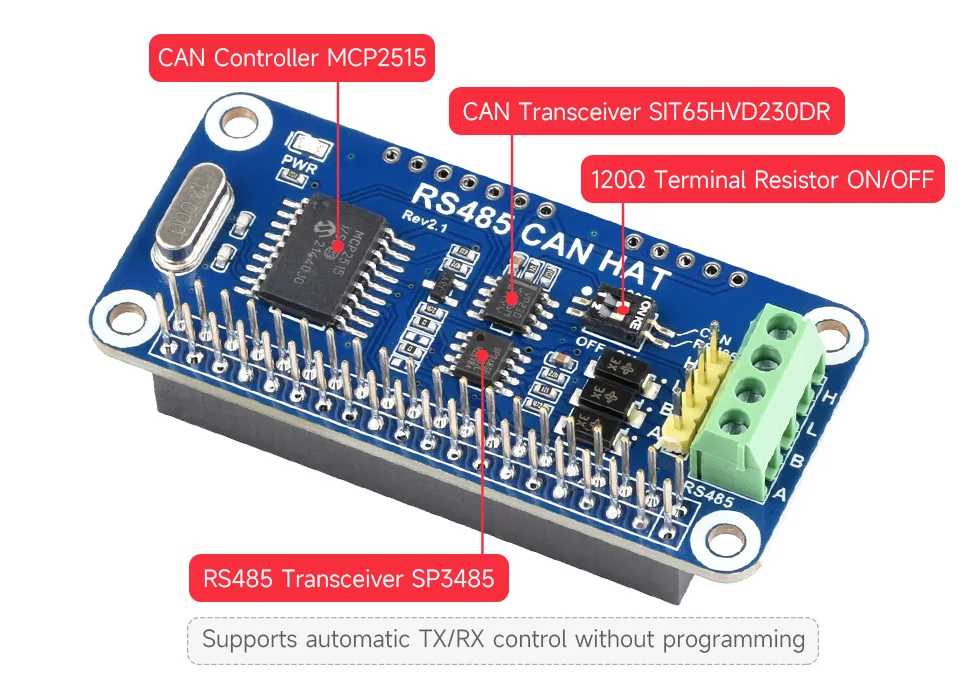

CAN function, onboard CAN controller MCP2515 via SPI interface, onboard transceiver SIT65HVD230DR
-
RS485 function, controlled via UART, half-duplex communication, supports automatic TX/RX control without programming, onboard transceiver SP3485
-
Onboard 120Ω terminal resistor for RS485 and CAN interfaces, enabled via DIP switch
-

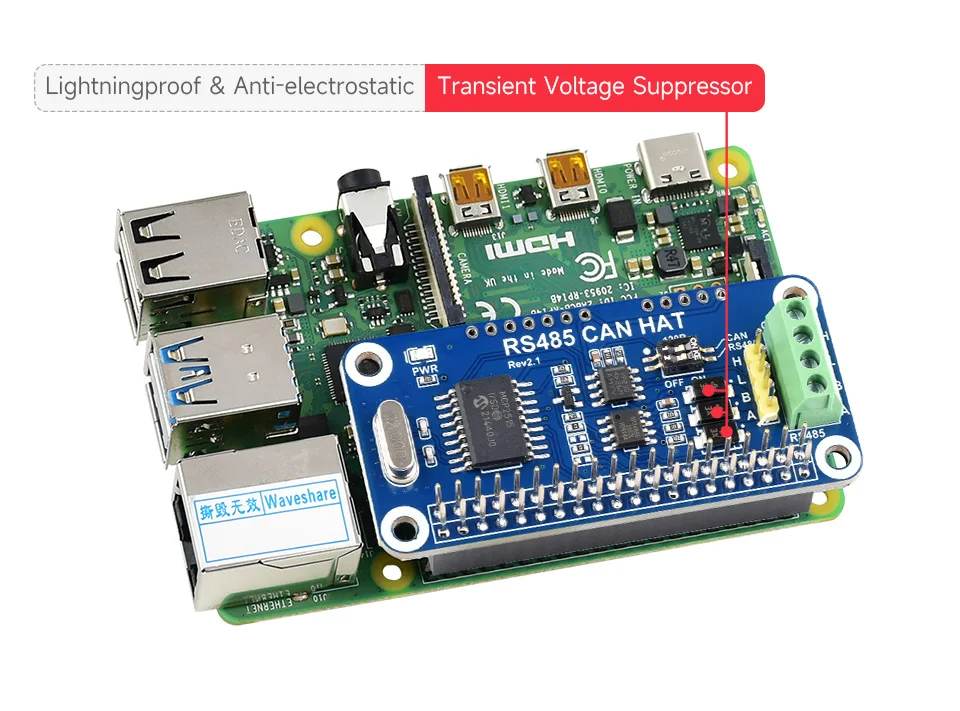

Onboard TVS (Transient Voltage Suppressor), effectively suppress surge voltage and transient spike voltage in the circuit for RS485 transceiving, lightningproof & anti-electrostatic
-

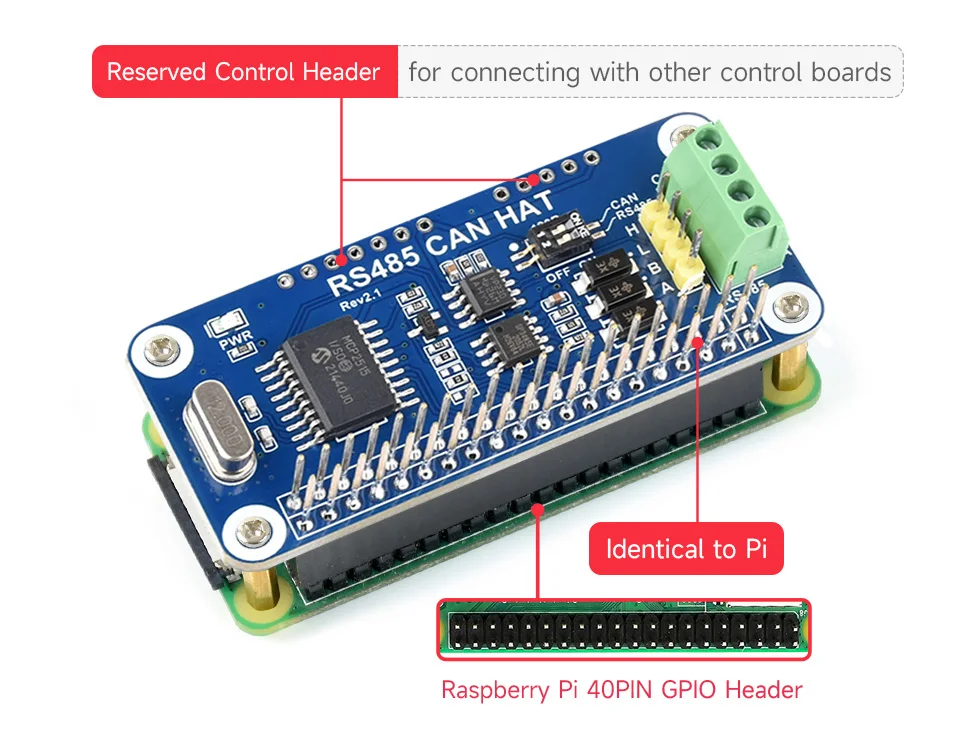

Reserved control header, allows working with other control boards
-
Comes with online development resources and manual (examples in wiringPi/python)
|
CAN CONTROLLER |
MCP2515 |
OPERATING VOLTAGE |
3.3V |
|
CAN TRANSCEIVER |
SIT65HVD230DR |
MOUNTING HOLE SIZE |
3.0mm |
|
485 TRANSCEIVER |
SP3485 |
DIMENSION |

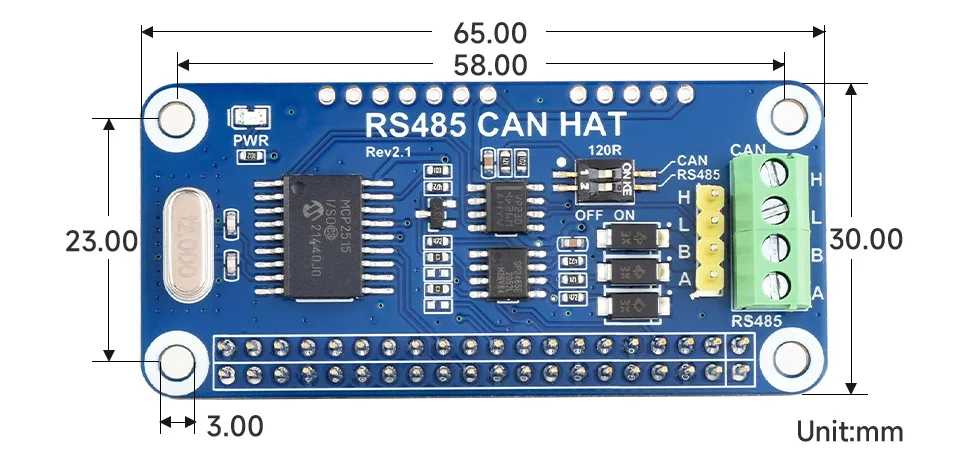

65×30mm |
Standard Raspberry Pi 40PIN GPIO Header, Customized For Raspberry Pi Series Boards
CAN: Onboard CAN Controller MCP2515 Via SPI Interface, With Transceiver SIT65HVD230DR
RS485: Controlled Via UART, Half-Duplex Communication, Onboard Transceiver SP3485
Effectively Suppress Surge Voltage And Transient Spike Voltage In The Circuit For RS485 Transceiving
www.waveshare.com/wiki/RS485_CAN_HAT
* Resources for different product may vary, please check the wiki page to confirm the actually provided resources.
PACKAGE CONTENT
Weight: 0.018 kg
USB TO RS485
or
USB-CAN-A
at the same time for easy testing.
-
RS485 CAN HAT x1
-
RPi screws pack (2pcs) x1
