Waveshare RGB Full-Color LED Matrix Panel, 64×32 Pixels, Adjustable Brightness, Supports Raspberry Pi, Pi Pico, ESP32..
488 in stock
$36.99
- Hign-concerned Chemical: None
- Model Number: RGB-Matrix-P3-64×32
- Demo Board Type: ARM
- Brand Name: Waveshare
- Origin: Mainland China
- Certification: None
- Designed for: Raspberry Pi, Pi Pico, ESP32…
The LED matrix panel requires a Pico to work, we recommend this one with pre-soldered pin header: Raspberry-Pi-Pico-M
DESCRIPTION
Maybe be on the wall of tall buildings, maybe on corners of unknown streets, you can always see the dazzling neon light, everywhere in the noisy yet energetic city. Sometimes, looking at these shining screens, you may want to make a unique one, and give it to the beautiful night as a gift. Now, this 64×32 RGB LED matrix panel will be the start to make your wish come true.
-

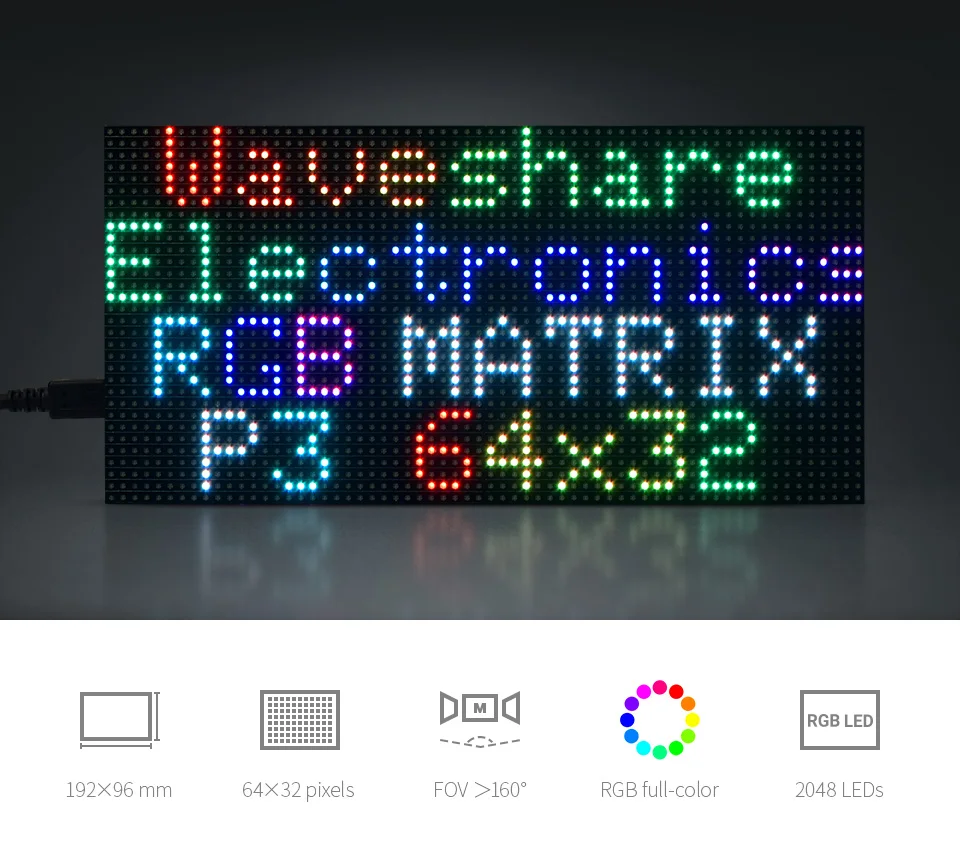

2048 individual RGB LEDs, full-color display, adjustable brightness
-

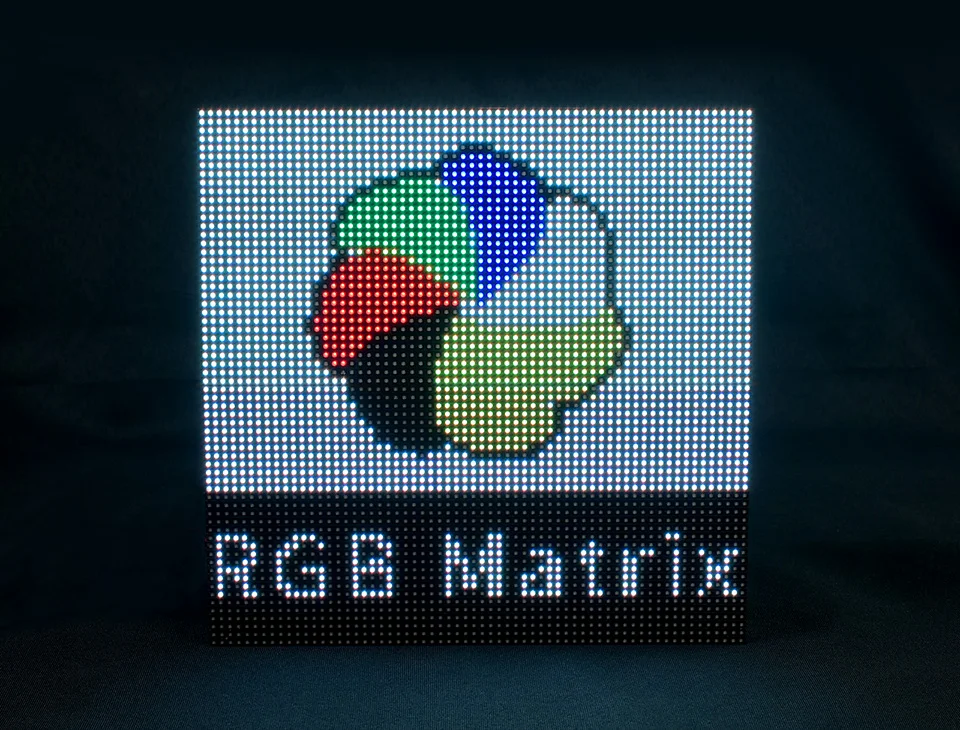

64×32 pixels, 3mm pitch, allows displaying text, colorful image, or animation
-
192×96mm dimensions, moderate size, suitable for DIY desktop display or wall mount display
-
Onboard two HUB75 header, one for controller data input, one for output, chain support
-
Provides open source development resources and tutorials, for use with Raspberry PI Pico, ESP32, Arduino, and so on
|

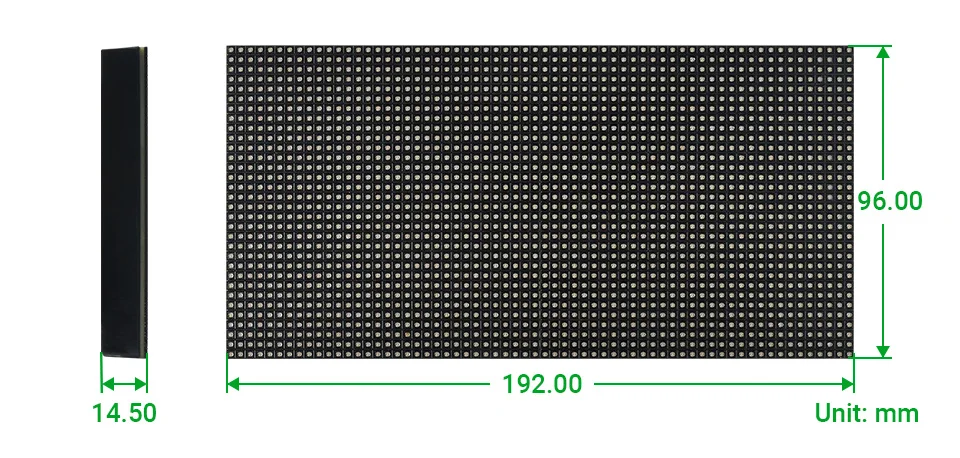

DIMENSIONS |
192mm × 96mm |
|
PIXELS |
64×32=2048 DOTS |
|
PITCH |
3mm |
|
PIXEL FORM |
1R1G1B |
|
VIEWING ANGLE |
≥160° |
|
CONTROL TYPE |
synchronization |
|
DRIVING |
1/16 scan |
|
HEADER |
HUB75 |
|
POWER SUPPLY |
5V / 2.5A (VH4 header input) |
|
POWER |
≤12W |
|

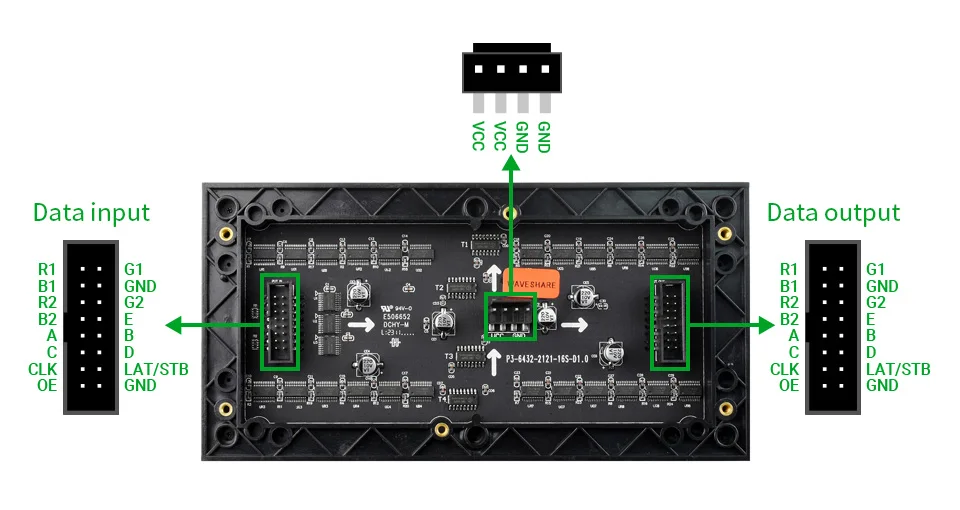

PIN |
DESCRIPTION |
PIN |
DESCRIPTION |
|
VCC |
5V power input |
GND |
Ground |
|
R1 |
R higher bit data |
R2 |
R lower bit data |
|
G1 |
G higher bit data |
G2 |
G lower bit data |
|
B1 |
B higher bit data |
B2 |
B lower bit data |
|
A |
A line selection |
B |
B line selection |
|
C |
C line selection |
D |
D line selection |
|
E |
E line selection |
CLK |
clock input |
|
LAT/STB |
latch pin |
OE |
output enable |

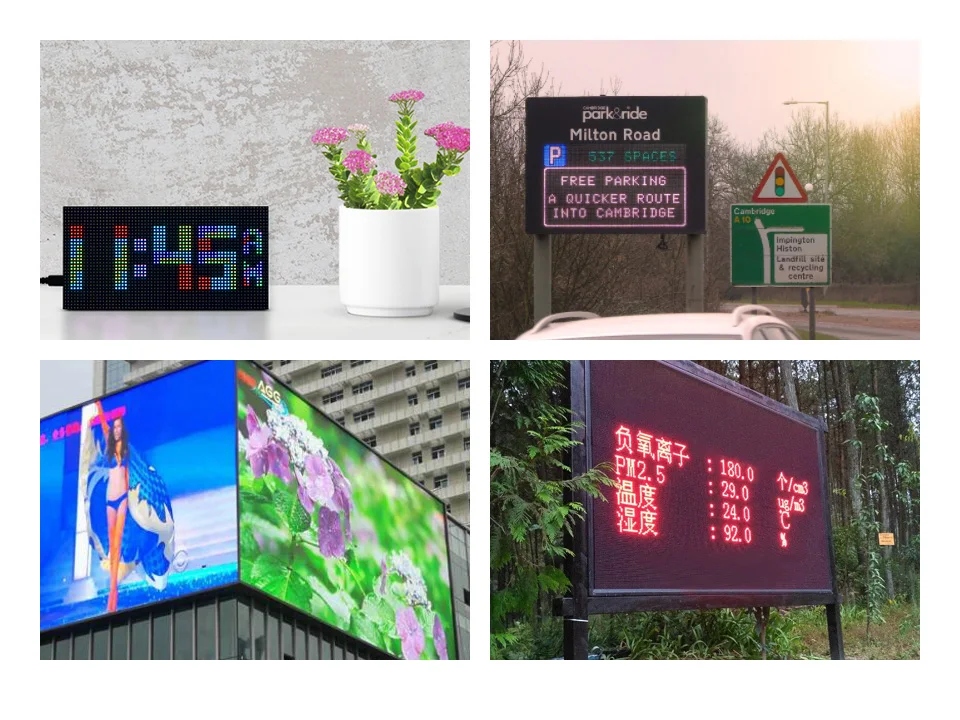

DIY Maker Desktop Or Wall Mount Display, Signboard, Environment Monitor…
* Resources for different product may vary, please check the wiki page to confirm the actually provided resources.

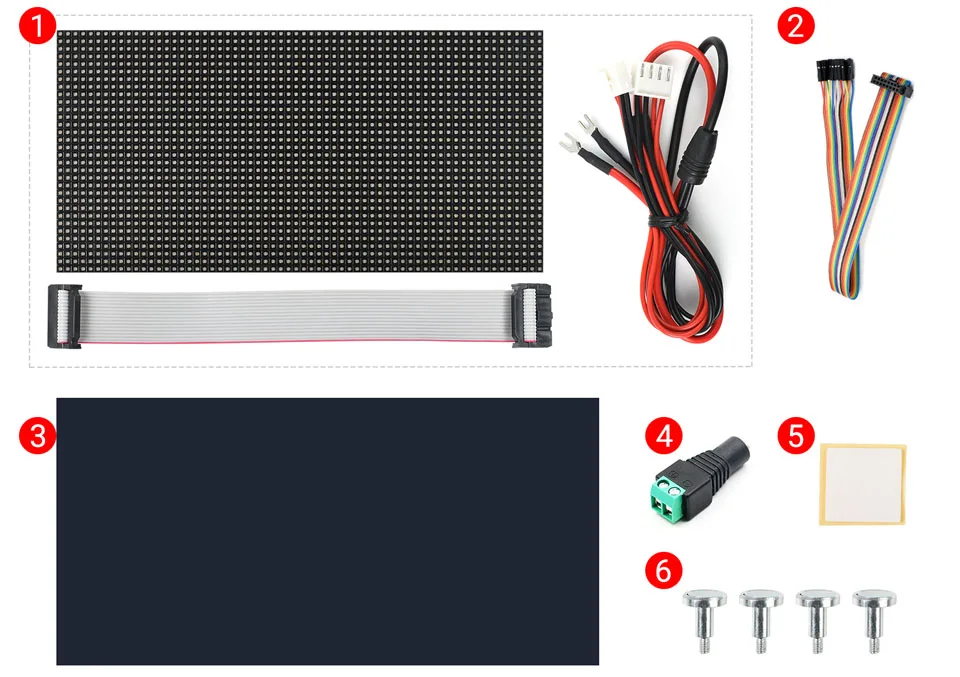

PACKAGE CONTENT
Weight: 0.248 kg
-
RGB-Matrix-P3-64×32 LED matrix and accessories x1
-
Dark brown acrylic front panel x1
-
16P wire ~30cm x1
-
Double-sided tape x1
-
Magnetic bolt 4pcs x1
