5G M.2 To Gigabit Ethernet Converter, 5G M.2 To USB3.1, Aluminum Alloy Case, Wall-Mount Support, Quad Antennas, Onboard M.2 Key B Interface, USB3.1 Port, Options For 5G Module
5G M.2 To Gigabit Ethernet Converter

5G M.2 to Gigabit Ethernet + 5G M.2 to USB3.1

Supports SIMCom / Quectel / Fibocom Mainstream 5G M.2 Modules
Compatible With 3042 / 3052 Packages

* Note: the 5G module is NOT included in the 5G M.2 TO Gigabit ETH kit and needs be purchased separately. It is recommended to select the kits with 5G module, please refer to the Kit Selection table for more details.

Features At A Glance

  • Supports 5G modules with M.2 (NGFF) Key B interface, compatible with mainstream 5G modules from the brands such as SIMCom, Quectel, and Fibocom

  • Supports 5G modules in 3042/3052 packages such as SIM82XX, RM5XX and FM160XX series

  • Onboard RTL8125 Ethernet chip, supports 5G to Gigabit Ethernet for high speed 5G networking via the Gigabit Ethernet port

  • Onboard USB 3.1 Type-A port for connecting to PC, Raspberry Pi, or Jetson series motherboards for high-speed 5G networking or debugging

  • Onboard voltage translator circuit, supports 9-12V power supply via DC 5.5mm jack, or 5V/2A power supply via USB 3.1 port

  • Onboard standard SIM card slot

  • Onboard power supply and network indicator, reset button, for checking the working status of the module and 5G debugging

  • Aluminum alloy enclosure with oxidation dull-polish surface, CNC process opening, solid and durable, desktop or wall-mount support

  • Comes with 4× 5G omnidirectional high-gain antennas and 12V power supply adapter, easy to use directly with 5G module

Compatible 5G Modules

MODEL

SIM8202G-M2

SIM8262E-M2

SIM8262A-M2

RM500U-CNV

RM502Q-AE

RM520N-GL

FM160-EAU

5G STANDARD

3GPP R15

3GPP R16

3GPP R15

3GPP R16

APPLICABLE REGIONS

except Americas

Americas

China, EMEA, Asia-Pacific

Global (except China)

Global

EMEA, Australia

CHIP

Qualcomm Snapdragon X55

Qualcomm Snapdragon X62

UNISOC

Qualcomm Snapdragon X55

Qualcomm Snapdragon X62

FREQUENCY BAND

Sub-6G

n1, n2, n3, n5, n7, n8, n12, n20, n28, n38, n40, n41, n66, n71, n77, n78, n79

n1, n3, n5, n7, n8, n20, n28, n38, n40, n41, n77, n78, n79

n2, n5, n7, n12, n13, n14, n25, n30, n41, n48, n66, n71, n77, n78, n79

5G NR NSA: n41, n78, n79

5G NR NSA: n1, n2, n3, n5, n7, n8, n12, n20, n25, n28, n38, n40, n41, n48, n66, n71, n77, n78, n79

5G NR NSA: n1, n2, n3, n5, n7, n8, n12, n13, n14, n18, n20, n25, n26, n28, n29, n30, n38, n40, n41, n48, n66, n70, n71, n75, n76, n77, n78, n79

n1, n3, n5, n7, n8, n20, n28, n38, n40, n41, n75, n77, n78

5G NR SA: n1, n2, n3, n5, n8, n28, n41, n77, n78, n79

5G NR SA: n1, n2, n3, n5, n7, n8, n12, n20, n25, n28, n38, n40, n41, n48, n66, n71, n77, n78, n79

5G NR SA: n1, n2, n3, n5, n7, n8, n12, n13, n14, n18, n20, n25, n26, n28, n29, n30, n38, n40, n41, n48, n66, n70, n71, n75, n76, n77, n78, n79

LTE-FDD

B1, B2, B3, B4, B5, B7, B8, B12, B13, B14, B17, B18, B19, B20, B25, B26, B28, B29, B30, B32, B66, B71

B1, B3, B5, B7, B8, B18, B19, B20, B26, B28, B32

B2, B4, B5, B7, B12, B13, B14, B25, B26, B29, B30, B66, B71

B1, B3, B5, B8

B1, B2, B3, B4, B5, B7, B8, B12, B13, B14, B17, B18, B19, B20, B25, B26, B28, B29, B30, B32, B66, B71

B1, B3, B5, B7, B8, B20, B28, B32

LTE-TDD

B34, B38, B39, B40, B41, B42, B43, B48

B38, B39, B40, B41, B42, B43

B41, B46, B48

B34, B38, B39, B40, B41

B38, B40, B42, B43

LAA

–

B46

–

WCDMA

B1, B2, B3, B4, B5, B8

B1, B5, B8

B2, B4, B5

B1, B5, B8

B1, B2, B3, B4, B5, B6, B8, B19

B1, B2, B4, B5, B8, B19

B1, B5, B8

GNSS

GPS / GLONASS / BeiDou(Compass) / Galileo / QZSS (RM500Q-GL and RM502Q-AE do not support)

DATA RATE

Sub-6G

2.4Gbps (DL) / 500Mbps (UL)

5G NR SA: 2Gbps (DL) / 1Gbps (UL)

5G NR SA: 4.2Gbps (DL) / 450Mbps (UL)

5G NR SA: 2.4Gbps (DL) / 900Mbps (UL)

5G NR NSA: 2.5Gbps (DL) / 575Mbps (UL)

5G NR NSA: 5.0Gbps (DL) / 650Mbps (UL)

5G NR NSA: 3.4Gbps (DL) / 550Mbps (UL)

LTE

1.0Gbps (DL) / 200Mbps (UL)

600Mbps (DL) / 150Mbps (UL)

2.0Gbps (DL) / 200Mbps (UL)

1.6Gbps (DL) / 200Mbps (UL)

UMTS

42Mbps (DL) / 5.76Mbps (UL)

Dimensions

42.0 × 30.0 × 2.3mm

52.0 × 30.0 × 2.3mm

Note: 5G module is optonal. This table only lists some supported models after actual testing, and the pin compatibility should be tested if used with other models.

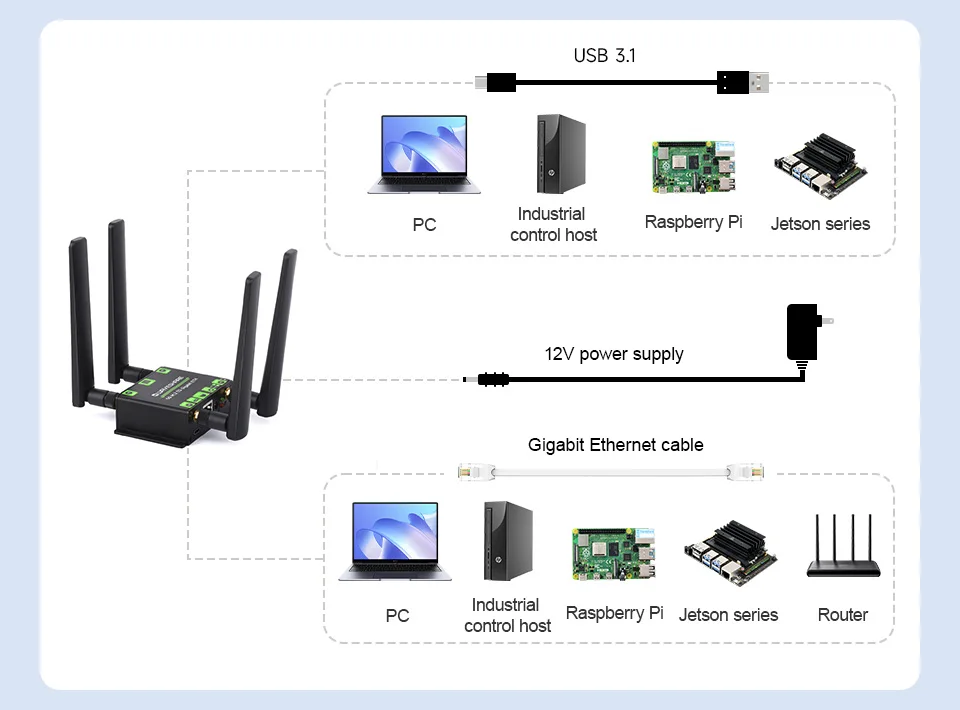

Supports Multiple Operating Modes

USB3.1 Port Direct Connection Mode

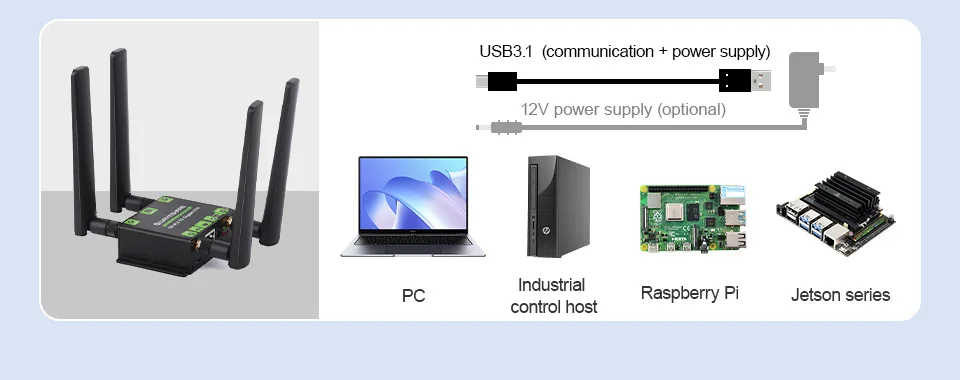

Enabling 5G High Speed Networking For PC / Raspberry Pi /Jetson Series / Industrial Control Host Via USB3.1 Port

Gigabit Ethernet Port Direct Connection Mode

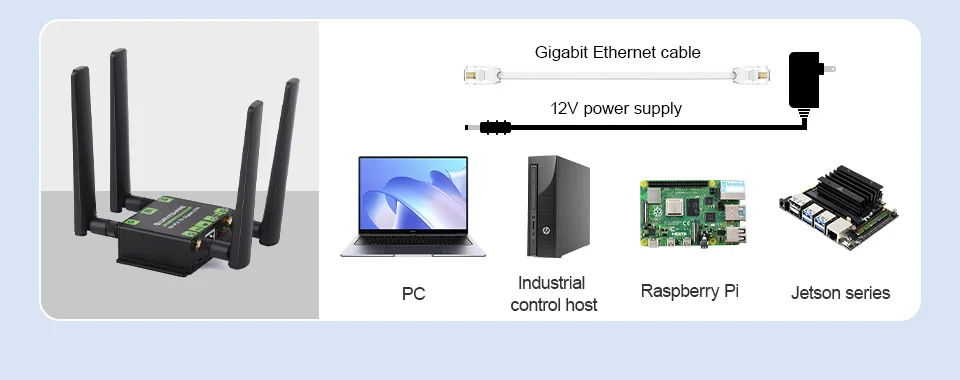

Enabling 5G High Speed Networking For PC / Raspberry Pi /Jetson Series / Industrial Control Host Via Gigabit Ethernet Port

Router Mode

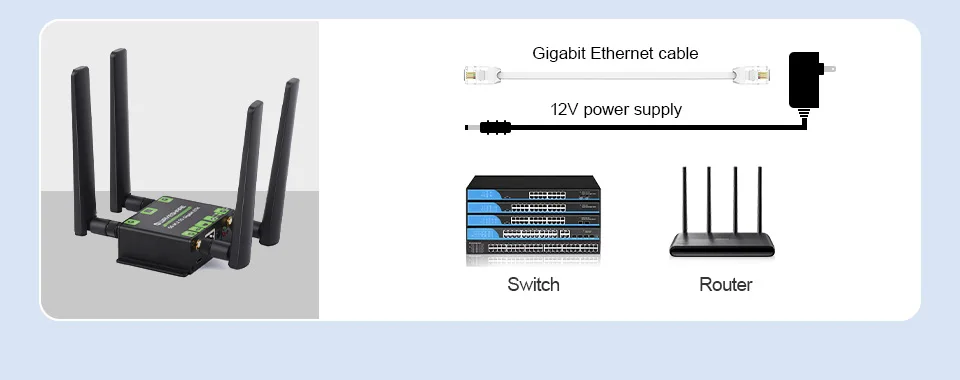

The Router Accesses The 5G Network Via Gigabit Ethernet Port, And Then Distributes To All Devices Connected For The 5G Networking

USB 3.1 Port And Gigabit Ethernet Port Simultaneous Networking Mode *

Provides 5G Network For Two Devices Separately Via USB3.1 Port And Gigabit Ethernet Port.

* Note: The 5G module needs to support the simultaneous conversion of USB port and Gigabit Ethernet port for networking. All 5G modules in the Compatible 5G Modules table can support this function, except for RM502Q-AE and RM520N-GL, which can only support one channel at a time.
Networking Example

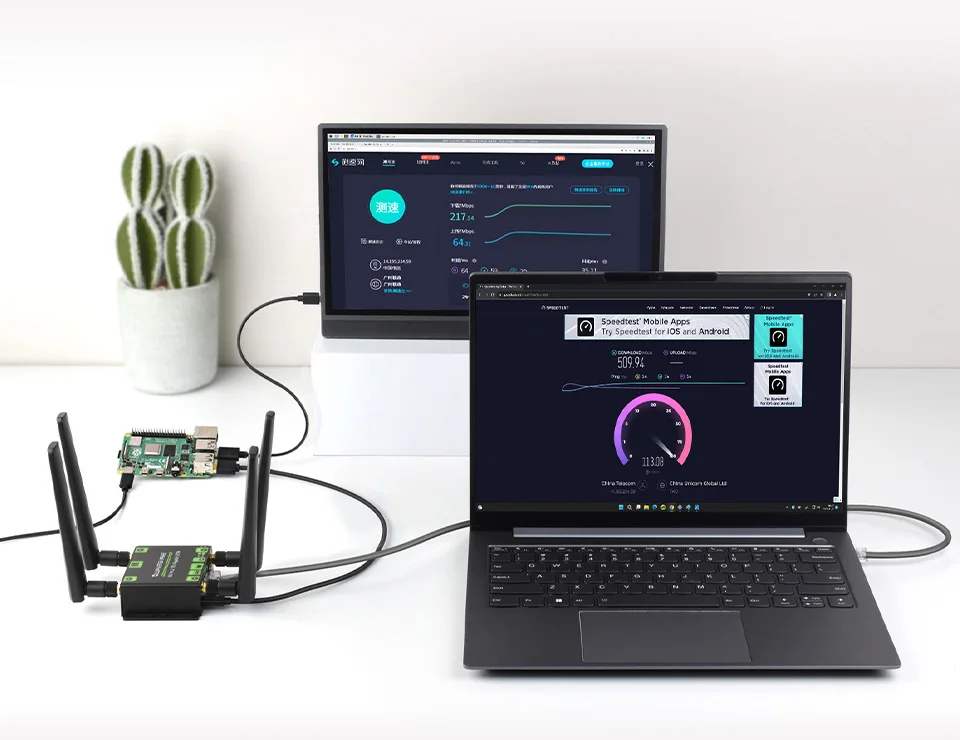

Supports 5G Networking Via USB 3.1 Interface And Gigabit Ethernet Port At The Same Time *

Note: the 5G network speed will be shared if using laptop and Raspberry Pi to access 5G network at the same time

Multiple Size Compatible

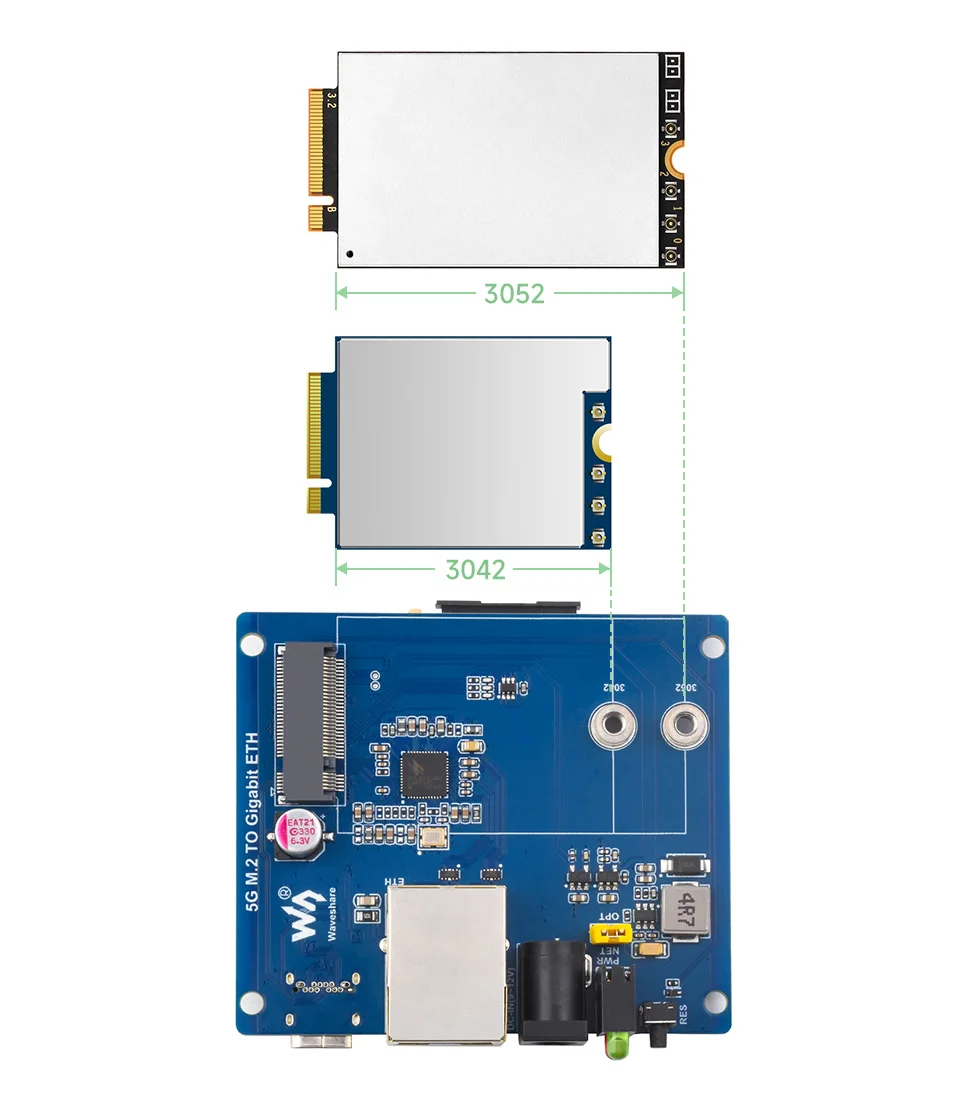

Support 3042/3052 Package

Industrial Grade Aluminium Alloy Enclosure

Aluminum Alloy Enclosure With Oxidation Dull-Polish Surface, Solid And Durable, Desktop Or Wall-Mount Support

Application Scenarios

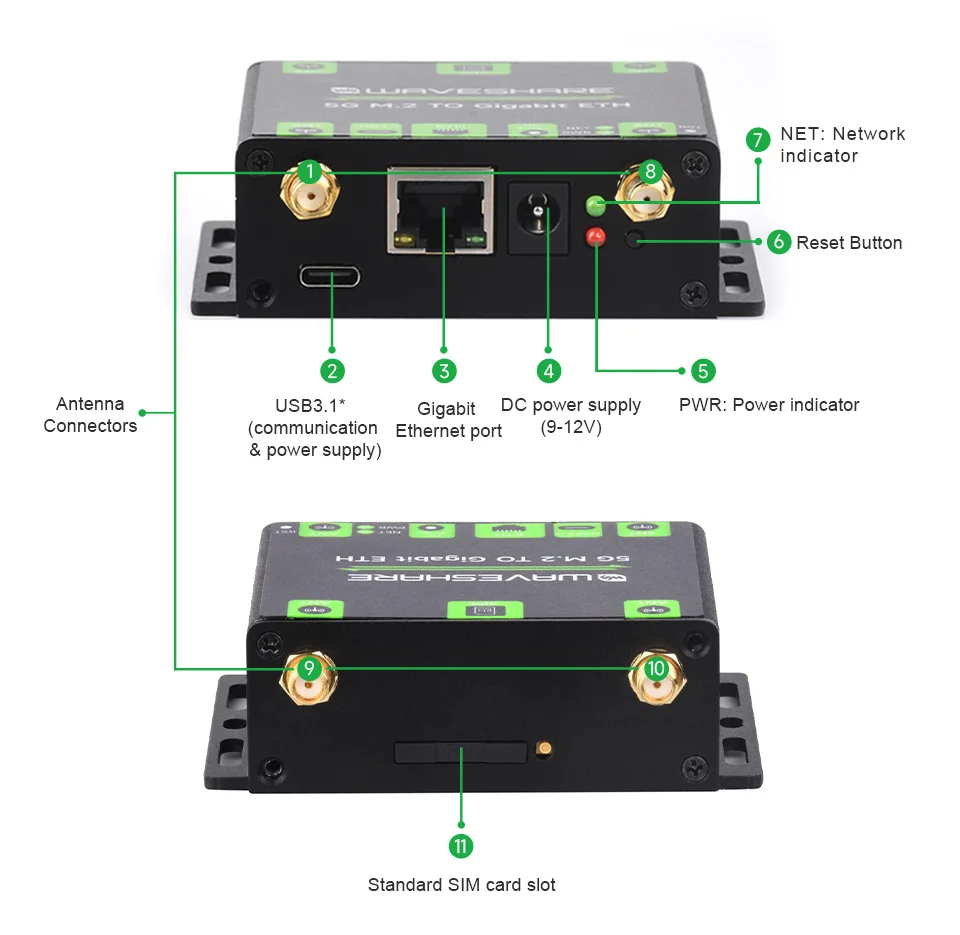

Interface Introduction
* Note: USB Type-C port is enabled via jumper by default for power supply and communication, requires 5V/2A or more power. And the jumper cap should be removed if powered separately via the DC power port.

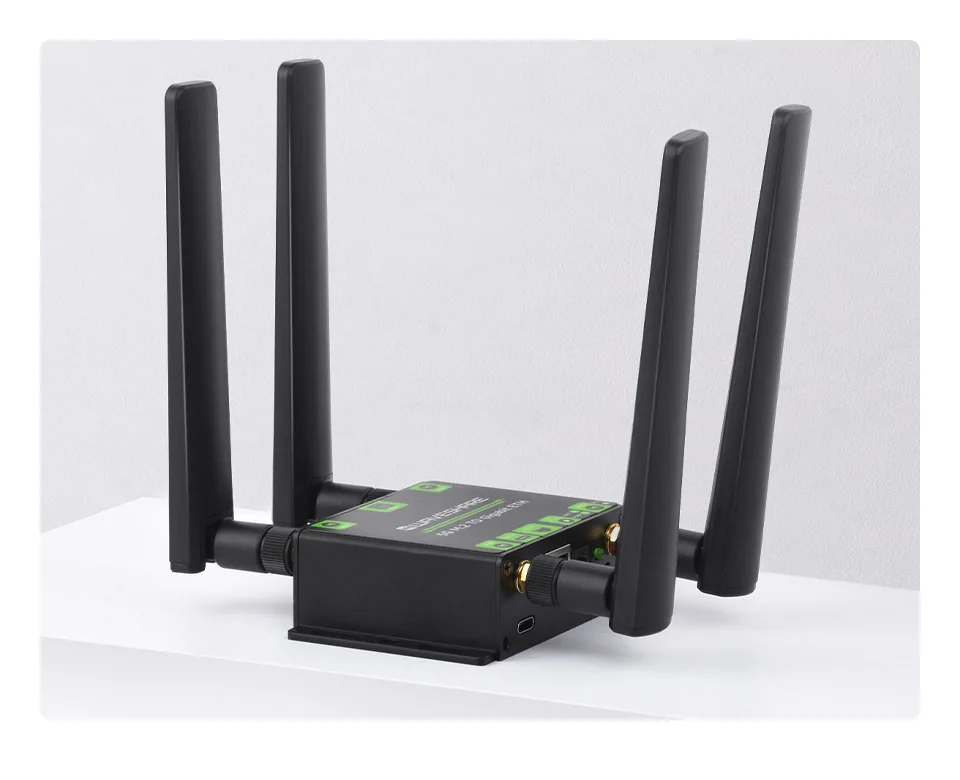

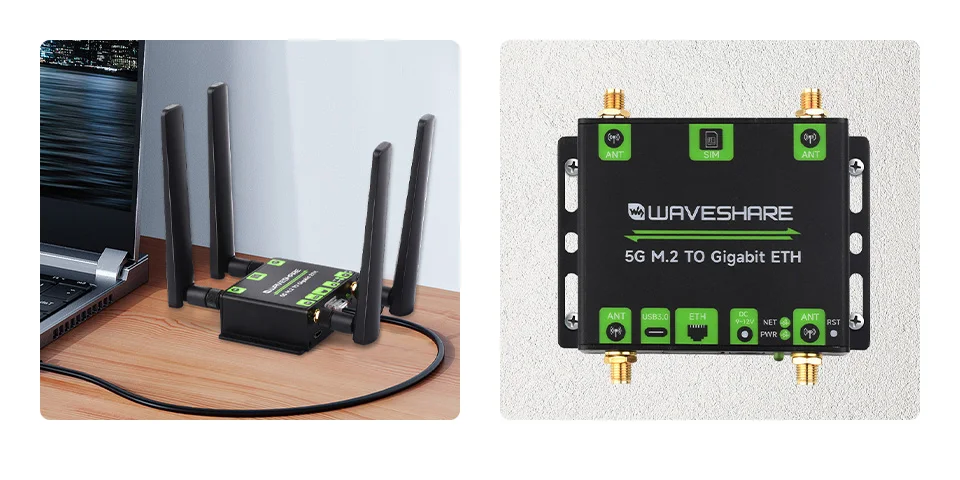

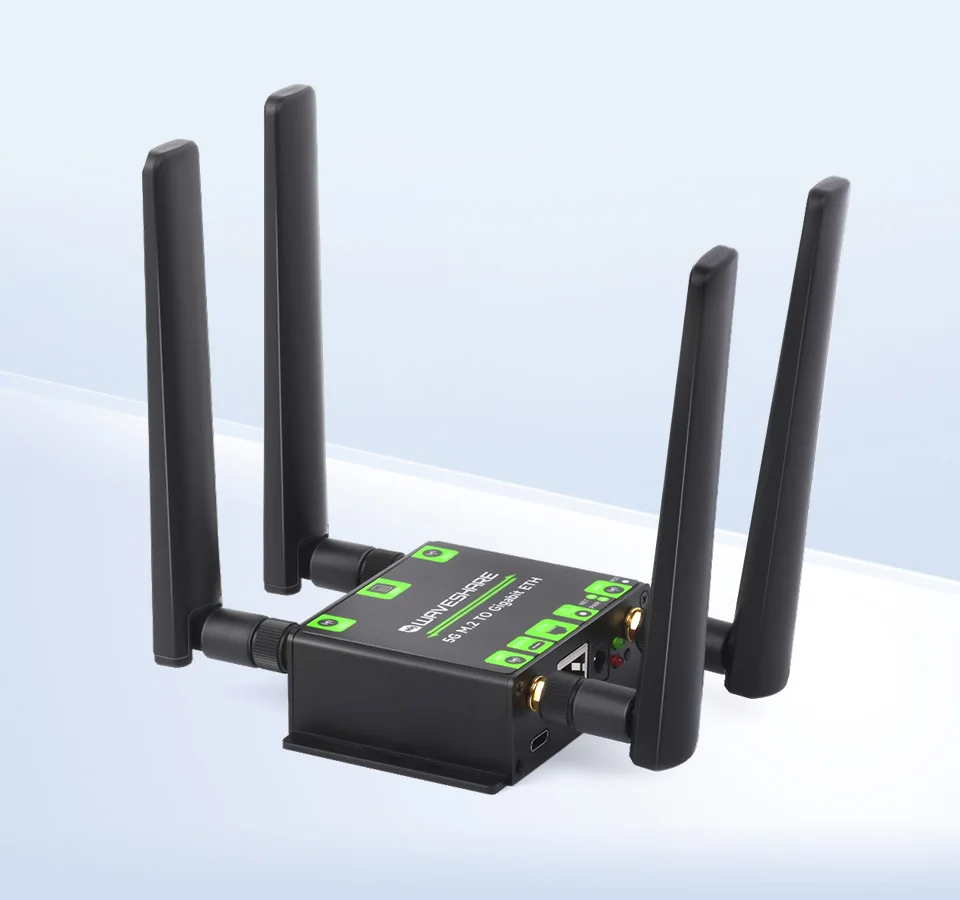

Product Show

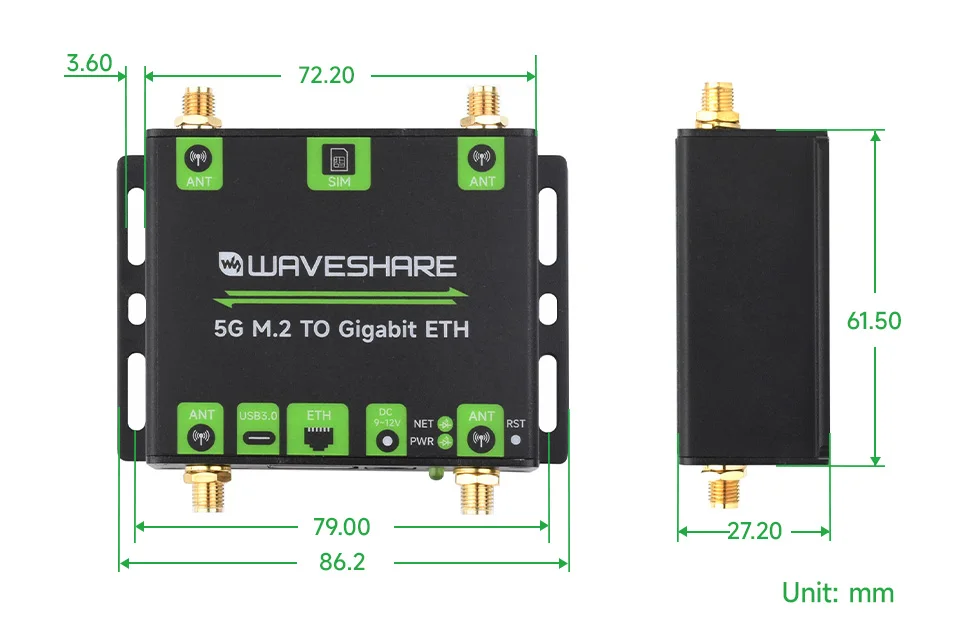

Outline Dimensions
* Note: The above dimensions are measured manually, there is a certain error

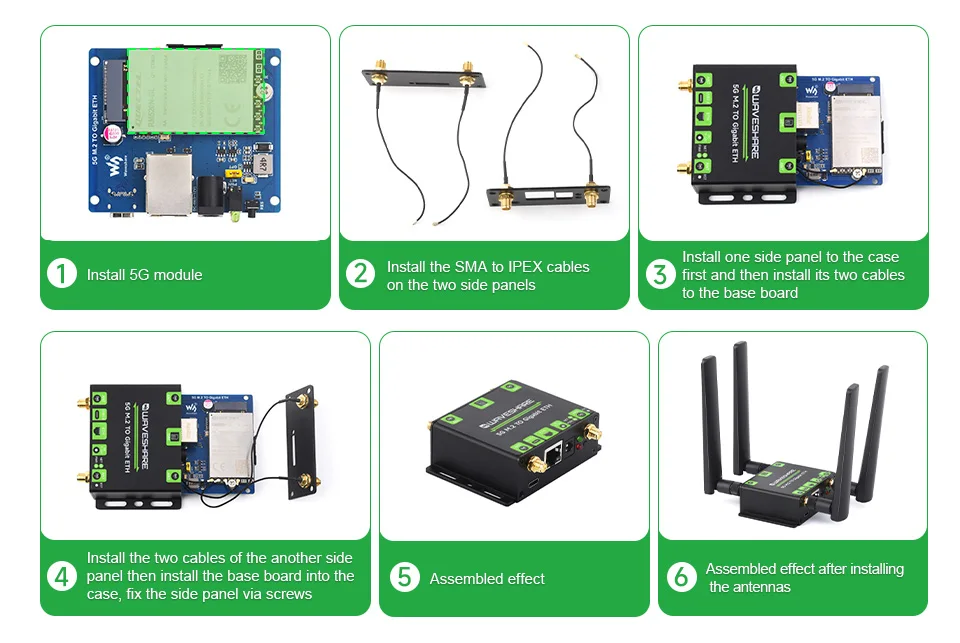

5G Module Installation Introduction
* Note: the 5G module is NOT included in the 5G M.2 TO Gigabit ETH kit and needs be purchased separately. It is recommended to select the kits with 5G module, please refer to the Kit Selection table for more details.
Resources & Services
Wiki: www.waveshare.com/wiki/5G_M.2_TO_Gigabit_ETH
Kit Selection

MODEL

PACKAGE

DESCRIPTION

APPLICATION

5G M.2 TO Gigabit ETH

Supports 5G to USB3.1 & Gigabit Ethernet, 5G module is NOT included and needs to be purchased separately

The 5G module needs to be purchased separately. Compatible with SIMCom/Quectel/Fibocom 5G modules in the table above

RM500U-CNV 5G M.2 TO ETH

Supports 5G to USB3.1 & Gigabit Ethernet, includes RM500U-CNV 5G module

Comes with the UNISOC RM500U-CNV 5G module, applicable for the countries or regions such as China, EMEA, and the Asia-Pacific

SIM8262E-M2 5G M.2 TO ETH

Supports 5G to USB3.1 & Gigabit Ethernet, includes SIM8262E-M2 5G module

Comes with a Qualcomm Snapdragon X62 SIM8262E-M2 5G module, applicable for the countries or regions except the Americas

RM520N-GL 5G M.2 TO ETH

Supports 5G to USB3.1 & Gigabit Ethernet, includes RM520N-GL 5G module

Comes with Qualcomm Snapdragon X62 RM520N-GL 5G module, global band support

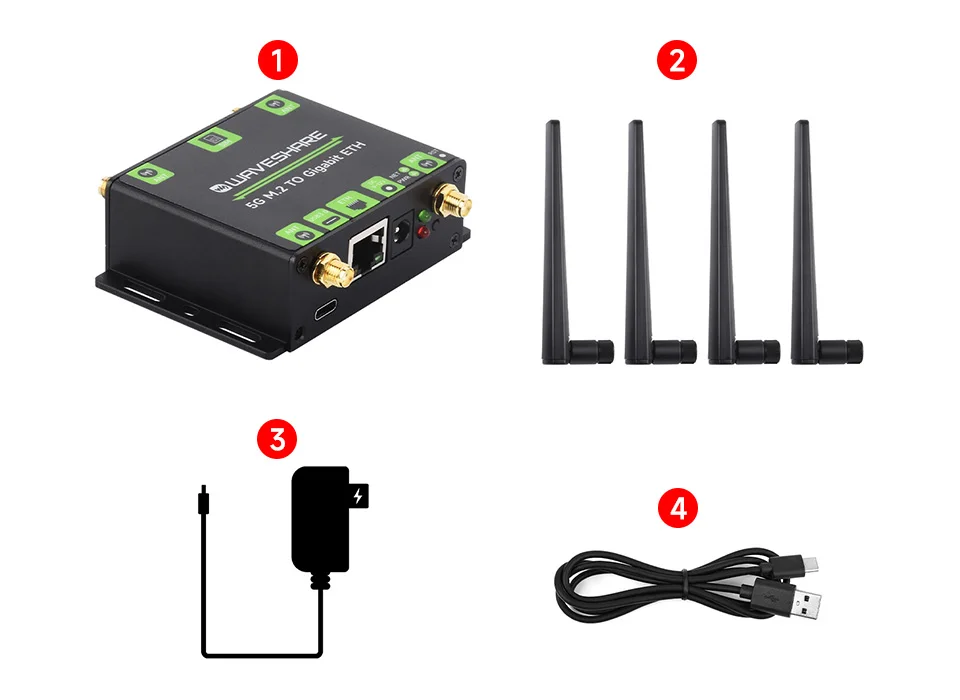

PACKAGE CONTENT

Weight: 0.377 kg

5G M.2 TO Gigabit ETH

  1. 5G M.2 TO Gigabit ETH x1

  2. 5G antenna x4

  3. OPTIONS 12V Power Supply x1

  4. USB Type-A to Type-C cable ~1m x1

RM520N-GL 5G M.2 TO ETH

  1. 5G M.2 TO Gigabit ETH x1

  2. RM520N-GL + Heatsink x1

  3. 5G antenna x4

  4. OPTIONS 12V Power Supply x1

  5. USB Type-A to Type-C cable ~1m x1

SIM8262E-M2 5G M.2 TO ETH

  1. 5G M.2 TO Gigabit ETH x1

  2. SIM8262E-M2 + Heatsink x1

  3. 5G antenna x4

  4. OPTIONS 12V Power Supply x1

  5. USB Type-A to Type-C cable ~1m x1

RM500U-CNV 5G M.2 TO ETH

  1. 5G M.2 TO Gigabit ETH x1

  2. RM500U-CNV + Heatsink x1

  3. 5G antenna x4

  4. OPTIONS 12V Power Supply x1

  5. USB Type-A to Type-C cable ~1m x1

SKU: 1005006270221314 Category:
