Waveshare Industrial Grade USB HUB, Extending 4x USB 3.2 Ports, Switchable Dual Hosts, Multi Protections
Waveshare Industrial Grade USB HUB, Extending 4x USB 3.2 Ports, Switchable Dual Hosts, Multi Protections - Image 2
Waveshare Industrial Grade USB HUB, Extending 4x USB 3.2 Ports, Switchable Dual Hosts, Multi Protections - Image 3
Waveshare Industrial Grade USB HUB, Extending 4x USB 3.2 Ports, Switchable Dual Hosts, Multi Protections - Image 4
Waveshare Industrial Grade USB HUB, Extending 4x USB 3.2 Ports, Switchable Dual Hosts, Multi Protections - Image 5
Waveshare Industrial Grade USB HUB, Extending 4x USB 3.2 Ports, Switchable Dual Hosts, Multi Protections - Image 6

Waveshare Industrial Grade USB HUB, Extending 4x USB 3.2 Ports, Switchable Dual Hosts, Multi Protections

Availability:

1468 in stock
Compare

$29.73

  • Hign-concerned Chemical: None
  • Model Number: USB3.2-Gen1-HUB-2IN-4OUT
  • Brand Name: Waveshare
  • STANDARD: high speed USB 3.2 Gen 1
  • DATA RATE: up to 5Gbps
  • USB OUTPUT: 5V@Imax:1.2A, USB-A connector
  • USB HUB INPUT: 5V, switchable dual USB-A connectors (standalone power supply, no crossed power)
  • EXTERNAL POWER: DC power supply terminal 7~36V (Additional power supply is required for this HUB when connecting to high power devices)
  • OPERATING ENVIRONMENT: -40℃ ~ 85℃

DESCRIPTION

Industrial Grade USB HUB, Extending 4x USB 3.2 Ports, Switchable Dual Hosts, Multi Protections
Industrial USB 3.2 HUB, Switchable
Dual Hosts

Sharing USB devices for two hosts, free up the crowded desktop

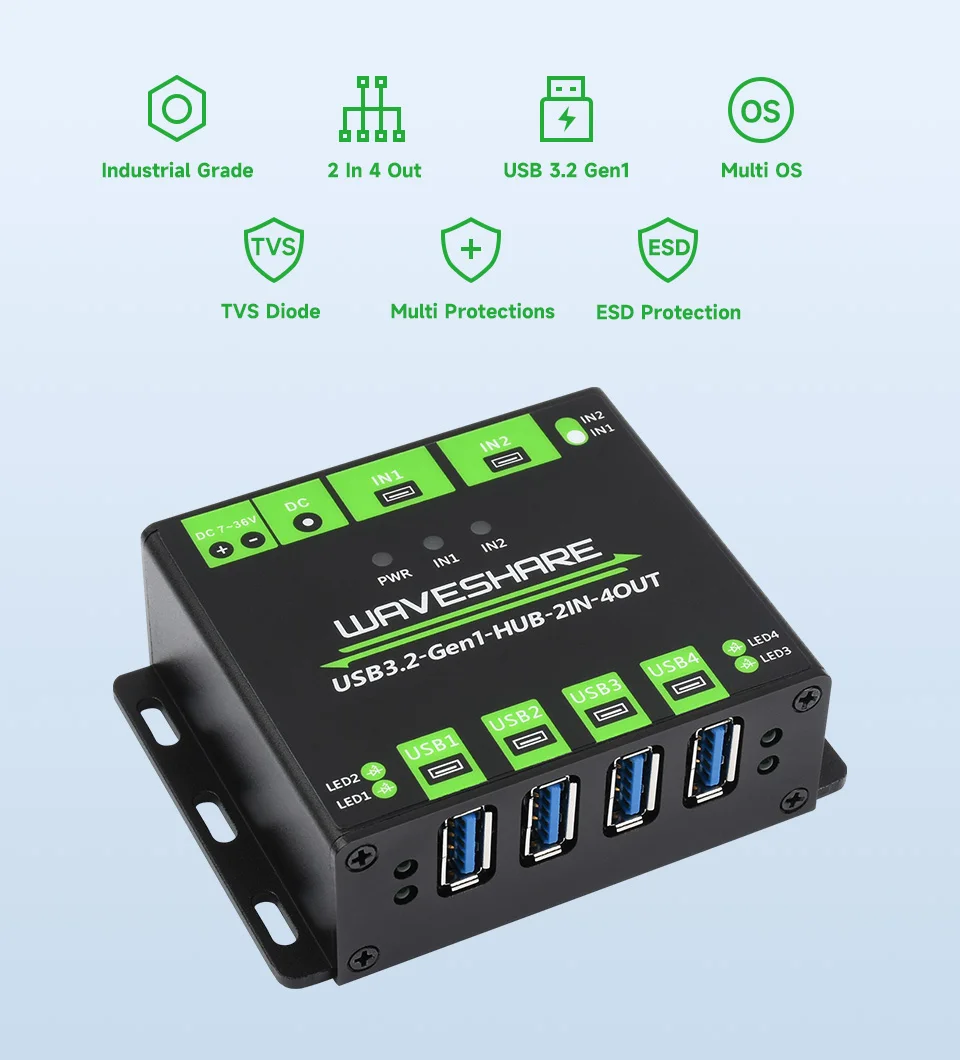

Features At A Glance

  • 4x extended USB ports, switchable two inputs, sharing USB devices for two hosts

  • Industrial grade HUB chip, adopting MTT technology, allows stable and smooth 4x concurrent USB connections

  • ESD protection for each USB port, preventing electric surge damage and data loss

  • Over-voltage protection, effectively preventing other high voltage power input from damaging the connected devices

  • Multiple protection circuits: over-voltage, over-current, short circuit, over-temperature, reverse current, under voltage lock-out, 8KV ESD protection, filtering protection, etc.

  • Industrial grade metal case, rugged & durable, with mounting holes for easy installation

Specifications

STANDARD

high speed USB 3.2 Gen 1

DATA RATE

up to 5Gbps

USB OUTPUT

5V@Imax:1.2A, USB-A connector

USB HUB INPUT

5V, switchable dual USB-A connectors (standalone power supply, no crossed power)

EXTERNAL POWER

DC power supply terminal 7~36V
(Additional power supply is required for this HUB when connecting to high power devices)

OPERATING ENVIRONMENT

-40℃ ~ 85℃

OS SUPPORT

Mac OS (8.6 or above), Linux(2.4.20 or above), Windows 11 / 10 / 8.1 / 8 / 7 / XP

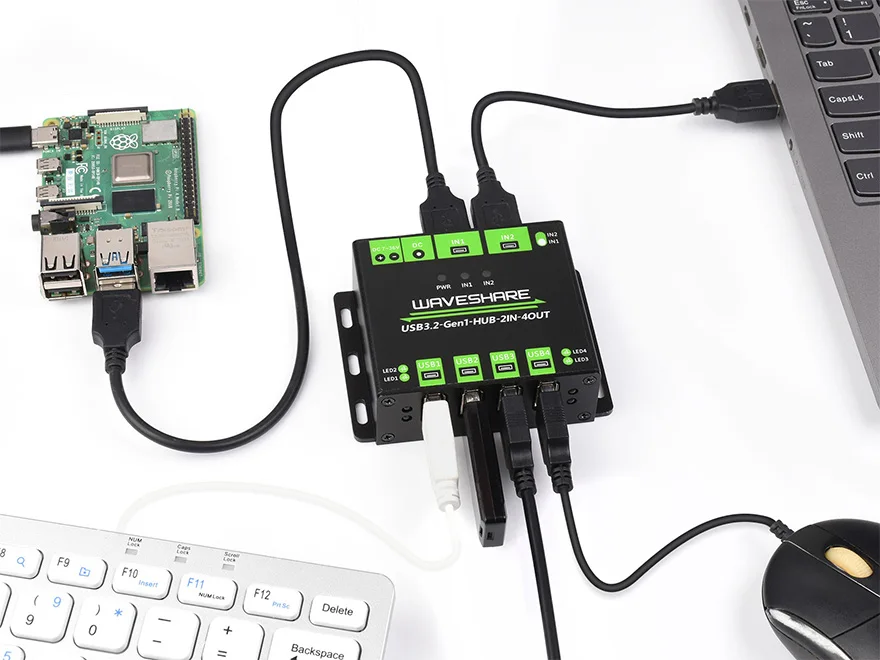

Sharing USB Devices For Two Hosts

Switch the active host by the handy switch at any time, easily control two hosts (say, the computer and Raspberry pi) by the same keyboard and
mouse, no more two sets of keyboard and mouse on the table, keeping your working environment neat and tidy.

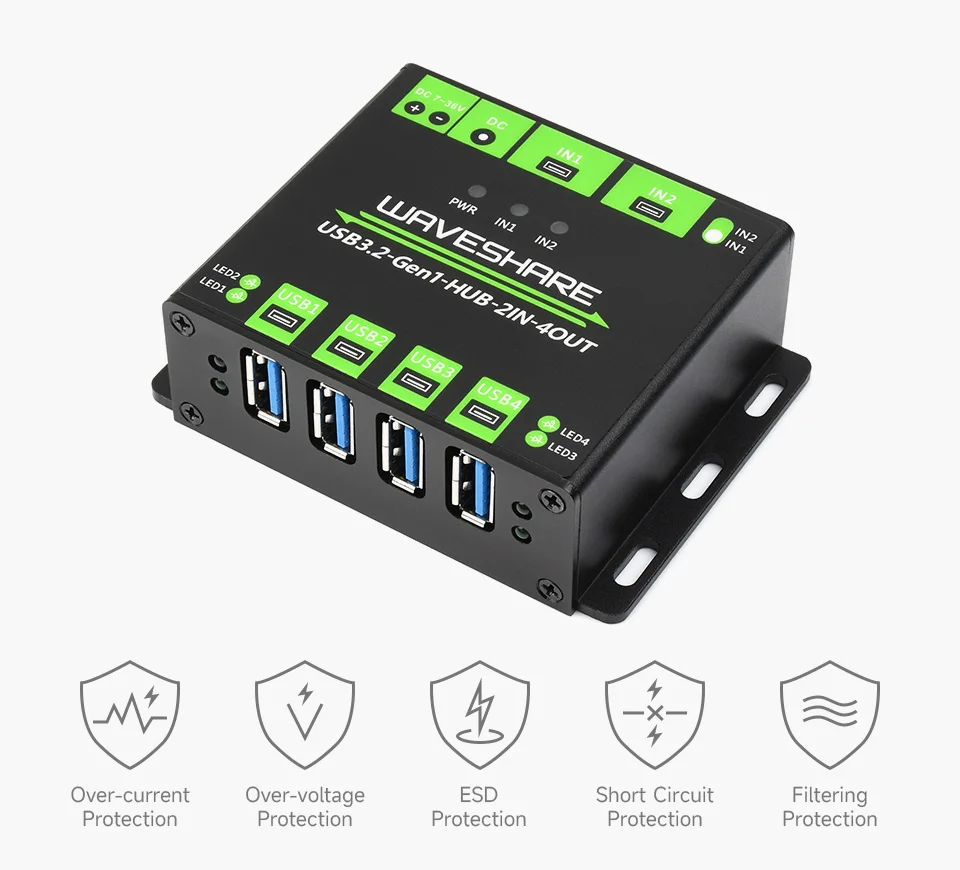

Multiple Protections, More Safe

Over-Voltage, Over-Current, Short Circuit, Over-Temperature, Reverse Current, Under Voltage Lock-Out, 8KV ESD Protection, Filtering Protection…

Multiple OS Support, Plug & Play

Compatible With OS Including: Mac OS, Linux, Windows 11 / 10 / 8.1 / 8 / 7 / XP…

Application Environments

Suitable For Industrial/Office Environments With Higher Level Device Requirements


2 in 4 out


small size, easy installation


mounting support

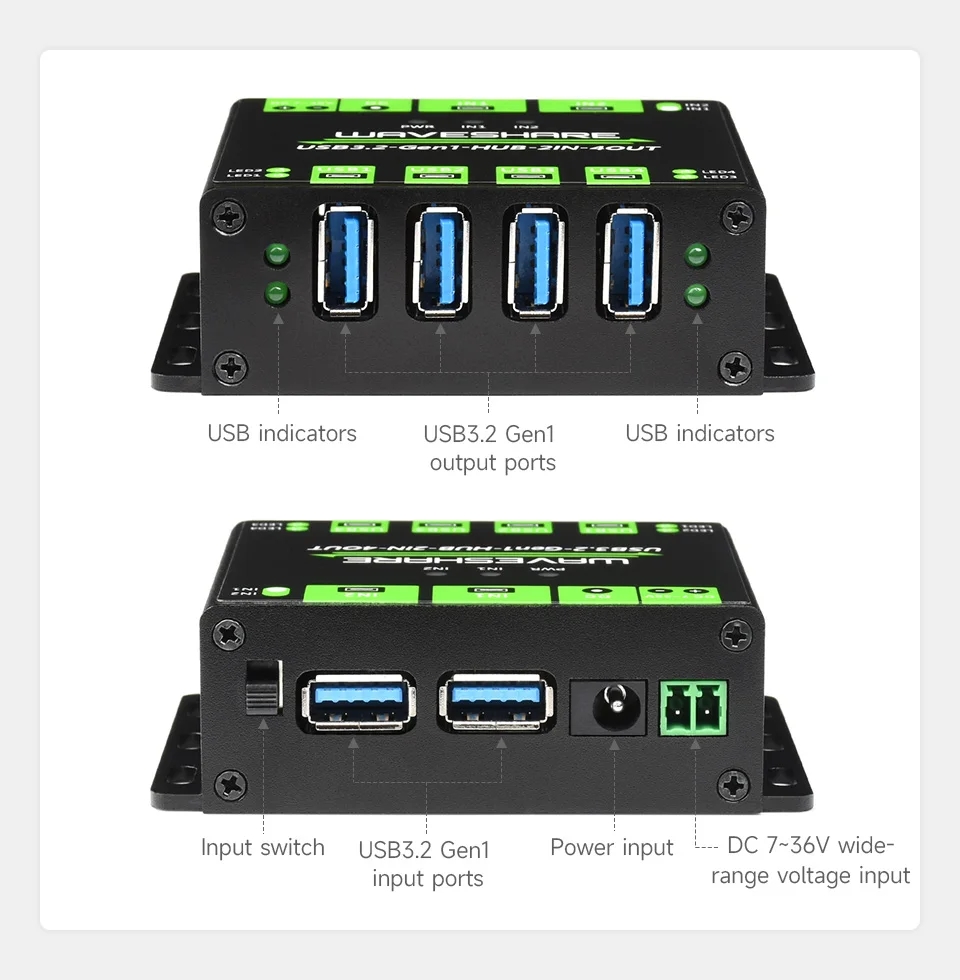

Interface Introduction

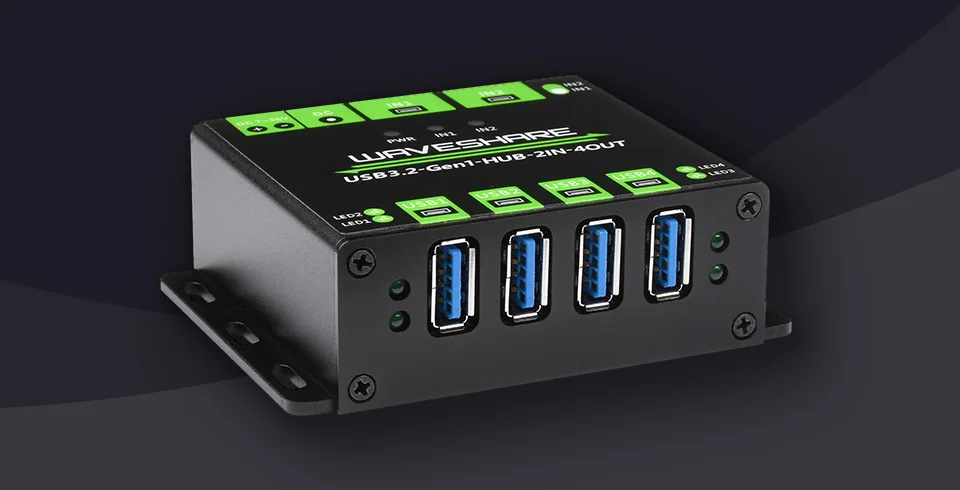

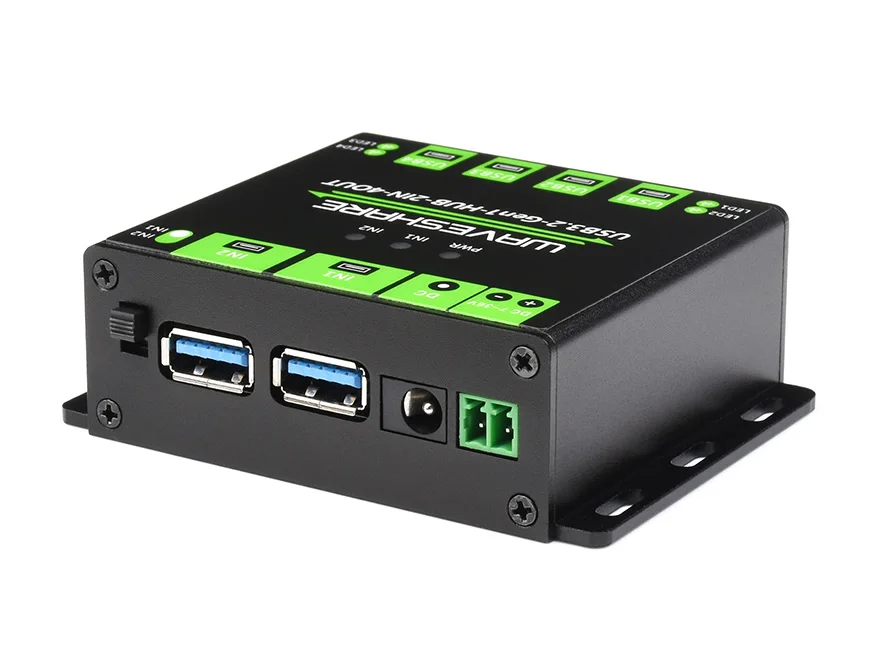

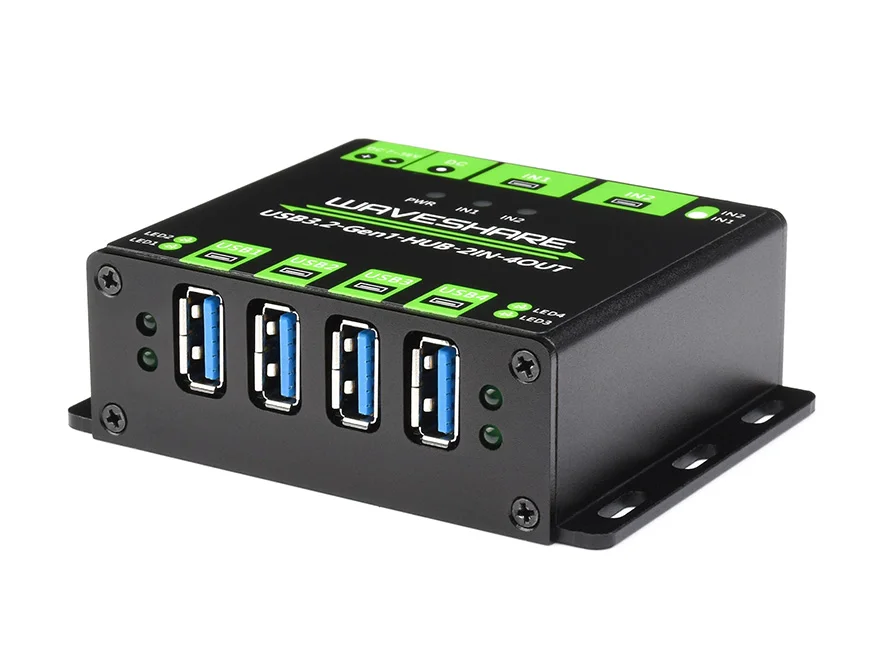

Product Show
Outline Dimensions


Resources & Services
Wiki: www.waveshare.com/wiki/USB3.2-Gen1-HUB-2IN-4OUT

PACKAGE CONTENT

Weight: 0.08 kg

  1. USB3.2-Gen1-HUB-2IN-4OUT x1

  2. Dual plug USB3.0 cable x2
