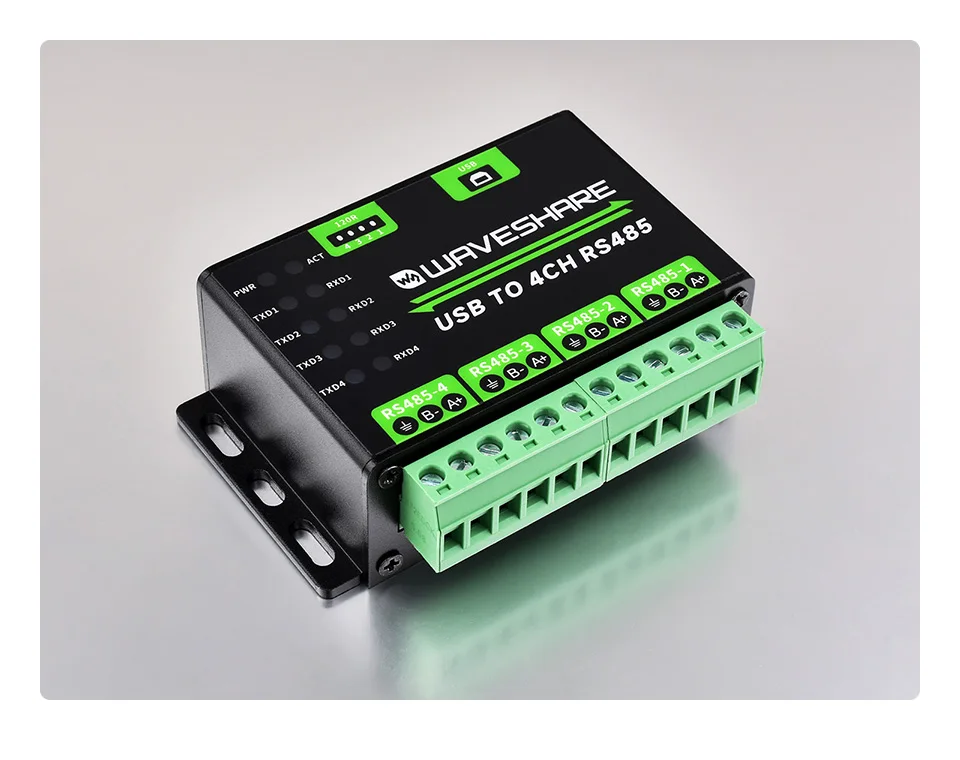

Waveshare Industrial USB TO 4Ch RS485 Converter, Multi Protection Circuits, Support Win11/10/8.1/8/7 Mac Linux Android
1038 in stock
$22.73
- Hign-concerned Chemical: None
- Model Number: USB TO 4CH RS485
- Smart home platform: other
- Certification: None
- Origin: Mainland China
- PRODUCT TYPE: Industrial Grade USB to RS485 converter
- HOST PORT: USB
- DEVICE PORT: RS485
- BAUDRATE: 1200bps ~ 460800bps
- OPERATING SYSTEM: Win7/8/8.1/10/11, Mac, Linux, Android
DESCRIPTION
|
PRODUCT TYPE |
Industrial Grade USB to RS485 converter |
|
|
HOST PORT |
USB |
|
|
DEVICE PORT |
RS485 |
|
|
BAUDRATE |
1200bps ~ 460800bps |
|
|
USB |
Operating voltage |
5V |
|
Connector |
USB-B |
|
|

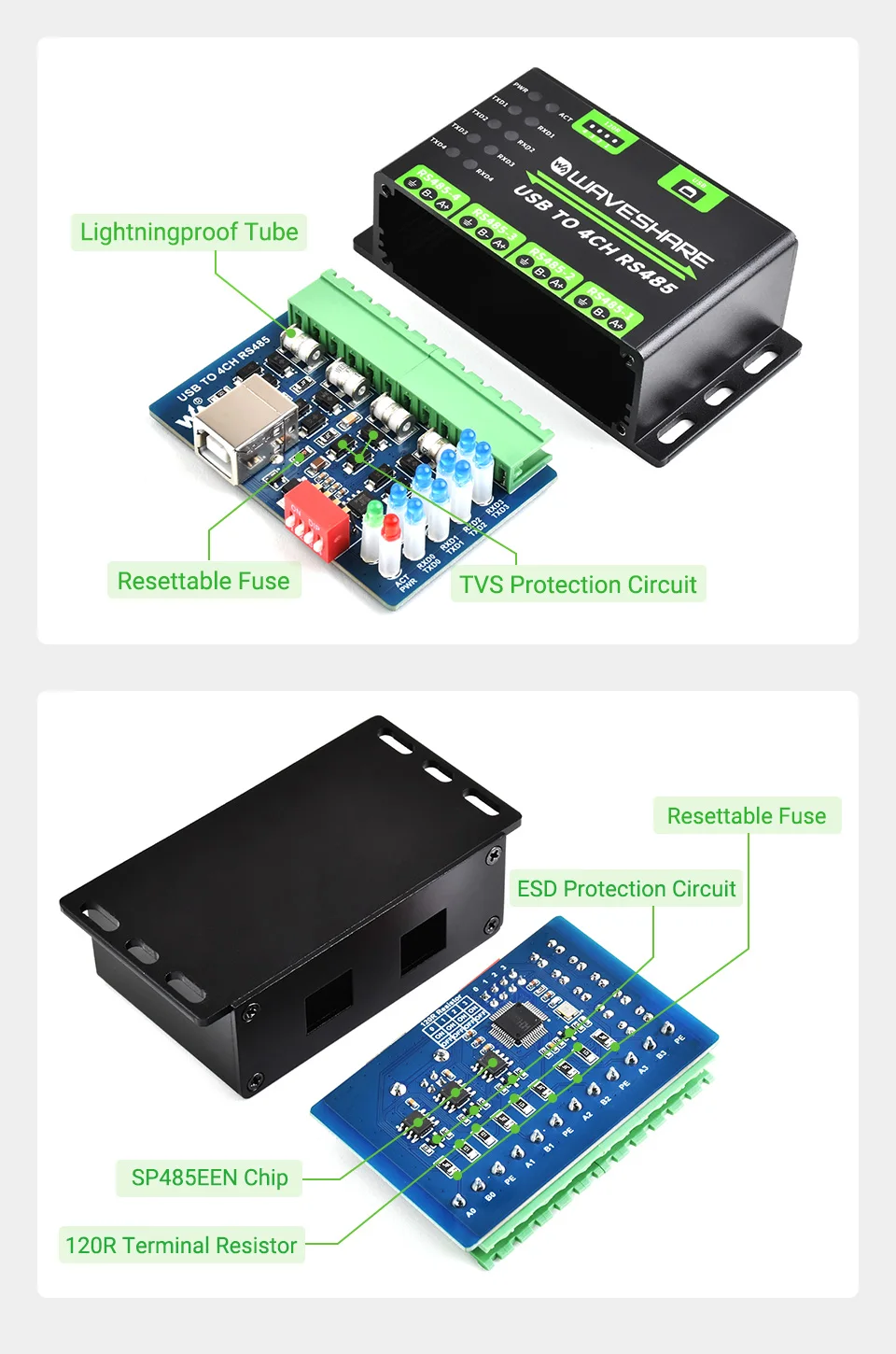

Protection |
500mA resettable fuse, ESD protection |
|
|
Transmission distance |
About 5m |
|
|
RS485 |
Connector |
Screw terminal |
|
Protection |
600W lightningproof and surge-suppress, 15KV ESD protection |
|
|
Transmission distance |
Maximum communication distance is about 1200m (at a low rate, with 120R resistor turned on) |
|
|
Transmission mode |

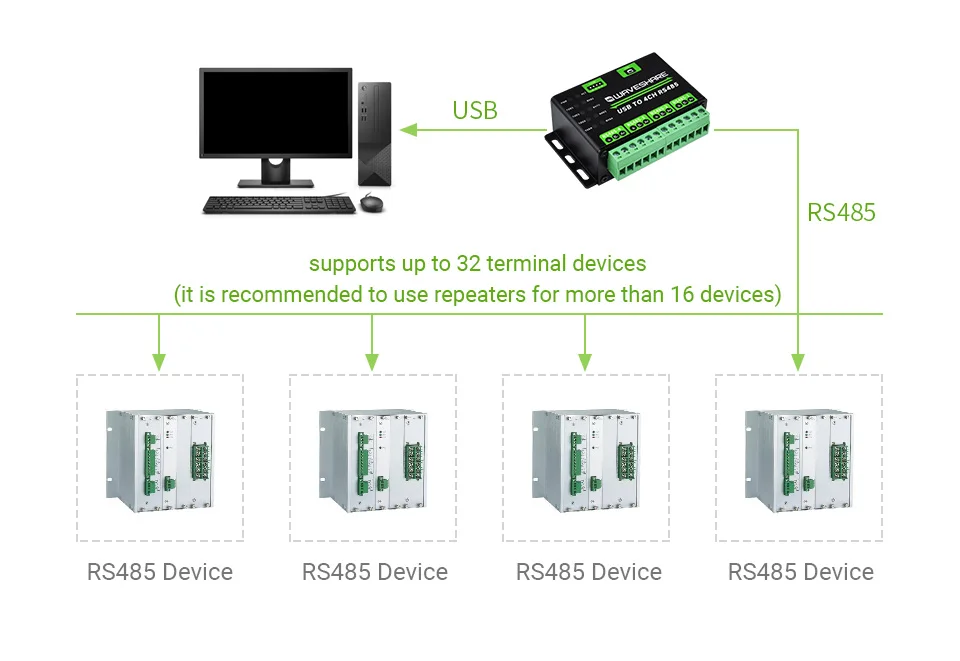

Point-to-multipoints (up to 32 nodes, it is recommended to use repeaters for 16 nodes or more) |
|
|
OPERATING ENVIRONMENT |
Temperature |
-40 ~ 85℃ |
|
Humidity |
5%RH ~ 95%RH |
|
|
OPERATING SYSTEM |
Win7/8/8.1/10/11, Mac, Linux, Android |
|
Supports Win7/8/8.1/10/11, Mac, Linux, Android, Etc.
The USB Signal Can Be Converted Into 4 Balanced Differential RS485 Signals And The Transmission Rate Is Stable. The Reliable Speed Is 1200~460800bps, The Transmission Distance Is About 1.2km For RS485, And About 5 Meters For USB.
|

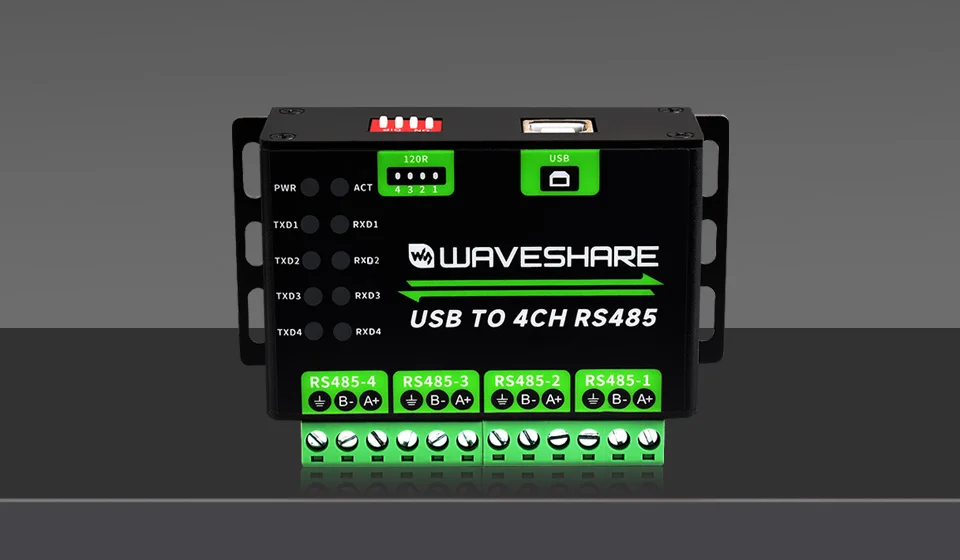

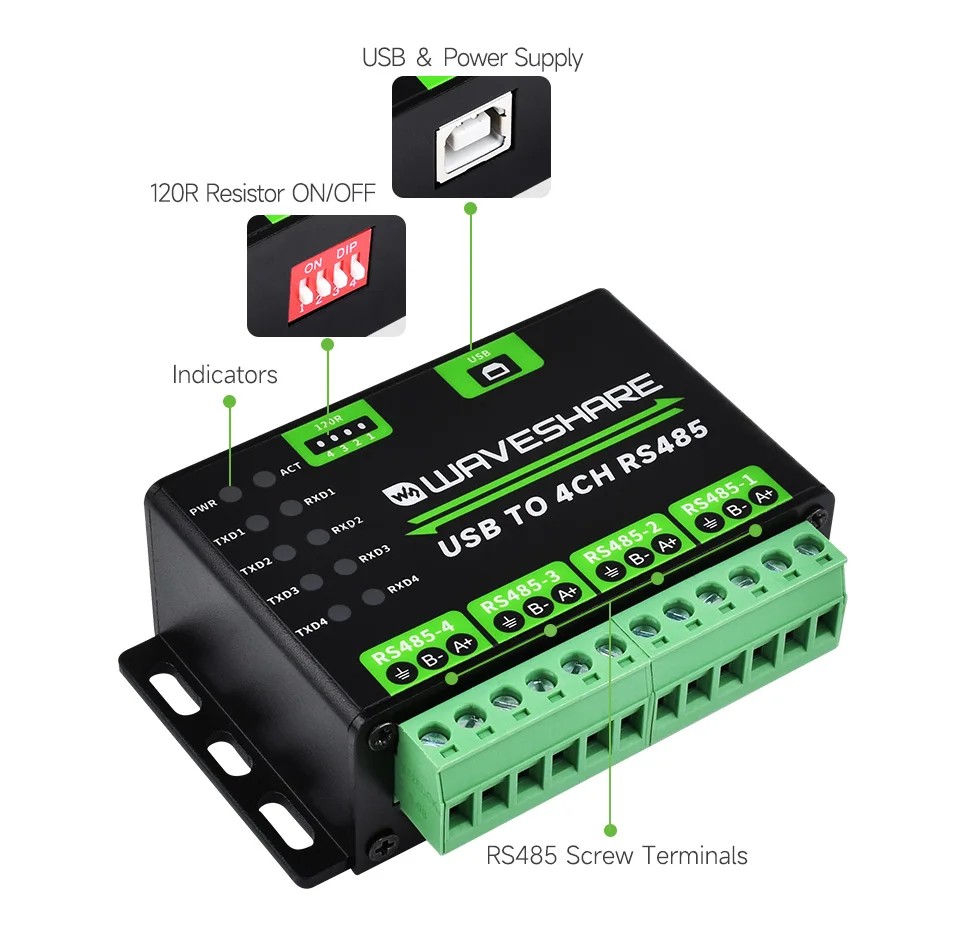

INDICATOR INTRODUCTION |
|
|
PWR |
power indicator, lights up while the USB is connected and voltage is detected |
|
ACT |
Status indicator, lights up green while the driver is detected. |
|
RXD(1~4) |
Blue RXD indicators, light up when the device ports send data back |
|
TXD(1~4) |
Blue TXD indicators, light up when the USB port is sending data |
|

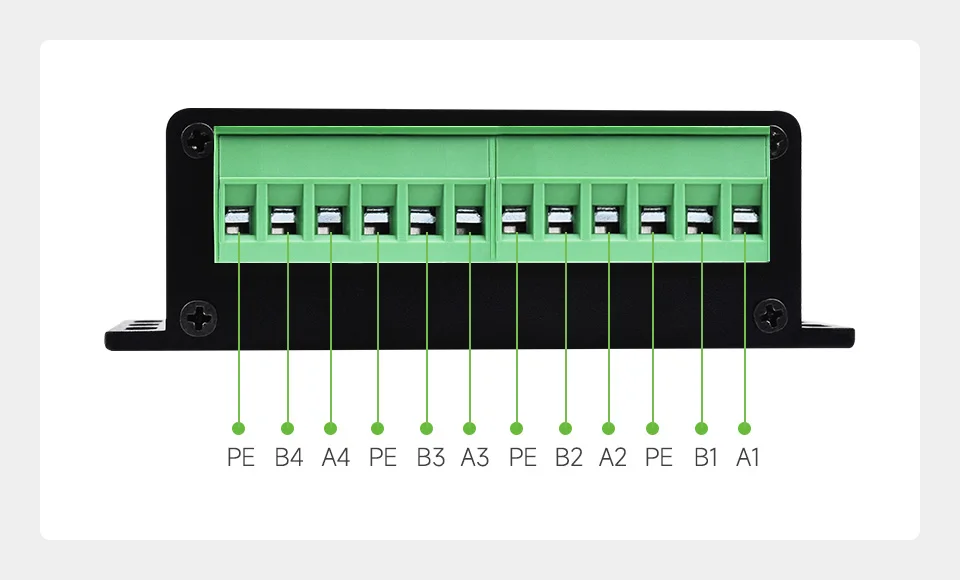

PE |
Signal ground |
|
A(1~4) |
A(1~4) differential signal A+ |
|
B(1~4) |
B(1~4) differential signal B- |
* Resources for different product may vary, please check the wiki page to confirm the actually provided resources.
PACKAGE CONTENT
Weight: 0.181 kg
-
USB TO 4CH RS485 x1
-
USB type A to type B cable ~1.2m x1
