OAK-D-Pro, 12MP, OpenCV AI Machine Vision Kit, Depth Measuring, Image Recognition 60fps (RGB), 120fps (Depth) GPIO, SPI, UART

Availability:

95 in stock


$478.99

  • Hign-concerned Chemical: None
  • Model Number: OAK-D-Pro
  • Demo Board Type: FPGA
  • Brand Name: Waveshare
  • Origin: Mainland China
  • Certification: None
  • DEPTH MEASURING RANGE: 0.2 ~ 35 m
  • DEPTH CAMERA: global shutter 120fps
  • RGB CAMERA: 12MP 60fps
  • CONNECTOR: USB3.0 Type-c
  • POWER CONSUMPTION: 2W ~ 5.5W
  • WEIGHT: 61g

DESCRIPTION

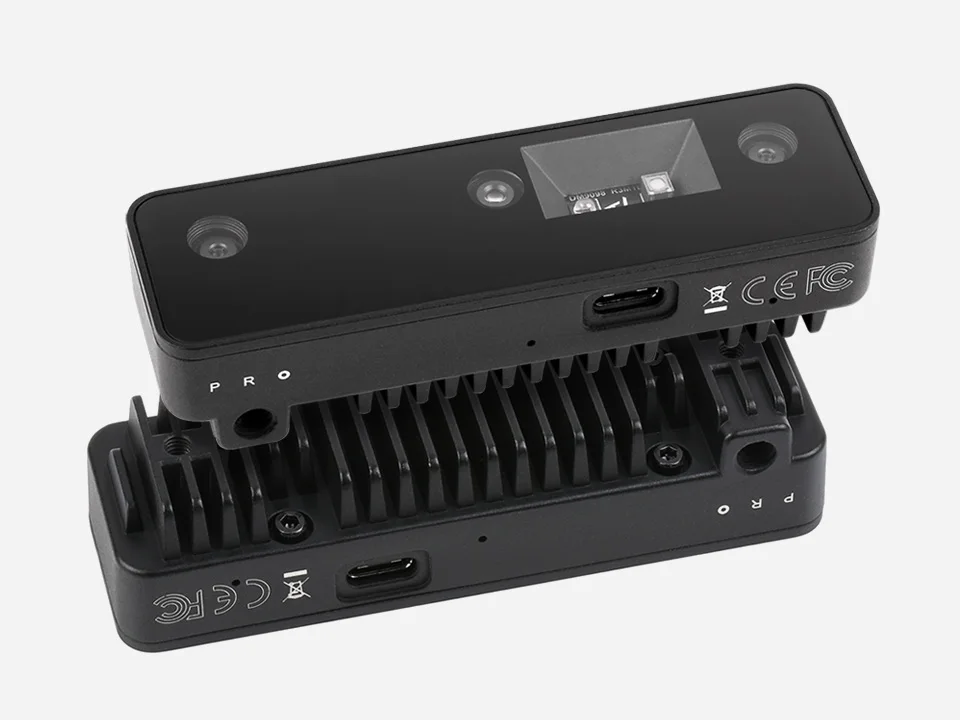

OAK-D-Pro, 12MP, OpenCV AI Machine Vision Kit, Depth Measuring, Image Recognition

OAK-D-Pro OpenCV AI Machine Vision Kit

Depth Measuring / Image Recognition & Location / Safety & Security Monitoring

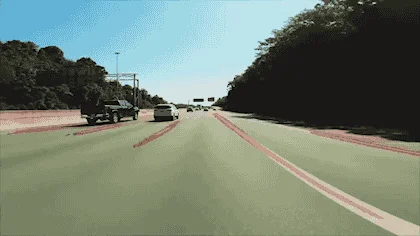

Intelligent Driving / Robotics / Object Tracking

OAK is an embedded, high-performance, 3D AI+CV platform consisting of an open-source hardware, firmware, software ecosystem that provides complete and ready-to-use embedded 3D AI + hardware-accelerated computer vision.

The OAK-D-Pro is an upgraded version of the OAK-D with structured light ranging, featuring an IR laser dot projector (active depth vision) and IR illumination LED (for "night vision"). It's also smaller, lighter and more accurate than the OAK-D.
Embedded with the high-performance Myriad X VPU, It adopts active binocular vision technology and structured light, which improves the positioning accuracy to the sub-millimeter level and meets the needs of close-range high-precision positioning and identification, such as Automatic Welding Robots, positioning, identification and calibration of surface defects of parts, etc., which can enhance the perception of the robot .

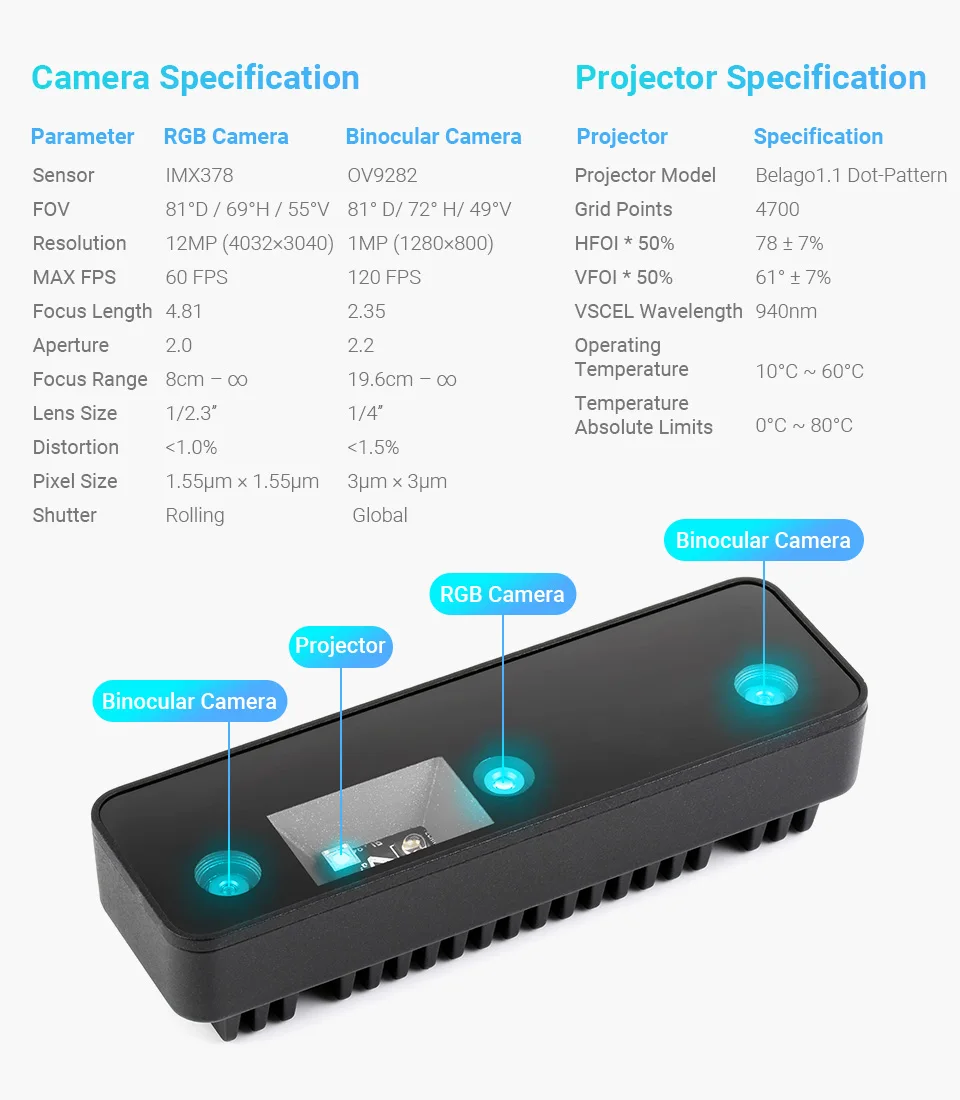

Specifications

DEPTH MEASURING RANGE

0.2 ~ 35 m

DEPTH CAMERA

global shutter 120fps

RGB CAMERA

12MP 60fps

MAX FRAMERATE

60fps (RGB), 120fps (Depth)

AI CHIP

Intel Myriad X 4TOPS computing performance

VIDEO PLUG FLOW

4K 30 fps H.265 plug flow

CONNECTOR

USB3.0 Type-c

EXPANSION INTERFACES

GPIO, SPI, UART

NN PLATFORM SUPPORT

all platforms

POWER CONSUMPTION

2W ~ 5.5W

DEVELOPMENT LANGUAGE

Python, C++

ECLOSURE

aluminum enclosure

WEIGHT

61g

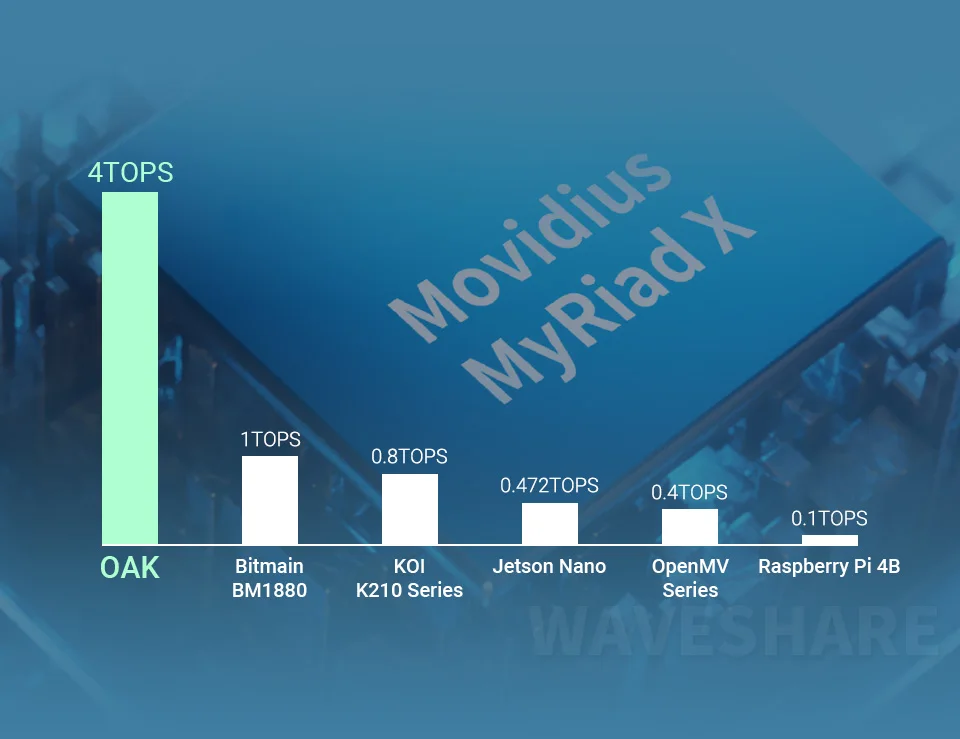

Powerful Computing Performance

The OAK Provides Up To 4TOPS Computing Performance
10 Times Of OpenMV, 40 Times Of Raspberry Pi 4B

HD Camera

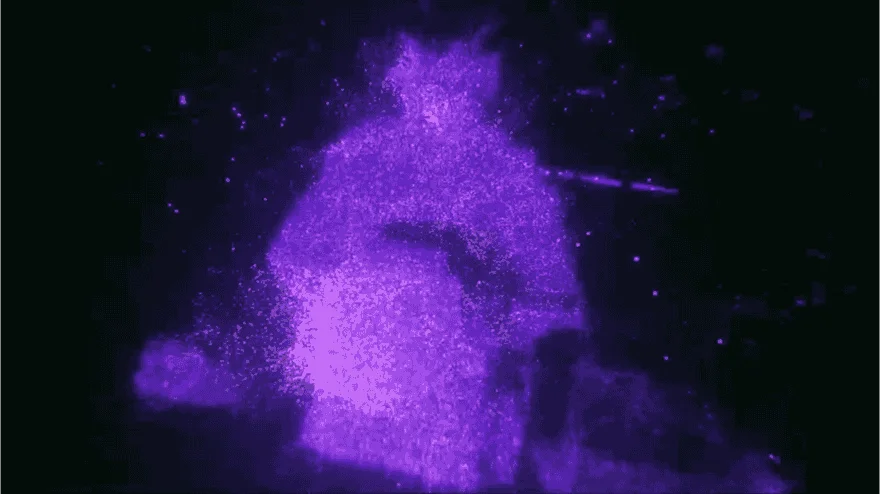

Stereo Vision

Perceive The Real 3D World And Give Robots A Pair Of Eyes


Computer Vision

Real-Time Data Processing On The Chip, Low Performance Requirements On The Host

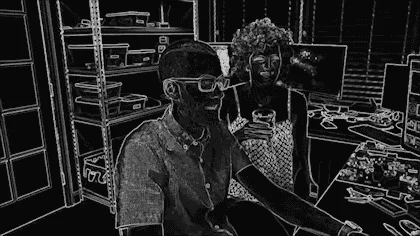

Edge Detection

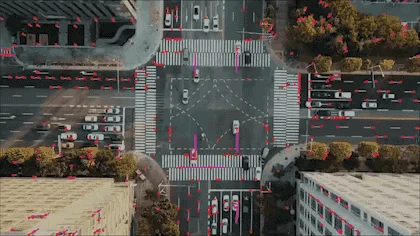

Feature Tracking

Artificial Intelligence

Run Neural Network Models Directly On The Device And Support Your Own Models To OAK

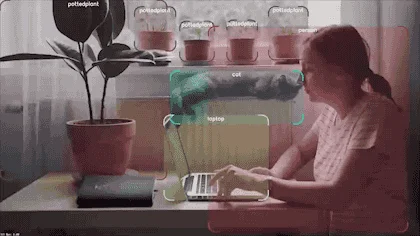

Object Detection



Semantic Segmentation

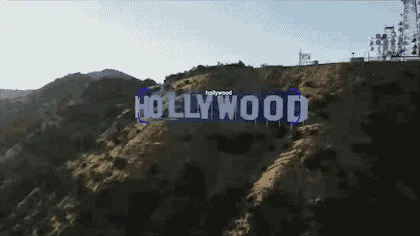

OCR

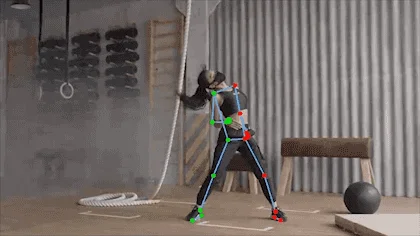

Attitude detection

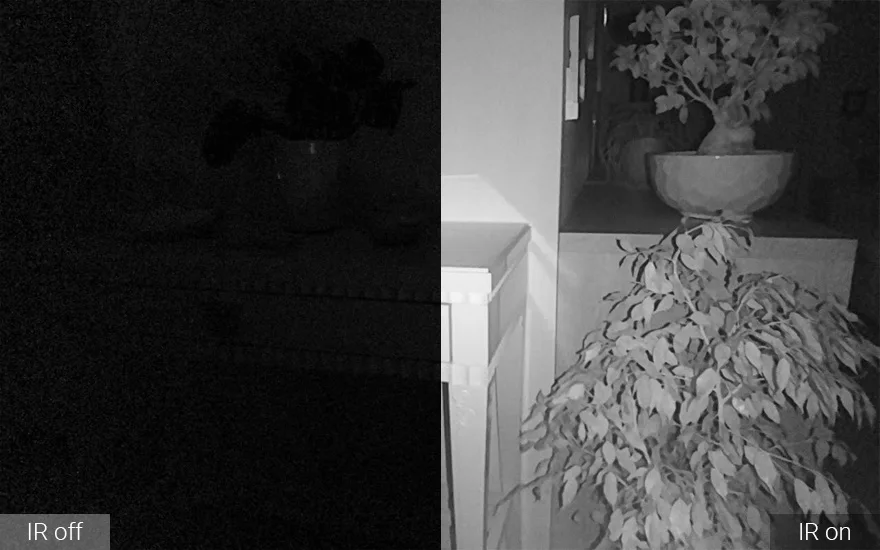

Infrared Night Vision

Achieve Indoor And Outdoor Work Around The Clock

Better Compatibility

Supports almost all common platforms, programming languages, and neural network frameworks
(The OpenCV AI Kit Official plans to support Java and in progress)

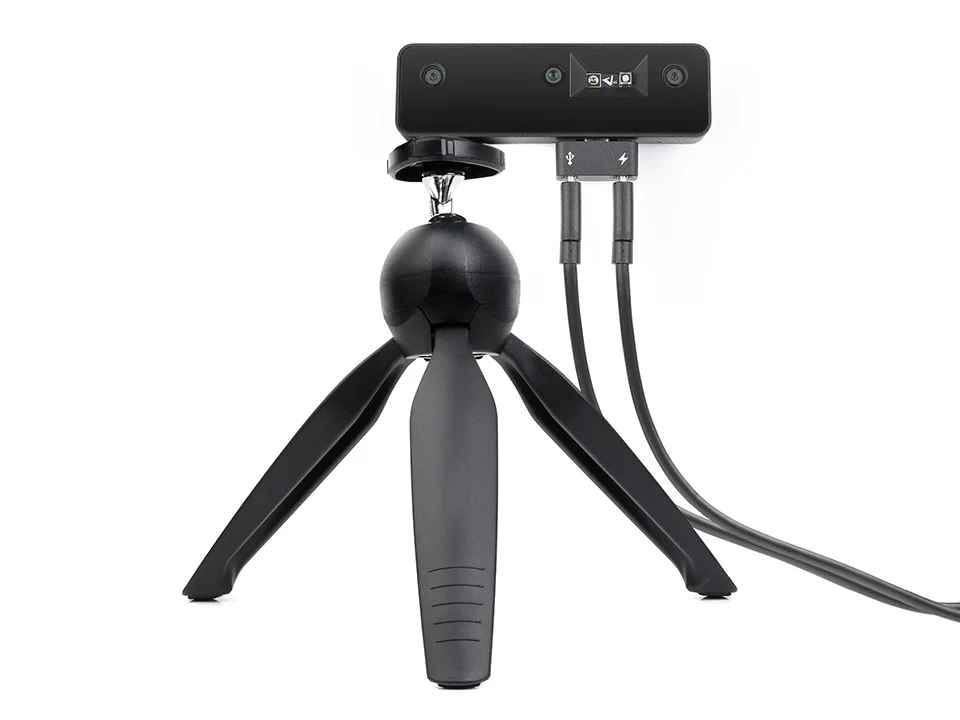

Working With Tripod
for reference only, the Mini Tripod is NOT included.

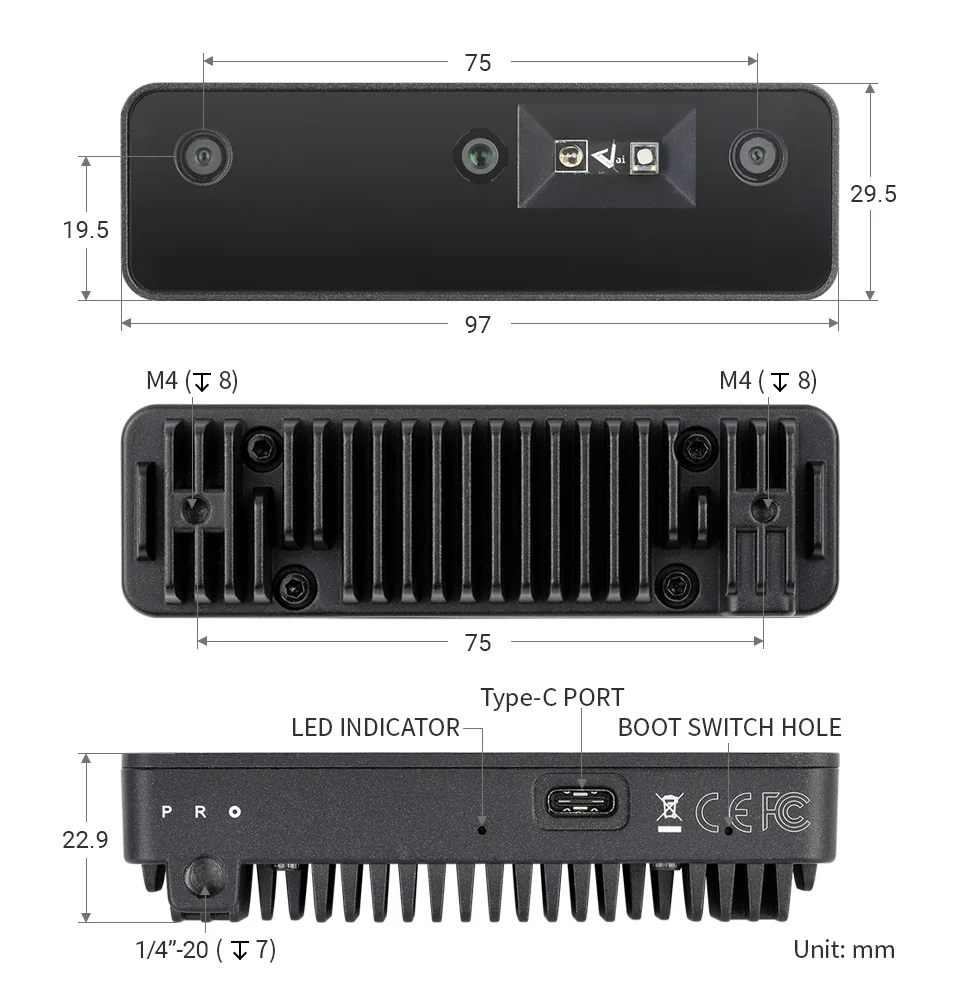

Outline Dimensions
Resources & Services

WIKI: www.waveshare.com/wiki/OAK-D-Pro

PACKAGE CONTENT

OAK-D-Pro x1

Weight: 0.212 kg
