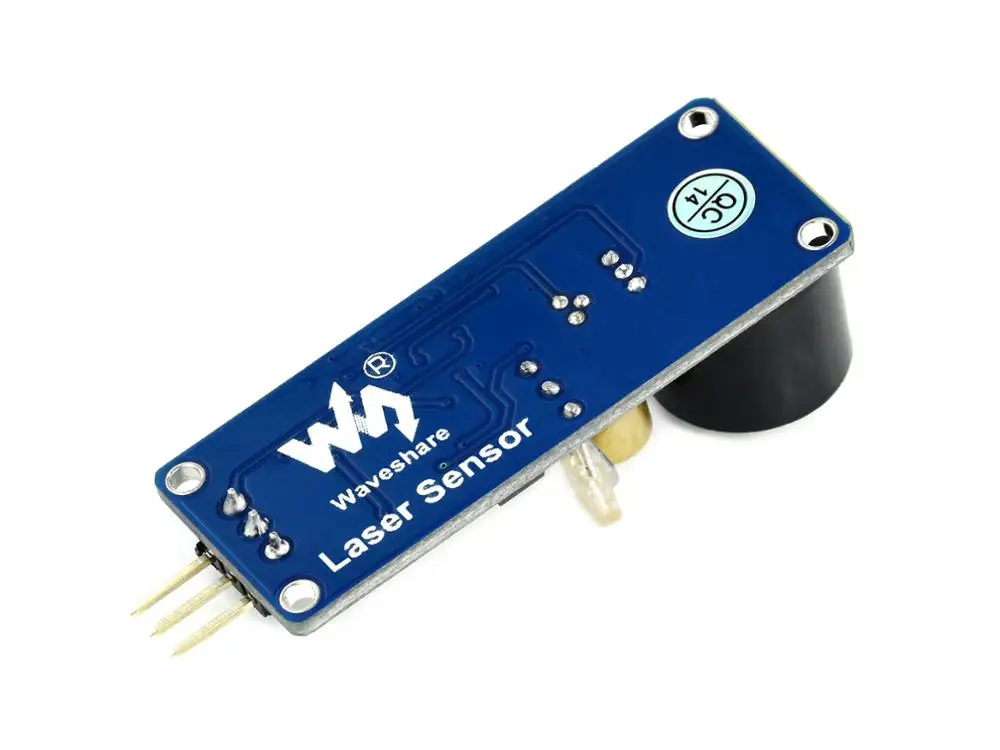

Waveshare Laser Sensor Detector Module compatible with Arduino STM32 Obstacle detection Smart car Module
Availability:
6693 in stock
$17.04
6693 in stock
- Hign-concerned Chemical: None
- Model Number: Laser Sensor
- Demo Board Type: ARM
- Brand Name: Waveshare
- Certification: None
- Origin: Mainland China
- Model Number: Laser Sensor
- Effective distance: 0.8m(typ), 1.5m(max)
- Power: 2.5V ~ 5.0V
- Dimension: 47.7mm * 17.9mm
- Mounting holes size: 2.0mm
- Applications 1: Obstacle detection; Pipeline counter;
- Applications 2: Smart robot :Obstacle-avoiding car
Laser Sensor
Overview
-
Features boost circuit
-
Signal output indicator
Specifications
-
Effective distance: 0.8m(typ), 1.5m(max)
-
Power: 2.5V ~ 5.0V
-
Dimension: 47.7mm * 17.9mm
-
Mounting holes size: 2.0mm
Applications
-
Obstacle detection
-
Pipeline counter
-
Smart robot
-
Obstacle-avoiding car
How to Use
In the case of working with a MCU:
-
VCC ↔ 2.5V ~ 5.0V
-
GND ↔ power supply ground
-
DOUT ↔ MCU.IO (digital output)
Downloads
Development resources: demo codes, schematic, datasheets, etc.
Wiki:www.waveshare.com/wiki/Laser_Sensor
PACKAGE CONTENT
Weight: 0.01 kg
-
Laser Sensor x1
-
3-pin custom connector jumper wire x1
