- Model Number: STM32-QFP144
- Demo Board Type: ARM
- Brand Name: Waveshare
- Origin: Mainland China
- Manufacturer: Yamaichi
- JTAG/SWD port: compatible with ST-LINK III
- Supported Devices: STM32 MCU in QFP144(0.5mm pitch) package with compatible pinouts
- Features: All the MCU pins are accessible on expansion connectors
- Socket Part Number: IC51-1444-1354-7
- Model Name: STM32-QFP144
- Place of origin: China
Features
-
20-pin JTAG/SWD port and/or 4-pin USART1 interface for programming/testing
-
External crystal can be connected via on board socket for system clock
-
Onboard 32.768K crystal oscillator
-
Two LED indicators for testing, which are connected to the I/O pins via jumpers
-
All the MCU pins are accessible on expansion connectors
-
pin header pitch: 2.54mm(100mil)
-
Supported Devices
STM32 microcontroller in QFP144(0.5mm pitch) package with compatible pinouts:
-
STM32F10xZ series (STM32F103ZE, STM32F100ZC, etc.)
-
STM32L1xxZ series (STM32L151ZC, STM32L151ZD, etc.)
-
STM32F2xxZ series (STM32F207ZG, STM32F215ZG, etc.)
-
STM32F4xxZ series (STM32F407ZG, STM32F415ZG, etc.)
Config the onboard "Device selection jumpers" according to the device to be programmed.
Outline and Dimensions

Photos

-
JTAG/SWD port
-
for programming/debugging/testing
-
compatible with ST-LINK / J-LINK / ULINK2 / STX-RLINK
-
-
USART1 port
-
supports ISP and/or serial port debugging
-
-
LED indicators
-
for quick testing
-
-
Pin headers connected to MCU pins
-
clearly labeled with onboard marks
-
easy for testing and further expansion
-
-
Boot mode configuration
-
configuring the BOOT0 and BOOT1 via jumpers
-
-
3.3V onboard regulator
-
AMS1117-3.3
-
-
5V power input
-
DC jack or 2-pin header
-
-
External crystal socket
-
insert crystal to the holes on two sides, leave alone the middle hole
-
-
Power indicator
-
Device selection jumpers
-
short the upper headers for STM32F2xx / STM32F4xx
-
short the lower headers for STM32F1xx / STM32L1xx
-
-
LED jumpers
-
short the jumpers to connect LEDs to MCU I/O pins for testing
-
open the jumpers to disconnect
-
-
32.768K crystal (on bottom side)
-
for internal RTC with calibration
-






JTAG/SWD Connector Layout
The STM32-QFP144 houses JTAG/SWD headers for connecting a programmer. The connector layout is shown in the figure 1 below.
Figure 1. JTAG/SWD connector layout
Boot Mode Configuration

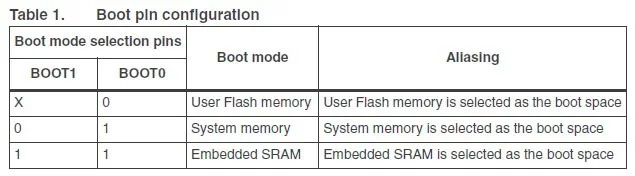

Depending on the used pin configuration, the Flash memory, system memory or SRAM is selected as the boot space, as shown in Table 1 below.

Package Contains
-
STM32-QFP144 × 1
-
USB power cable × 1
