Lidar Sensor
Lidar TFmini Plus Sensor Module Single-Point Ranging Module 0.1-12m Measurement Range Distance,Support I/O for Drone
Availability:
998 in stock
$67.07
998 in stock
- Hign-concerned Chemical: None
- Model Number: TFmini Plus
- Brand Name: Jedrek
- Origin: Mainland China
Descriptions:

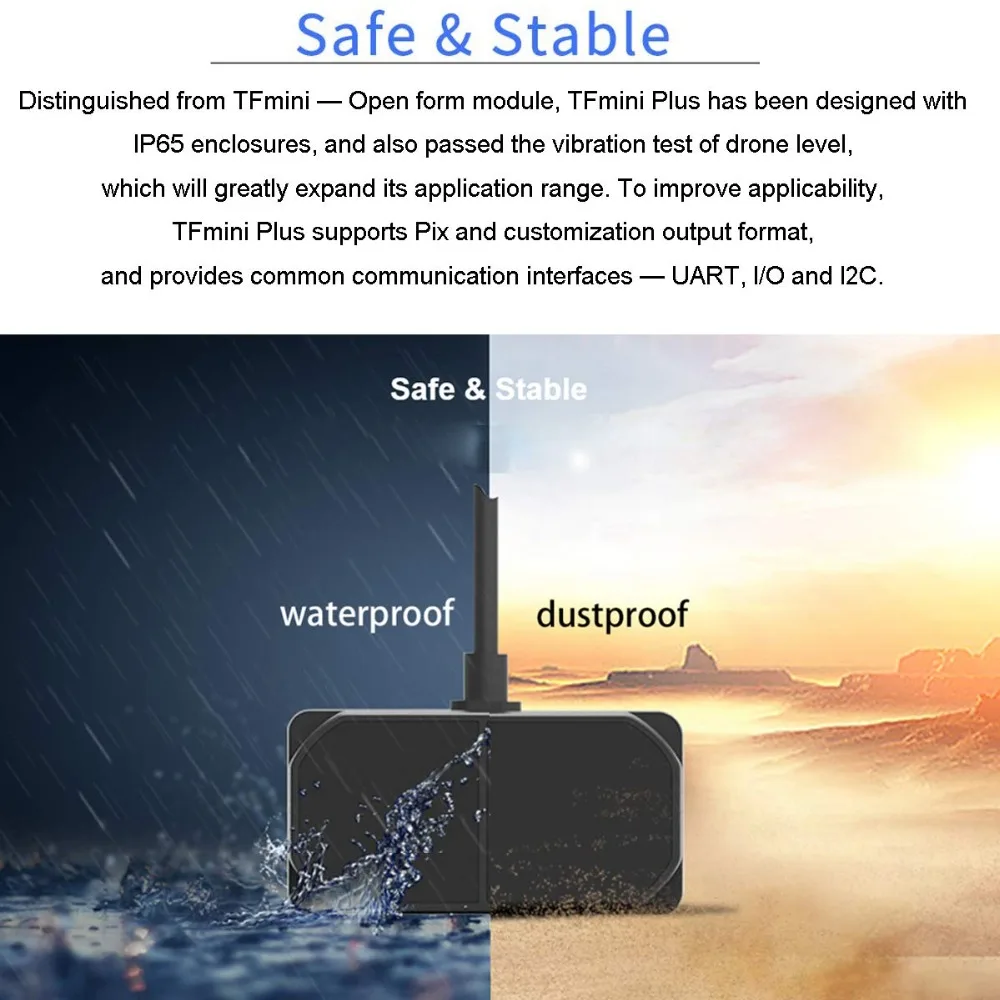

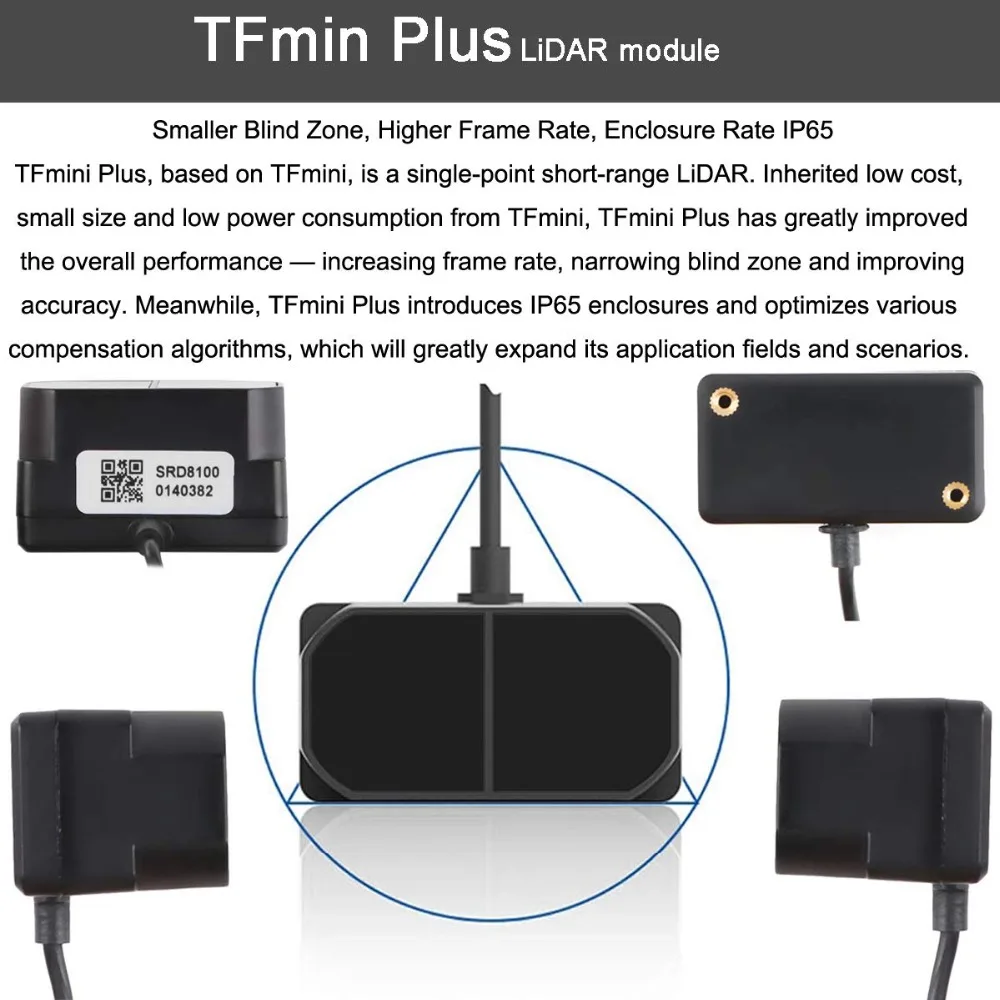

TFmini Plus, based on TFmini, is a single-point short-range LiDAR. Inherited low cost, small size and low power consumption from TFmini, TFmini Plus has greatly improved its performance — increasing the measurement frequency, reducing blind zone and improving accuracy. Meanwhile, TFmini Plus introduces IP65 enclosures and optimizes various compensation algorithms, which will greatly expand its application fields and scenarios.
Specification :

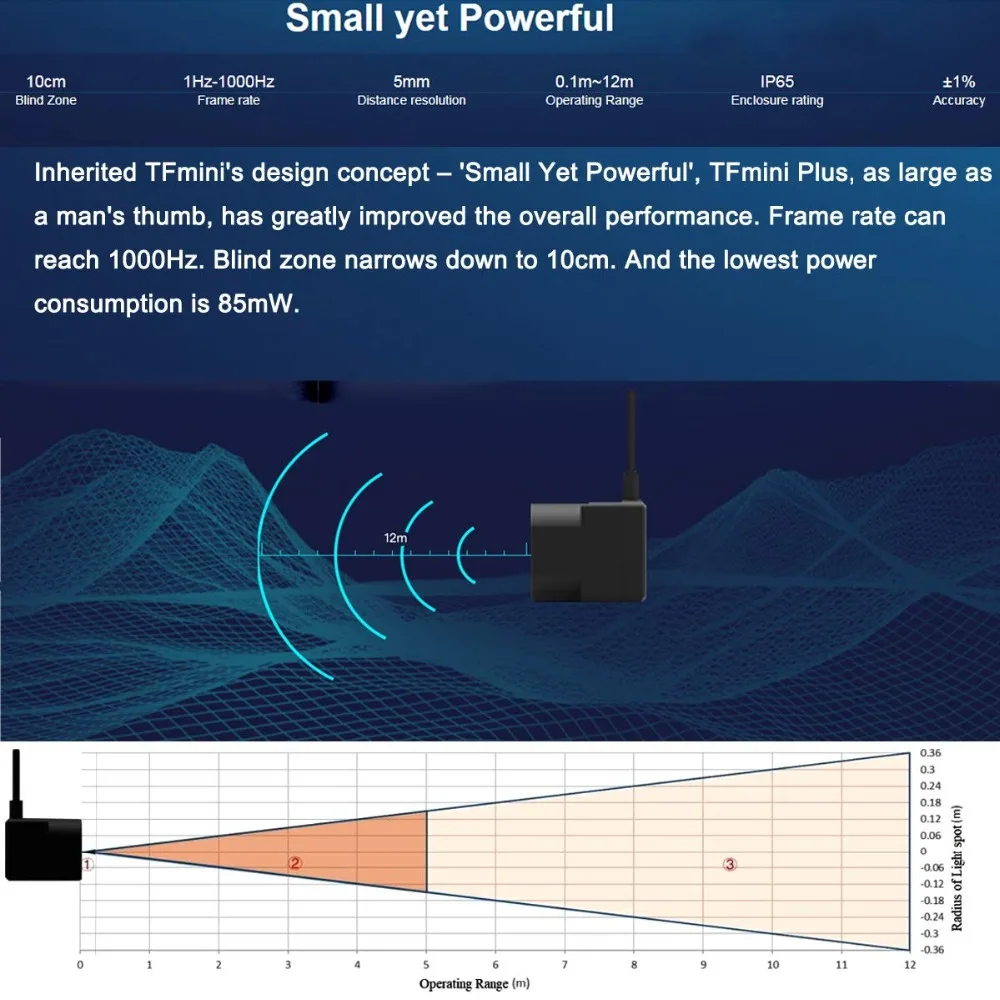

Range: 0.1-12m
Accuracy: ±5cm@（0.1-6m），±1%@（6m-12m）
Resolution: 5mm
Frequency: 1-1000Hz, standard is 100Hz
Light Sensitivity: 70klux
Operation temperature: -20℃~60℃
Waterproof: IP65
Light and Wave length: LED 850nm
Receiving Anger: 3.6 degree
Supply Voltage: 5V±0.5V
Average current: 110mA
Average Power: 550mW
Peak Current: 300mA
Communication Level: LVTTL(3.3V)

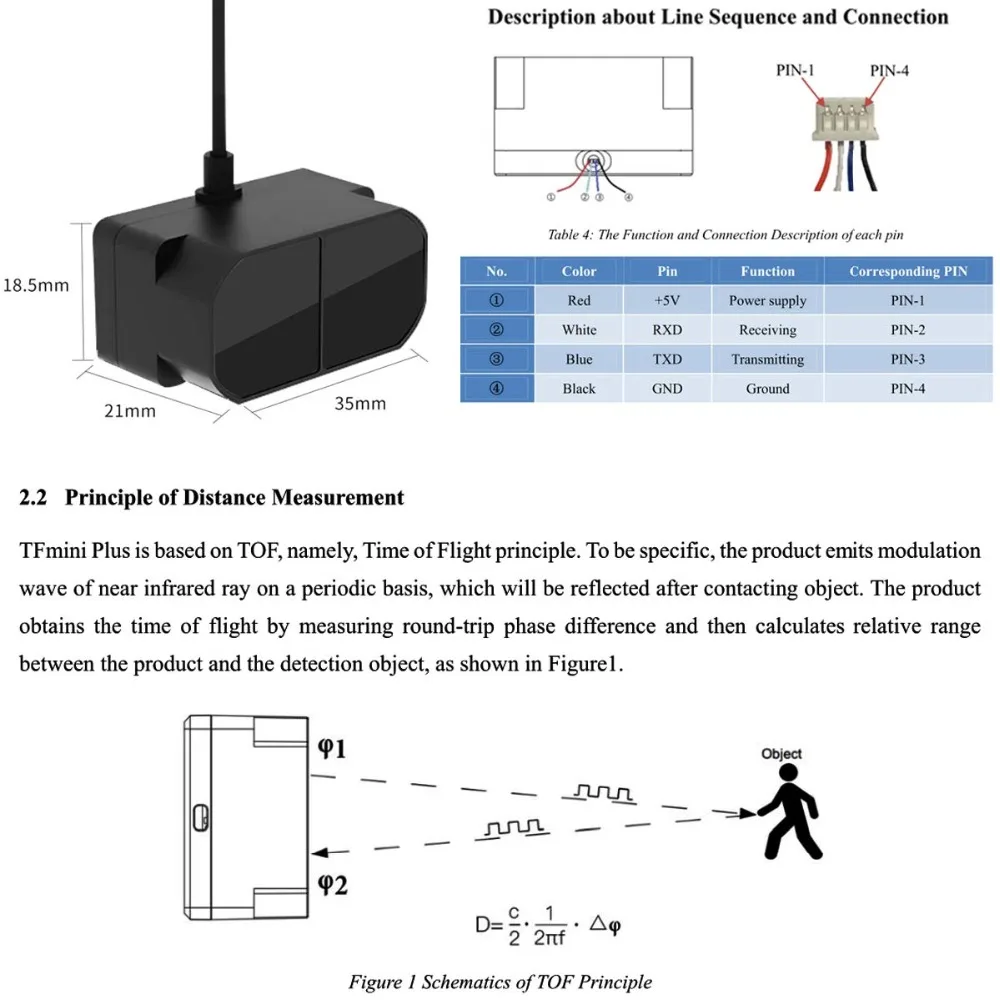

Interface: UART
Cable length: 30cm
Package Includes:
1 X TFmini Plus
