Core1262 HF LoRa Module, SX1262 Chip, Long-Range Communication, Anti-Interference, Suitable for Sub-GHz Band
Core1262 HF LoRa Module, SX1262 Chip, Long-Range Communication, Anti-Interference, Suitable for Sub-GHz Band - Image 2
Core1262 HF LoRa Module, SX1262 Chip, Long-Range Communication, Anti-Interference, Suitable for Sub-GHz Band - Image 3
Core1262 HF LoRa Module, SX1262 Chip, Long-Range Communication, Anti-Interference, Suitable for Sub-GHz Band - Image 4
Core1262 HF LoRa Module, SX1262 Chip, Long-Range Communication, Anti-Interference, Suitable for Sub-GHz Band - Image 5

Core1262 HF LoRa Module, SX1262 Chip, Long-Range Communication, Anti-Interference, Suitable for Sub-GHz Band

Availability:

67 in stock
Compare

$14.05

  • Hign-concerned Chemical: None
  • Type: Lora Module
  • Origin: Mainland China
  • Brand Name: Waveshare

Core1262 HF LoRa Module, SX1262 Chip, Long-Range Communication, Anti-Interference, Suitable For Sub-GHz Band
Core1262 LoRa Module

Suitable for Sub-GHz band


Features At A Glance

  • The new generation SX1262 has higher power efficiency and longer transmission distance than the SX1278

  • Suitable for Sub-GHz band, combined with the gateway, quick connect to cloud servers to build LoRa/LoRaWAN network

  • Suitable for the application scenarios such as industry, smart home and data acquisition

  • Adopts high-quality components such as TCXO for working stably under harsh conditions

  • Comes with development resources and manual (examples for Raspberry Pi Pico/STM32)

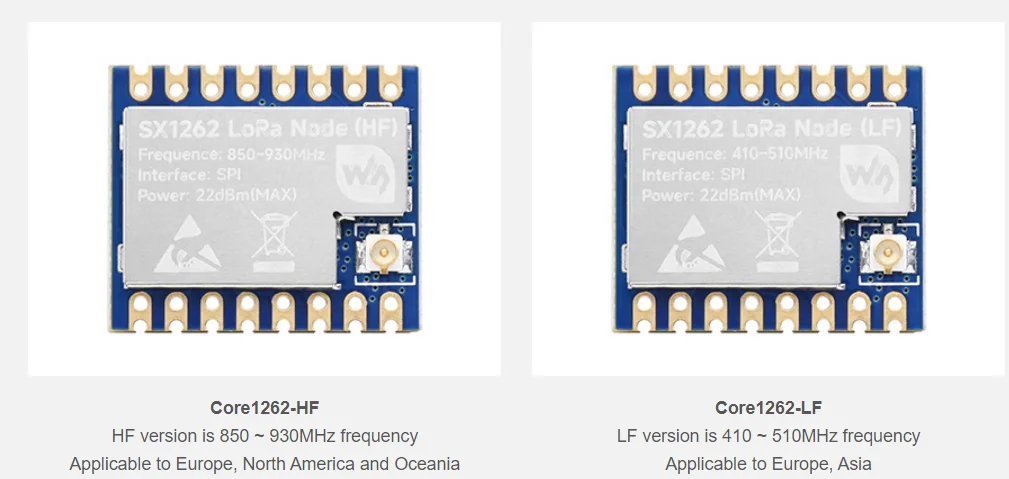

Version Options

* Please select the frequency version according to the local radio regulations before placing order

Specifications

VERSION

CORE1262-HF

CORE1262-LF

RF CHIP

SX1262

FREQUENCY RANGE

HF: 850 ~ 930MHz

LF: 410 ~ 510MHz

MODULATION

LoRa/(G)FSK

DATA RATE

0.018~62.5Kbps (LoRa)
0.6~300Kbps ((G)FSK)

EMIT POWER

22dBm@3.3V

SPREADIND FACTOR

SF5 ~ SF12

OPERATING VOLTAGE

3.3V

MODULE POWER CONSUMPTION

emitting current: 45mA@14dBm
receiving current: 5.3mA@125KHz

emitting current: 107mA@22dBm
receiving current: 5.3mA@125KHz

COMMUNICATION BUS

SPI

OPERATING TEMPERATURE

0 ~ 85℃

CONNECTOR

castellated edge / solder holes, pitch 2.54mm

DIMENSIONS

19.00×22.00mm
Pinout Definition
Application Example

Industrial Environment, Smart Home, And Data Acquisition…

SX126x Can Communicate With SX127x

Both SX1262 and SX1268 can communicate with SX1276 and SX1278, which are still compatible with previous LoRa products after upgrading, and provides higher power efficiency and longer transmission distance.

The New Generation LoRa Spread Spectrum Technology

Compared to traditional communication, LoRa Chirp Spread Spectrum (CSS) and Frequency Hopping Spread Spectrum (FHSS) technologies greatly improve the performance of long-range communication and anti-interference, widely used in military and industrial communication fields.

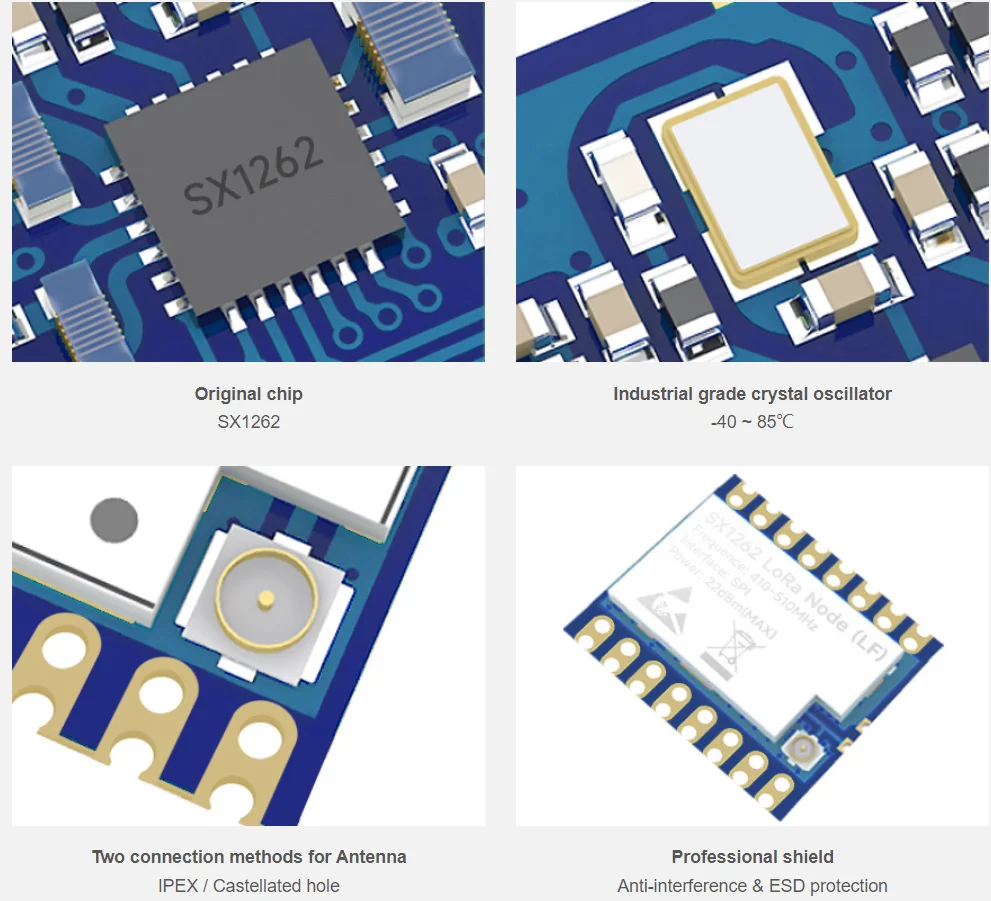

High-Quality Components

For Stable Performance Of Communication Module

Temperature Compensated Crystal Oscillator

Ensure The Long Time Working Of The Module Without Frequency Shift At The High
And Low Temperature Environment Of Industry

Actual Test Environment

Sunny Weather With An Open Field, 22dBm Emit Power, Airspeed 0.3kbps,
6dBi Magnetic CB Antenna, 3m Antenna Height, 5km Distance

Product Show

Outline Dimensions
Resources & Services
WIKI: www.waveshare.com/wiki/Core1262-868M

* Resources for different product may vary, please check the wiki page to confirm the actually provided resources.

PACKAGE ONTENT

Weight: 0.003 kg

  1. OPTIONS Core1262 Module x1
