Technical parameters:

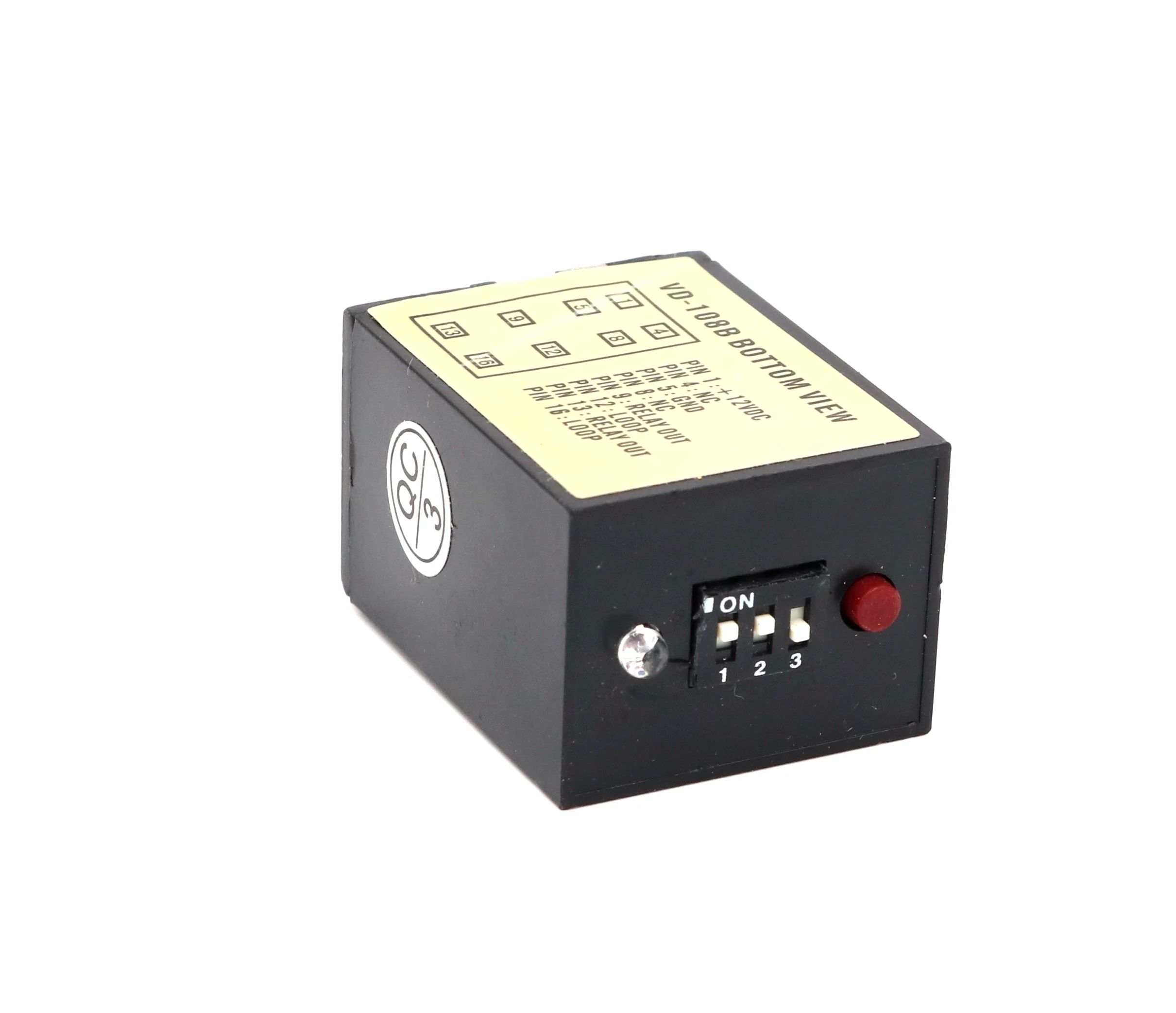

Vehicle detector is a ring for single induction coil buried digital intelligent metal detector is mainly used to detect vehicles and metal objects. Using SMT technology , including high-performance microprocessors, adaptive and complete with a frequency environmental tracking coil transformer isolation , high brightness panel light-emitting LED instructions multipurpose variety of working conditions , DIP switch can set the sensitivity level and output delay with reset button , the output is TTL mode ( customers may OCL customize the relay signal and the signal output ) of the product-based company developed excellent performance. stable , reasonable price , widely used in parking management, highway toll station signal control and monitoring systems such as bayonet . compatible A variety of vehicle detector.

Technical parameters
Working power :7-12VDC @ 20mA
Frequency range : 29KHz-90KHz
Sensitivity: 0.02% -0.2 % four adjustable
Reaction time: 100 ms
Output Delay: two seconds ( optional )
Environmental compensation : Automatic drift compensation
Coil inductance : 80uH-300uH ( cable included ) , the optimum value 150uH (41KHz).
Wire length: coil cable up to 5 meters twisted at least 20 times per meter .
Storage temperature : -40 º C to +85 º C
Working temperature : -20 º C to +55 º C
Relative Humidity: Max 95%

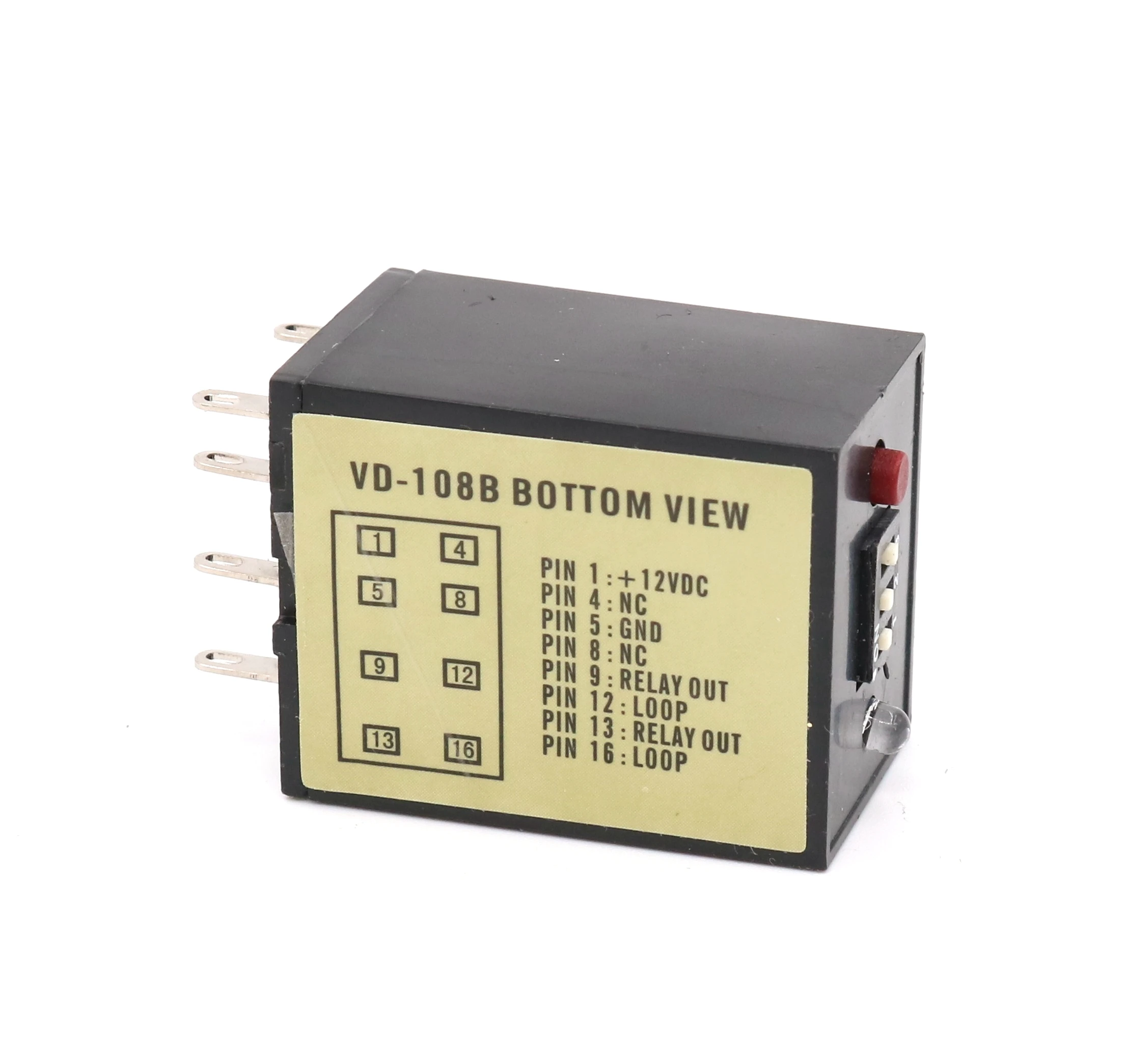

Pack: Standard relay package
Dimensions : 27 × 21 × 37mm
Installation Guide
Loop detector must be installed away from the detection coil as close as possible . Waterproof environment. Loop detector depends largely on whether the good work it is connected to an induction coil . Coil several important parameters include: coil materials, coil shape and Embedment correctly .
