54Hz High Performance Time-of-Flight (ToF) Sensor Lidar Laser Infrared Ranging Obstacle Avoidace TTL
54Hz High Performance Time-of-Flight (ToF) Sensor Lidar Laser Infrared Ranging Obstacle Avoidace TTL - Image 2
54Hz High Performance Time-of-Flight (ToF) Sensor Lidar Laser Infrared Ranging Obstacle Avoidace TTL - Image 3
54Hz High Performance Time-of-Flight (ToF) Sensor Lidar Laser Infrared Ranging Obstacle Avoidace TTL - Image 4
54Hz High Performance Time-of-Flight (ToF) Sensor Lidar Laser Infrared Ranging Obstacle Avoidace TTL - Image 5
54Hz High Performance Time-of-Flight (ToF) Sensor Lidar Laser Infrared Ranging Obstacle Avoidace TTL - Image 6
,

54Hz High Performance Time-of-Flight (ToF) Sensor Lidar Laser Infrared Ranging Obstacle Avoidace TTL

Availability:

100 in stock
Compare

DataSheet:HPS-166_Datasheet_EN_V2.0_20221021151107_3466



$11.99 – $14.00



  • Hign-concerned Chemical: None
  • Model Number: HPS-166
  • Origin: Mainland China



Features
 Fast, accurate distance ranging
– Measures absolute range up to 10m max 25M(white target) with accuracy indication
– Adaptive output data rate up to 54Hz
– Measuring result is not sensitive to the target color and reflectivity
– Embedded electrical & optical cross-talk compensation
– -10℃~+55℃ temperature compensation
– Ambient light compensation enables accurate
measurement in high infrared ambient light levels
 Fully integrated miniature module – 850nm infrared LED emitter
– Emitter driver
– Integrated optimally-designed emitting &
receiving optical lens
– Ranging sensor with advanced embedded
micro controller
– Advanced embedded data processing &
filtering algorithm
– 115200bps 3.3V UART interface
– 34(W) x 24(H) x 22(D) mm, 7g
 Eye safety
– Compliant with latest Photobiological Safety of Lamps and Lamp Systems Standard

IEC62471(Class 0), CE, FCC, RoHS

Applications

 Drones (collision avoidance, soft-landing)

 Robotics & AGV (obstacle detection)

 Industrial location and proximity sensing

 Security and surveillance

 1D gesture recognition

Description

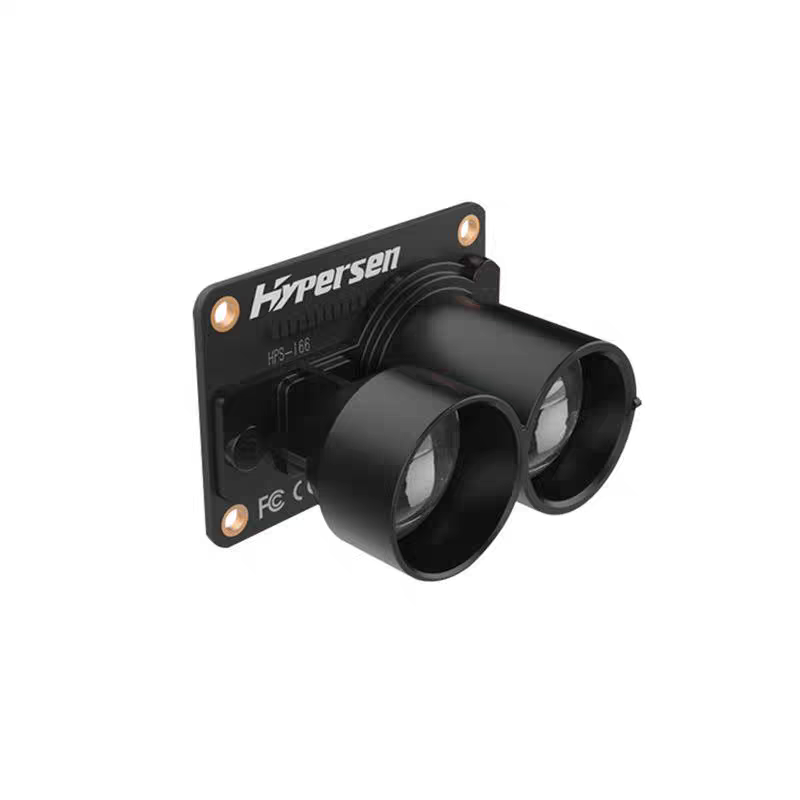

HPS-166 is a new generation Time-of-Flight (ToF) infrared ranging sensor with optimally-designed emitting & receiving optical lens, suitable for precise, long-distance measurements. It provides accurate distance measurement whatever the target color

and reflectivity unlike conventional technologies. HPS-166 can measure absolute distances up to 10m on a white target, setting a new benchmark in ranging performance levels, opening the door to various new applications.

HPS-166 integrates a high-power 850nm infrared LED emitter and a high-sensitivity photodiode (PD) coupled with internal physical infrared filters, enables longer ranging distance and higher immunity to ambient light.

Advanced embedded data processing & filtering algorithm realizes extremely stable and real-time measurement outputs.

The following is an example of the returned sensor information data:

0x0A 0x18 0xB0 0x52 0x13 0x29 0x8C 0xC7 0xE0 0xE5 0x11 0x8D 0x2B 0xB9 0x57 0x2C 0xF3 0xAD 0x25 0x10 0x0A 0x08 0x01 0x09 0x22 0xE9

Decoding:

0x0A: Start byte

0x18: Data length (24 byte data)

0xB0: Acknowledge

0x52 0x13 0x29 0x8C 0xC7 0xE0 0xE5 0x11 0x8D 0x2B 0xB9 0x57 0x2C 0xF3 0xAD 0x25: UUID

0x10 0x0A 0x08: 16/10/08

0x01 0x09: Ver. 1.9

0x22 0xE9: CRC16-CCITT MSB and LSB byte
