IOCREST PCIe to U.2 SFF-8643 Gen 3 /4 -lane Card for 2.5″ Nvme SSD with Mini-sas (SFF-8643) to U.2 (SFF-8639) Cable for Mining
97 in stock
$34.12 – $53.42
- Hign-concerned Chemical: None
- Model Number: IO-PCE4X-U2
- Package: Yes
- Interface Type: PCI Express
- Brand Name: Mmui
- Origin: Mainland China
- Certification: None
- Type: Add On Cards
- Color: Green
- Type: PCIe to U.2 (SFF-8643)
- Item Type: m.2 ngff card

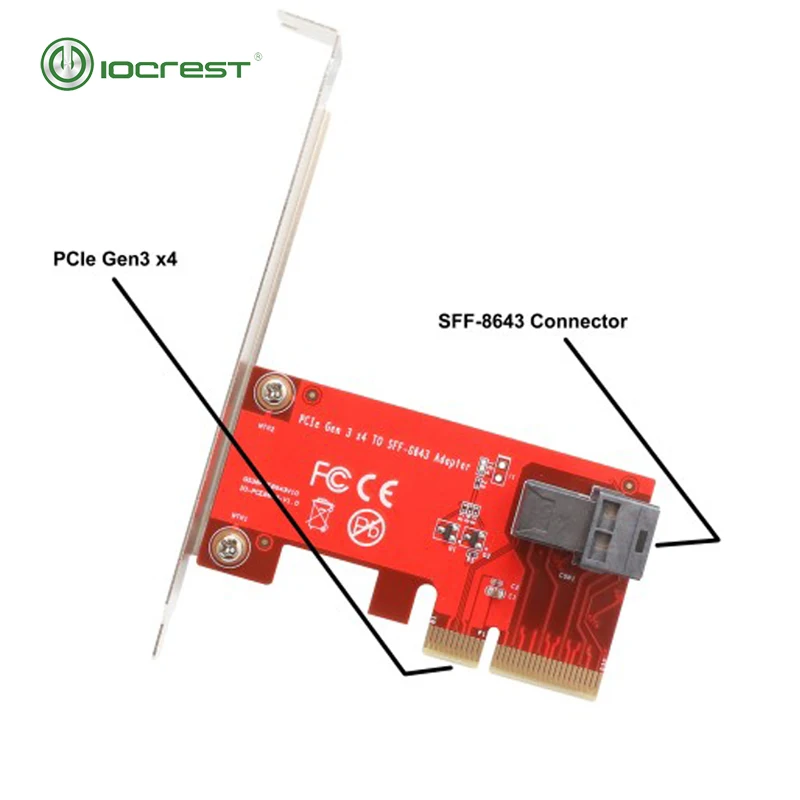

2.5″ NVME U.2 SFF-8639 to PCI-e 3.0 x4 Adapter Card
-
SFF-8643 Mini SAS HD Version 3.5
-
4-Layer PCB
-
Built-in SFF-8643 Plug Connector
-
No driver installation required. Supports Windows 10/8, Server 2012 R2, Linux, etc
-
Bundled with SFF-8639 NVMe Cable
-
Comes with Low Profile Bracket
-
D1 ON indicator to show when card adapter is ready
The card allows you to install a U.2 2.5 inch SSD drive (the Intel 7550 U.2 SSD) via a PCIe 3.0 x4 card onto your system. Perfect device for High Performance users that need Enterprice-Class hardware.
Feature
• Buit-in SFF-8643 plug connector
• D1 ON indicate the card adapter Ready
• Allow 2.5″ NVMe U.2 (SFF-8639) SSD to connect to system via SFF-8643 cable
Maximum throughput:
• 32 Gbps when installed into a PCIe 3.0 4-lane slot
• 16 Gbps when installed into a PCIe 2.0 4-lane slot
• 8 Gbps when installed into a PCIe 1.0 4-lane slot
• No drivers required for this converter
• Industrial operating temperature: -40 °C to + 85 °C
• OS requirement for NVMe SSD: Windows 10, Windows 7 and Windows server 2008 R2
Specifications
• PCI Express Base Specification Rev 3.0
• SFF -8643 Min SAS HD Version 3.5
• PCI Express Card Electro-Mechanical* (CEM) Specification Rev 2.0
• NVM Express 1.0
• Compatible with PCIe 3.0, 2.0 or 1.0
• Operating Humidity: 5% – 95% (non condensing)
• RoHS compliant
Operating System Support
• Windows 7/8/8.1/10 64 bit
• UEFI 2.3.1 or later
