No Touch Infrared Sensor Waterproof Exit Switch Induction Type Release Exit Button Access Control System DC12V/24V With LED
15 in stock
$11.34 – $11.62
- Hign-concerned Chemical: None
- Model Number: EI03
- Size: 30*28*28mm
- Item Type: Exit Button
- Origin: Mainland China
- Input: DC12V-24V
- Contact Rating: 3A@36VDC Max
- Output Contact: NO/NC/COM
- is_customized: Yes
Door release buttons are the most common and the frequently used in the access control systems. They are often
used in public authorities, banks, large, small and medium-sized enterprises, department stores and residences.
Product model: stainless steel infrared sensor switch
Features: 5-10cm infrared sensing distance
Product material: stainless steel brushed panel
Output: NO / NC/ COM
LED lights: blue (Standby mode), green (Induction state)
Electrical performance: 3A @ 36VDC
Indicating pattern: English text pattern

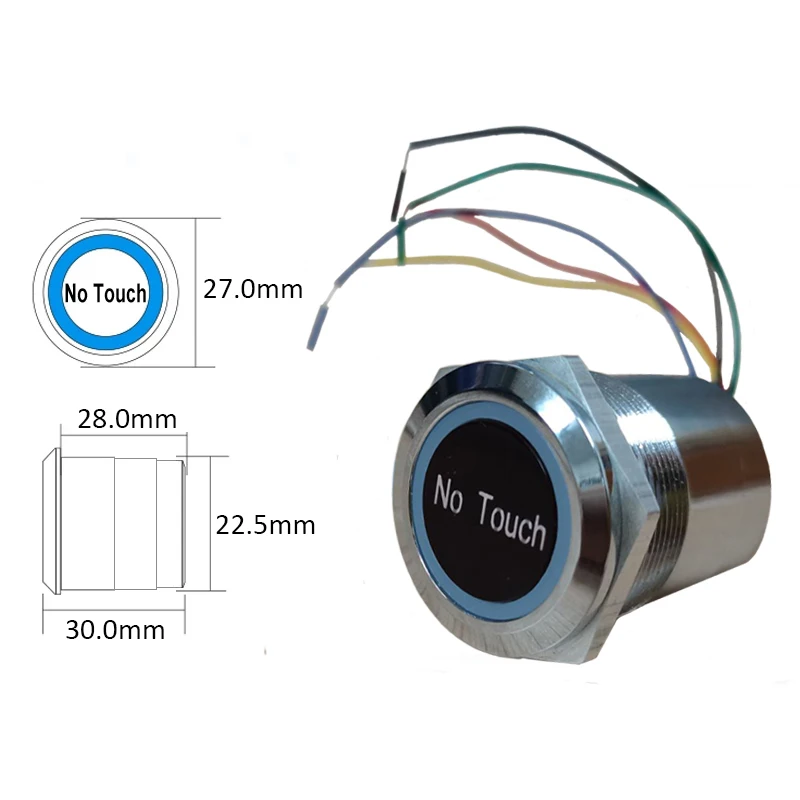

Size: 30*27*22.5mm
Weight: 0.03kg
1.Metal Panel with Elegant Style
2.1000000 Cycles tests
3.Three Contact Output, Suitable for all kinds of Locks
4.The Best Choice for Access Control
5.One exit button per box , weight 0.03KG
6.Operating temp :-10~+55°C(14-131F)
7.Operating Humidity :0-95% (non- condensing)
8.Dimensions :30*27*22.5mm
9.Detection range:5-10cm
10.White LED indicator:Power OFF

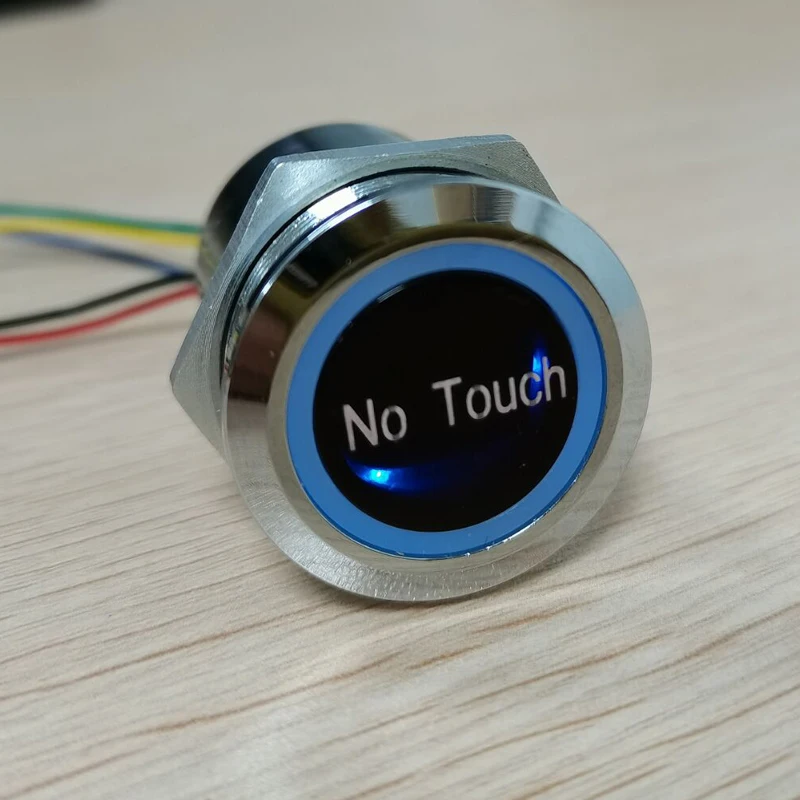

11.Blue LED indicator:Power ON(standby)
12.green LED indicator:Power ON(inductive)
13.Power: 12-24VDC
14.Contact Rating: 12-24V,3A
