Benewake TF-luna ToF Laser Ranging Sensor Module 8M Distance Sensor Lidar Communication default UART/TTL interface 8m
31 in stock
$50.90
31 in stock
- Hign-concerned Chemical: None
- Model Number: TF-Luna LIDAR Sensor
- Origin: Mainland China

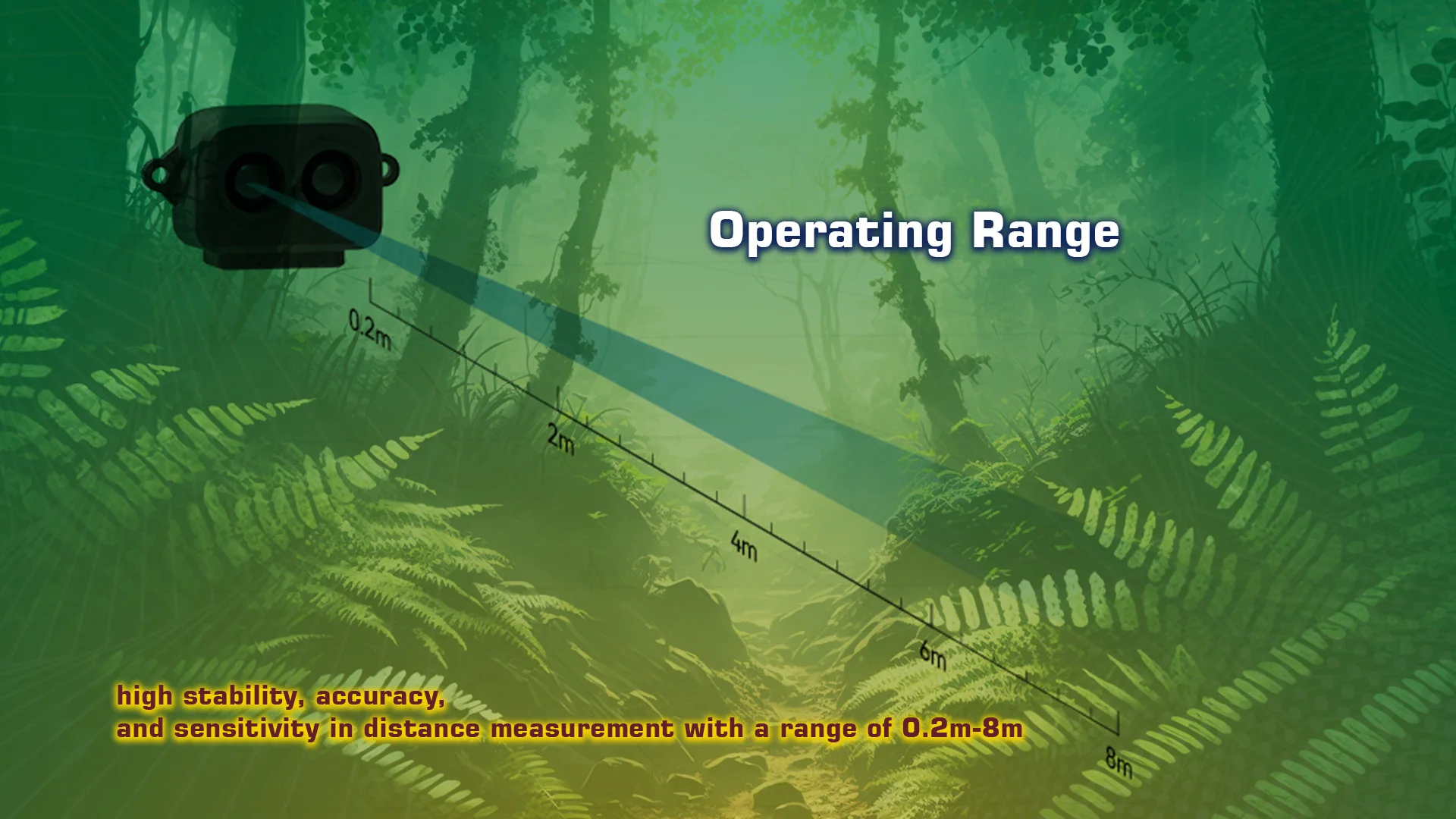

- Operating Range: 0.2~8m (90% Reflectivity)
- Distance Resolution: 1cm
- frame rate: 1-250Hz
- Ambient Light Resistance: 70Klux
- Operation Temperature: -10~60°C
- Light Source: VCSEL
- Central wavelength: 850nm
- FOV: 2°
- Photobiological Safe: Class 1 (IEC60825)
- Supply Voltage: DC 3.7~5.2V
- Average Current: ≤70mA
- Power Consumption: ≤0.35W
- Peak Current: 150mA
- Communication Level: LVTTL (3.3v)
- Communication Interface: UART/I2C

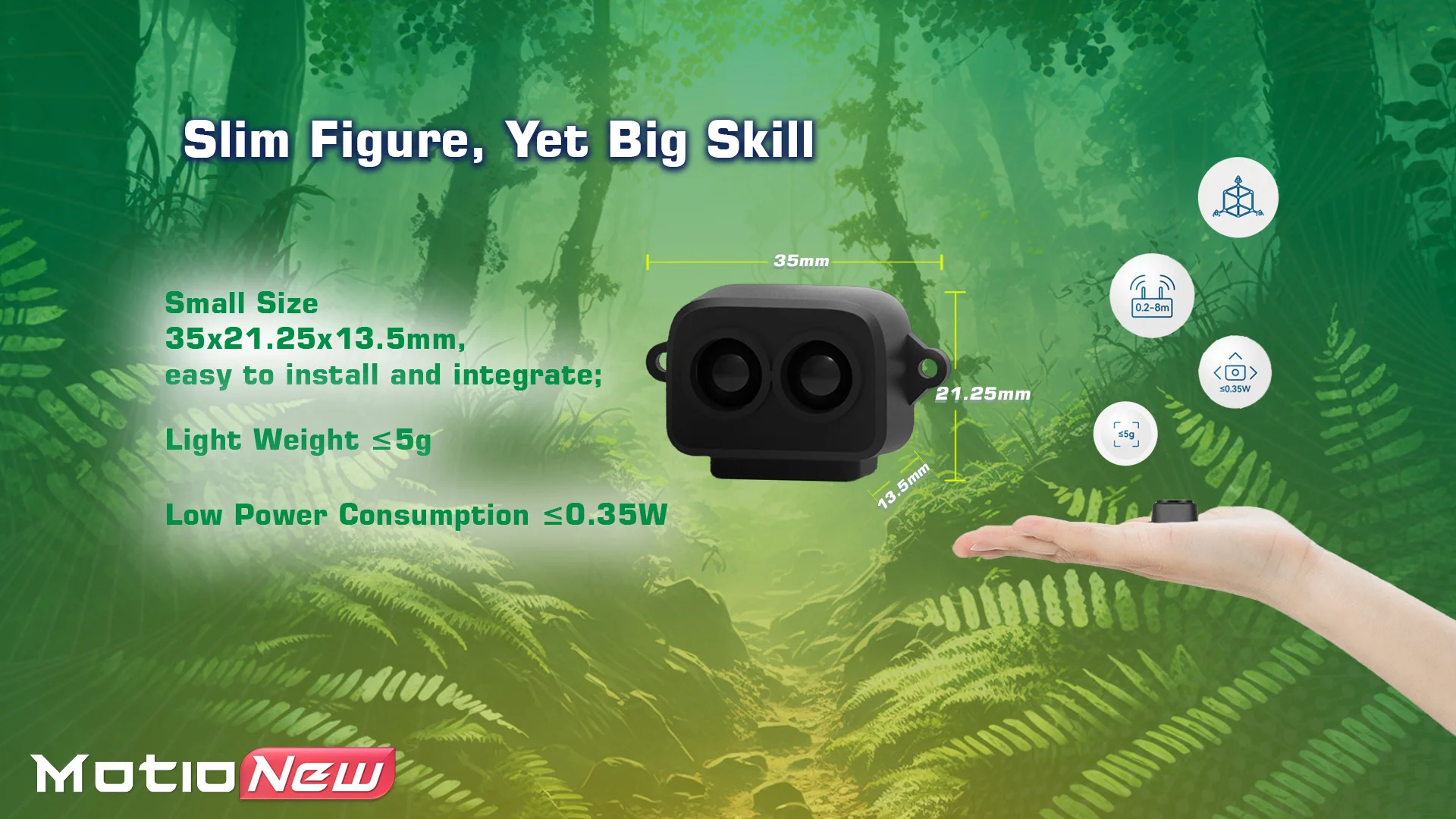

- Dimensions: 35×21.25×12.5mm (LxWxH)
- Weight: <5g
- Enclosure Material: PC/ABS
- Storage Temperature: -20~75°C

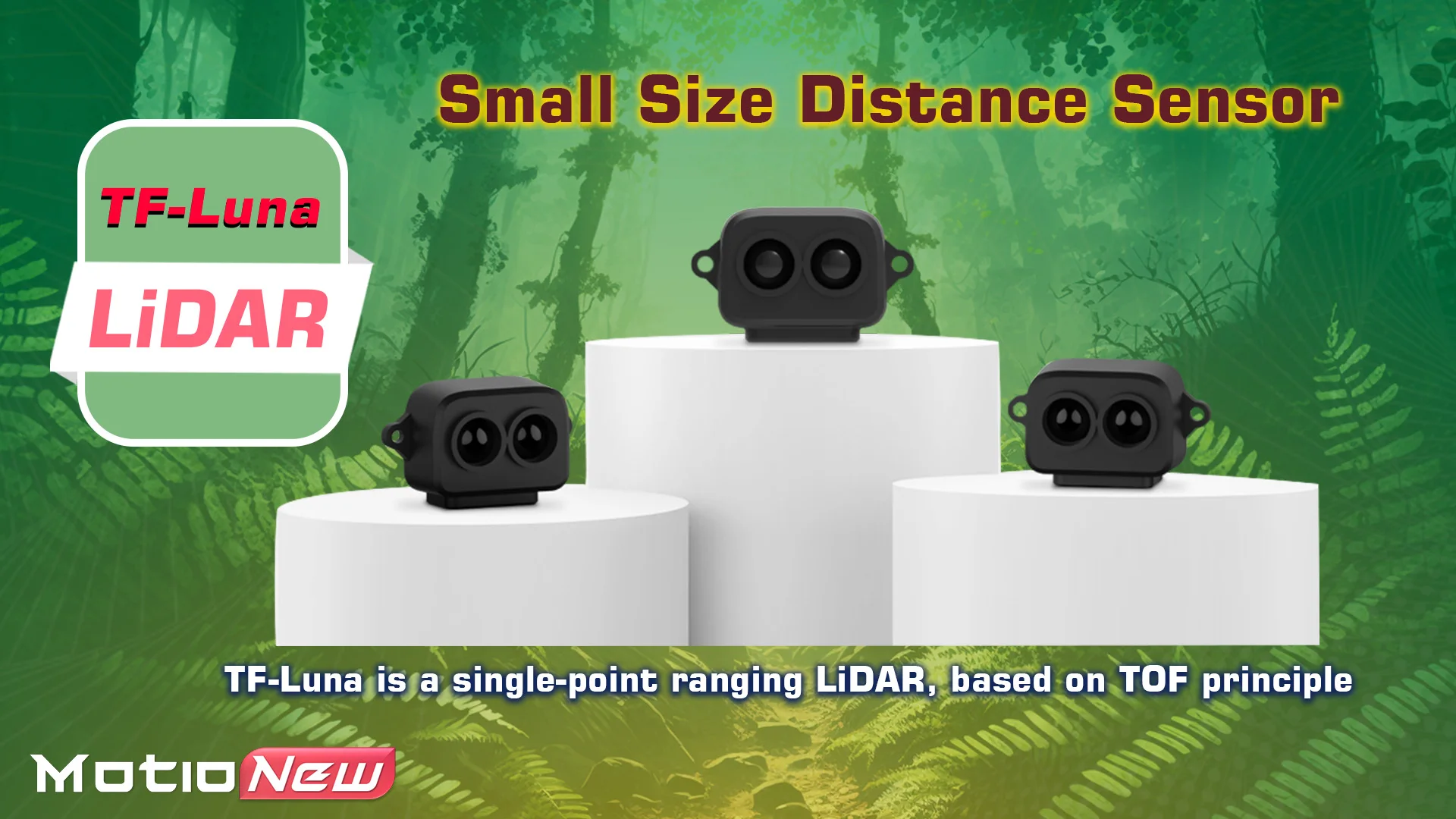

TF-Luna LIDAR Sensor
TF-Luna LIDAR Sensor is a low-cost short-range distance sensor. The sensor is small in size and lightweight and can detect up to 8 meters range while resisting ambient lights of up to 70Klux. This module uses the time-of-flight principle to measure the distance. TF-Luna can be used in applications that need stable, accurate, and high frame-rate range detection.
High frame rates of up to 250Hz combined with a low power consumption of less than 0.35W make this module appropriate for many applications, including but not limited to: Intelligent traffic monitoring, Intelligent Parking lot systems to show the open lots. The distance resolution is 1cm, and accuracy equals 6cm under 3 meters. The minimum required distance from the sensor for objects is 20cm.
