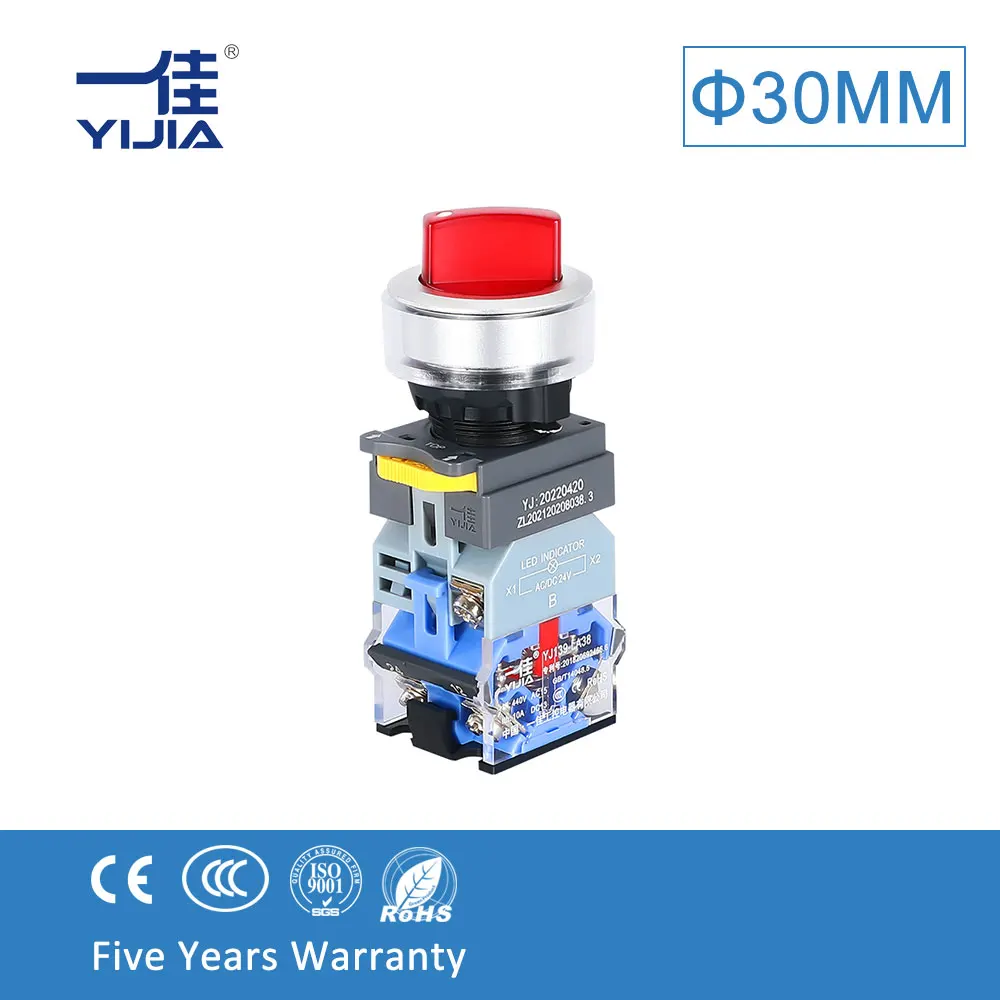

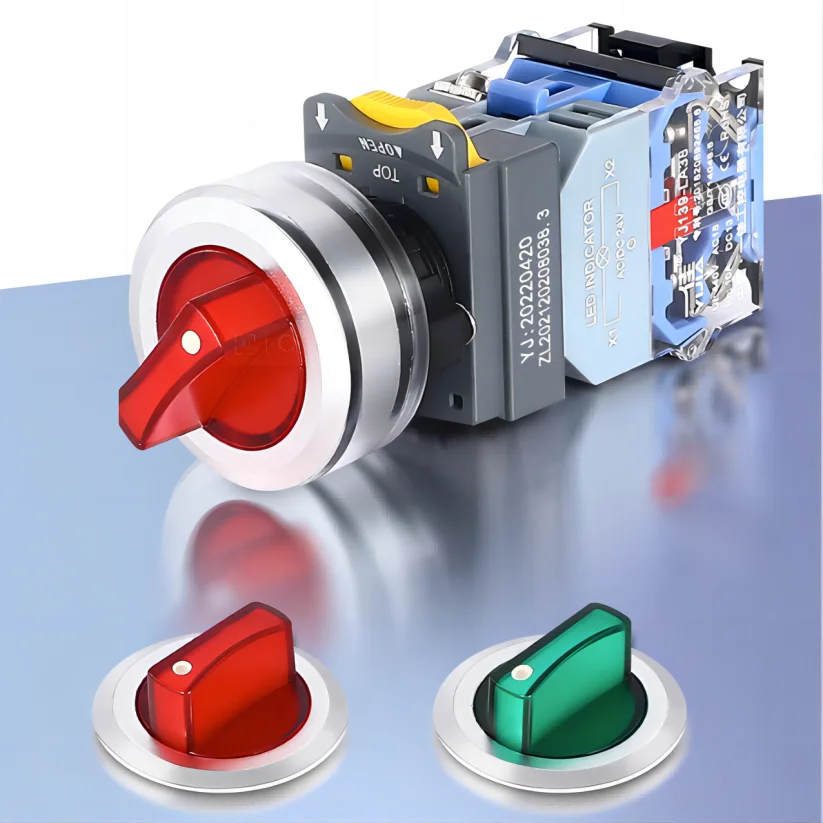

YIJIA 30mm Selector Rotary LA38A-11XD/21 Push Button Switch with 12V 24V 220V Light 2 or 3 Position
1000 in stock
$11.29 – $11.66
- Hign-concerned Chemical: None
- Current: 10A
- Material: Plastic
- Switch Type: Push Button Switch
- Warranty: two years
- Model Number: LA38A-11XD
- Features: LA38A-11XD 30mm Selector Push Button Switch Rotary
- Item Type: SWITCHES
- Brand Name: NoEnName_Null
- Is Smart Device: No
- Origin: Mainland China
- Certification: RoHS,CE
YIJIA 30mm Selector Rotary LA38A-11XD/21 Push Button Switch with 12V 24V 220V Light 2 or 3 Position
Product Description
Product Name : 30 MM push button switch ;
Mounting hole size : 30mm ;
Switch rating : Ui: 440V Ith: 10A ;
Connection Mode : M3.5 screw with square press ;
Mechanical life : More than 2,000,000 times ;
electrical life : More than 500,000 times ;
protection level : IP40;
LED life : ≥4000h
insulation resistance : More than 100MΩ ;
contact resistance： ≤50mΩ ;
Operating Frequency: 50Hz ;

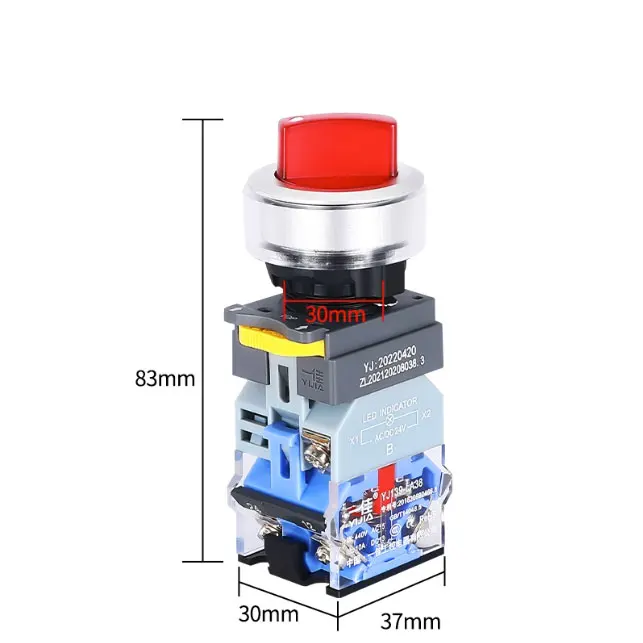

Product Size

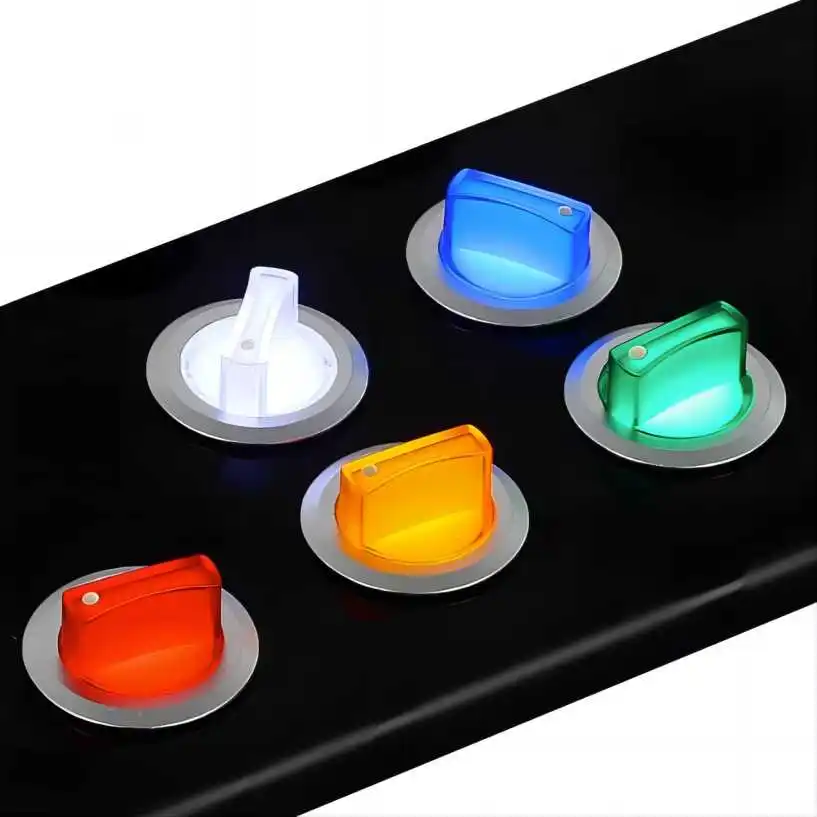

Product Color
Different Between Momentary and Latching
Latching type :
Push it–on, push it again-off;
Momentary type :
Push it- on, release – the actuator surface spring to original position.

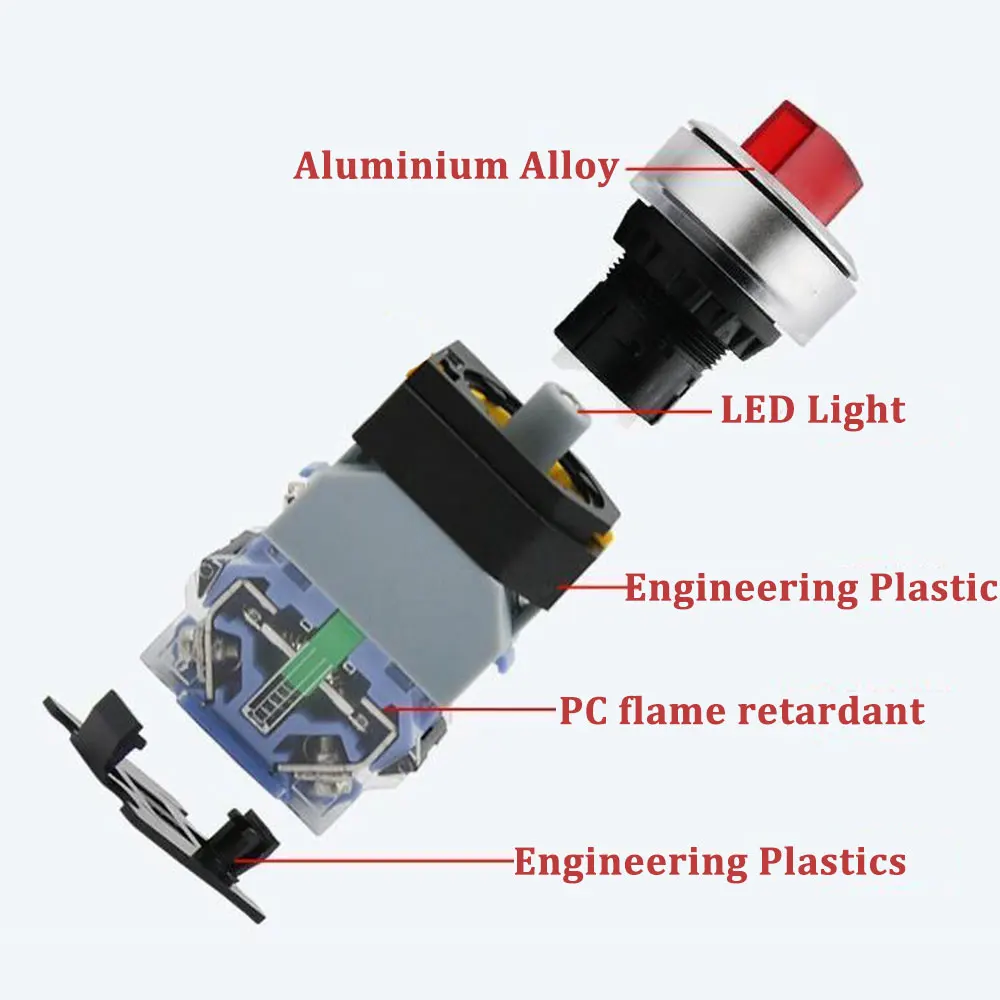

Product Material
Contact Material: Silver Alloy
Conductive Parts : Brass
Key Materials: Engineering Plastics PC
Shell Material: Engineering Plastics PA66
Base Material: Engineering Plastics PC
Product Display
1.Our products have passed CE certification, CCC certification, ROHS certification and so on, product quality assurance.
2.The key surface of the button is made of precision mold ,it is not easy to damage ,exquiste workmanship.
3.Buckle is our new research and development ,it is not easy to break ,corrosion resistance and other characteristics.
4.Built-in led lamp bead ,lamp gead high brightness and it has long service life.
