YIJIA 22mm Mushroom Flat Round Push Button Switch Self-Locking Momentary with 12V 24V 220V LED Light
1000 in stock
$10.42 – $10.82
- Hign-concerned Chemical: None
- Current: 10A
- Material: Plastic
- Switch Type: Push Button Switch
- Warranty: two years
- Model Number: LA38A-11MD
- Features: LA38A-11M Mushroom Push Button Switch with light
- Item Type: SWITCHES
- Brand Name: NoEnName_Null
- Is Smart Device: No
- Origin: Mainland China
- Certification: RoHS,CE
YIJIA 22mm Mushroom Flat Round Push Button Switch Self-Locking Momentary with 12V 24V 220V LED Light
Product Description
Product Name : 22MM push button switch ;
Mounting hole size : 22mm ;
Switch rating : Ui: 440V Ith: 10A ;
Connection Mode : M3.5 screw with square press ;
Head shape ：Mushroom head;
Mechanical life : More than 2,000,000 times ;
electrical life : More than 500,000 times ;
led life:≥40000h
protection level : IP40 ;
insulation resistance : More than 100MΩ ;
contact resistance:≤50mΩ ;
Operating Frequency: 50Hz ;

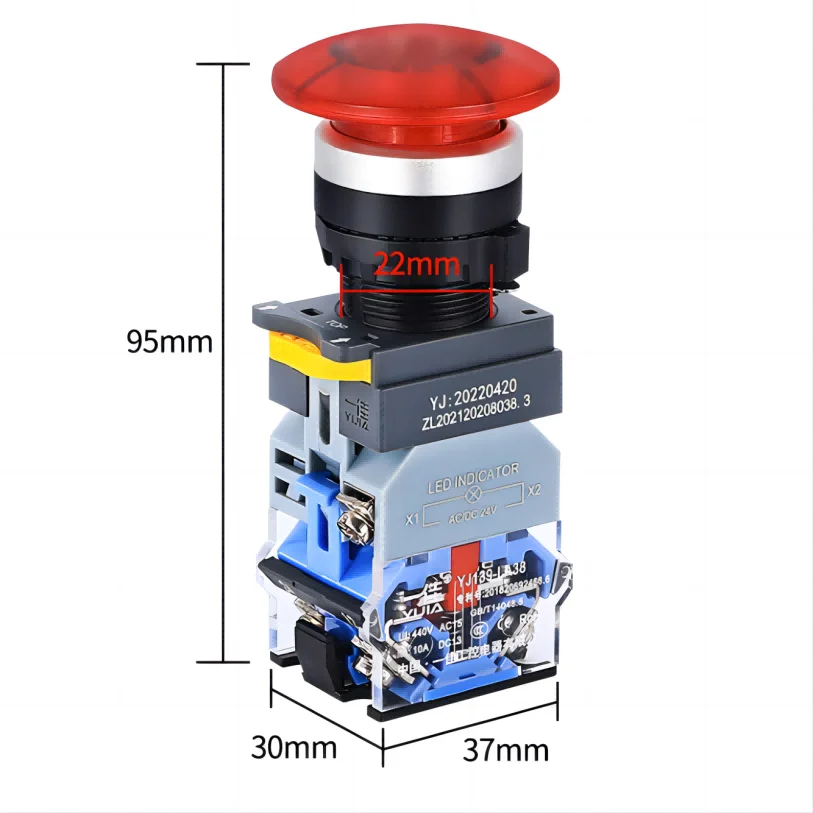

Product Size
Product color
Difference between Momentary and Latching
Latching type :
Push it–on, push it again-off;
Momentary type :
Push it- on, release – the actuator surface spring to original position.

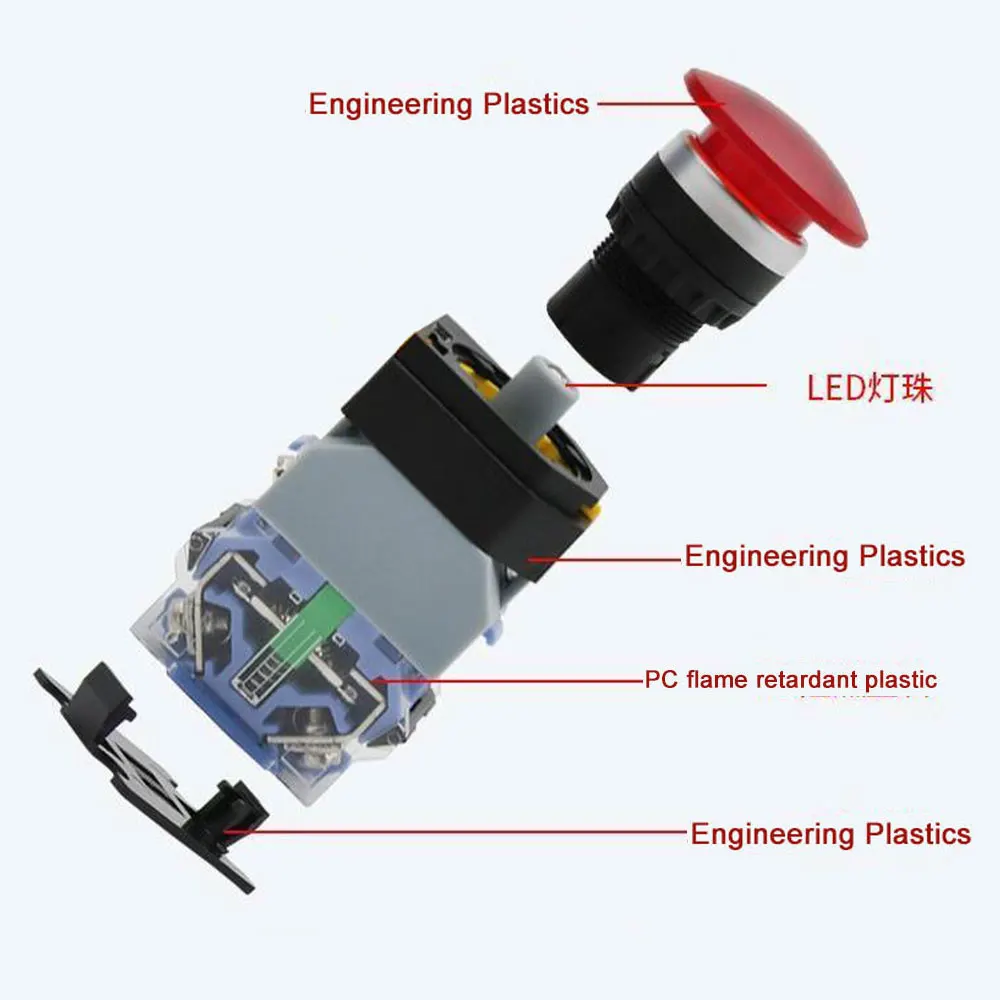

Product Material
Contact Material: Silver Alloy
Conductive Parts : Brass
Key Materials: Engineering Plastics PA66
Shell Material: Engineering Plastics PA66
Base Material: Engineering Plastics PC

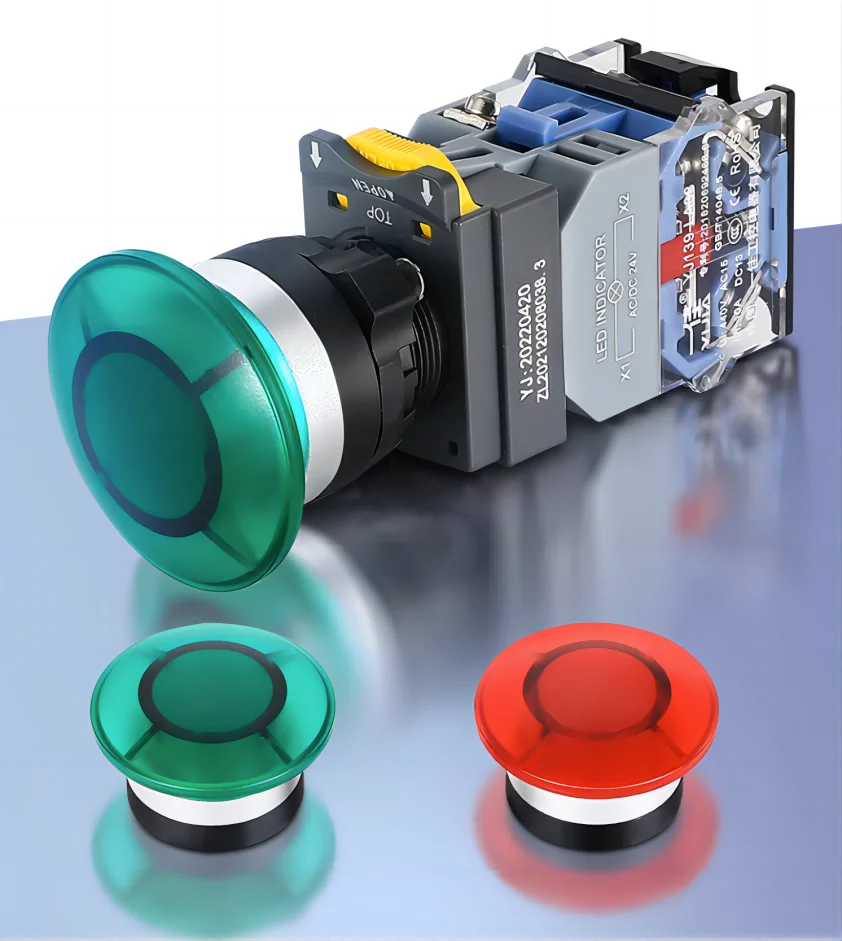

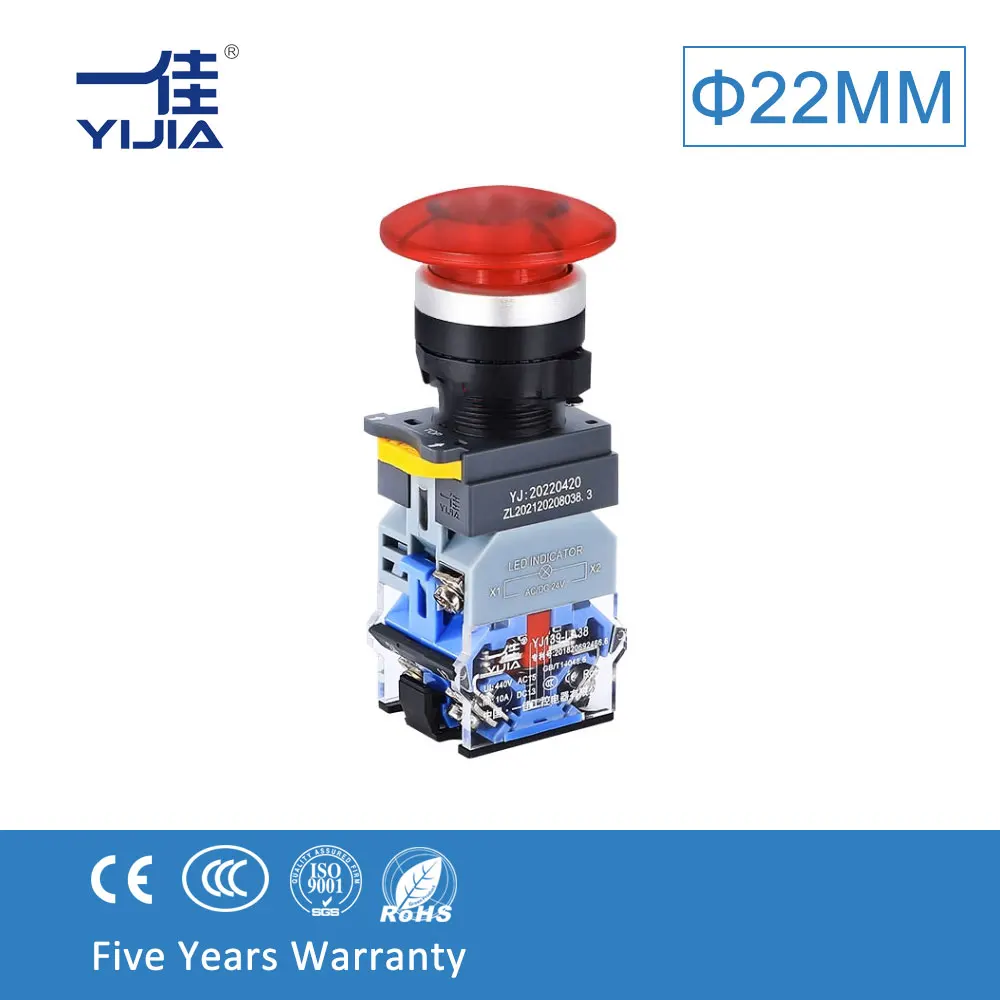

Product Display
1.Our products have passed CE certification, CCC certification, ROHS certification and so on, product quality assurance.
2.This push button USES a high quality silver alloy contact, which can carry a lot of power.
3.The internal mechanical structure of this push button switch has self-cleaning function, which can effectively extend its life
4.The top key cap of our push button switches is made of aluminum alloy, which has the characteristics of impact resistance, oxidation resistance and so on, and has a longer service life than ordinary plastic material.
5.Built-in led lamp bead ,lamp gead high brightness and it has long service life.
