Raspberry Pi 5 Active Cooler Official FAN Heatsink with Adjustable Speed Cooling Fan Metal Heatsink Radiator

【Note】

[] Do not include Raspberry Pi 5

【Overview】

[] The Raspberry Pi Active Cooler for Raspberry Pi 5 is a dedicated clip-on cooling solution for Raspberry Pi 5. It combines an aluminium heatsink with a temperature-controlled blower fan to keep your Raspberry Pi 5 at a comfortable operating temperature, even under heavy loads.

【Features】

[] Single-piece anodised aluminium heatsink

[] Heatsink-mounted, temperature-controlled blower fan attached by three screws

[] Spring-loaded push pins for mounting onto Raspberry Pi 5

[] Pre-applied thermal pads for heat transfer

【Specifications】

[] Input voltage: 5V DC supplied via four-pin fan header on Raspberry Pi 5

[] Fan speed control: Pulse width modulation control with tachometer

[] Maximum airflow: 1.09 CFM

[] Maximum fan speed: 8000 RPM +/- 15%

[] Product material: Anodised aluminium

【Tailored For Raspberry Pi 5】

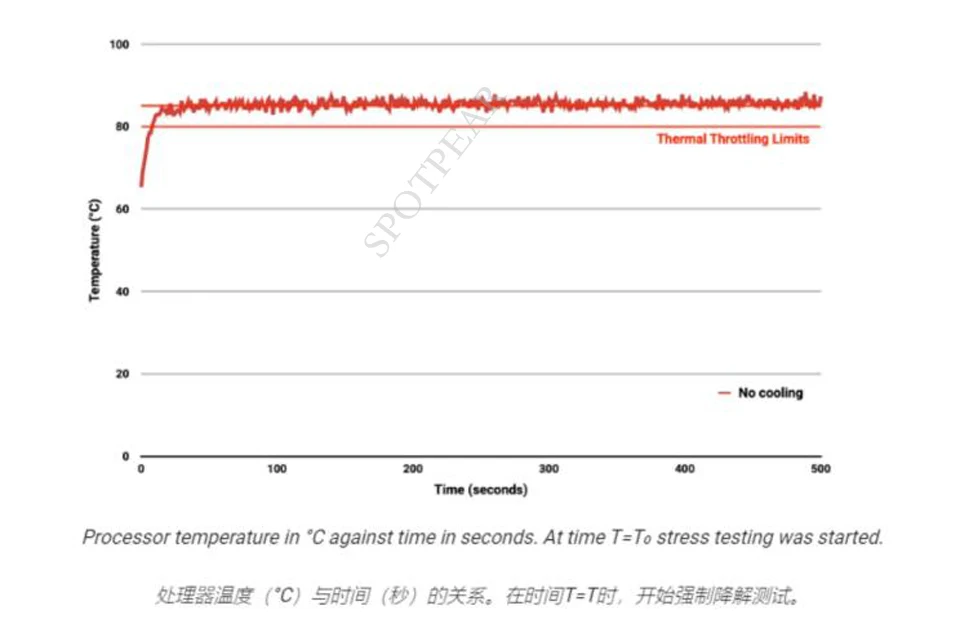

[] Without any heat sink installed on the motherboard, the idle temperature of the Raspberry Pi 5 CPU is approximately 65 ° C

[] The continuous load applied to the CPU during operation without cooling, resulting in the highest temperature climbing above 85 ° C

[] Installing the active cooling cooler

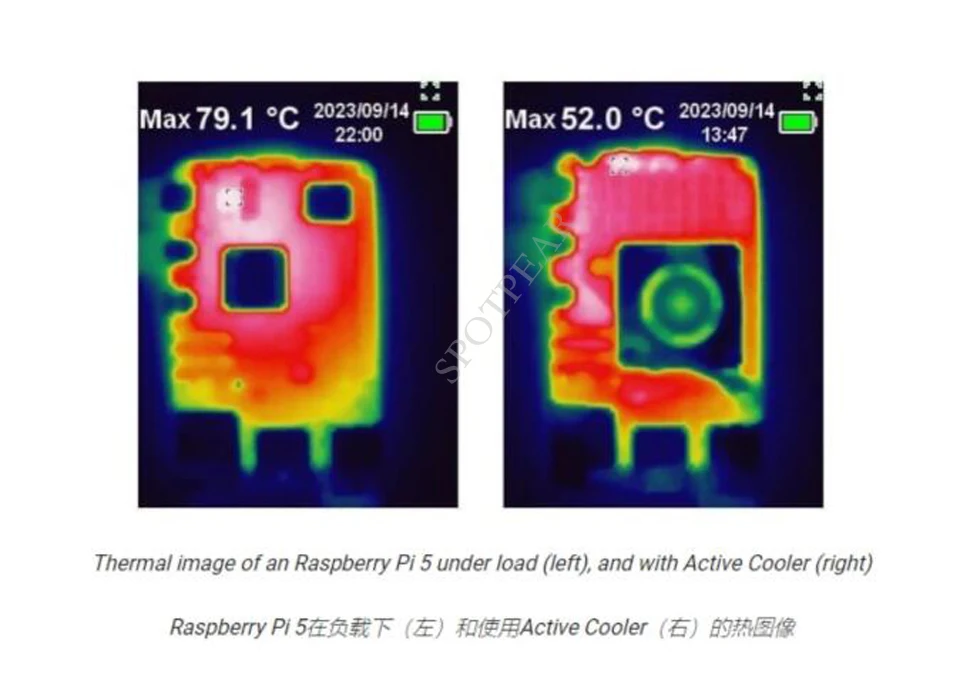

[] After installing the active cooler, the same test was run. The idle temperature has significantly decreased to approximately 45 * C. During the extended testing under load, the fan of the cooler rotates at low speed to stabilize the CPU temperature at 60 ° C, with a maximum temperature of 62 to 63 ° C during the testing period.

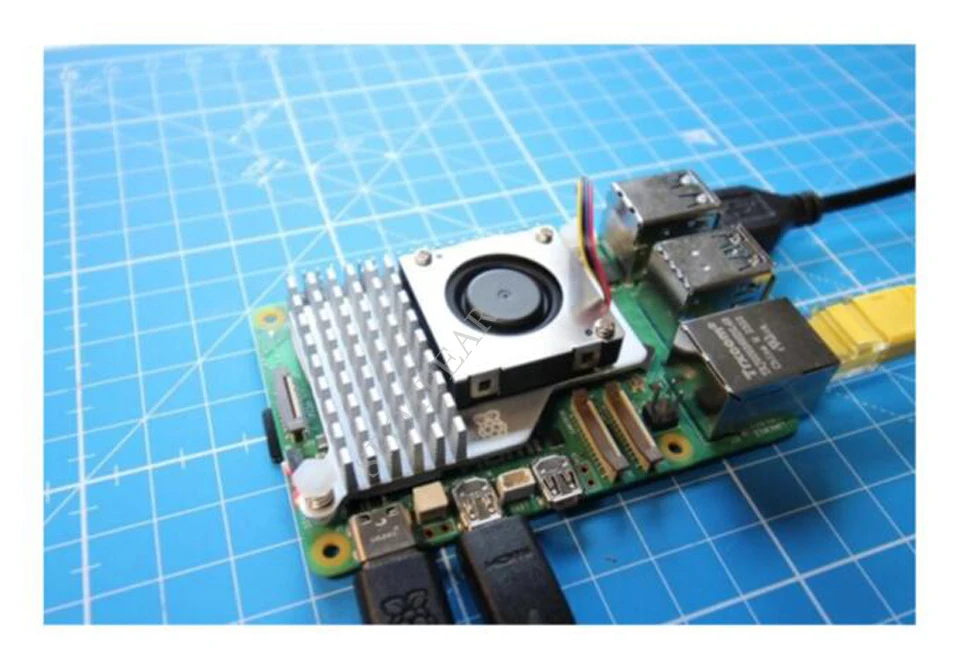

[] Installation example

【Installing the active cooling cooler】

[] RPi-5-Original-FAN x1
