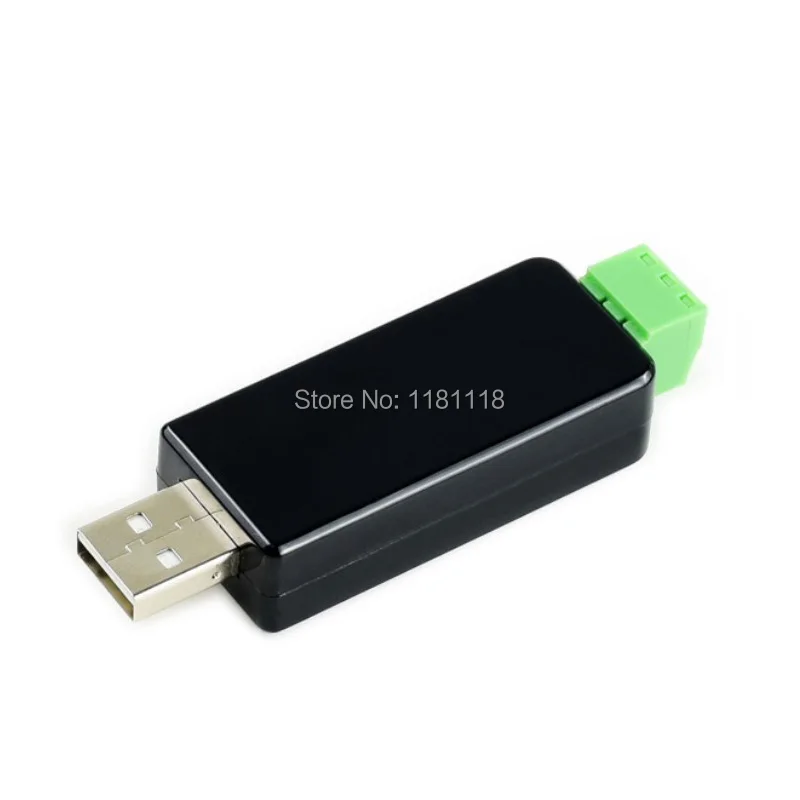

Industrial USB to RS485 Converter Original FT232RL

Features

• USB to RS485 communication.

• Adopt original FT232RL, fast communicating, stable and reliable, better compatibility.

• Onboard TVS (Transient Voltage Suppressor), effectively suppresses surge voltage and transient spike voltage in the circuit, lightning-proof & anti-electrostatic.

• Onboard self-recovery fuse and protection diodes, ensure the current/voltage stable outputs, provides over-current/over-voltage proof, and improve shock resistance.

• 3x LEDs for indicating the power and transceiver status.

Specification

• Product type: industrial converter

• Baudrate: 300-921600bps

• Host port: USB

• Device port: RS485

• USB:

  • Operating voltage: 5V

  • Connector: USB-A

  • Protection: 200mA self-recovery fuse, ESD protection

  • Transmission distance: about 5m

• RS485:

  • Connector: screw terminal

  • Pins: A+, B-, GND

  • Direction control: hardware automatic control

  • Protection: 600W lightning-proof and surge-suppress, 15KV ESD protection (onboard 120R balancing resistor).

  • Transmission distance: about 1200m (low rate)

  • Transmission mode: point-to-multipoint (up to 32 nodes, it is recommended to use repeaters for 16 nodes or more).

• LED indicators:

  • PWR: red power indicator, light up when there is a USB connection and voltage is detected.

  • TXD: red TX indicator, light up when the USB port sends data.

  • RXD: red RX indicator, light up when the device ports send data back.

• Operating environment:

  • Temperature: -15℃ ~ 70℃

  • Humidity: 5%RH ~ 95%RH

• Operating system: Mac, Linux, Android, WinCE, Windows 10 / 8.1 / 8 / 7 / XP
