Raspberry Pi 7.5 inch e-Paper E-Ink Display HAT 7.5inch SPI Interface 800×480 Red / Black / White for Arduino STM32 Jetson Nano
12 in stock
$47.52 – $55.92
- Hign-concerned Chemical: None
- Compatible With: e-Paper
- Accessory Type: LCD Screen
- Brand Name: spotpear
- Origin: Mainland China
【Overview】
[] This is an E-Ink display HAT for Raspberry Pi, 7.5inch, 800×480 resolution, with embedded controller, communicating via SPI interface.
[] Due to the advantages like ultra low power consumption, wide viewing angle, clear display without electricity, it is an ideal choice for applications such as shelf label, industrial instrument, and so on.
【Features】
[] No backlight, keeps displaying last content for a long time even when power down
[] Ultra low power consumption, basically power is only required for refreshing
[] Standard Raspberry Pi 40PIN GPIO extension header, supports Raspberry Pi series boards, Jetson Nano
[] SPI interface, for connecting with other controller boards like Raspberry/Arduino/Nucleo, etc.
[] Onboard voltage translator, compatible with 3.3V/5V MCUs
[] Comes with development resources and manual (examples for Raspberry Pi/Jetson Nano/Arduino/STM32)
[]Note: 7.5inch e-Paper is a raw display, for easy testing and comparing, please consider the one with driver board: 7.5inch e-Paper HAT

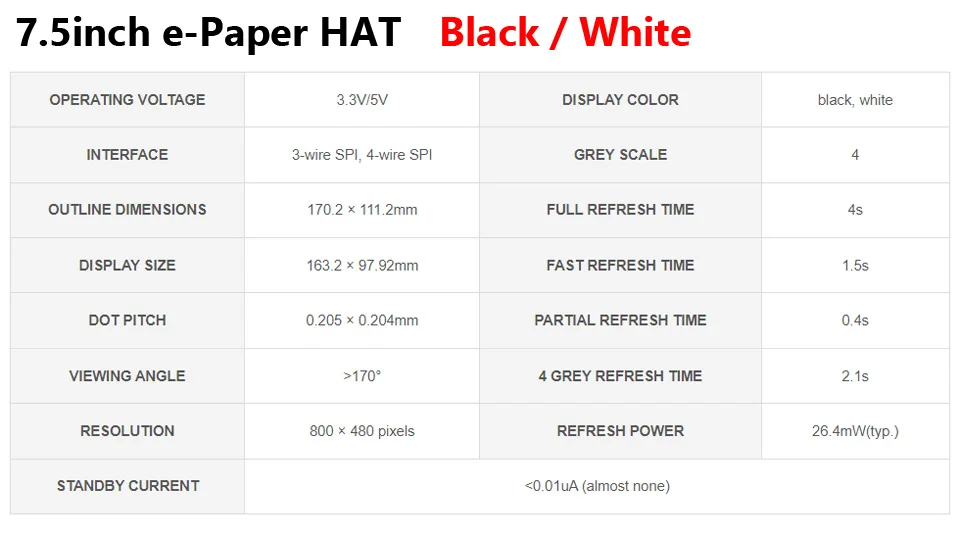

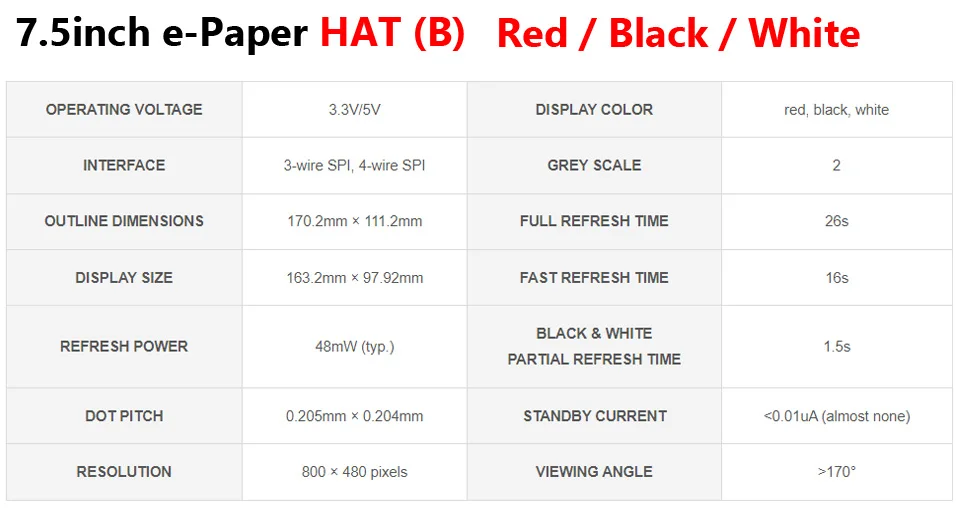

【Specifications】
【Interface】
[] SYMBOL : DESCRIPTION
[] VCC : 3.3V~5V
[] GND : Ground
[] DIN : SPI MOSI pin
[] CLK : SPI SCK pin
[] CS : SPI chip selection, low active
[] DC : Data/Command selection (high for data, low for command)
[] RST : External reset, low active
[] BUSY : Busy status output, low active
【Advantages Of EINK】
[] E-Paper Display Utilizes Microcapsule Electrophoretic Technology For Displaying, The Principle Is: Charged Particles Suspended In Clear Fluid Will Move To Sides Of Microcapsule When Electric Field Is Applied, Making The Microcapsule Become Visible By Reflecting Ambient Light, Just As Traditional Printed Paper.
[] E-Paper Display Will Clearly Display Images/Texts Under Lamplight Or Natural Light, Requires No Backlight, And Features Nearly Up To 180° Viewing Angle. It Is Usually Used As E-Reader Due To Its Paper-Like Effect.

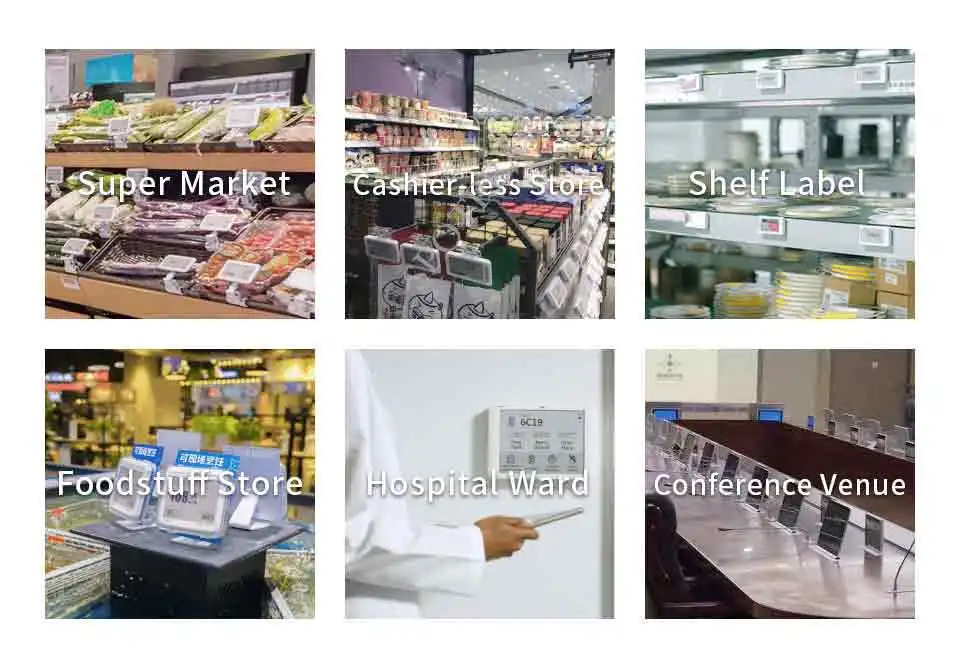

【Application Examples】
[] Suitable For Price Tags, Asset/Equipment Tags, Shelf Labels, Conference Name Tags…

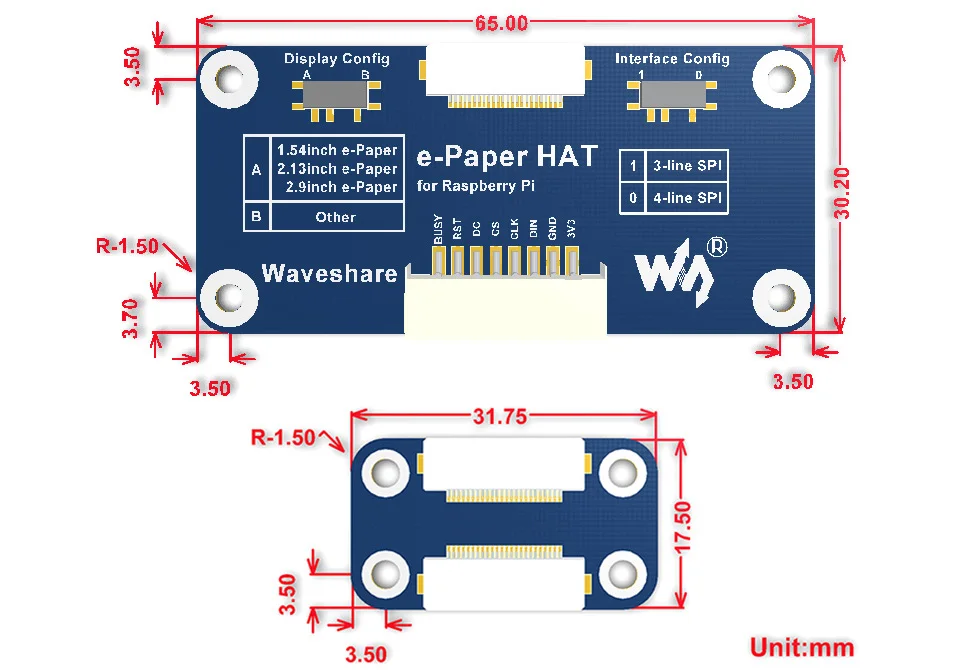

【Outline Dimensions】
Note: 7.5inch e-Paper is a raw display, for easy testing and comparing, please consider the one with driver board: 7.5inch e-Paper HAT
[] Bundle: 7.5inch e-Paper (Display Color Option)
1. 7.5inch e-Paper x1

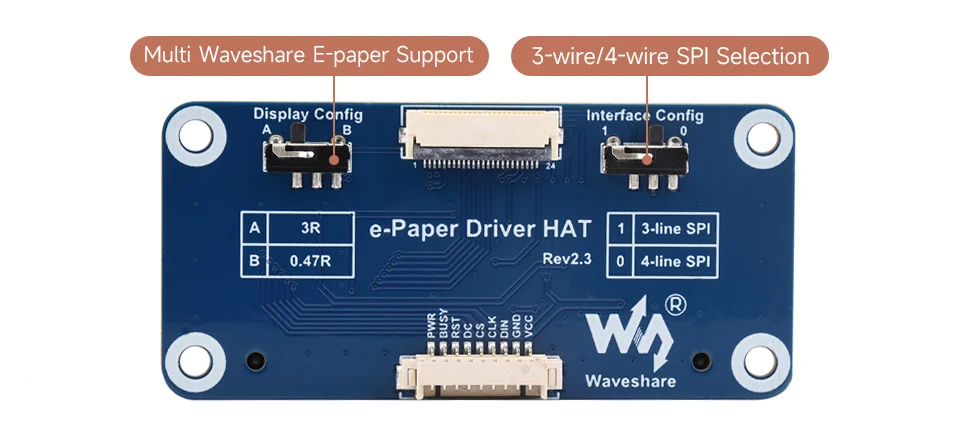

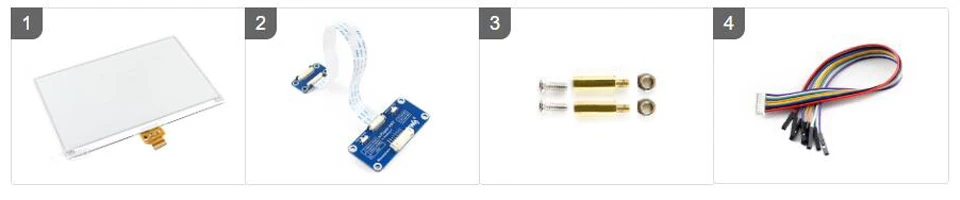

[] Bundle: 7.5inch e-Paper HAT (Display Color Option)
1. 7.5inch e-Paper x1
2. e-Paper Driver HAT x1
3. RPi screws pack (2pcs) x1
4. PH2.0 20cm 8Pin x1
There are no reviews yet.
