DTU Device

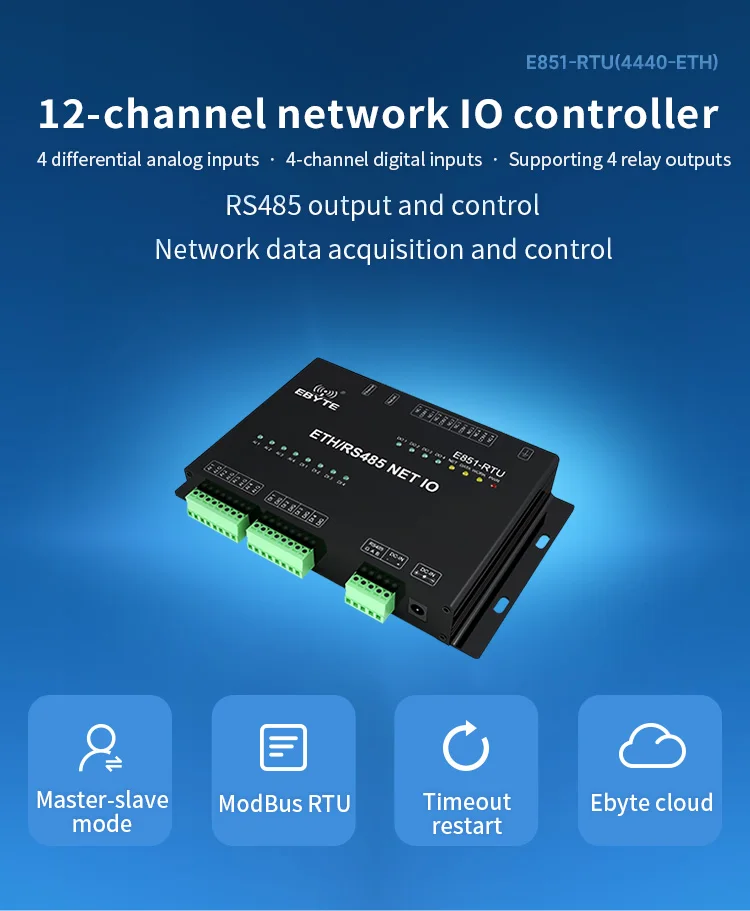

Ethernet RS485 12 Way Network IO Controller Modbus TCP RTU Analog Digital Input Relay Output Master Slaver Socket Connection
Availability:
331 in stock
$62.99
331 in stock
- Hign-concerned Chemical: None
- Type: Gsm
- Model Number: E851-RTU(4440-ETH)
- Port Number: 2
- Working Frequency: RS485 Ethernet
- Brand Name: CDEBYTE
- Origin: Mainland China
- Certification: None
Ethernet RS485 12 Way Network IO Controller Modbus TCP RTU Analog Digital Input Relay Output Master Slaver Socket Connection
|
Hardware parameters |
Value |
|

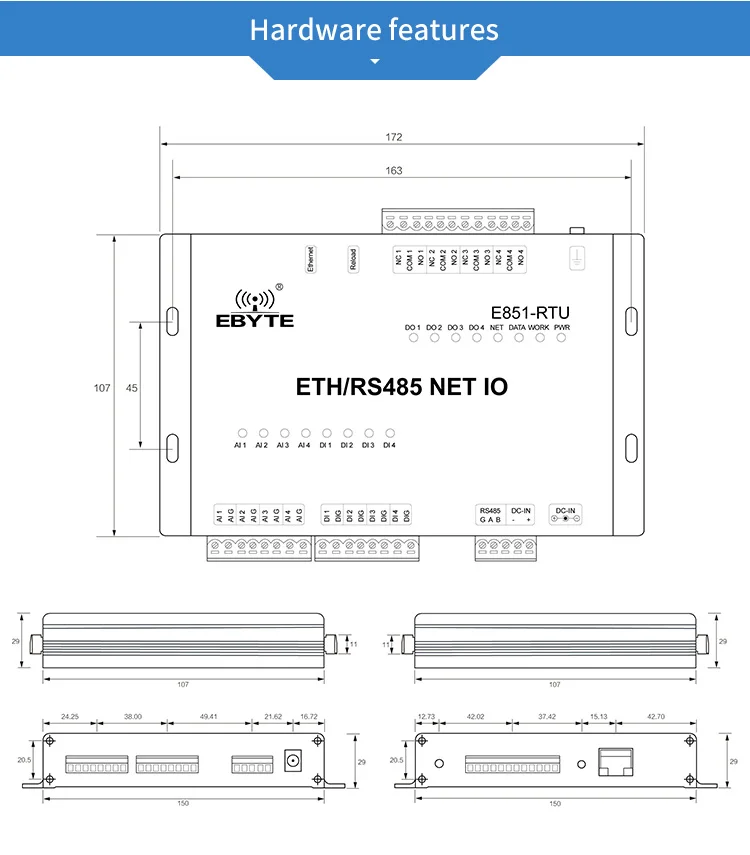

Product size(H*W*D) |
172*107*29mm |
|
Product weight |
457.5±5g |
|
Working temperature |
-20℃~+70℃ |
|
Storage temperature |
-40℃~+85℃ |
|
Working humidity |
5%~95% |
|
Working voltage |
8V~28V |
|
Current acquisition range |
0mA~20mA |
|
Precision |
0.2% |
|
Data interface |
RS485:1200~115200bps |
|
Software parameters |
Value |
|
Network Type |
Ethernet |
|
Configuration command |

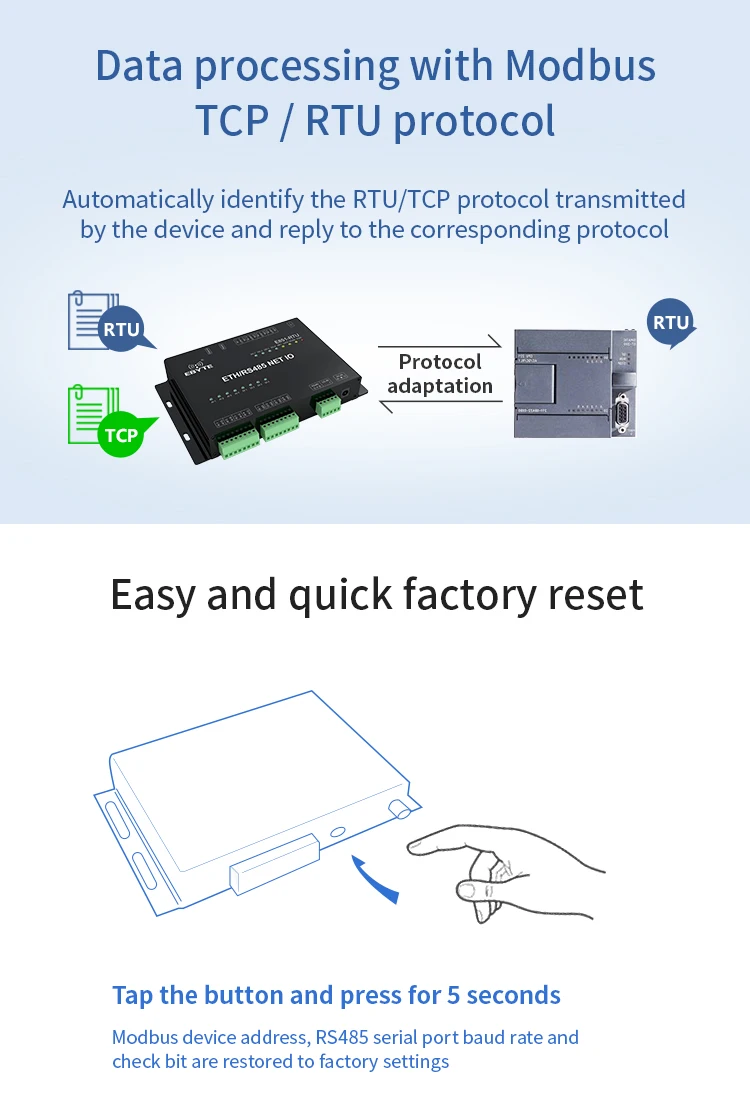

Modbus TCP/RTU |
|
Network protocol |
Modbus TCP/RTU |
|
Working mode |

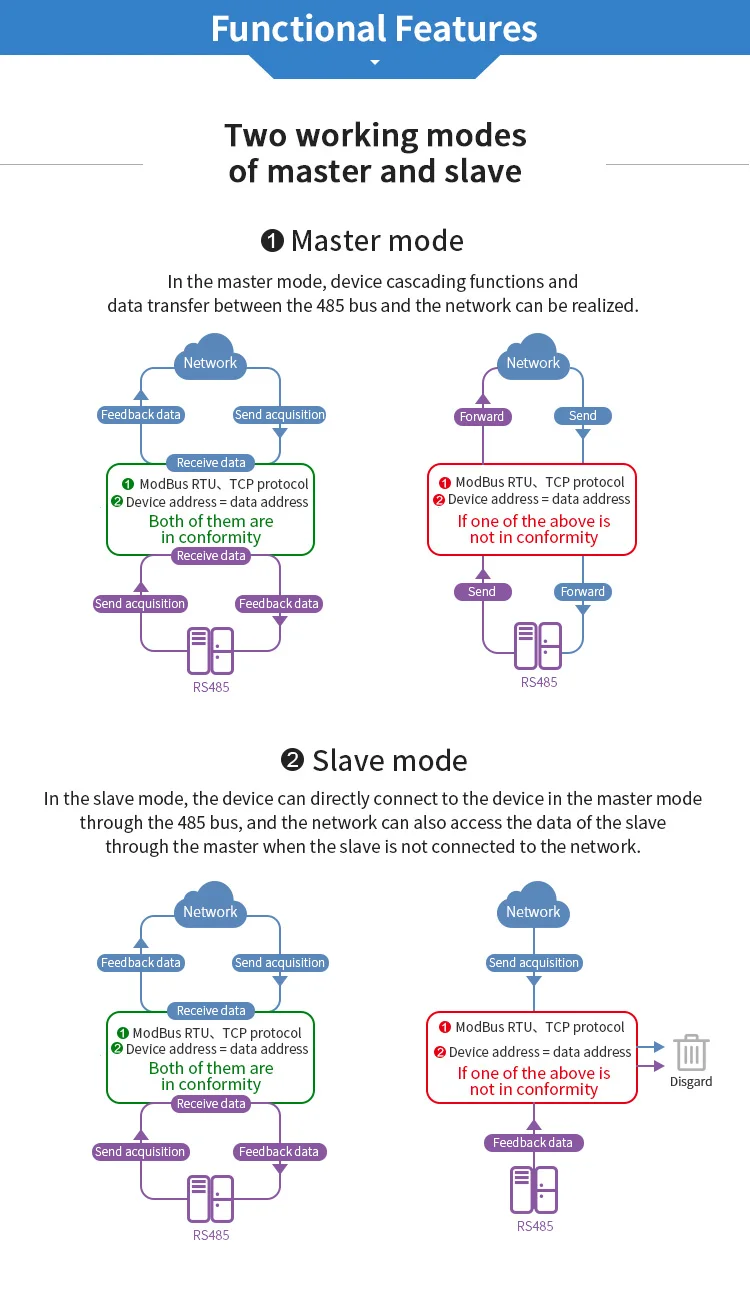

Host mode,Slave mode |
|
Data transmission mode |

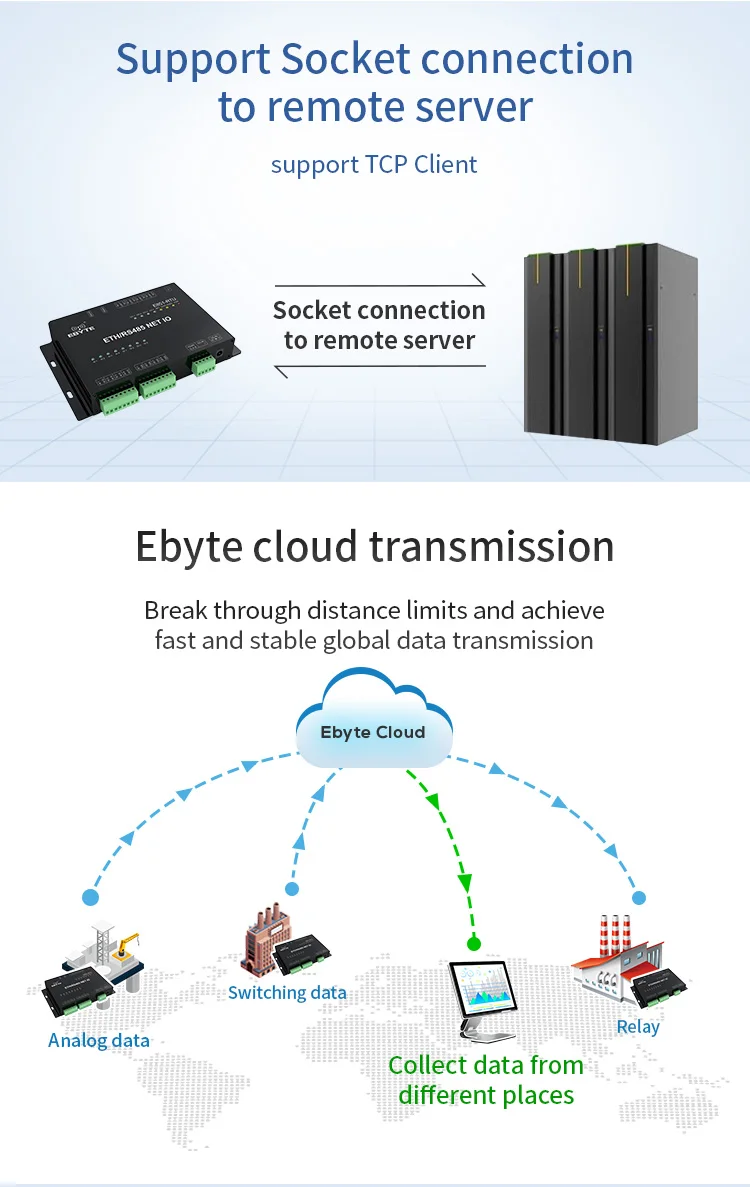

TCP Client |
