- Package: Yes
- Model Number: HF-LPT170
- Brand Name: HF HIGH-FLYING
- Origin: Mainland China
- Wireless Standard: 802.11b/g/n BLE 5.0
- Processor: Processor BL602 CPU
- Basic Frequency: 160MHz
- Operating System: FreeRTOS
- Size (mm): 22mm x 15.6mm x 8mm

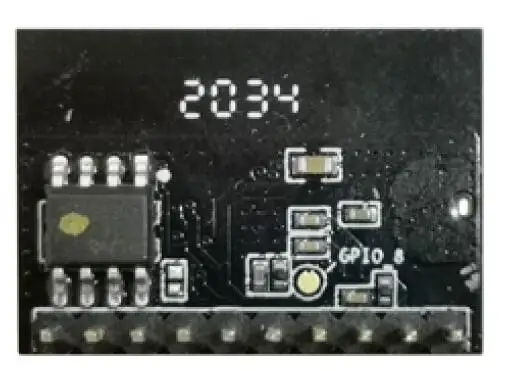

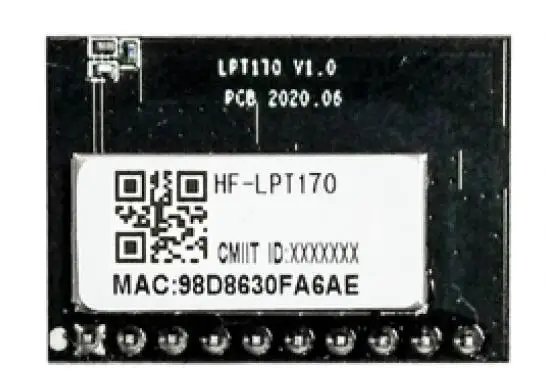

General Description
The HF-LPT170 module is a fully self-contained small form-factor, single stream, 802.11b/g/n Wi-Fi + BLE module, which provide a wireless interface to any equipment with a Serial interface for data transfer. This module integrate MAC, baseband processor, RF transceiver with power amplifier in hardware and all Wi-Fi protocol and configuration functionality and networking stack, in embedded firmware to make a fully self-contained 802.11b/g/n Wi-Fi and BLE solution for a variety of applications.
The HF-LPT170 module employs the world's lowest power consumption embedded architecture. It has been optimized for all kinds of client applications in the home automation, smart grid, handheld device, personal medical application and industrial control that have lower data rates, and transmit or receive data on an infrequent basis.
Overview of Characteristic
Support Wi-Fi IEEE802.11b/g/n and BLE5.0 Wireless Standards
² Based on Based on BL602 SOC
² Support UART Data Communication with Wi-Fi or BLE
² Support Wi-Fi STA/AP Mode
² Support BLE SmartBLELink Config
² Support Wi-Fi AP SmartAPLink and Sniffer SmartLink Config
² Support Wireless and Remote Firmware Upgrade Function
² Support Software SDK for Develop
² Support Internal PCB or External IPEX Antenna Option
² Single +3.3V Power Supply
² Size:
n HF-LPT170: 22mm x 15.6mm x 8mm，DIP10
HF-LPT170 Module Technical Specifications
|
Production Data
|
2020/Q1
|
|
Processor
|
BL602 CPU
|
|
Basic Frequency
|
160MHz
|
|
Operating System
|
FreeRTOS
|
|
Temp. Range
|
-40℃- 85℃
|
|
Internal Antenna
|
√
|
|
I-PEX Connector
|
√
|
|
Size (mm)
|
22mm x 15.6mm x 8mm
|
|
Work Voltage
|
2.7~3.6V
|
|
Current @No data
|
<45mA
|
|
Current @Tx Peak
|
<350mA
|
|
Resource-Flash
|
2MB
|
|
Resource-RAM
|
276KB
|
|
Wireless Standard
|
802.11b/g/n BLE 5.0
|
|
StorageTemp.
|
40℃- 125℃
|
|
|
Evaluation Kit

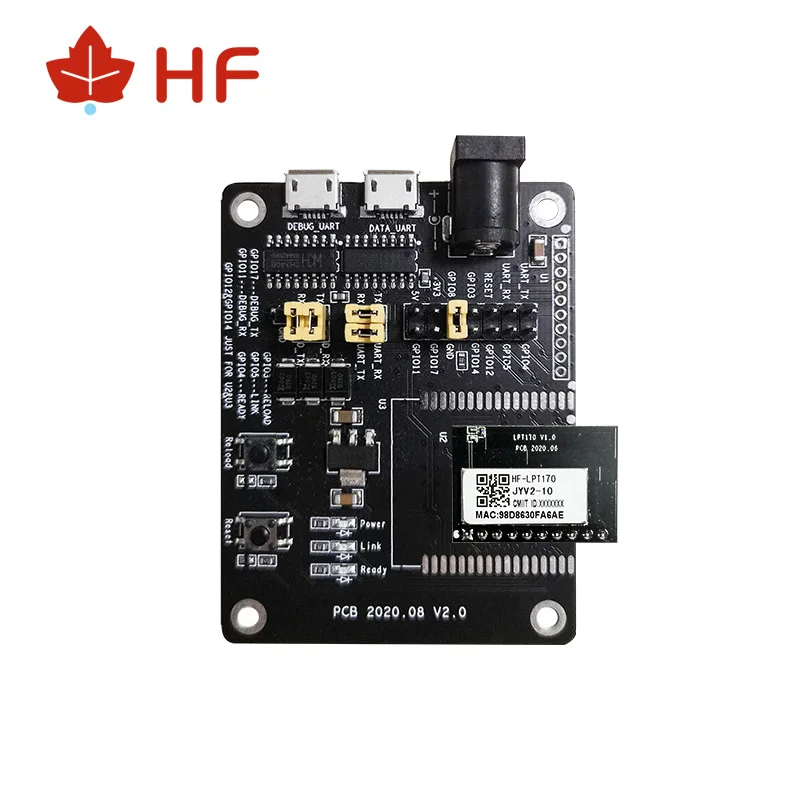

High-Flying provides the EVK to promote user to familiar the product and develop the detailed application. The evaluation kit shown as below, user can connect to module with the RS-232 UART, USB (Internal USB to UART convetor) or Wireless interface to configure the parameters, manage the module or do the some functional tests .
