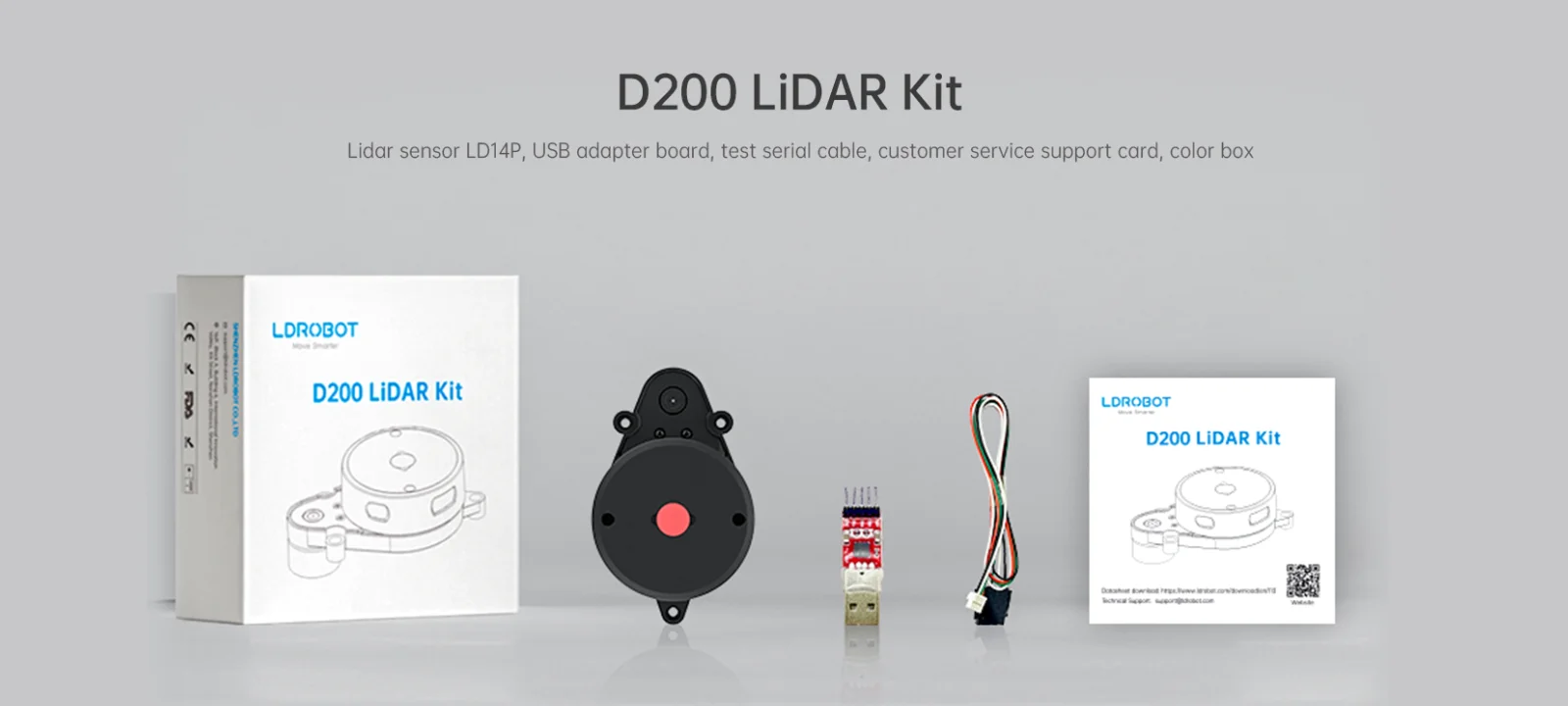

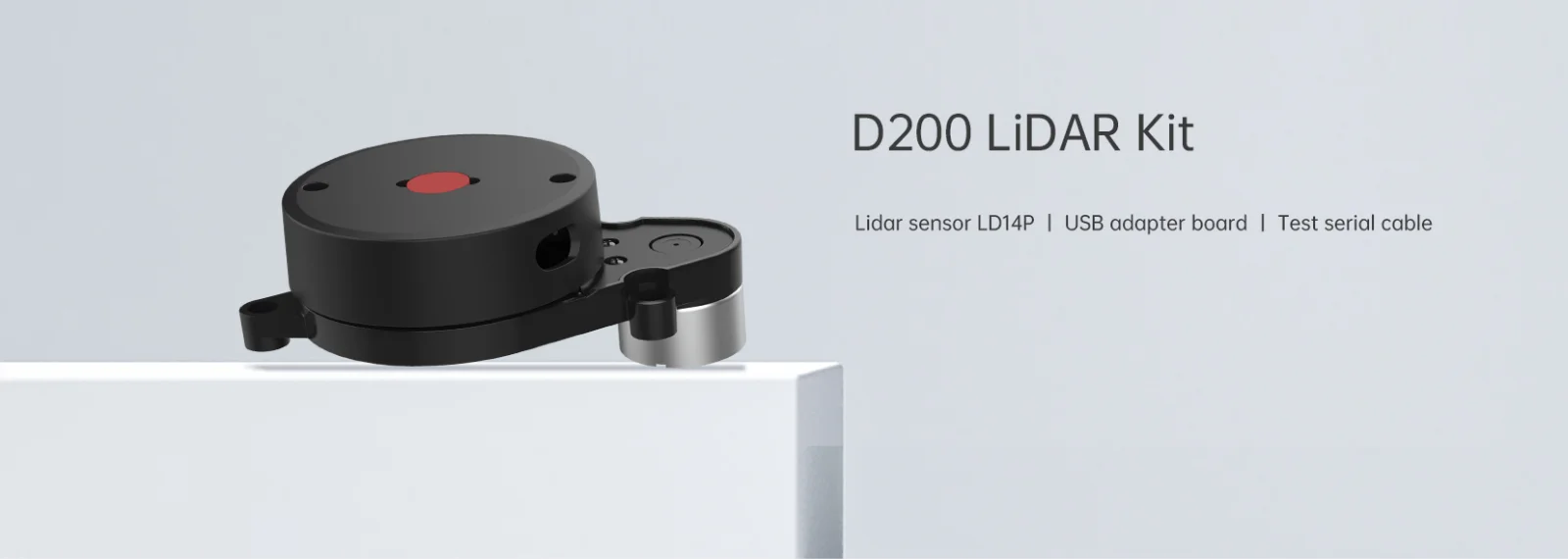

LDROBOT LD14P / D200 kit LIDAR D500 LIDAR kit laser radar ranging For outdoor SLAM construction drawing support ROS1 and ROS2
100 in stock
$49.00 – $69.00
- Hign-concerned Chemical: None
- Type: Other PLC Peripheral Modules
- Origin: Mainland China
- Brand Name: FDROBOT
Explanation of models for LD19, D300 kit, and D500 kit:
The D300 kit is the same LIDAR product as the LD19.
The D500 kit is an upgraded version of the D300 kit, with the same appearance and size, but better performance.
The D500 kit can completely replace the D300 kit and LD19
So if you need to purchase LD19 or D300 kit, just buy D500 kit.
|

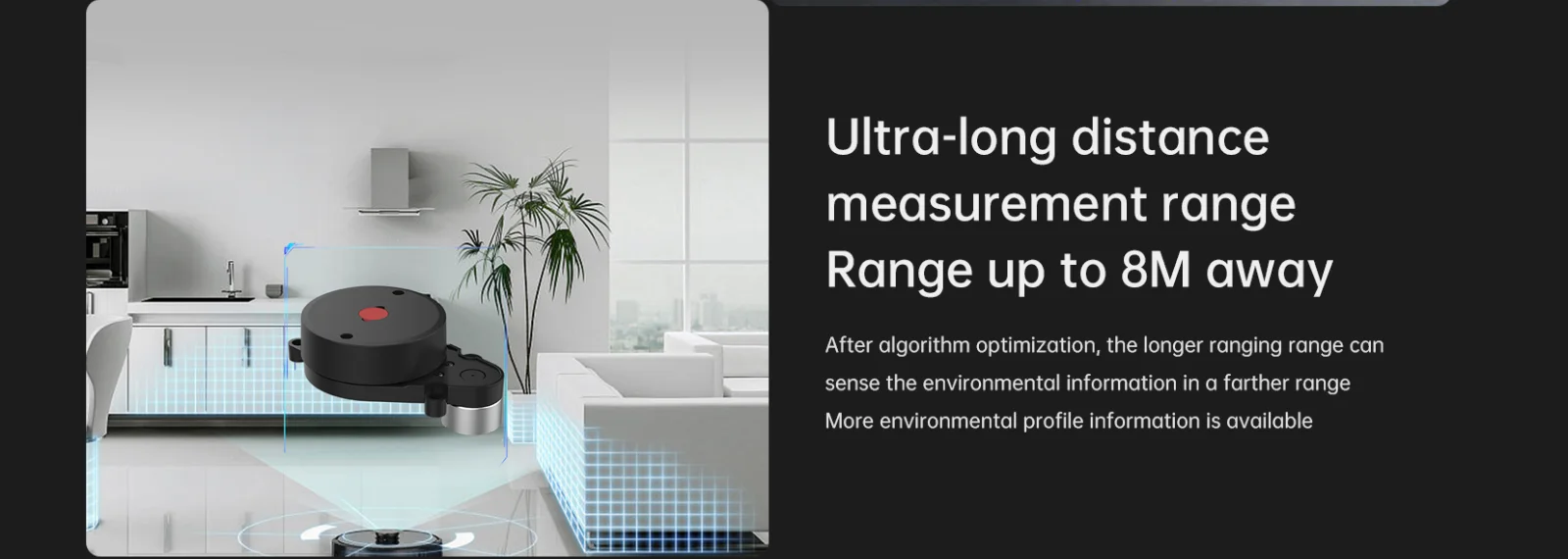

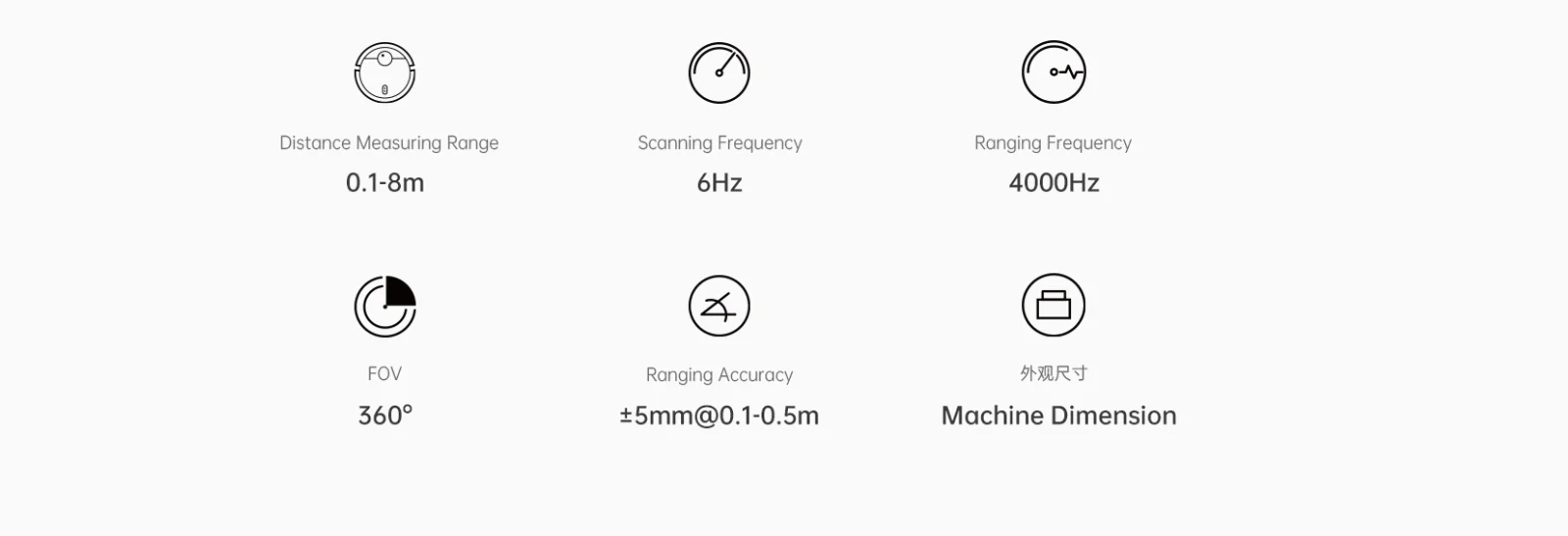

RANGING DISTANCE |
0.03 ~ 12.00m |
|
RANGING AVERAGE ACCURACY |
±10 mm (within 0.3 ~ 0.5m) |
|
SCANNING FREQUENCY |
6 ~ 13Hz (Typ 10Hz) |
|

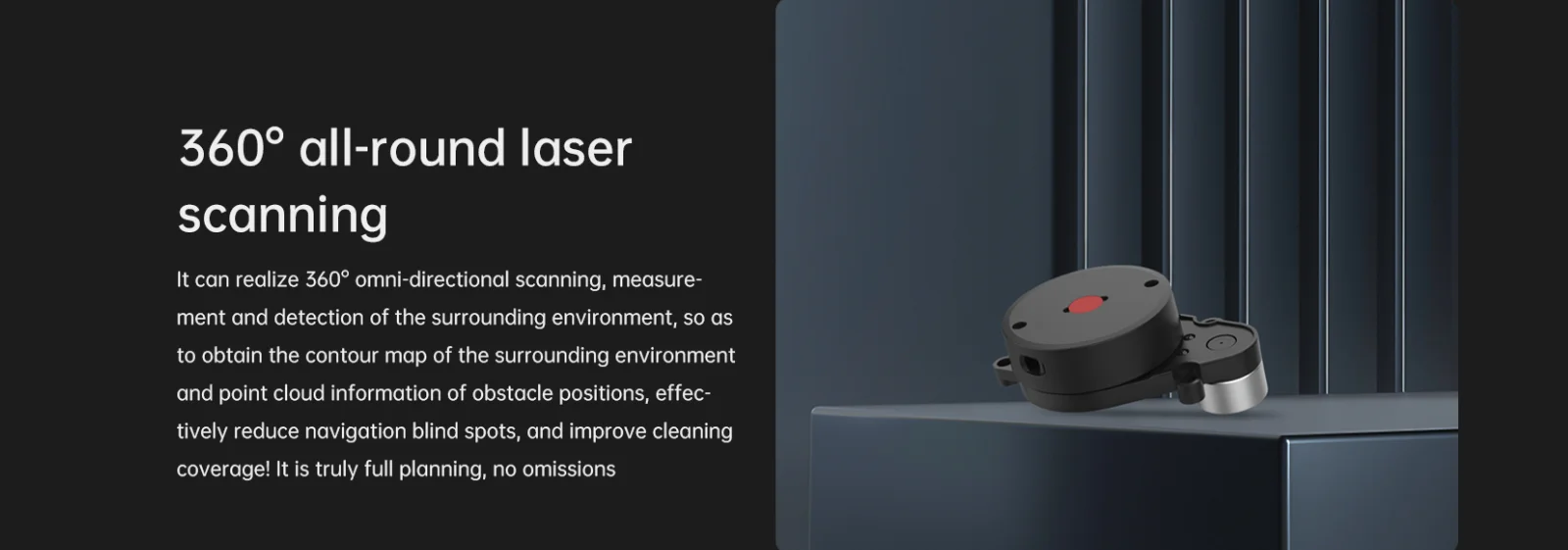

SCANNING ANGLE |
360° |
|
RANGING FREQUENCY |
5000Hz |
|
WAVELENGTH |
895 ~ 915 nm (Typ 905) |
|
COMMUNICATION INTERFACE |
UART @230400 |
|

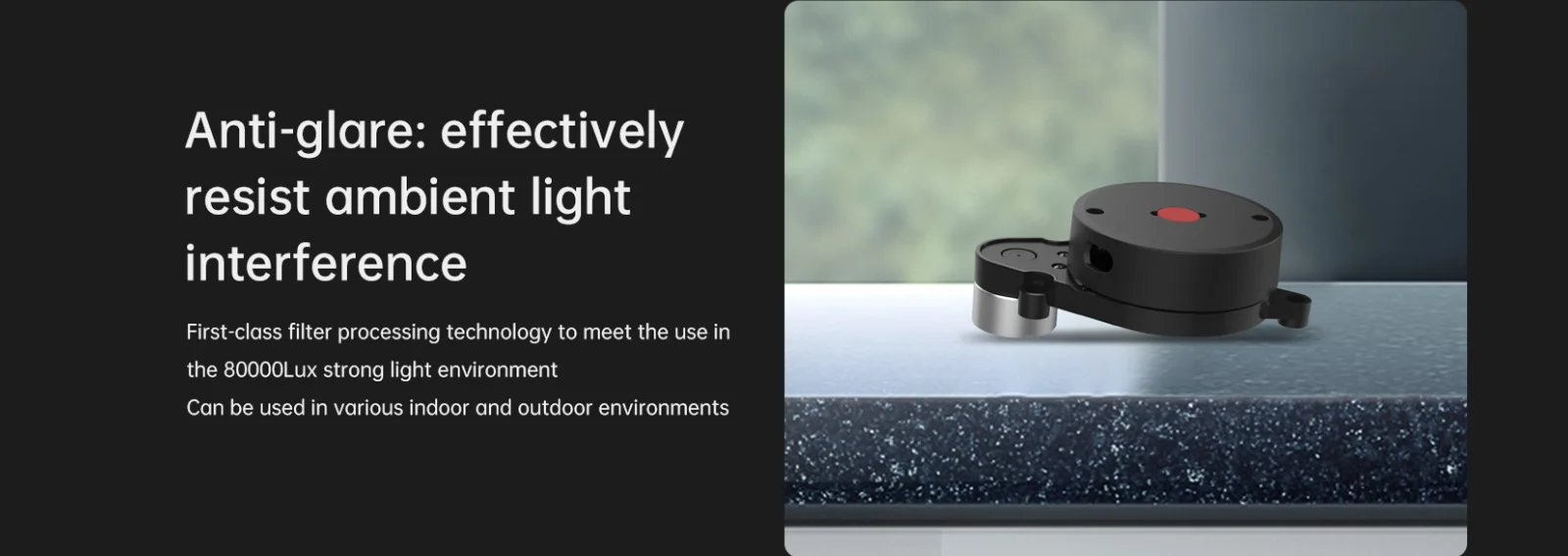

AMBIENT LIGHT TOLERANCE |
60KLux |
|
POWER SUPPLY |
5V |
|
POWER CONSUMPTION |
1.45W |
|
OPERATING CURRENT |
290mA |
|
WEIGHT |
45g |
|
OPERATING TEMPERATURE |
-10 ~ 45°C |
|
LIFETIME |
10000+ hours |
|
DIMENSIONS |
54.00 × 46.29 × 35.00mm |
