- Hign-concerned Chemical: None
- Model Number: MIS5001 5MP Camera (A)
- Origin: Mainland China
- Brand Name: Waveshare
- Sensor: MIS5001
- Camera type: Color
- Pixel: 5MP (2592 x 1944)
- Shutter: Rolling shutter
- Interface: 2-Lane MIPI CSI-2
MIS5001 5MP Wide-Angle Lens Camera Module, High Sensitivity, Low Dark Current, Compatible with RV1106 Luckfox Pico Series Boards

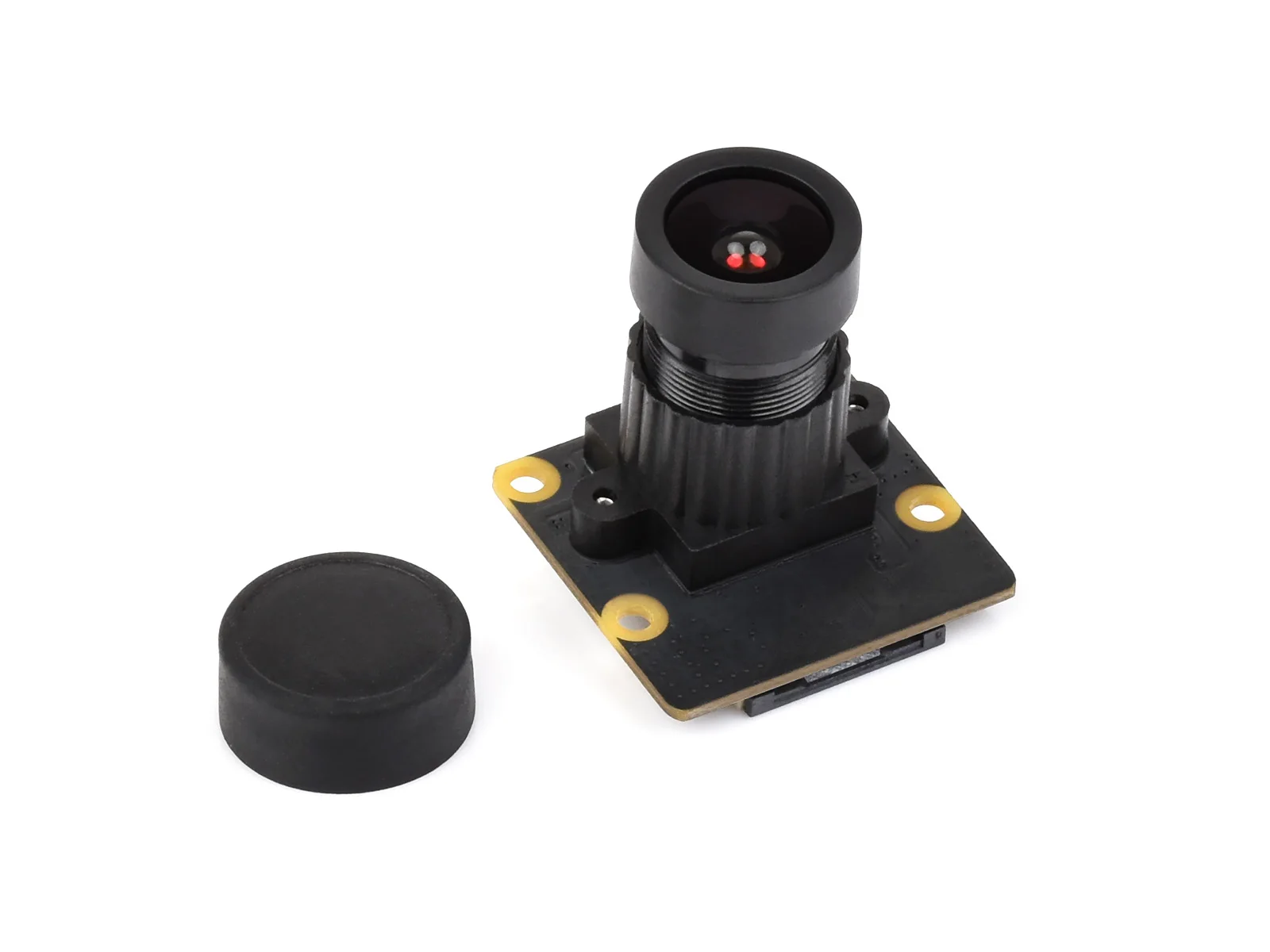

MIS5001 5MP camera module
Adopts MIS5001 sensor chip with 5MP resolution, features high sensitivity and low dark current, enables clear imaging even in low light environments. It is suitable for various complex scenarios, compatible with Luckfox Pico Pro / Luckfox Pico Max / Luckfox Pico Ultra boards equipped with RV1106 chip. Available in wide-angle lens version and wide-angle distortion-free lens version.
Version Options
MIS5001 5MP Camera (A)
Wide-angle lens
MIS5001 5MP Camera (B)
Wide-angle distortion-free lens
Specifications
|
Sensor
|
MIS5001
|
|
Camera type
|
Color
|
|
CMOS size
|
1/2.7″
|
|
Pixel
|
5MP (2592 × 1944)
|
|
Shutter
|
Rolling shutter
|
|
Interface
|
2-Lane MIPI CSI-2
|
lens versions
|
Version
|
Wide-angle lens
|
Wide-angle distortion-free lens
|
|
Model
|
MIS5001 5MP Camera (A)
|
MIS5001 5MP Camera (B)
|
|
Focal length
|
4.15mm
|
2.88mm
|
|
Aperture
|
F1.6
|
F2.4
|
|
FOV
|
93°
|
95.5°
|
|
Distortion
|
< -10.7%
|
<1%
|
Two lens versions available
The wide-angle lens has a wide field of view and is suitable for capturing large scenes. The wide-angle aberration-free lens can accurately reproduce geometric forms with a larger field of view, suitable for scenarios requiring high fidelity.
* Only MIS5001 5MP Camera (B) adopts the wide-angle distortion-free lens.
High Sensitivity for Accurate Details
Features excellent dark-environment imaging capability, enabling clear imaging even in low light environments
Low Dark Current, reduces noise
Effectively reduces noise and enhances image quality
Supports Luckfox Development Boards
Compatible with Luckfox Pico Pro / Luckfox Pico Max / Luckfox Pico Ultra
Connecting with MIS5001 5MP Camera (A)
Connecting with MIS5001 5MP Camera (B)
* for reference only, please refer to the Package Content for the detailed part list
outline dimensions
MIS5001 5MP Camera (A)
MIS5001 5MP Camera (B)
Resources & Services
Wiki: http://www.waveshare.com/wiki/MIS5001_5MP_Camera_(A)
Package Content
Weight: 0.01 kg
MIS5001 5MP Camera (A)
-
MIS5001 5MP Camera (A) x1
-
20PIN FFC cable 0.2m x1
1
2
MIS5001 5MP Camera (B)
-
MIS5001 5MP Camera (B) x1
-
20PIN FFC cable 0.2m x1
1
2
