Modbus TCP to Modbus RTU Remote IO Module Data Acquisition isolated designed with Digital output M120T

(No reviews yet) Write a Review
Weight:
0.50 KGS
  • Modbus TCP to Modbus RTU Remote IO Module Data Acquisition isolated designed with Digital output M120T
  • Modbus TCP to Modbus RTU Remote IO Module Data Acquisition isolated designed with Digital output M120T
  • Modbus TCP to Modbus RTU Remote IO Module Data Acquisition isolated designed with Digital output M120T
  • Modbus TCP to Modbus RTU Remote IO Module Data Acquisition isolated designed with Digital output M120T
  • Modbus TCP to Modbus RTU Remote IO Module Data Acquisition isolated designed with Digital output M120T
  • Modbus TCP to Modbus RTU Remote IO Module Data Acquisition isolated designed with Digital output M120T
US $180.00

Description

Model:M120T

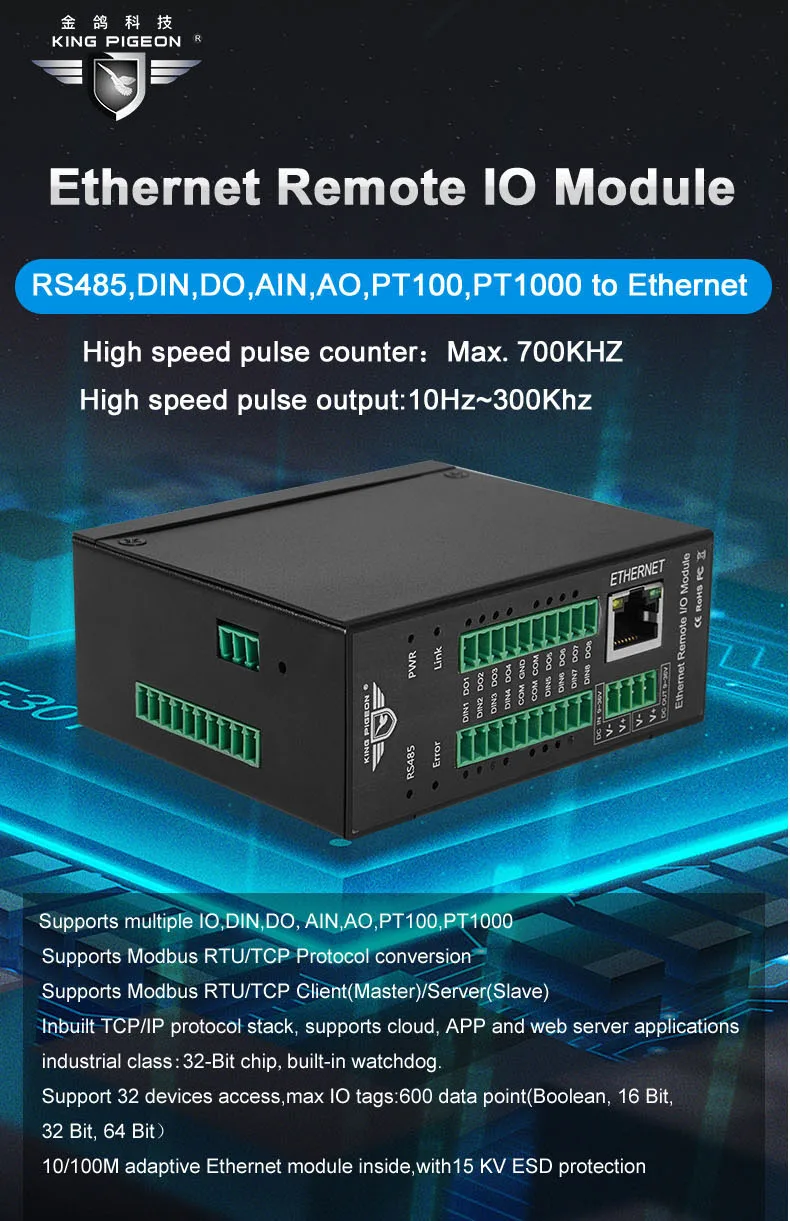

The M120T Ethernet Remote I/O Module is an industrial class, isolated designed, high reliability, high stability and
high precision data acquisition module, embedded 32-Bit High Performance Microprocessor MCU, Integrated 1 Industrial
10/100M adaptive Ethernet module inside. It provides multi I/O, supports standard Modbus TCP, can be intergraded into
SCADA, OPC server, and other automation systems. It is design for working in the harsh industrial application environment,

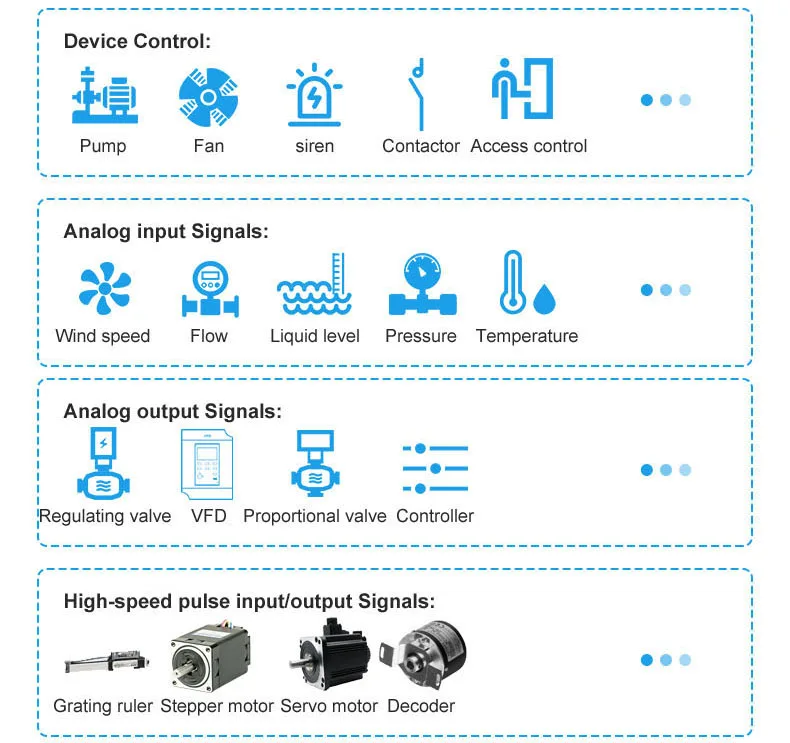

widely used in a variety of industrial automation, security monitoring system, automatically measurement and control system.

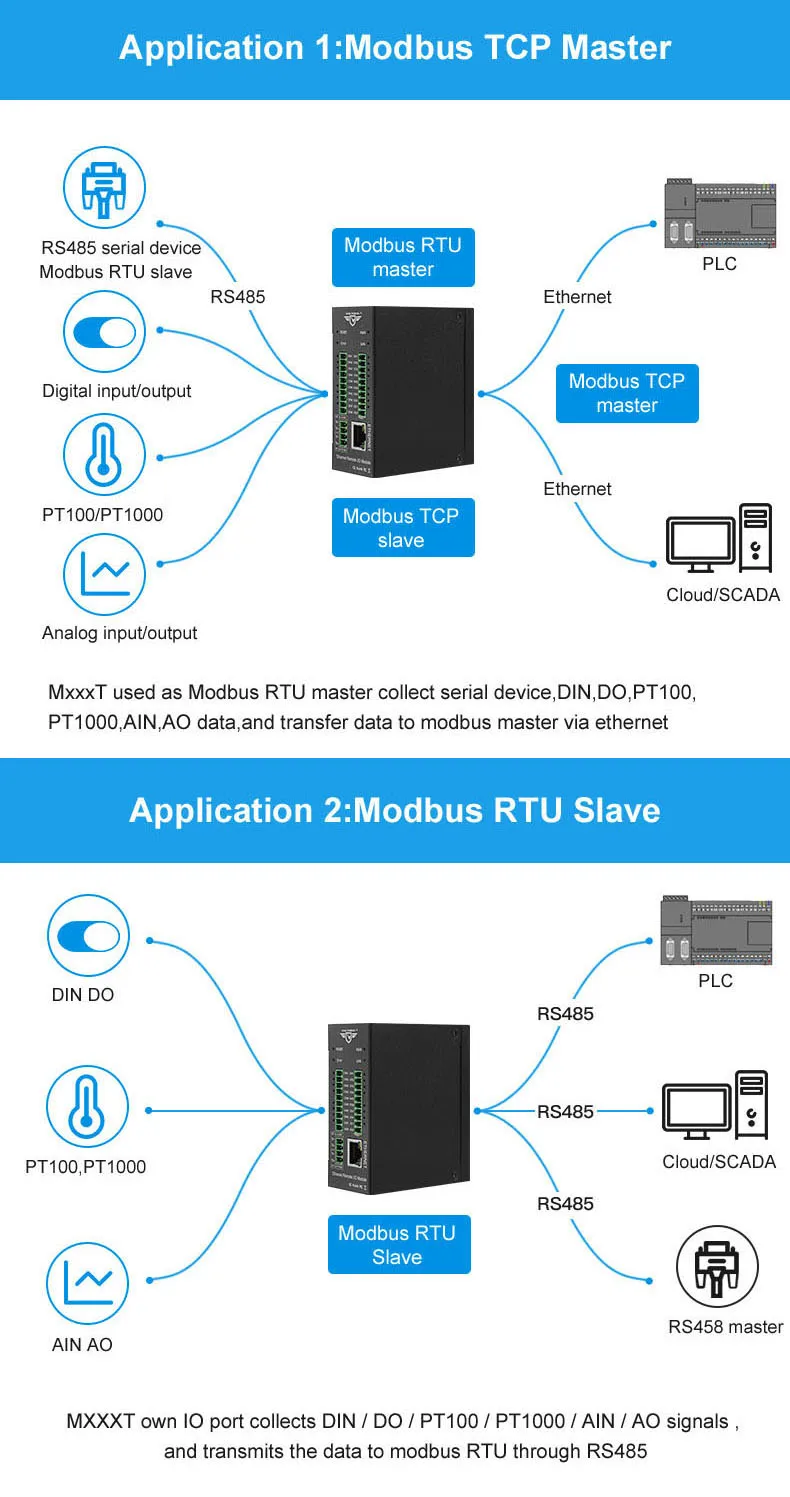

The M120T Ethernet Remote I/O module provides a RS485 interface, through the RS485 bus, it can cascade Modbus
RTU I/O devices or Modbus RTU meters, e.g.: a variety of digital input or digital outputs, analog inputs or outputs, thermal
resistance IO module combination, save costs. At the same time, the Ethernet Remote I/O module has register mapping function,

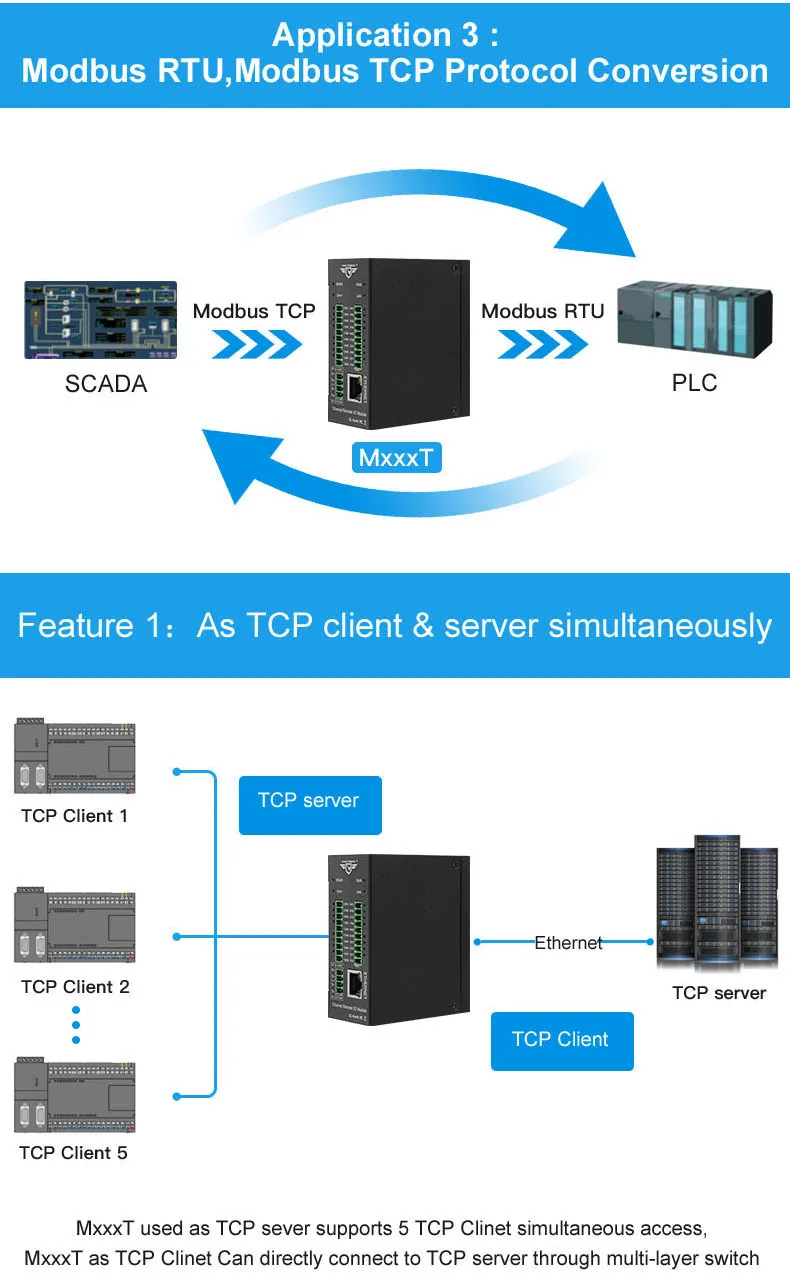

the cascade Modbus RTU I/O data are automatically collected to the mapping memory area, the Modbus TCP Client query
without waiting then can get a quick response to meet the industrial timely requirements.

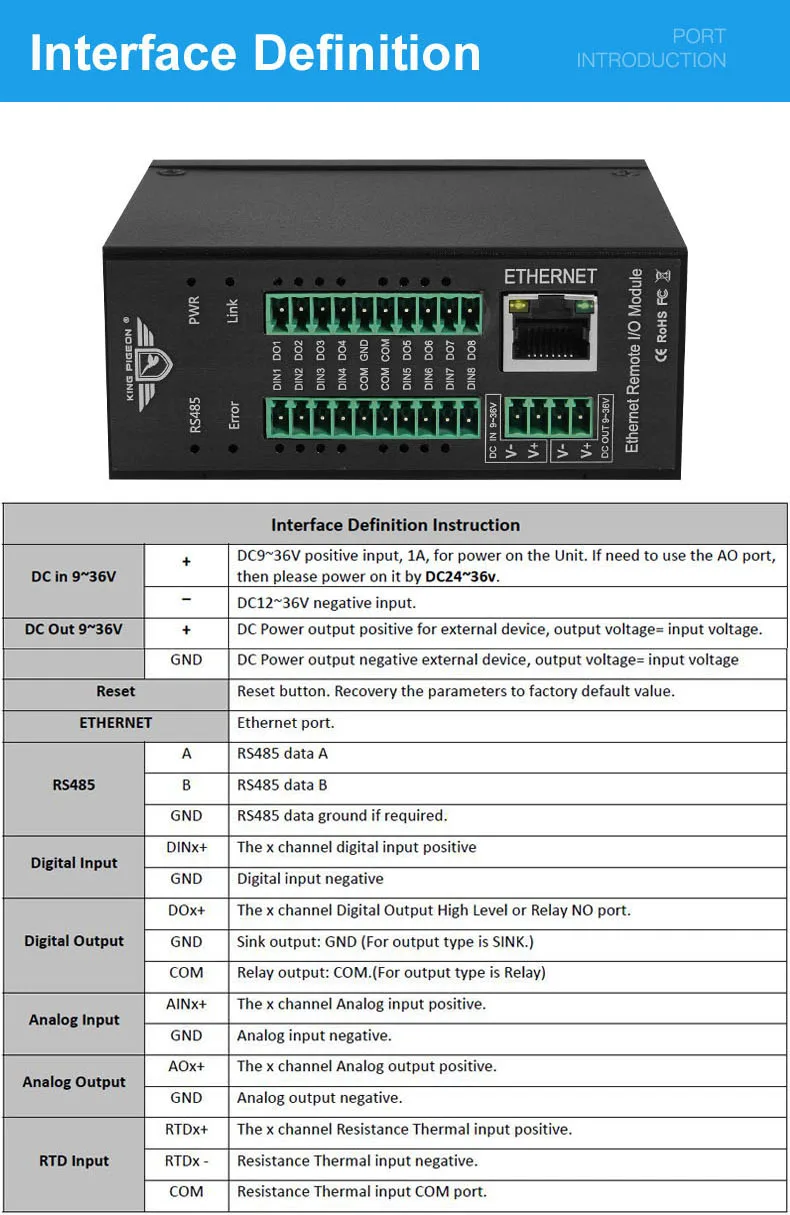

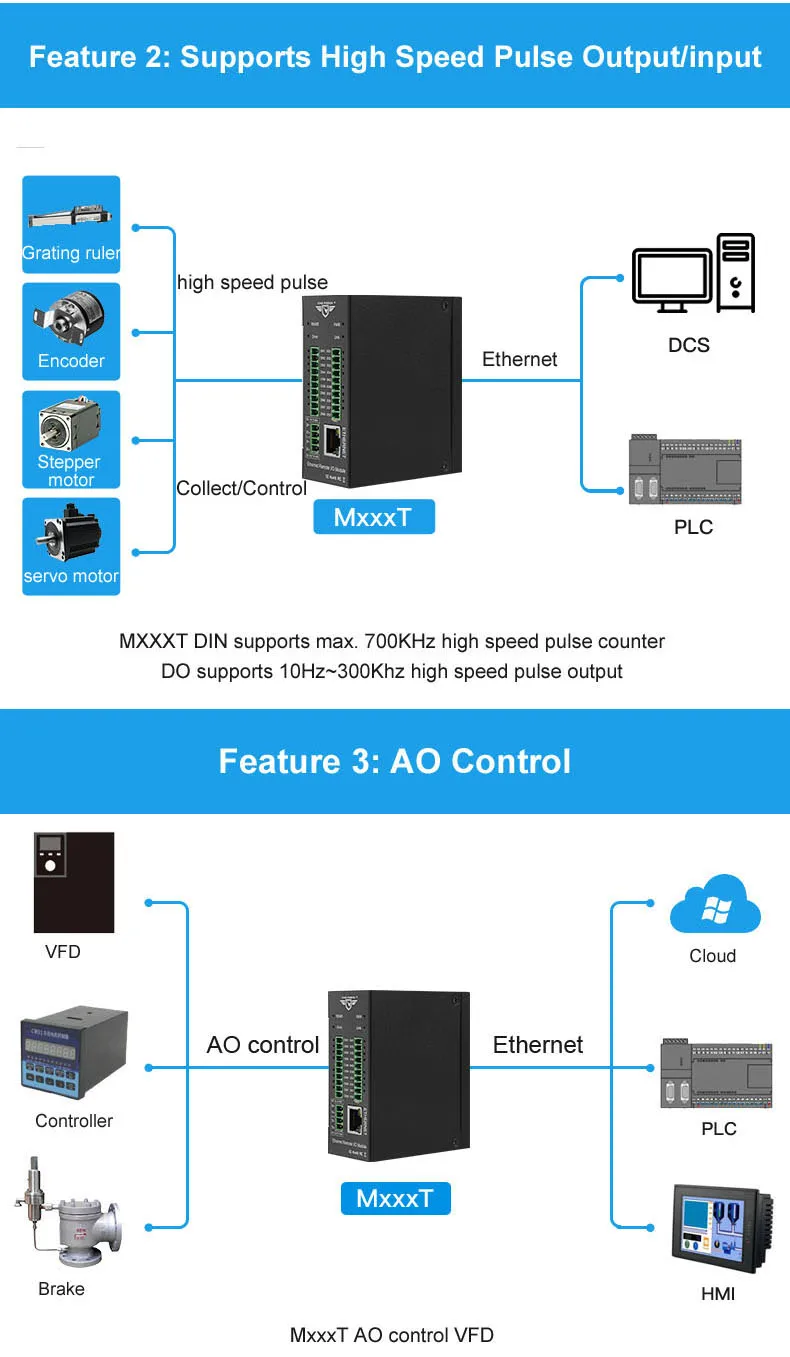

The M120T Ethernet Remote I/O module provides 4 optical-isolated digital inputs, supports max. 10MHz high speed pulse counter,4 isolated 12bits analog inputs, supports 0~5V,0~10V,4~20mA,0~20mA analog signal, 4 digital outputs, supports 10Hz~300KHzhigh speed pulse output or relay outputs, 2 channel 12bits analog outputs, supports 0~10VDC signal output. All of the I/O withhigh sampling frequency and special filtering strategy to ensure it’s reliable.


Embedded 32-Bit High Performance Microprocessor MCU, inbuilt watchdog;
Wide range power supply 24 ~ 36VDC with over voltage and phase-reversal protection;
Integrated 10/100M adaptive Ethernet module, supports Modbus TCP protocol;

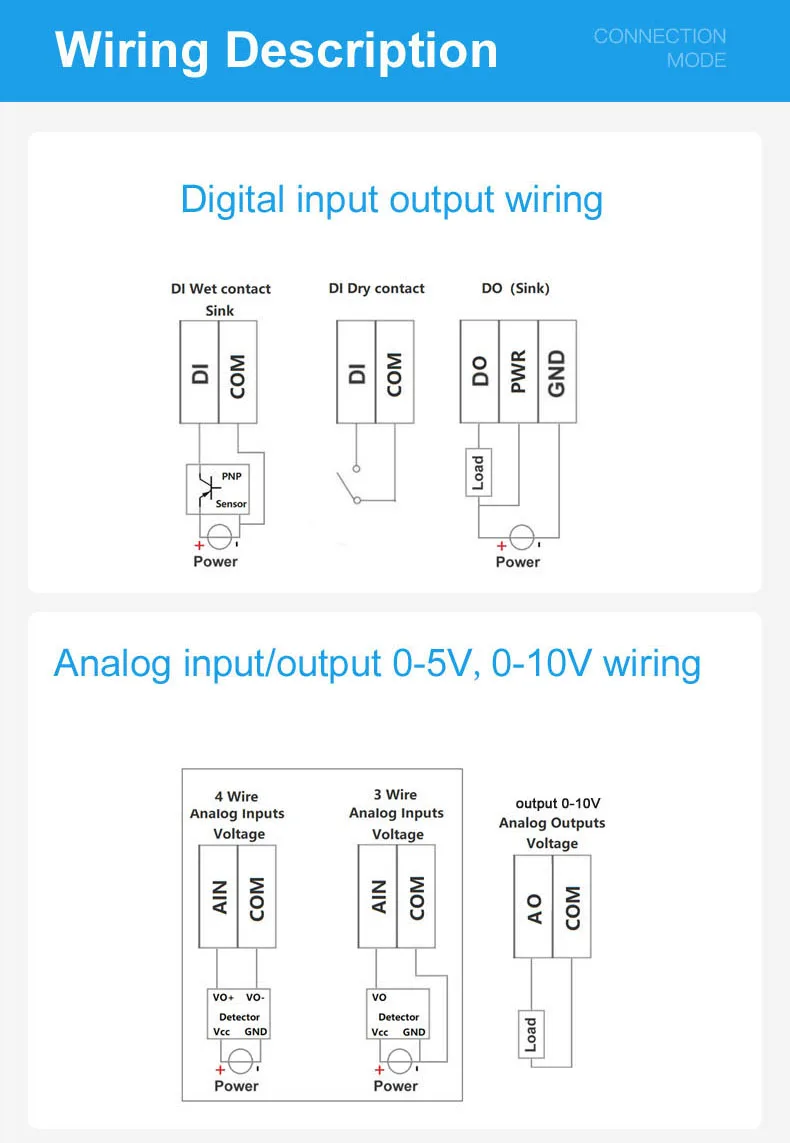

4 optical isolated digital input, supports max. 10MHz high speed pulse counter;

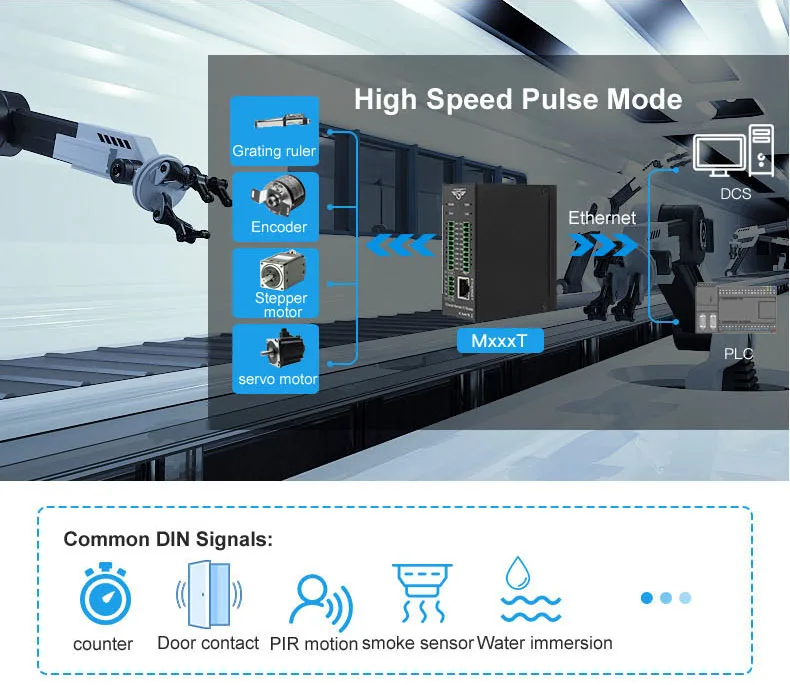

4 digital output or relay output, supports 10Hz~300KHz high speed pulse output;

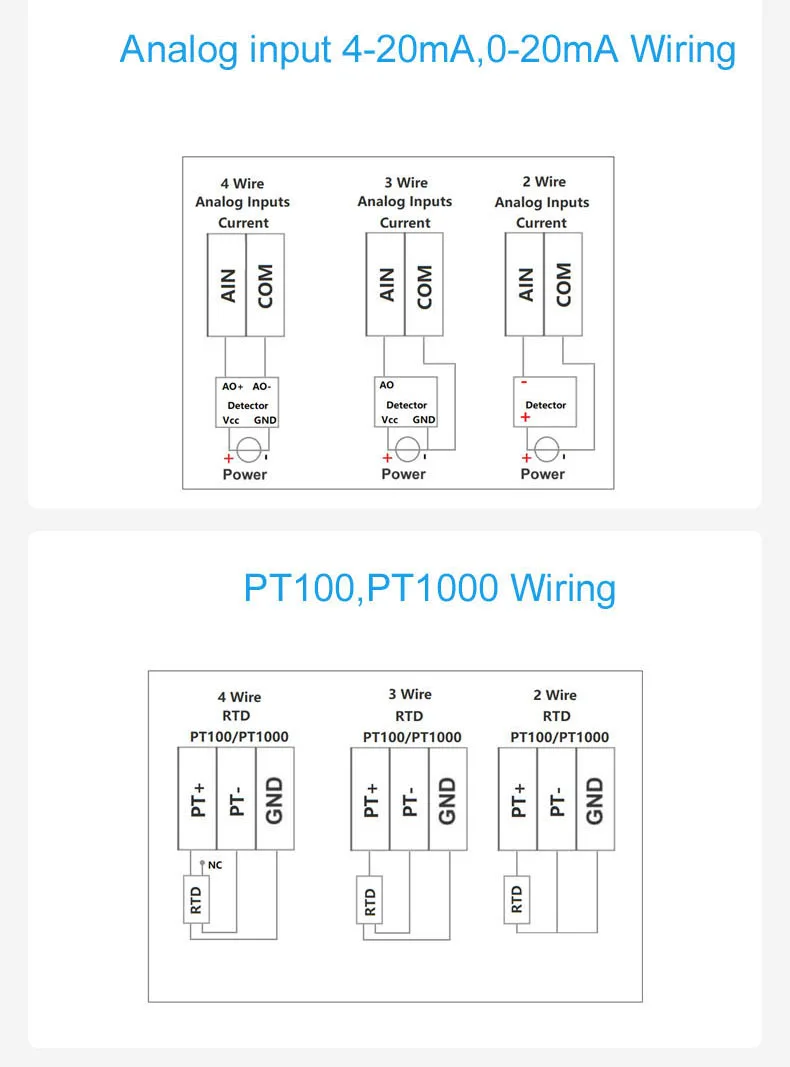

4 isolated analog input, 12-bit resolution, supports 0~20mA,4~20mA,0-5VDC, 0-10VDC;
2 analog output, 12-bit resolution, supports 0-10VDC;
High sampling frequency and special filtering strategy to ensure reliability;
1 RS485 Serial port, supports Modbus RTU/ASCII Master, can extend I/O modules;
Supports register mapping function and extend I/O inquiry strategy;
Provides 1 channel 24~36VDC power source output for external device, saving wiring cost;
LED instructions work status, with reset button to reset, easy on-site installation and commissioning;

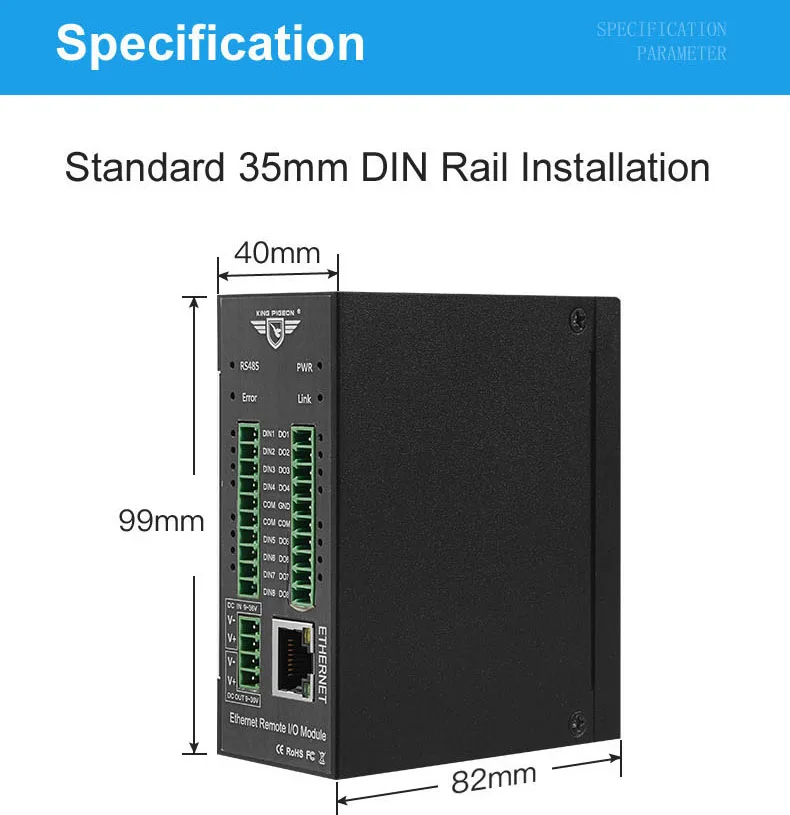

Using metal shell, protection class IP30. Metal shell and system security isolation, especially suitable for industrial applications
in the field;
1* Remote IO Module M120T
