Mini RFID Reader Mobile Phone Card Reader IC Read and Write USB Interface Support Android System
(No reviews yet)
Write a Review
- SKU:
- 4TX1-B7MC-0NGK
- MPN:
- R65C
- Weight:
- 0.10 KGS
Description

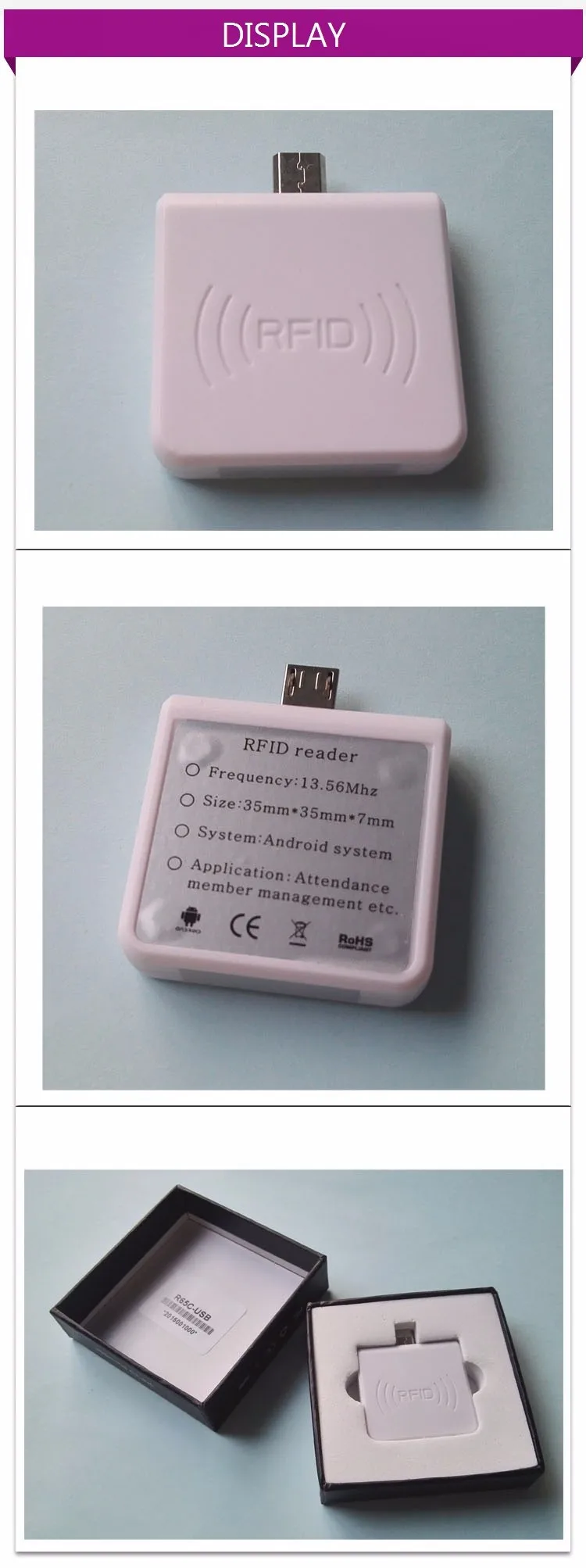

13.56MHz Mini RFID Reader Mobile Phone IC Card Reader USB Interface Support Android System
This product is a RFID reader which can directly collecting data from RFID card via Mobile phone. This reader do not need any driver and other media.Its optional frenquency is 125KHz or 13.56MHz, using microelectronics RF receiver module and embedded micro controller, combined with an efficient decoding algorithm and advanced data processing technolog.
Product specifications:
Name: Mobile phone RFID Reader
Model: R65C
Operating frequency: 13.56MHz
Support card: Mifa** ETC
Operating system: Android (need to support OTG)
Size (without interfaces): 35mm × 35mm × 7mm
Package size: 71mm × 71mm × 19mm
Reading distance: 0-30mm (front / rear reading); 0-10mm (side reading)
Reading Time: <0.5s
Reading interval: 0.3S
Communication Interface: Mini USB Interface
Operating Voltage: 5V
Operating Current: 100mA
Weight: 20G
Working temperature: -10 °C ~ 60 °C
Humidity: 5% ~ 95%
Status Indicator: dual LED ( "blue" --- power indicator, "green" --- status indicator)
Application: Attendance member management etc.
